Audiovox D1501 Manuale utente

D1501D1501

D1501

PORTABLE 5.8" LCD MONITOR & DVD PLAYER

A. Introduction

ThankyouforselectingtheDV1501portableDVDplayer.The main

featuresinclude a5.8"WideScreen(16:9AspectRatio)LiquidCrys-

tal Display (LCD) monitor and a DVD player.The unit applies the

latest state of the art electronics and is designed for use in hotels,

offices or your home. The unit is constructed to provide years of

reliable,trouble-freeservice,and iscompact so that youcan takeit

withyou anywhereand isdesignedfor quickandeasy installation.

Pleasereadtheentire instructionmanual supplied withthis product

priortooperation.Thedocumentationwillassistyouin installing the

systemproperlytoobtainthebestequipmentperformance. Allmanu-

alsshouldbestored forlater use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rainor moisture.Donot placetheset onan unstable cart,stand,

tripod,bracketortabletopreventitfromfalling.Keeptheunitaway

fromstrongmagnets,heatsources,directsunlight,excessivedust.

Iftheunit isbrought directlyfrom acoldtoa warmlocation, mois-

turemaycondenseinsidethe unit. Whenyoumove it fromacold

to a warm location, wait for about one hour before operating the

unit,orremovethediscandleavetheunitturnedonuntilthemois-

ture evaporates.

2. Installation

Ensurethat theD1501isinstalledinaccordancewiththeinstruc-

tionsandillustrationsprovidedinthismanual.

3. Object and Liquid

Donot pushobjectsofanykindintotheunit throughopenings;do

not spill or spray liquid of any kind on or in the system (this may

resultin afire orelectricshock). Do notplaceanythingheavy on

theunit.To ensureproperventilationandproper operation,never

coverorblocktheslotsandopeningswithaclothorothermaterial.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

Whencleaning, makesurethesystem isunplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

C. Contents

1.1x5.8’’LCDMonitor&DVDPlayerCombo

2.1xACtoDCAdapter

3.1xRechargeableBattery

4.1xRemoteControl

5.1xInstructionManual

6.1xAudioCableP/N112B3082

7.1xVideoCableP/N112B3083

8.1xAudio/VideoCableP/N112B3267

D. Powering and installation

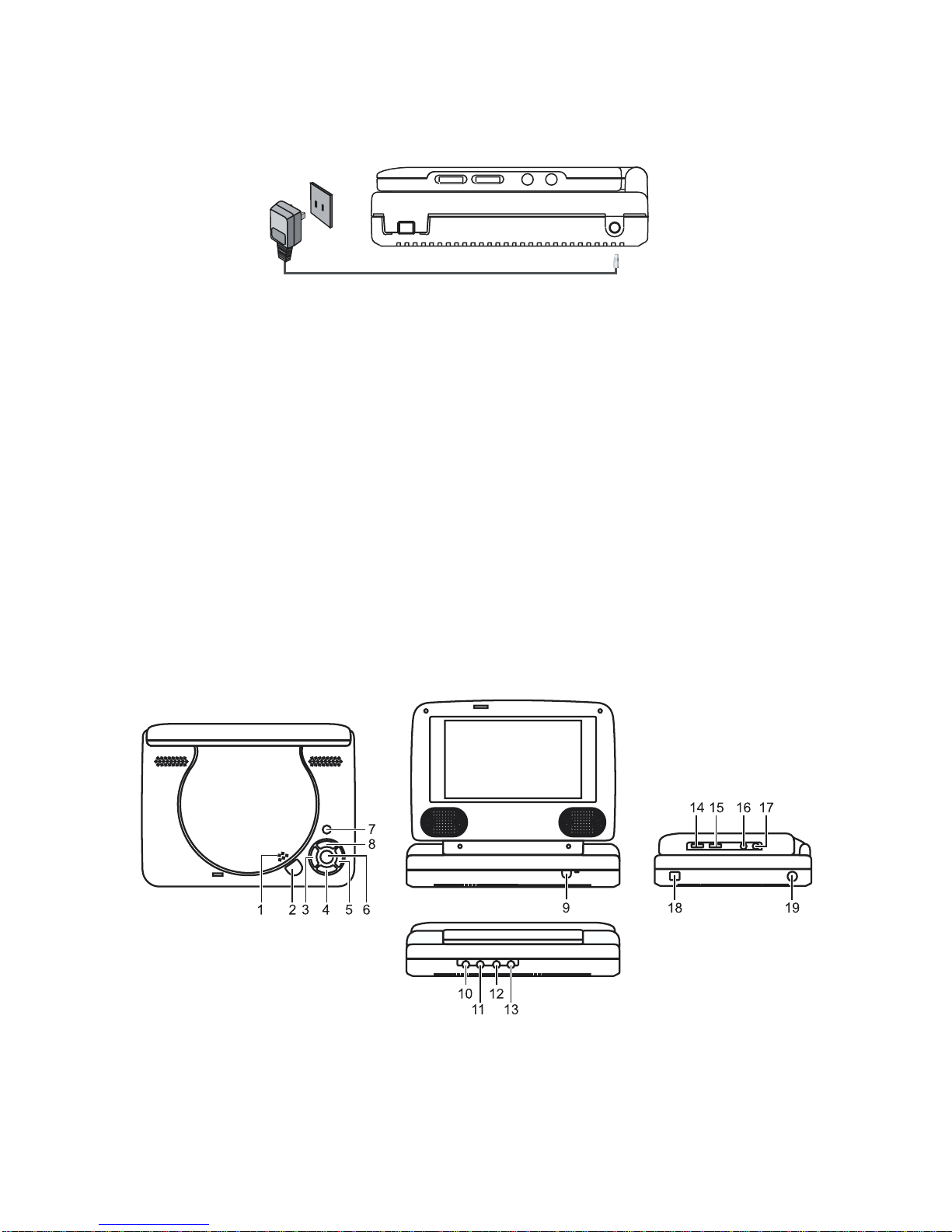

1. Powering the system indoors (Refer to Figure 1)

PlugoneendoftheACtoDCadapterintothe DC9Vjack

ontherightsideofthemainunit,thenplugthe other endinto

the110V ACpowerreceptacle.

Figure 1

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 2)

Figure 2

1) CloseButton on Disccover

2) Openbutton

3) PreviousButton

4) StopButton

5) NextButton

6) PlayButton

7) Screen (WIDE)Button

8) PauseButton

9) RemoteControlSensor

10) DVD VideoOutputJack

11) DVDAudioL+R OutputJack

12) VideoInputJack

13) AudioL+R InputJack

14) VolumeUp/DownThumbwheel

15) BrightnessUp/DownThumbwheel

16) HeadphoneInputJack 1

17) HeadphoneInputJack 2

18) PowerOn/Off Switch

19) DC9V InputJack

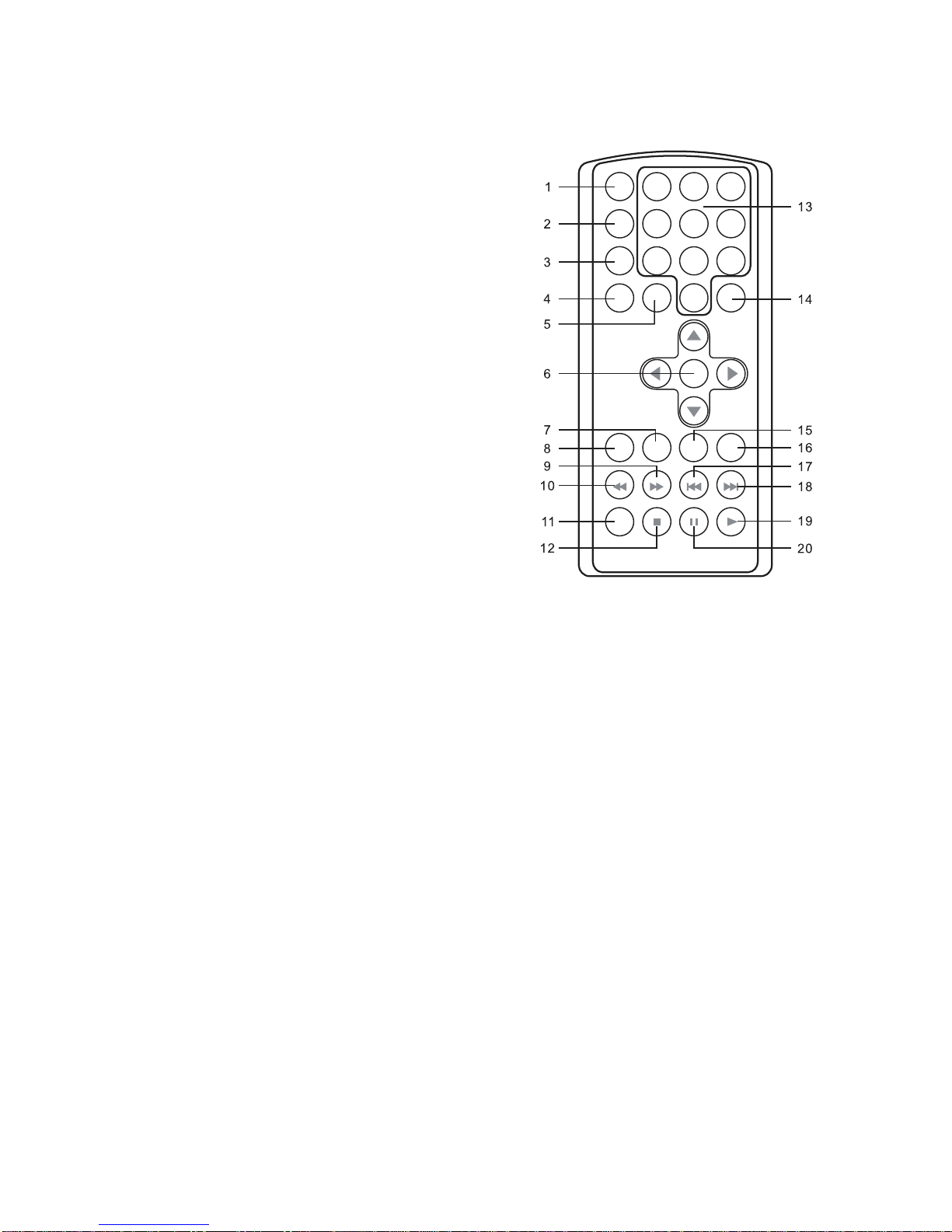

2. Remote Control View (Refer to Figure 3)

1) DisplayButton

2) AngleButton

3) SubtitleButton

4) AudioButton

5) ZoomButton

6) Up/Down/Left/Right/EnterButtons

7) ReturnButton

8) A-BButton

9) ForwardButton

10) ReverseButton

11) Slow Button

12) StopButton

13) NumberButtons

14) SetupButton

15) MenuButton

16) RepeatButton

17) Previous Button

18) Next Button

19) Play Button

20) Pause Button Figure 3

F. Loading and Playing a Disc

a. Afterconnectingpower totheunit,slidethe POWERON/OFF

ontheright side toON, the DVDplayer’s POWERindicator

lights.

b. Openthe disctrayby pressingOPEN at thelower rightof the

disctray, and placea discintothetraywith thedisc’slabelfac-

ingup.

c. PressCLOSEattherightsideof thetraydooruntilitclicksshut.

Theunitwillloadthediscandstartplaying by pressing PLAY

locatedeitherontherightsideofthedisctrayorontheremote .

d. RotateBRIGHTandVOLUMEtoadjust the LCD’s brightness

and the DVD player’s volume.

e. Tostop playinga disc,pressSTOP.

f. Toturn offthe DVDplayer,slide POWERON/OFF toOFF.The

DVD player’s POWER indicator turns off.

g. Toremovethedisc,openthedisctray,then youwillseeapicture

on the right inner corner of the cover to indicate how to remove

the disc, just use your finger to access the right inner corner of

thedisctray andliftupthe discand removeitfromthe disc

tray.PleaserefertoFigure4.

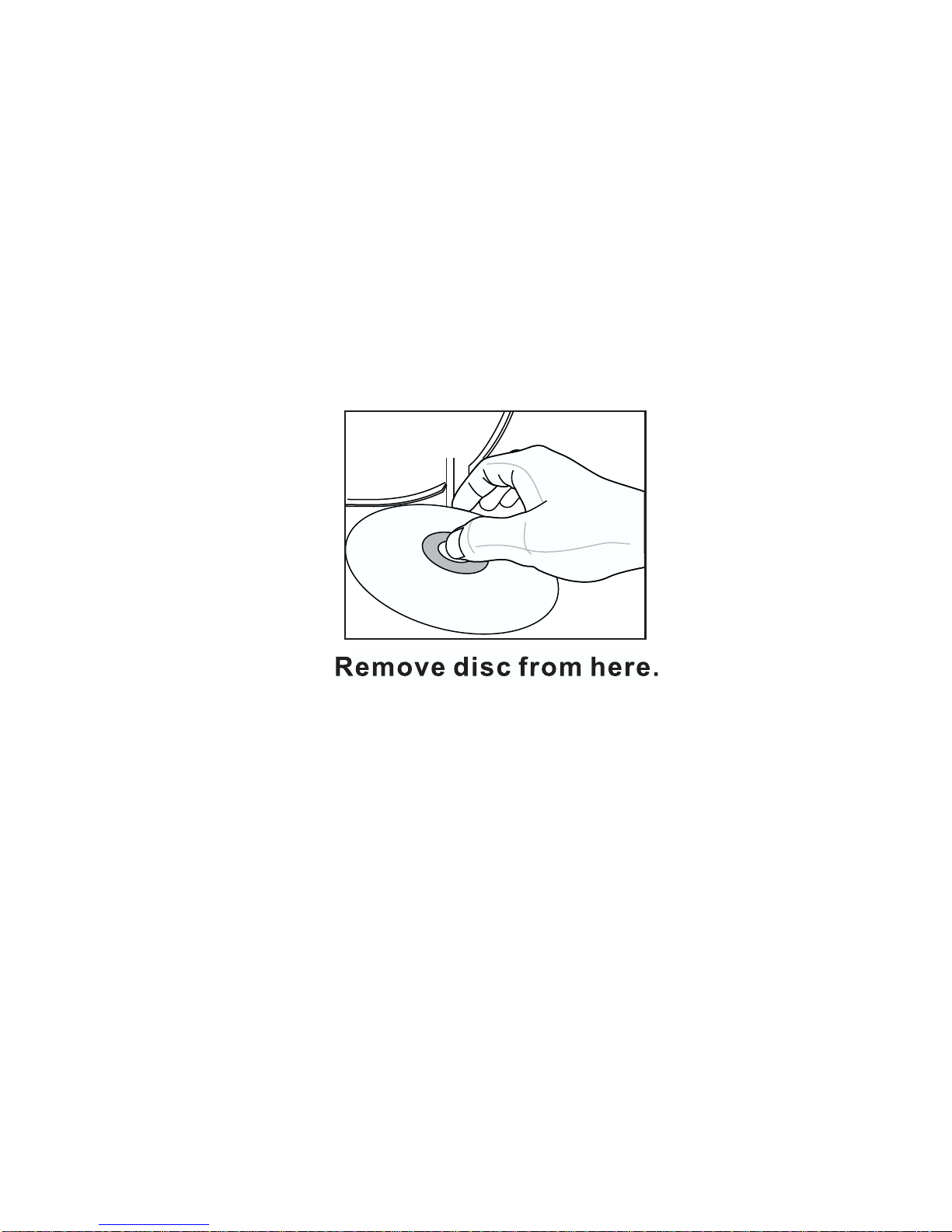

Figure 4

G. SETUP

Press ‘SETUP’ to display the Main screen of the SETUP Menu on

the screen. Press ‘SETUP’ again to exit the SETUP Menu and

the unit will resume it’s last playback or stop mode.

1) Select ‘GENERAL SETUP’ using the UP/DOWN buttons, then

press ‘ENTER’ to enter the GENERAL Setup screen.

a. Select TV DISPLAY using UP/DOWN, and then press RIGHT

to enter the submenu. Select the TV display mode on the

screen using UP/DOWN, and press ENTER to confirm the

setting. Press LEFT to return.

* NORMAL/PS: When the player is connected to a normal

TV, and a wide picture is shown on the full screen.

* NORMAL/LB: When the player is connected to a normal TV,

and a wide picture is shown on the screen with a black strip at

both the top and bottom of the screen.

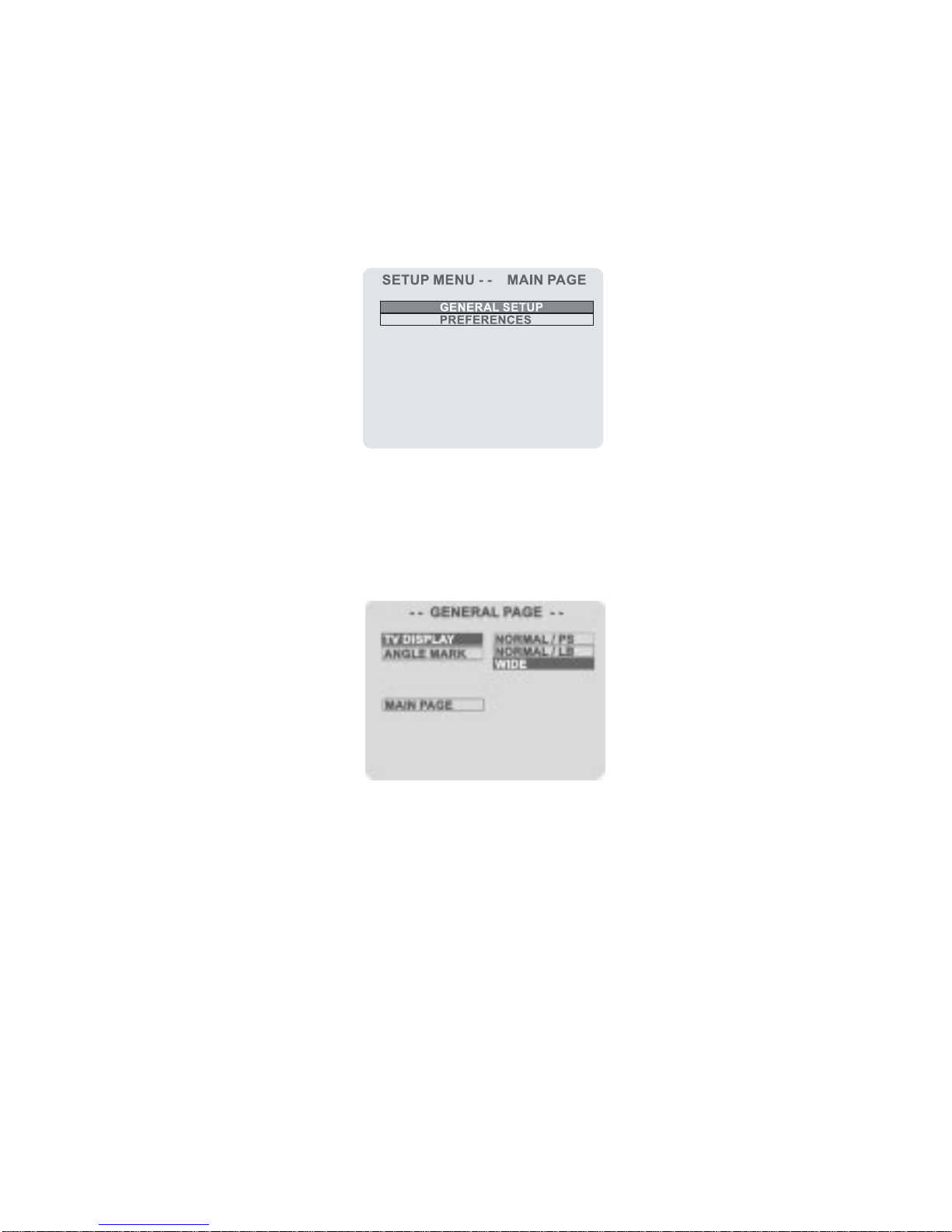

Figure 6. General SETUP Menu Screen

Figure 5. Main SETUP Menu Screen

* WIDE: When the player is connected to a wide screen

TV, a wide picture is shown on the full screen.

b. Select‘ANGLEMARK’usingUP/DOWN,andthenpress

the RIGHT button to enter the submenu. Choose Angle

Markon or off displayed onthe screen usingthe UP/DOWN

and then press ENTER to confirm the setting. Press the

LEFT button to return.

* ON: The screen will show angle mark.

(*If angle option is available)

OFF: The screen will not display theAngle Mark

c. Select‘MAINPAGE’usingUP/DOWN,andthenpressENTER

to return to the main page.

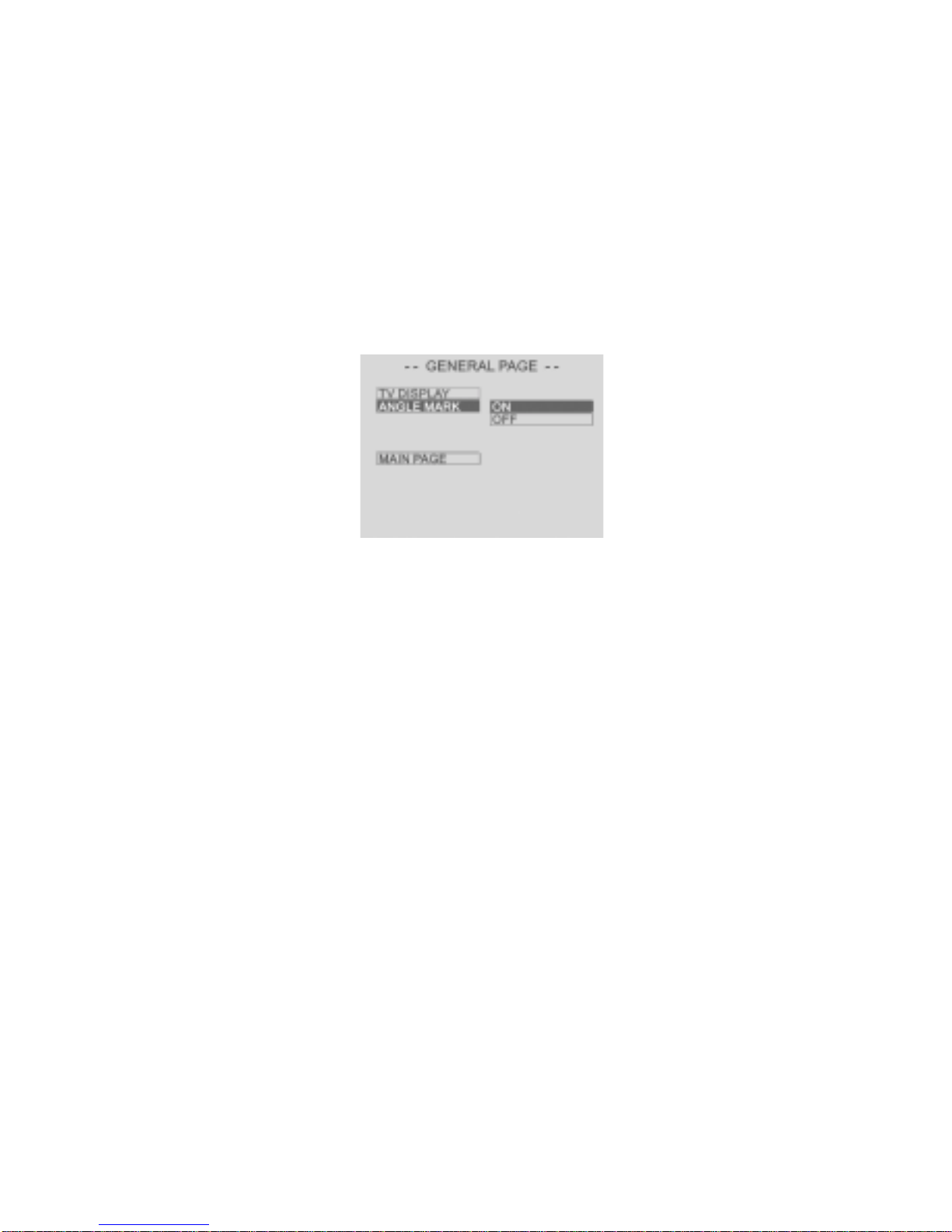

Figure 7. ANGLE MARK Screen Display

*NOTE: The DVD player will enter the Screen Saver mode after

5 minutes if the image on the screen remains the same for

more then 5 minutes.

2) Whenthereis no discinsidetheplayerselect ‘PREFERENCES’

usingUP/DOWN, thenpress‘ENTER’ to enter the preferences

page.

a. Select ‘AUDIO’ using UP/DOWN, then press ‘RIGHT’ to

enterthesubmenu.Selecttheaudiolanguageyoudesireusing

UP/DOWN, then press ‘ENTER’ to confirm the setting.

Press LEFT to return.

b. Select ‘SUBTITLE’ using UP/DOWN, then press RIGHT

toenter the submenu. Selectthe desired subtitlelanguage or

SUBTITLE OFF using UP/DOWN, then press ‘ENTER’

to confirm the setting. Press ‘LEFT’ to return.

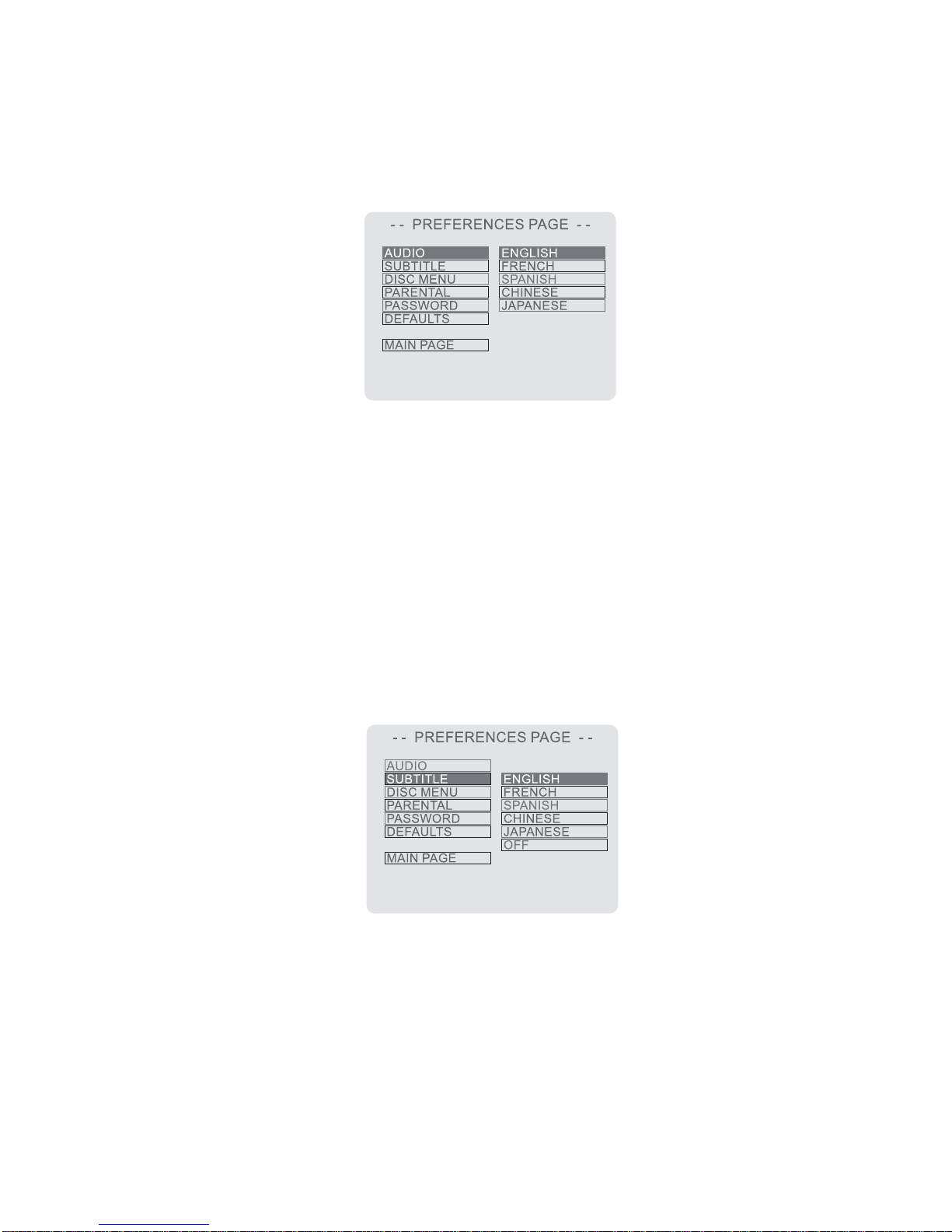

Figure 8. AUDIO Preference Screen Display

Figure 9. SUBTITLE Preference Screen Display
