Audiovox VBP50 Manuale utente
VBP50
PORTABLE 5" LCD MONITOR & DVD PLAYER
2
Notice:
This Product incorporates copyright protection technology that is pro-
tected by method claims of certain U.S. Patents and other intellectual
property rights owned by Macrovision Corporation and other rights own-
ers. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited view-
ing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
3
A. Introduction
Thank you for selecting the VBP50 portable DVD player in a bag. The
main features include a 5" Screen (4:3 Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
or your home. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhere and is designed for quick and easy installation. Please
read the entire instruction manual supplied with this product prior to
operation. The documentation will assist you in installing the system
properly to obtain the best equipment performance. All manuals should
be stored for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit away
from strong magnets, heat sources, direct sunlight, excessive dust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. Installation
Ensure that the VBP50 is installed in accordance with the instruc-
tions and illustrations provided in this manual.
3. Object and Liquid
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
cover or block the slots and openings with a cloth or other material.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
4
5. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x 5’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Remote Control w/Battery
4. 1 x Instruction Manual
5. 1 x Audio/Video Input Cable
6. 1 x Audio/Video Output Cable
7. 1 x Cigarette Lighter Adapter
8. 1 x Mounting Bag w/Straps
9. 1 x Carrying bag
OPTIONAL:
Rechargable Battery Pack - No. VBB5058
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack
on the right side of the main unit, then plug the other end into
the 120V AC power receptacle.
5
2. Powering the system in a car
Plug one end of the cigarette lighter adapter into the
DC 9V jack on the unit, then plug the other end into
the cigarette lighter socket.

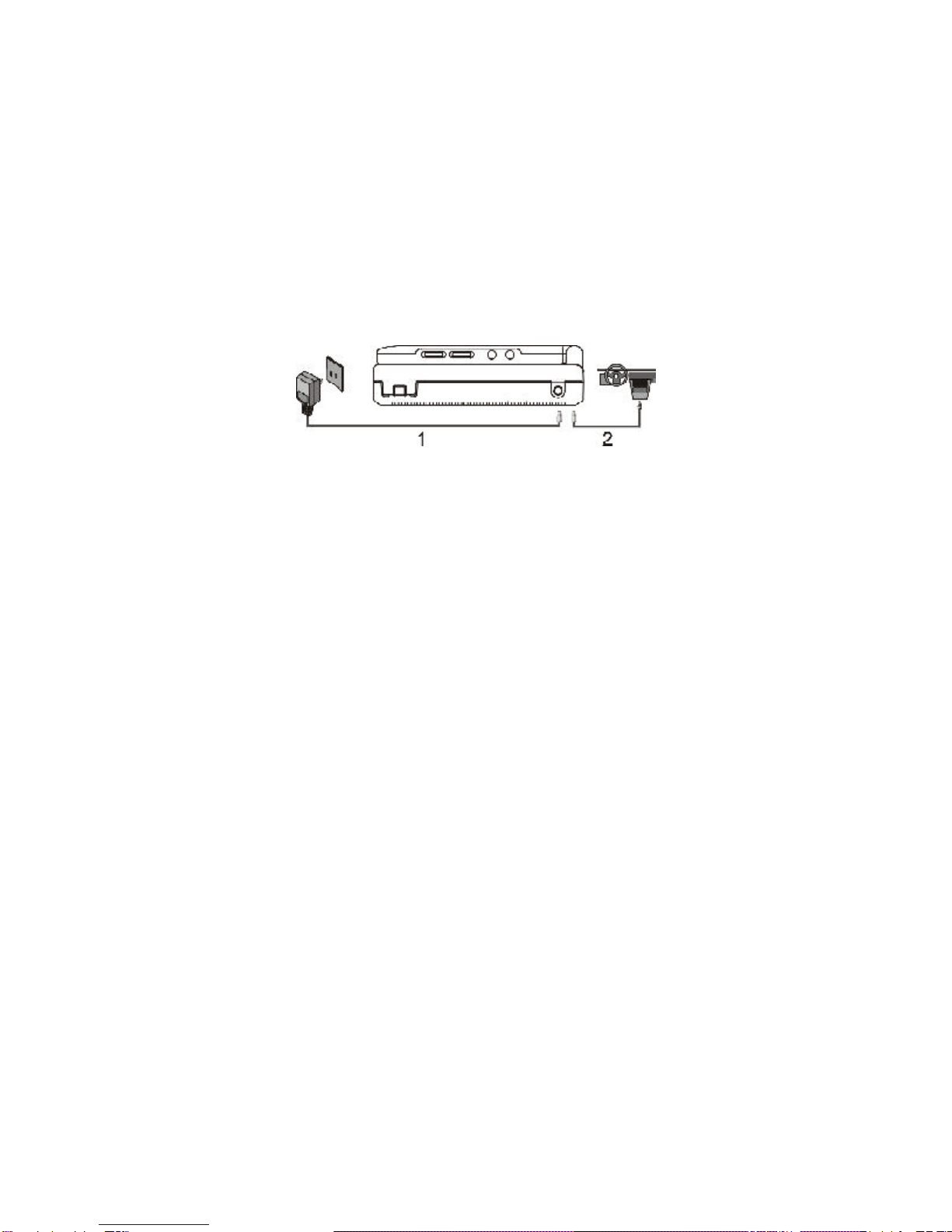

Figure 1
3. Powering the system with optional rechargeable Battery
Please refer to L. * Rechargeable Battery Installation and Use
(Page 29 to page 31).
* Rechargable Battery Pack No. VBB5058 is OPTIONAL
E. Installation Prior to installation
Make sure that the unit is placed into the bag with the clear plastic
covering around DVD door, Load disc into the DVD compartment
and then fasten the Velcro strap accross the top portion of the unit.
If you are installing the bag onto the seatback you will need to attach
the supplied Seat Standoff to the back of the mounting bag with the
Velcro bands to obtain the proper viewing angle as shown in Figure
6
1). Take one of the supplied straps from the carrier bag. Con-
nect the latch to one of the upper metal rings on the mounti
ng bag. Connect the “S” hook to the other upper metal ring
and place the loop over the headrest. Adjust the strap until
the bag is firmly secured.
2). Take another strap from the carrier bag, and connect the latch
to the lower metal ring on the left side of the bag. Attach the
“S” hook to the same ring after looping the strap around the
seat rail. Repeat this process for the right side. In some
vehicles, it may be necessary to attach the “S” connector to
the rail directly, as it may not be long enough to reach back to
the ring.
3). Adjust the straps tightly so that the bag is secured.
Figure 2.

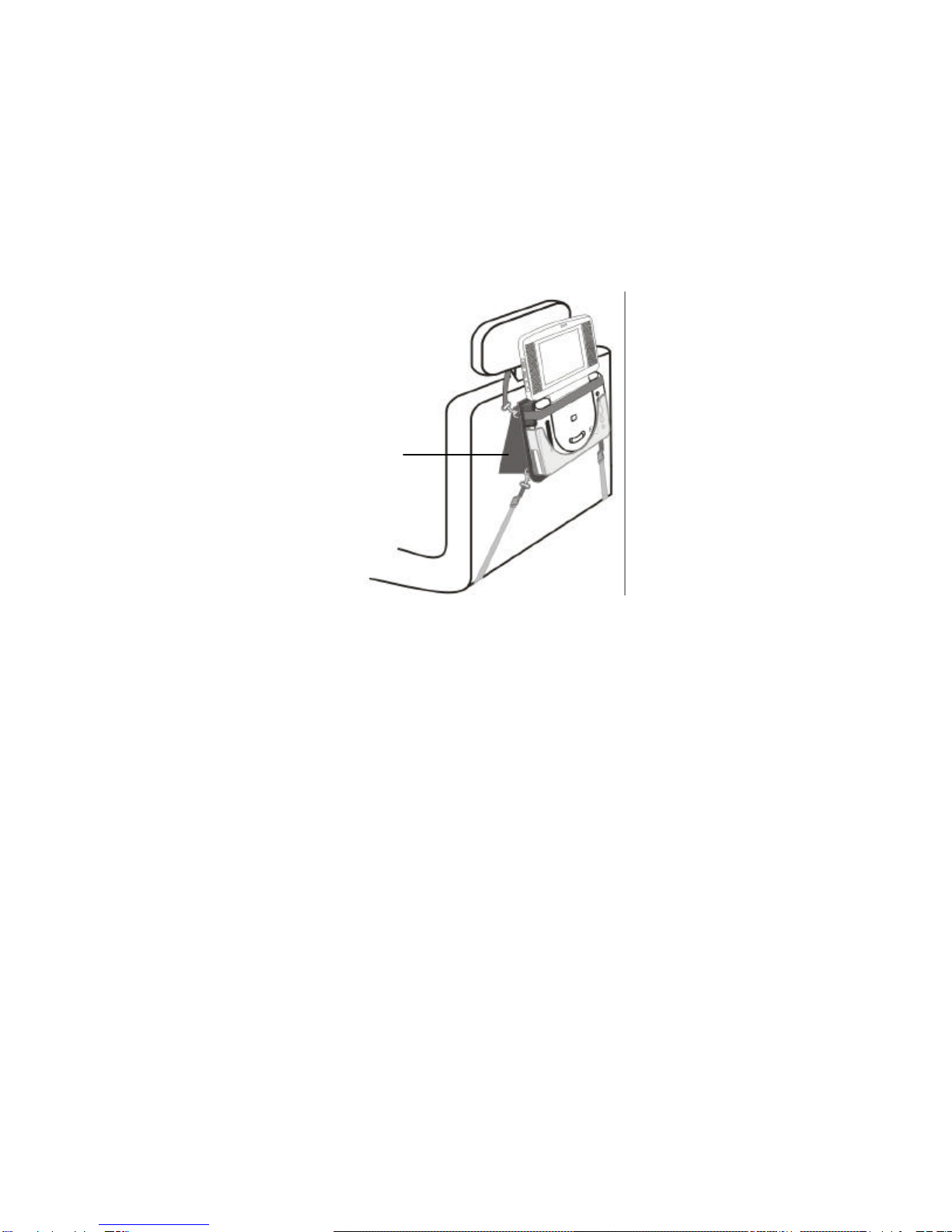

1.Installing the System onto the seat back in a car
(Refer to Figure 2)
Seat Standoff
7
2. Installing the system between the driver/passenger seat
(Refer to Figure 3)

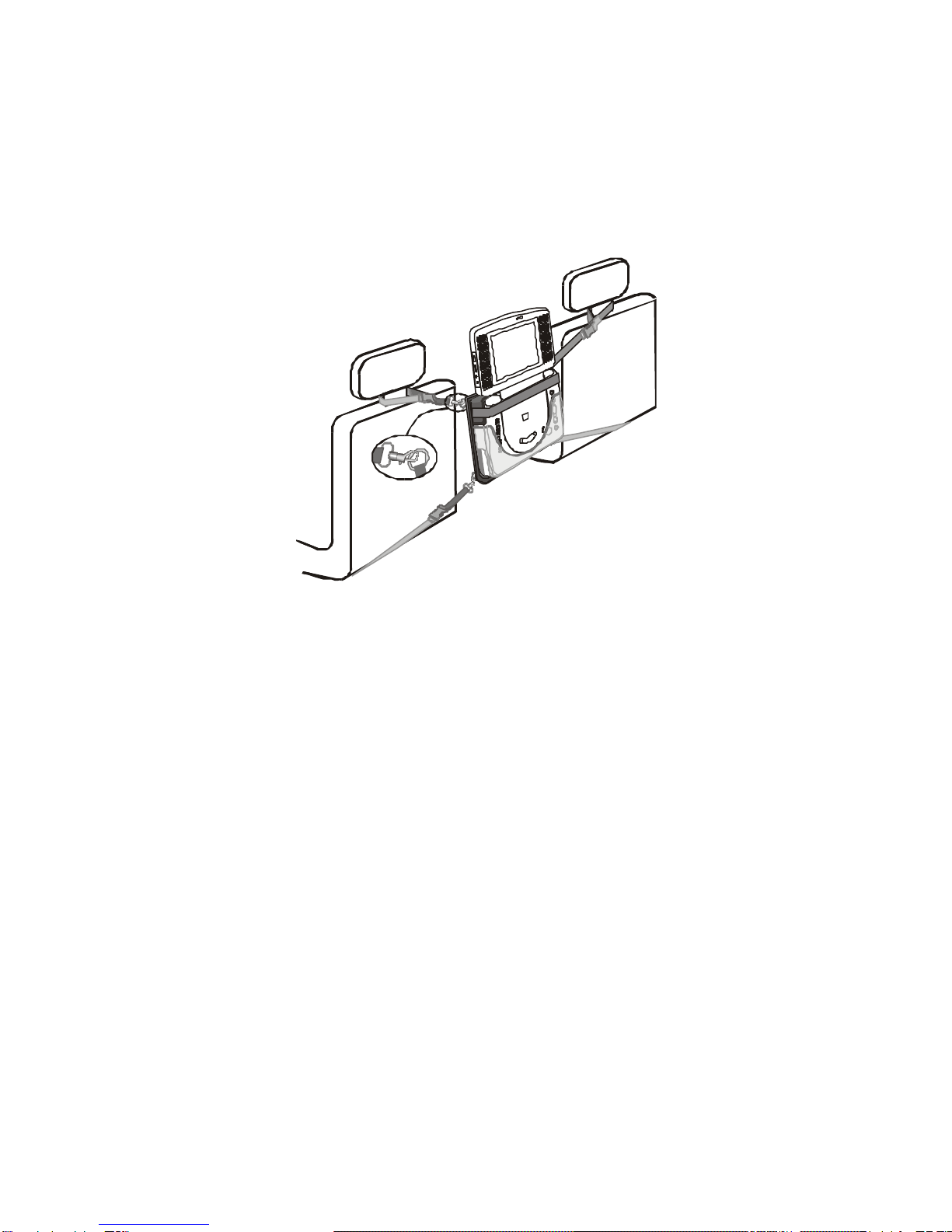

Figure 3.
1). Take one strap and connect the latch to the upper metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the headrest of the driver’s seat.
Repeat this process for the right side (Passenger Seat).
2). Take another strap and connect the latch to lower metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the driver’s seat rail. Repeat this
process for the right side. In some vehicles, it may be neces-
sary to attach the “S” connector directly to the rail, as it may not
be long enough to reach back to the ring.
3). Adjust the straps tightly so that the bag is secured.
8
1) Press-to-Close Button on Disc cover
2) Open button
3) Previous Button
4) Stop Button
5) Next Button
6) Play Button
7) Display Button
8) Pause Button
9) Remote Control Sensor
10) DVD Video Output Jack
11) DVD Audio L+R Output Jack
12) Video Input Jack
13) Audio L+R Input Jack
14) Brightness +/- Thumbwheel
15) Volume +/- Thumbwheel
16) Headphone Input Jack 1
17) Headphone Input Jack 2
18) Power On/Off Switch
19) DC 9V Input Jack

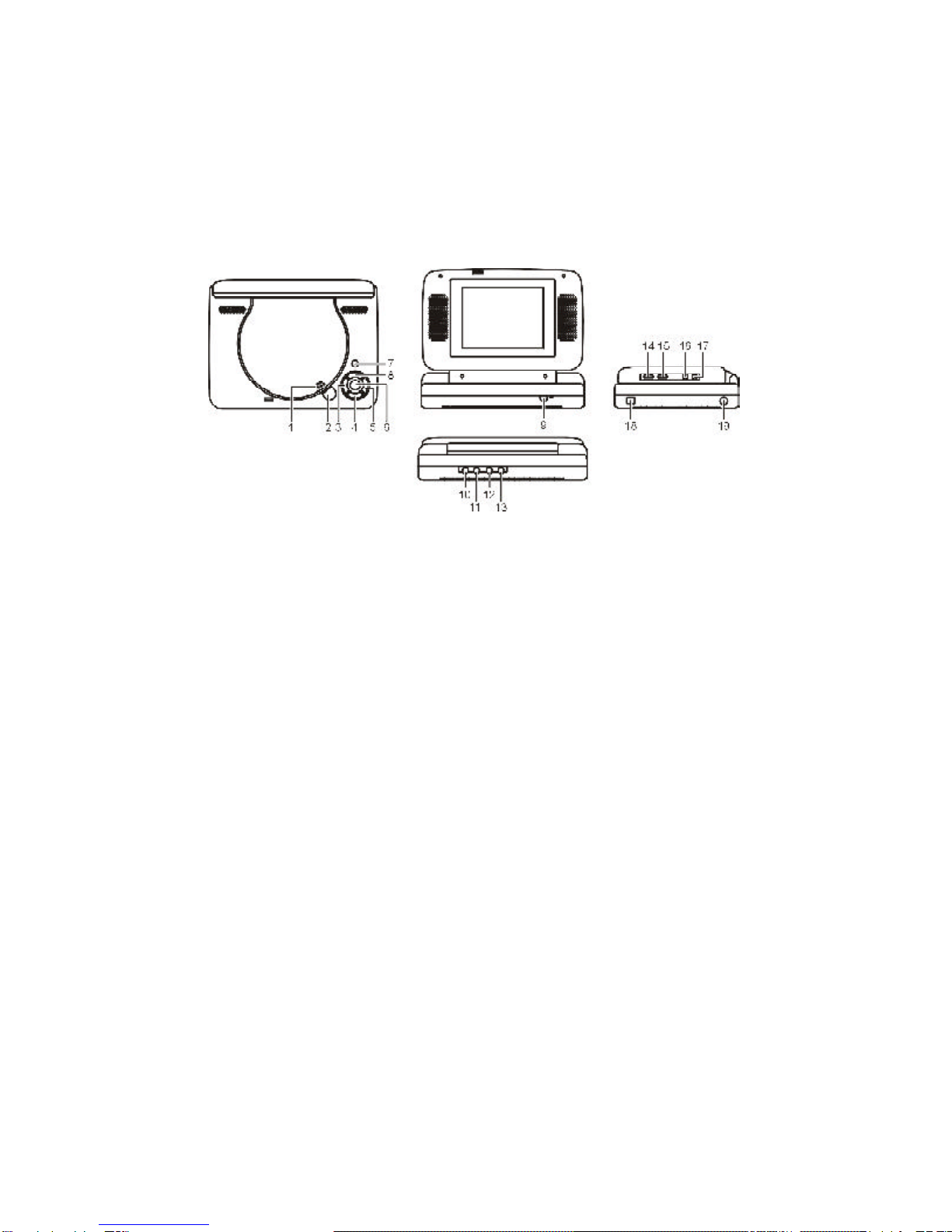

E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 4)
Figure 4
9

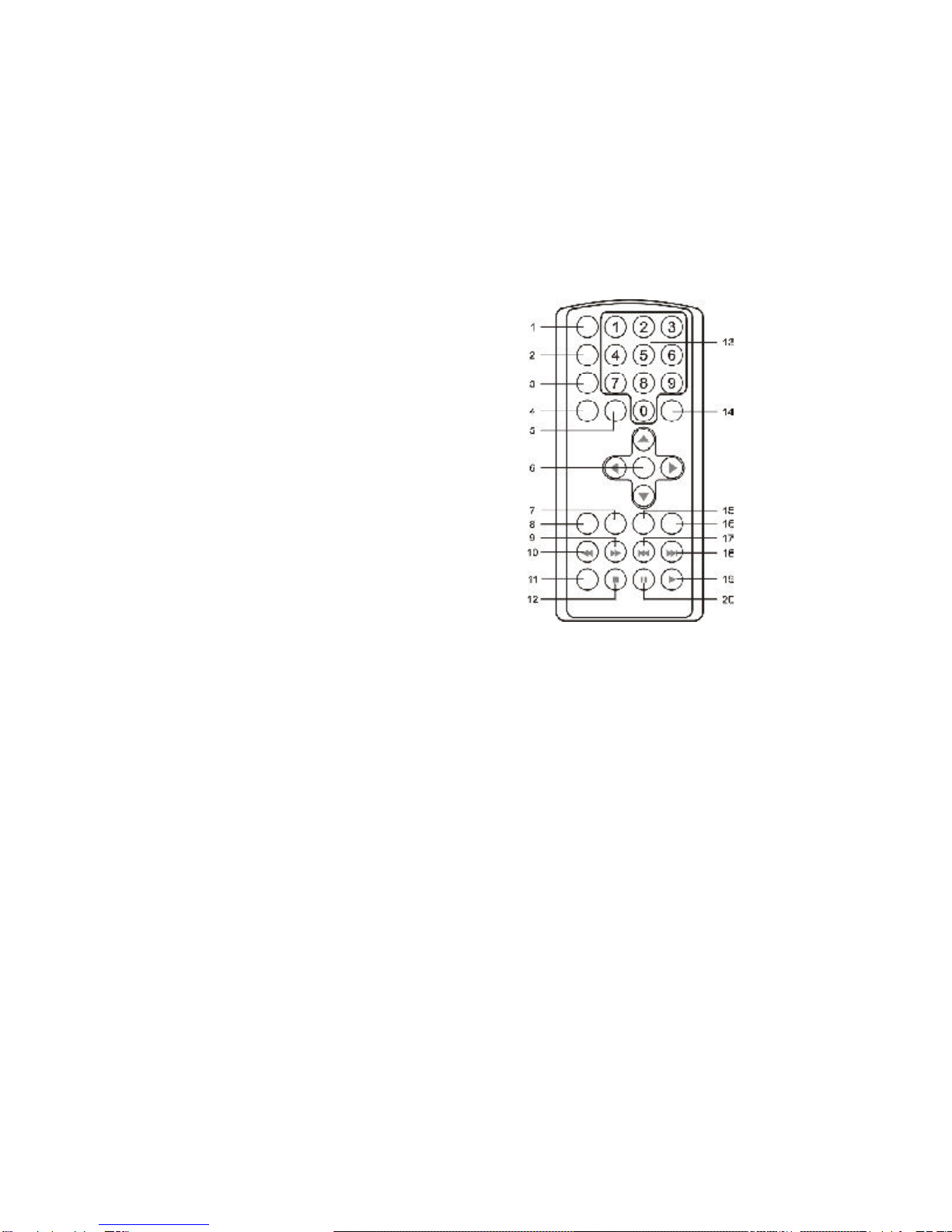

2. Remote Control View (Refer to Figure 5)
1) Display Button
2) Angle Button
3) Subtitle Button
4) Audio Button
5) Zoom Button
6) Up/Down/Left/Right/Enter Buttons
7) Return Button
8) A-B Button
9) Forward Button
10) Reverse Button
11) Slow Button
12) Stop Button
13) Number Buttons
14) Setup Button
15) Menu Button
16) Repeat Button
17) Previous Button
18) Next Button
19) Play Button
20) Pause Button Figure 5
F. Loading and Playing a Disc
a. After connecting power to the unit, slide the POWER ON/OFF
on the right side to ON, the DVD player’s POWER indicator
lights.
b. Open the disc tray by pressing OPEN at the lower right of the
disc tray, and place a disc into the tray with the disc’s label fac-
ing up.
c. Press PRESS at the right side of the door until it clicks shut.
The unit will load the disc and start playing by pressing PLAY
located either on the right side of the disc tray or on the remote .
d. Rotate BRIGHT and VOLUME to adjust the LCD’s brightness
and the DVD player’s volume.
e. To stop playing a disc, press STOP.
10
f. To turn off the DVD player, slide POWER ON/OFF to OFF. The
DVD player’s POWER indicator turns off.

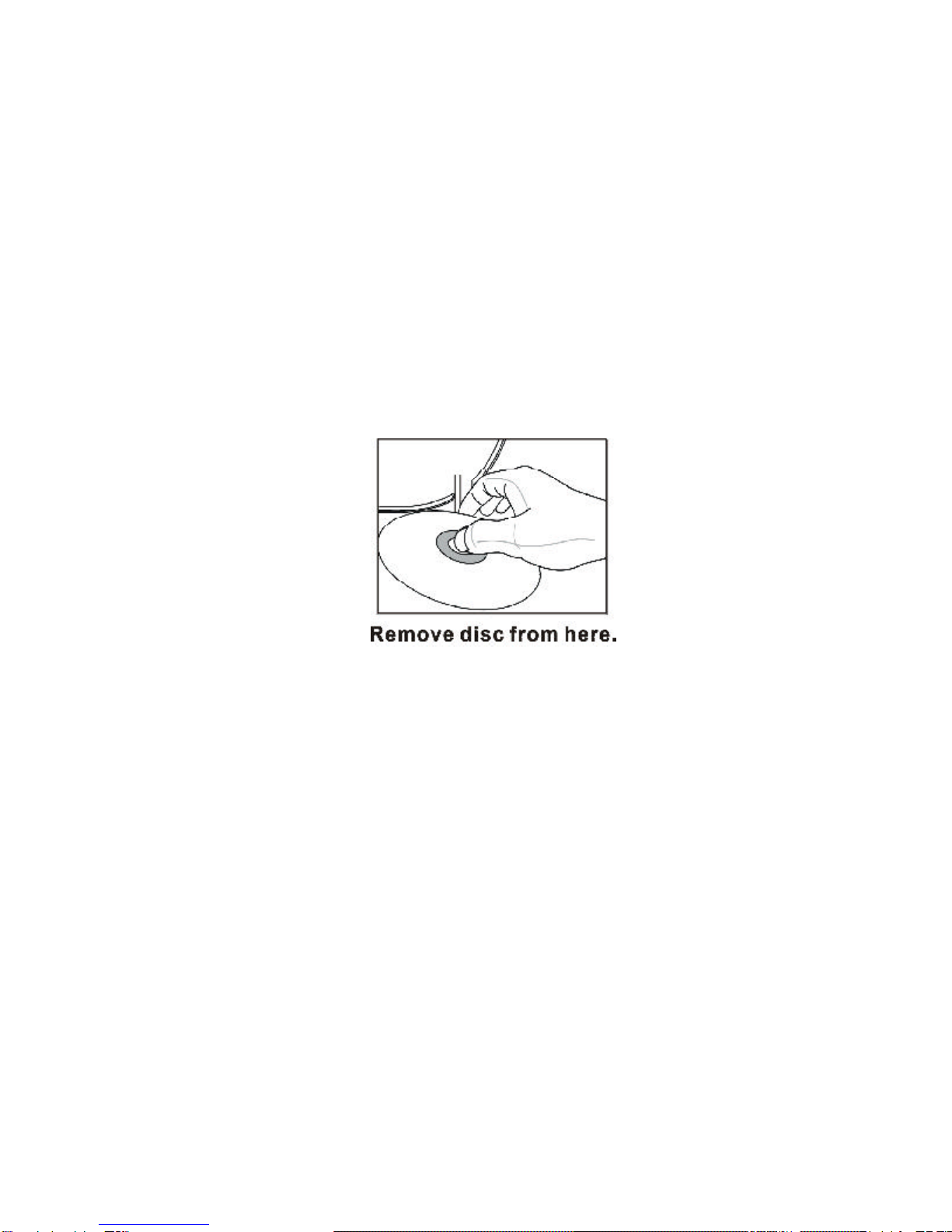

g. To remove the disc, open the disc tray, then you will see a picture
on the right inner corner of the cover to indicate how to remove
the disc, just use your finger to access the right inner corner of
the disc tray and lift up the disc and remove it from the disc
tray. Please refer to Figure 6.
Figure 6
