Audiovox D1805 Manuale utente

D1805

PORTABLE 8" LCD MONITOR AND DVD PLAYER

A. Introduction

Thank you for selecting the D1805 portable DVD player. The main

features include a 8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal

Display (LCD) monitor and a DVD player. The unit applies the latest

state of the art electronics and is designed for use in hotels, offices,

vehicles or your home. The unit is constructed to provide years of

reliable, trouble-free service, and is compact so that you can take it

with you anywhere and is designed for quick and easy installation.

Please read the entire instruction manual supplied with this product

prior to operation. The documentation will assist you in installing the

system properly to obtain the best equipment performance. Please

treat this manual proplely for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod, bracket or table to prevent it from falling. Keep the unit away

fromstrongmagnets,heatsources,directsunlight,excessivedust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the D1805 is installed in accordance with the instruc-

tions and illustrations provided in this manual.

3. Object and Liquid

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

coveror blockthe slotsand openingswith acloth orother material.

5.Cleaning Unit

Whencleaning,makesurethesystemisunplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6.Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

thedisc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

softwareproducersdesigned,someplaybackfeaturesmaynotbe

available. Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 8’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DC Adapter

3. 1 x Rechargeable Battery

4. 1 x Remote Control with battery

5. 1 x Instruction Manual

6. 1 x AV Cable

7. 1 x DC Power Adapter

4.Disassemble

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

D. Powering and installation

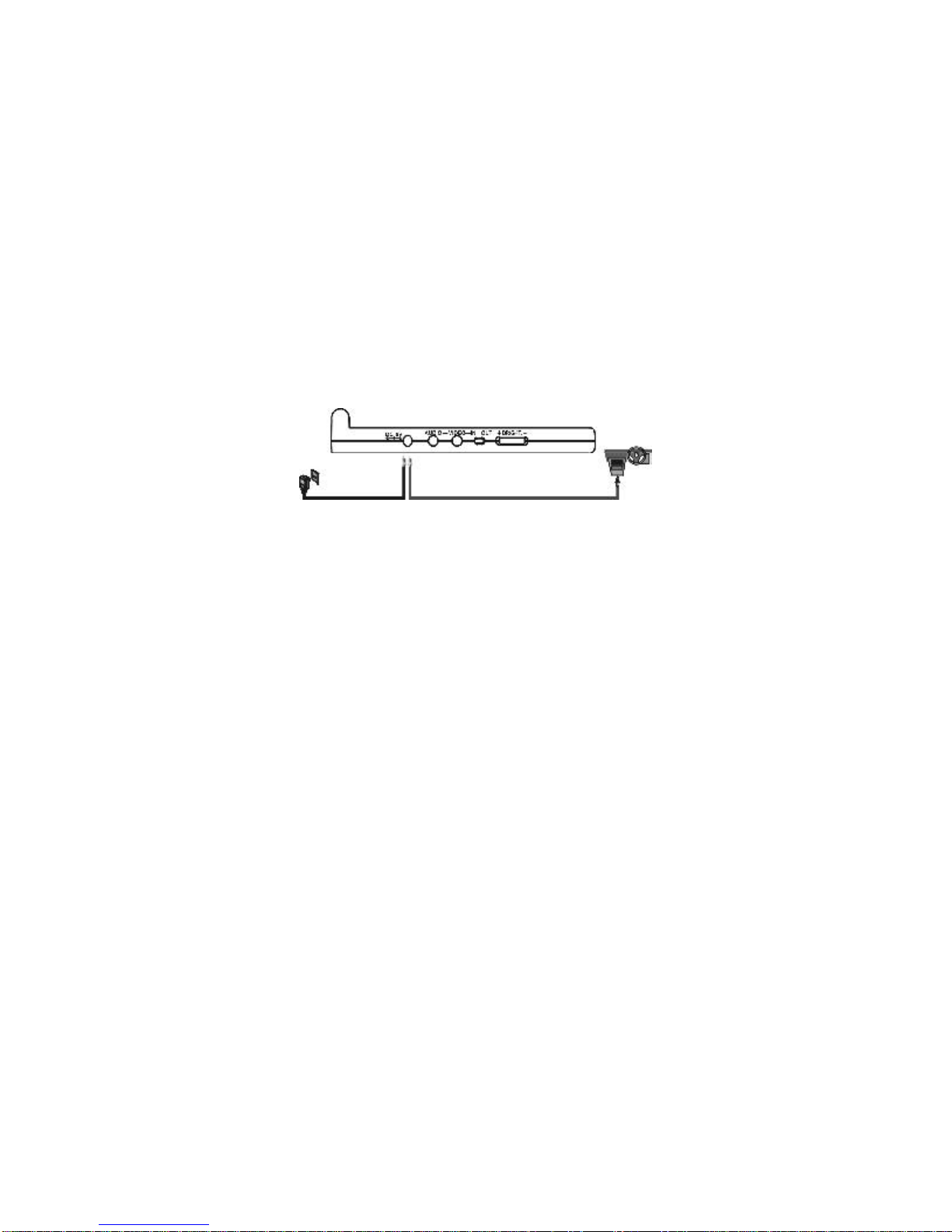

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the

left side of the main unit, then plug the other end into the 120V AC

power socket.

2. Powering the system in a car (refer to Figure 1)

Plug one end of the DC Power adapter into the DC 9V jack on the

unit, then plug the other end into the cigarette lighter socket.

1 2

Figure 1

E. Controls, Indicators, and Connectors

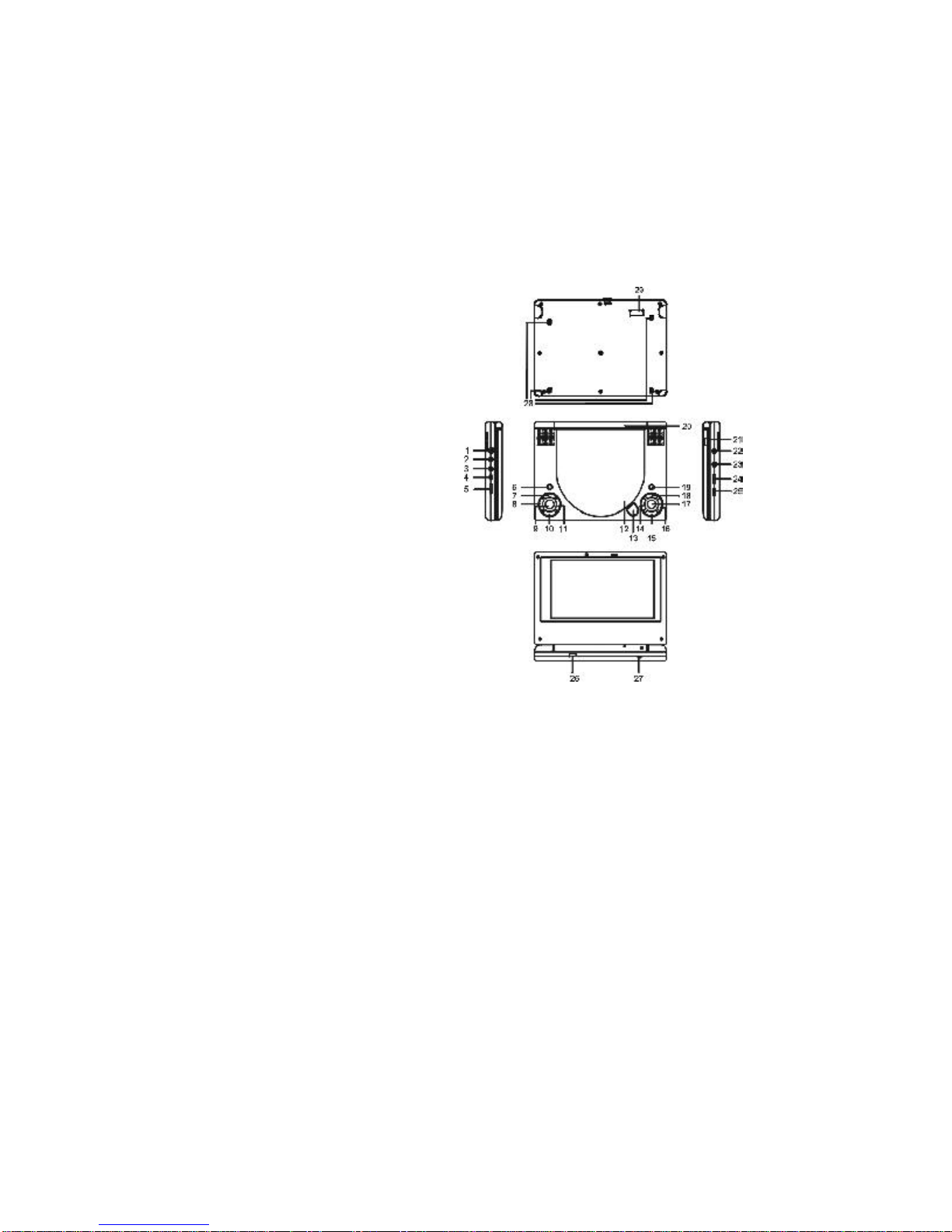

1. Unit View (Refer to Figure 2)

1) DC 9V Input Jack

2) Audio Jack (L+R)

3) Video Jack

4) AV Input /Output Switch

5) Brightness Control

6) MENU

7) Up button

8) Left Button

9) OK Button

10) Down Button

11) Right Button

12) Close disc cover point

13) Open Button

14) Previous Button

15) Stop Button

16) Next Button

17) Play Button

18) Pause Button

19) Screen Mode ( wide) Button

20) Power Saving Mode Switch

21) NTSC/PAL Switch

22) Coaxial Jack

23) Hi-Fi Headphone Jack

24) Volume Control

25) Power On/ Off Switch

26) Remote Control Sensor

27) Power LED

28) Battery Clips

29) Battery Connector

Figure 2

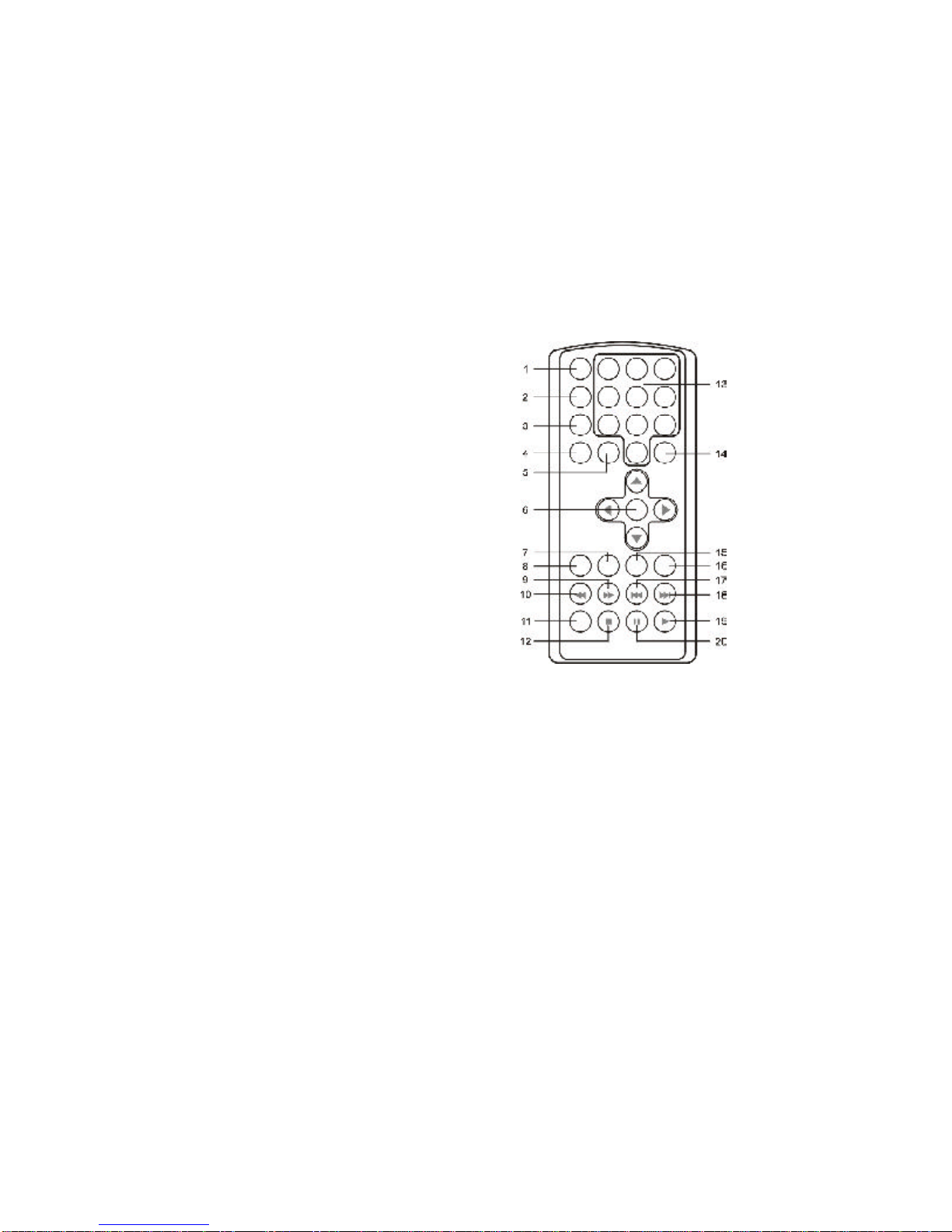

2. Remote Control View (Refer to Figure 3)

1) Display Button

2) Angle Button

3) Subtitle Button

4) Audio Button

5) Zoom Button

6) UP/DOWN/LEFT/RIGHT/

ENTER Buttons

7) Return Button

8) A-B Button

9) Forward Button

10) Reverse Button

11) Slow Button

12) Stop Button

13) Number Buttons

14) Setup Button

15) Menu Button

16) Repeat Button

17) SKIP-

18) SKIP+

19) Play Button

20) Pause Button Figure 3

F. Loading and Playing a Disc

a. After connecting power to the unit, Slide the power switch to the

“ON” position, the power indicor will illuminate red.

b. Open the disc tray by pressing OPEN , and place a disc into the

tray with the labal side facing up.

c. Close the tray with pressing “PRESS” button.The unit will load the

disc and start playing by pressing “PLAY”.

d. Rotate the BRIGHT and VOLUME Controls to adjust the LCD’s

brightness and the DVD player’s volume.

e. To stop playing a disc, press STOP.

G. SETUP

Press ‘SETUP’ to display the Main screen of the SETUPMenu on the

screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit

will resume it’s last playback mode.

Figure 7. Main SETUP Menu Screen

1) Press“Setup”, the‘GENERALSETUPPAGE’ willdisplayonscreen.

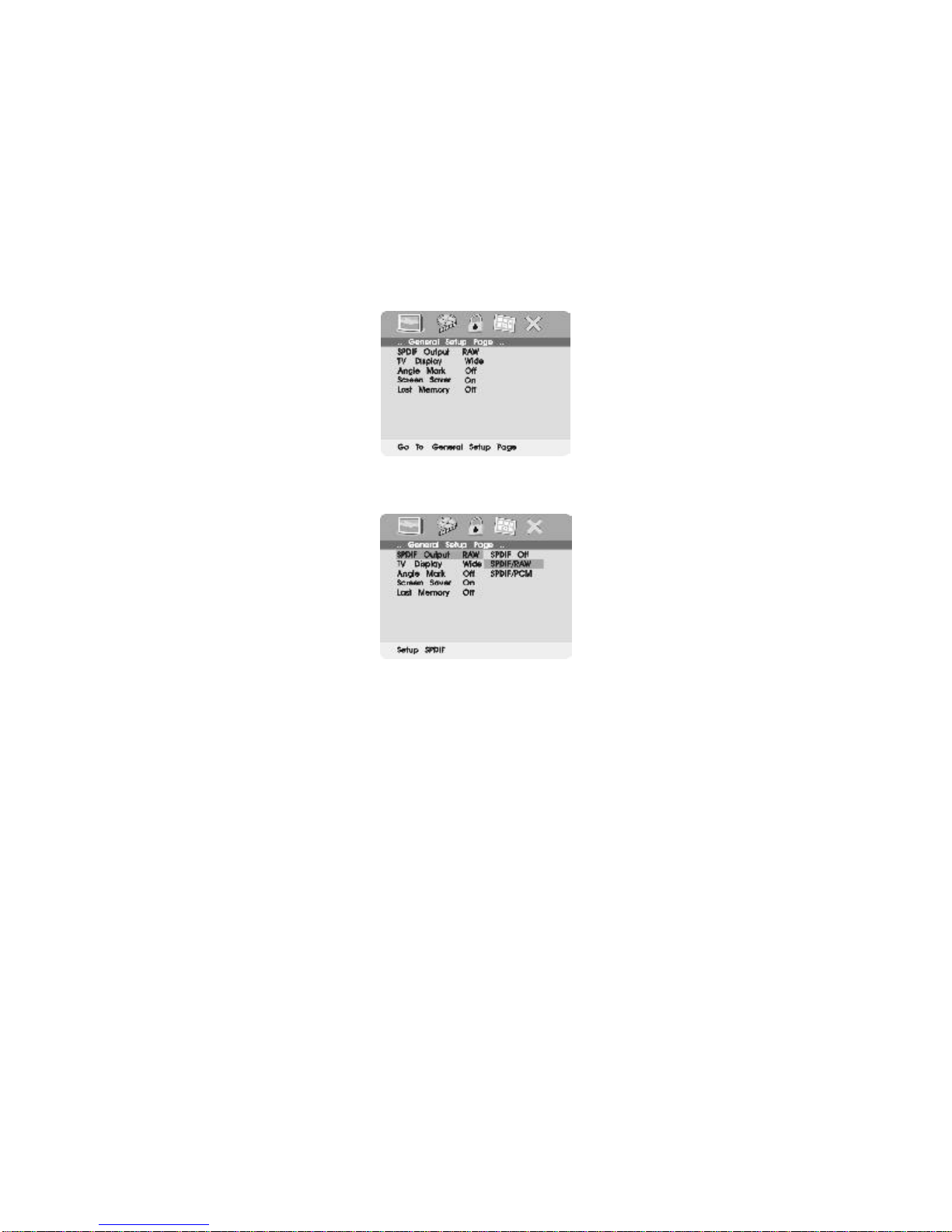

Figure 8. SPDIF Output Screen

a).Select “SPDIF Output” using the DOWN button, Then, press

“Right” enter the Submenu, select SPDIF OFF, SPDIF/RAW,

SPDIF/PCM by press UP/DOWN and confirm the setting by

Enter. Press LEFT to return.

* SPDIF OFF: the digital signal Audio output is off.

* SPDIF/RAW: the signal output from“COAXIAL”.

* SPDIF/PCM: the signal output will be pulse code Modulation

b).Select TV DISPLAY using the DOWN button, and then press

RIGHT toenterthesubmenu.SelecttheTVdisplaymodeonthe

screen using UP/DOWN, and press ENTER to confirm the set-

ting. Press LEFT to return.

* NORMAL/PS: When the player is connected to a normal TV,

and a wide picture is shown on the full screen.

* NORMAL/LB: When the player is connected to a normal TV,

and a wide picture is shown on the screen with a black strip

at both the top and bottom of the screen.

* WIDE: When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

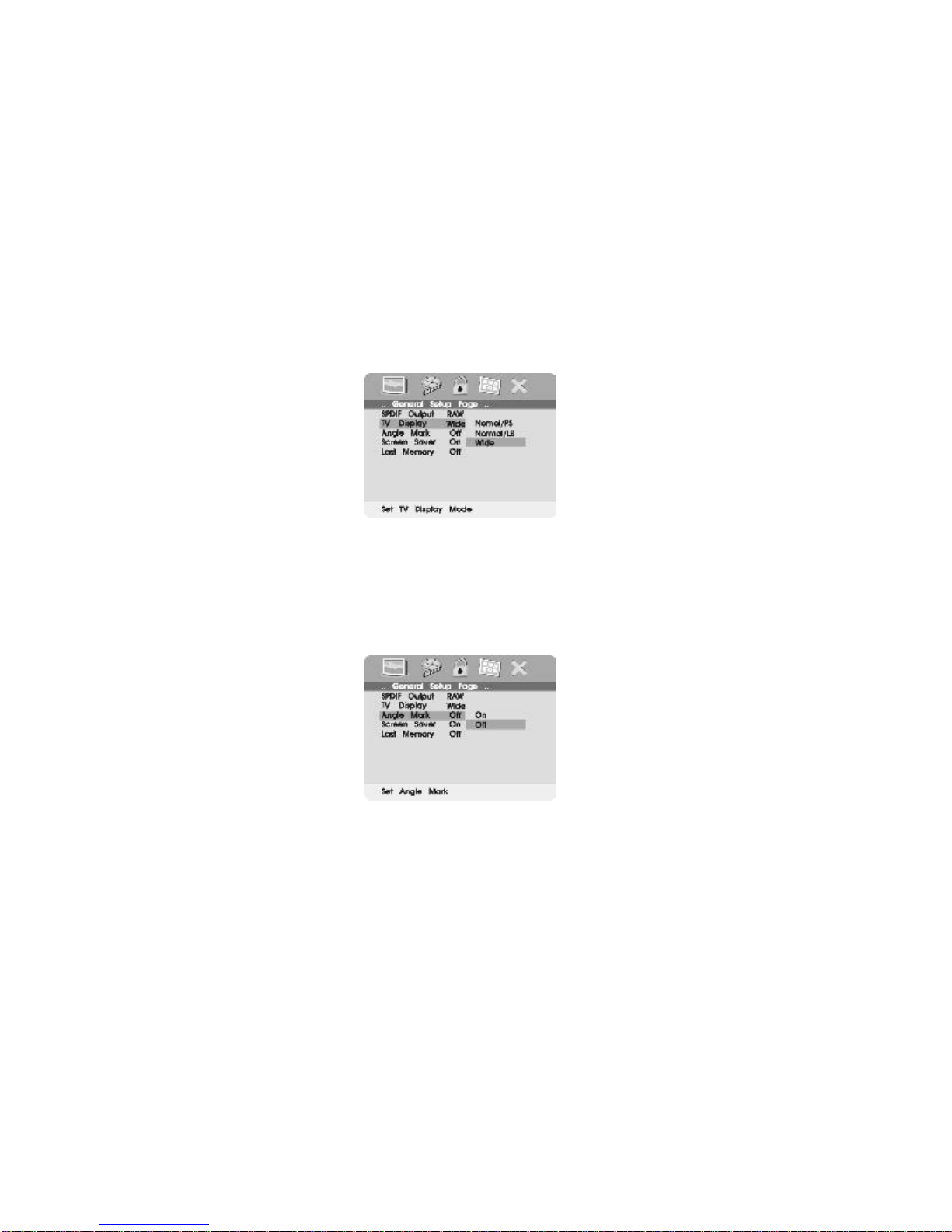

Figure 9. TV DISPLAY Screen Display

c).Select ‘ANGLE MARK’ using the DOWN buttton, and then press

the RIGHT button to enter the submenu. Choose Angle Mark on

or off using the UP/DOWN buttons and then press ENTER to

confirm the setting. Press the LEFT button to return.

Figure 10. ANGLE MARK Screen Display

* ON: The screen will show the angle mark icon. (*If an angle

option is available).

* OFF: The screen will not display the Angle Mark

NOTE: Not all discs contain above features.

d). Select ‘SCREEN SAVER’ using the DOWN button.

Figure 11. SCREEN SAVER Display

*ON: enables screen saver

*OFF: disables screen saver (off)

*NOTE:The DVD player will enter the Screen Saver mode after

approximately five minutes if the same image remains on the

screen.

e). Select “ Last Memory” using the DOWN button.

Figure 12. LAST MEMORY Screen Display

*on: The unit will return to the last position on the disc.

*off: The unit will not return to the last position on the disc.

2) With no disc inside the player select “Video quality Setup”by using

the LEFT/RIGHT buttons, press “enter” to enter the video quality

set up page.

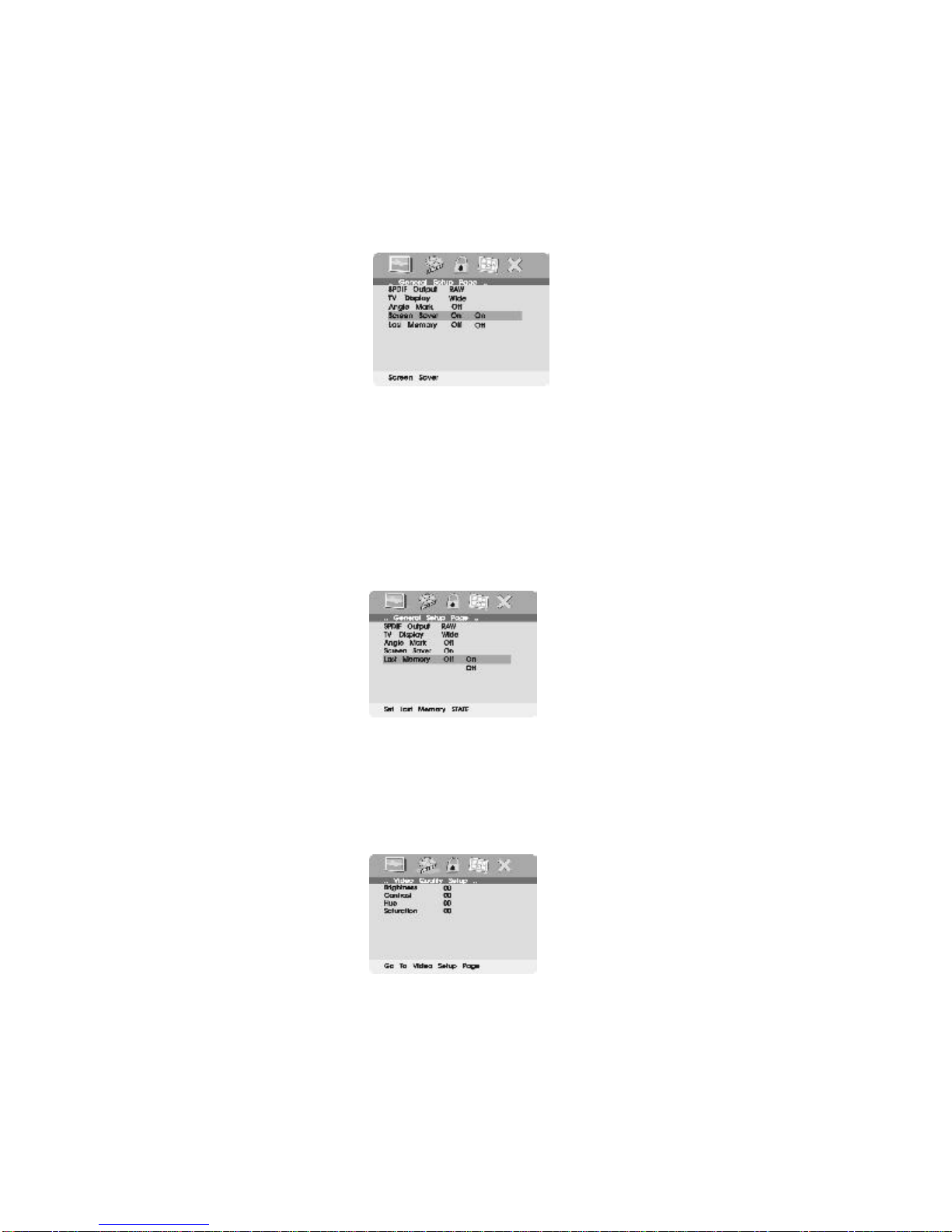

Figure 13. Main SETUP Menu VIDEO QUALITY

a).Select“Brightnessbyusingthe UPorDOWNbuttons ,thenpress

“Enter”you can change the Brightness by pressing the LEFT or

RIGHT buttons. To exit “Brightness Setting”, press “Enter”again

to return to the main Menu.

Figure 14. BRIGHTNESS Screen Display

b).Select “Contrast” by using the UP or DOWN buttons,then press

“Enter” you can adjust the Contrast by pressing the LEFT or

RIGHT butttons.

Figure 15. CONTRAST Screen Display

To exit “Contrast” Setting, press “Enter”again to return to the main

Menu.

c).Select “Hue” by using the UP or DOWN buttons, then press

“Enter” you can adjust the Hue by pressing the LEFT or RIGHT

buttons.

Figure 16. HUE (Tint) Screen Display

To exit “Hue”Setting,press “Enter”again to return to the mainMenu.
