Audiovox VBP800 Manuale utente

VBP800VBP800

VBP800

PORTABLE 8" LCD MONITOR AND DVD PLAYER

IN A BAG

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsown-

ers. Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

An LCD panel and/or video monitor may be installed in a motor vehicle

and visible to the driver if the LCD panel or video monitor is used for

vehicle information, system control, rear or side observation or naviga-

tion. If the LCD panel or video monitor is used for television reception,

video or DVD play, the LCD panel or video monitor must be installed so

thatthesefeatures will onlyfunctionwhenthe vehicle is in“park”orwhen

the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or

DVD play that operates when the vehicle is in gear or when the parking

brake is not applied must be installed to the rear of the driver’s seat

where it will not be visible, directly or indirectly, to the operator of the

motor vehicle.

A. Introduction

Thankyou for selectingthe VBP800 portableDVDplayer in abag.

The main features include a 8" Screen (16:9Aspect Ratio) Liquid

Crystal Display (LCD) monitor and a DVD player. The unit applies

thelatest stateof the artelectronics and isdesigned for usein ho-

tels,officeshomeorvehicle.Theunit isconstructedtoprovideyears

ofreliable,trouble-free service,andiscompact sothatyou cantake

it with you anywhere and is designed for quick and easy

installation.Pleasereadthe entire instructionmanualsuppliedwith

thisproductpriorto operation. Thedocumentationwillassistyouin

installing the system properly to obtain the best equipment perfor-

mance. Allmanualsshouldbestoredforlateruse.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod,bracketor table topreventitfrom falling. Keep theunitaway

fromstrong magnets, heatsources,direct sunlight,excessivedust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit,orremovethedisc and leave the unit turned on untilthemois-

ture evaporates.

2. Installation

Ensure that the VBP800 is installed in accordance with the in-

structions and illustrations provided in this manual.

3. Object and Liquid

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

cover or block the slots and openings with a cloth or other mate-

rial.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

Whencleaning,make surethesystemis unplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available.Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 8’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DCAdapter

3. 1 x Remote Control w/Battery

4. 1 x Instruction Manual

5. 1 x Audio/Video Input Cable

6. 1 x Audio/Video output Cable

7. 1 x Power Adapter w/Built-In FM Modulator

8. 1 x Mounting Bag w/Straps

9. 1 x Carrying bag

10. 1 x Rechargable Battery Pack (Part Number VBB7080)

D. Powering and installation

1. Powering the system indoors

(Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the

rightsideofthe main unit, then plug theotherendintothe120VAC

power receptacle.

2. Powering the system in a car

Plug one end of the cigarette lighter adapter into the DC 9V jack on

the unit, then plug the other end into the cigarette lighter socket.

Figure 1

3. Powering the system with rechargeable Battery

Please refer to K. * Rechargeable Battery Installation and Use

(Page 33 and 35).

E. Installation Instructions

Make sure that the unit is placed into the bag with the clear plastic

coveringaroundDVD door, Load disc into the DVD compartment and

then fasten the Velcro strap across the top portion of the unit. If you

are installing the bag onto the seatback you will need to attach the

supplied Seat Standoff to the back of the mounting bag with the

Velcro bands to obtain the proper viewing angle as shown in Figure.2

1.Installing the System onto the seat back in a car

(Refer to Figure 2)

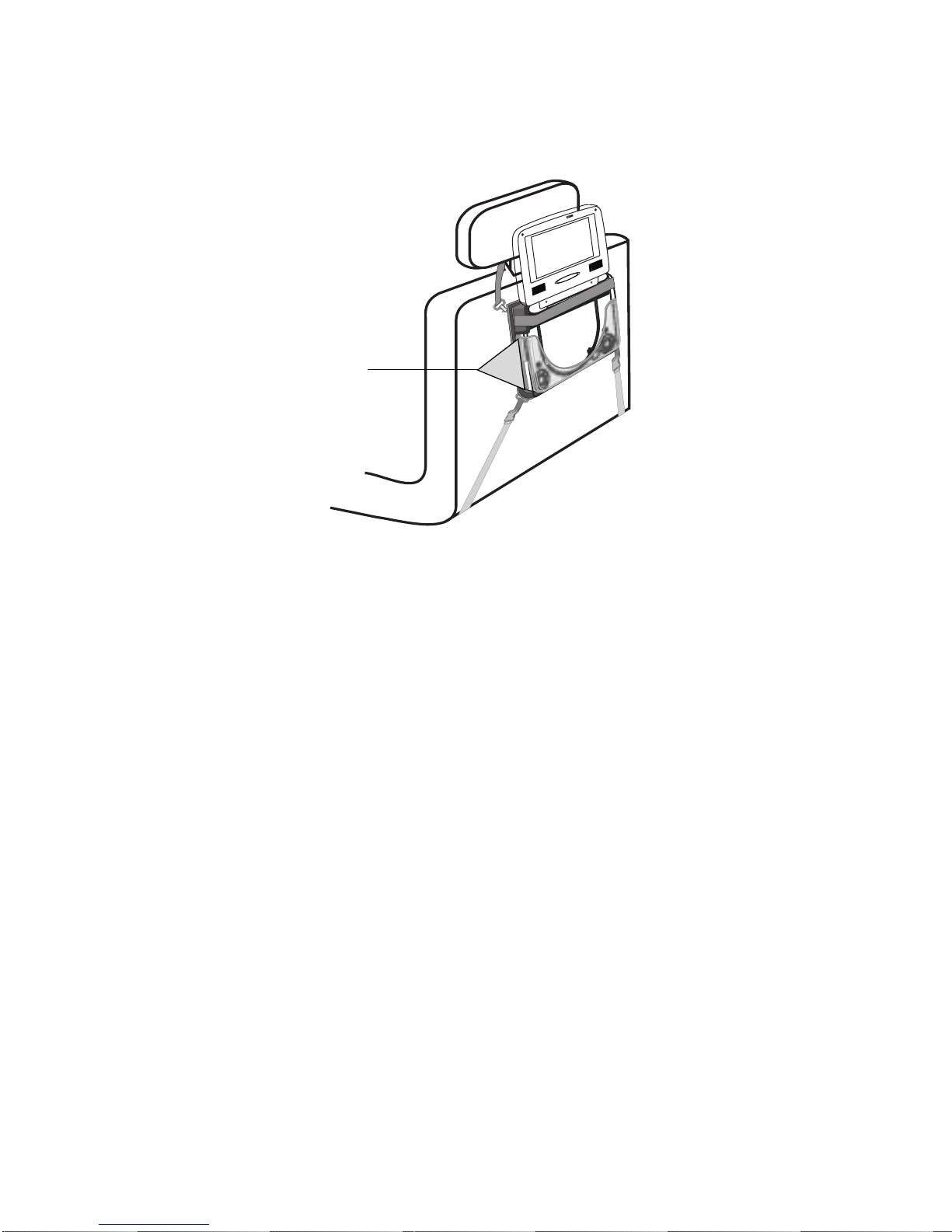

Figure 2

1). Take one of the supplied straps from the carrier bag. Connect

the latch to one of the upper metal rings on the mounting bag.

Connect the “S” hook to the other upper metal ring and place the

loop over the headrest. Adjust the strap until the bag is firmly

secured.

2). Take another strap from the carrier bag, and connect the latch to

the lower metal ring on the left side of the bag. Attach the “S”

hooktothesameringafterloopingthestraparoundtheseatrail.

Repeat this process for the right side. In some vehicles, it may

be necessary to attach the “S” connector to the rail directly, as it

may not be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

Seat Standoff

2. Installing the system between the driver/passenger seat

(Refer to Figure 3)

Figure 3

1). Takeone strap and connect the latch to the upper metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the headrest of the driver’s seat.

Repeat this process for the right side (Passenger Seat).

2). Take another strap and connect the latch to lower metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the driver’s seat rail. Repeat this

process for the right side. In some vehicles, it may be neces-

sary to attach the “S” connector directly to the rail, as it may not

be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

F. Controls, Indicators, and Connectors

1. Unit View

(Refer to Figure 4)

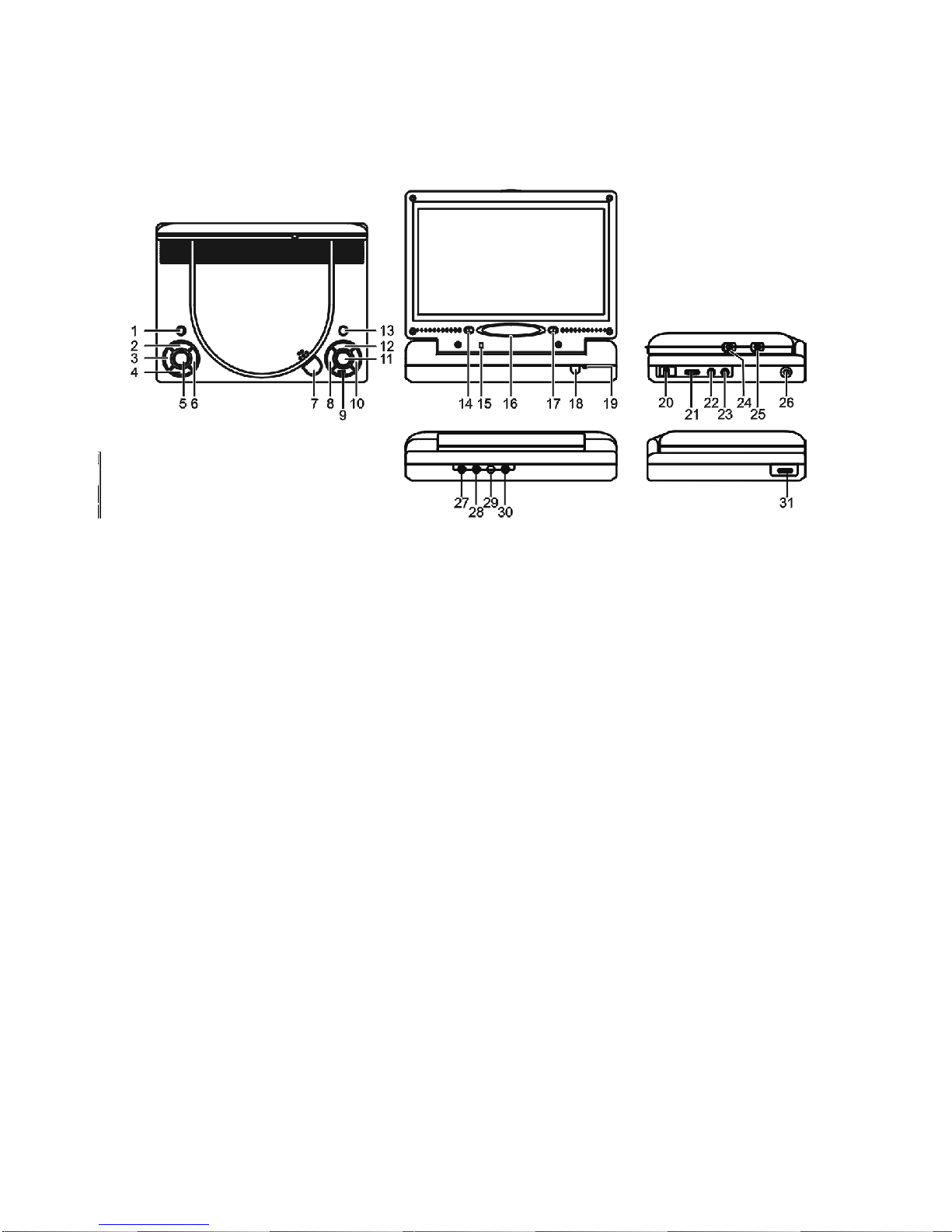

Figure 4

1) Menu

2) UP Button

3) LEFT Button

4) DOWN Button

5) OK Button

6) RIGHT Button

7) Open Button

8) Previous Button

9) Stop Button

10) Next Button

11) Play button

12) Pause

13) Screen Mode (WIDE) Button

14) NTSC/PAL Switch

15) Monitor Off Button

16) IR Transmitter

17) IR ON/OFF Switch

18) Remote Control Sensor

19) Power LED

20) DVD Video Output Jack

21) DVD Audio Output Jack

22) Video Input Jack

23) Audio L+R Input Jack

24) Power On/Off Switch

25) Volume +/- control

26) Headphone Jack 1

27) Headphone Jack 2

28) PAL/NTSC Switch

29) IR Switch

30) DC 9V Input Jack

31) Brightness +/- control

2. Remote Control View

(Refer to Figure 5)

1) DISPLAY Button

2) ANGLE Button

3) SUBTITLE Button

4) AUDIO Button

5) ZOOM Button

6) UP/DOWN/LEFT/RIGHT/

ENTER Biotins

7) RETURN Button

8) A-B Button

9) FORWARD Button

10) REVERSE Button

11) SLOW Button

12) STOP Button

13) NUMERICKEYPAD

14) SETUP Button

15) MENU Button

16) REPEAT Button

17) PREVIOUS Button

18) NEXT Button

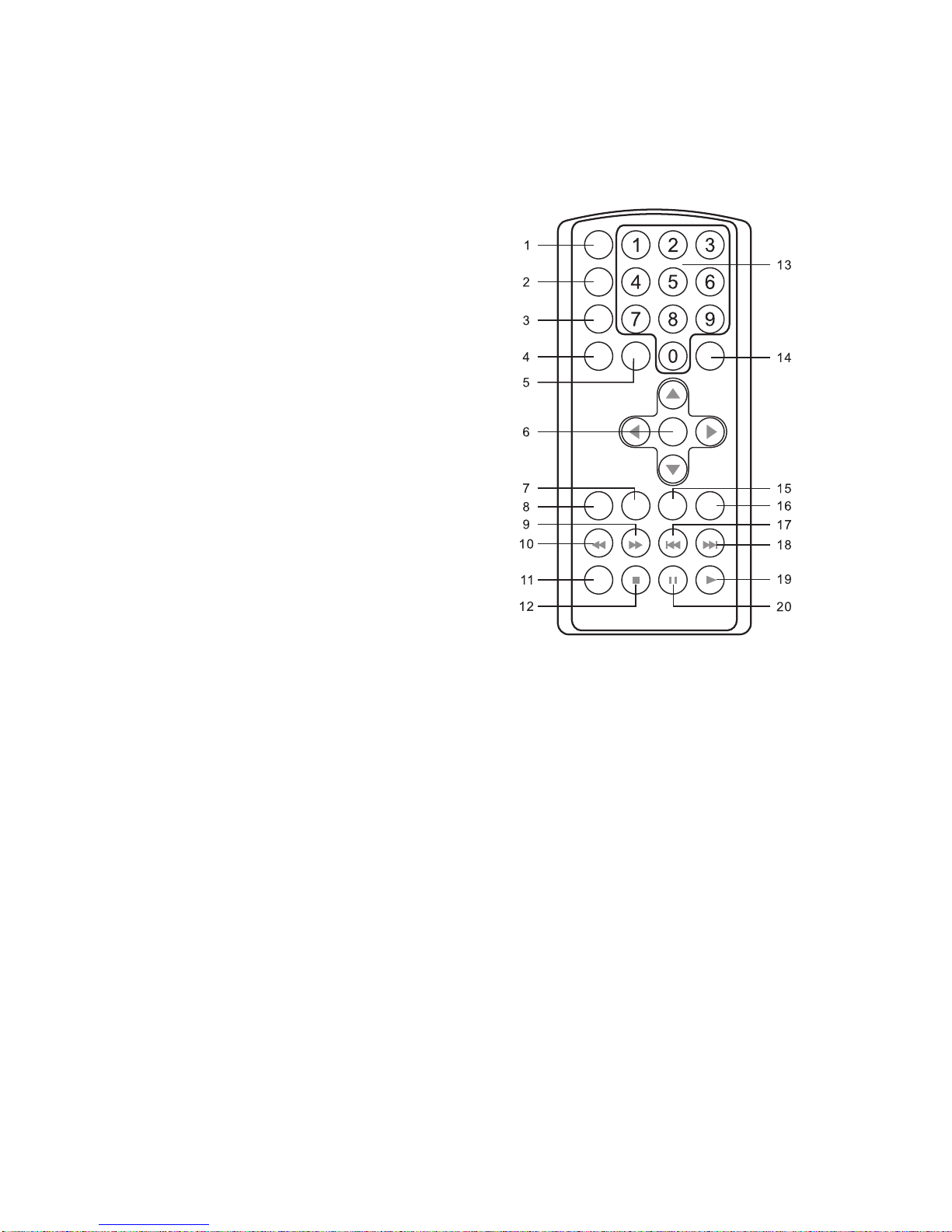

19) PLAY Button Figure5

20) PAUSE Button

G. Loading and Playing a Disc

a. After connecting power to the unit, slide the POWER ON/OFF on

the right side to ON, the DVD player’s POWER indicator lights.

b. Open the disc tray by pressing OPEN at the lower right of the disc

tray, and place a disc into the tray with the disc’s label facing up.

c. Press at the right side of the door until it clicks shut. The unit will

load the disc and start playing.

d.RotateBRIGHTand VOLUME to adjust theLCD’sbrightnessand

the DVD player’s volume.

e. To stop playing a disc, press STOP.

f. ToturnofftheDVDplayer,slidePOWERON/OFFtoOFF.The

DVDplayer’sPOWER indicatorturnsoff.

g. To remove the disc, open the disc tray, then you will see a

pictureontherightinnercornerofthe covertoindicatehowto

removethe disc,justuseyour fingertoaccess therightinner

corner of the disc tray and lift up the disc and remove it from

thedisctray. Pleaserefer to Figure6.

Figure 6
