XB9 BOOM BOX

User Guide

Released 3-31-05.

128-7376

2 of 16

-2-

Congratulations

YouareonestepclosertoexperiencingthelatestinnovationinXMSatelliteRadio.XMwillrevolutionizeyourin-

homeorvehicleentertainmentwith:

• Over150DigitalChannelsCoast-to-Coast

• Over80,000HoursofEntertainmentEachMonth

• TheMost100%Commercial-FreeMusic

• TheMost SportsPlay-by-Play onSatellite Radio

• TheMostInstantTraffic&WeatherChannels--21MetroAreas

• TheBiggest Namesin News,Talk &Entertainment

YourAudiovoxXR9SatelliteRadioReceivermustbeused withanadapterkit,suchastheAudiovoxHomeKit,

Boom Box or Vehicle Kit as required by your specific installation needs. These kits are available at retailers

whereAudiovoxmainunitsaresold.

AudiovoxHomeKit: PartNumberXH9

AudiovoxVehicleKit: PartNumberXC9

AudiovoxBoomBox PartNumberXB9

Required subscription for service sold separately. Premium Channels available at additional monthly costs. Instal-

lation costs and other fees and taxes may apply, including a one-time activation fee. All fees and programming

subject to change. College sports games subject to availability. Subscriptions subject to Customer Agreement

included with the XM Welcome Kit and available at xmradio.com. Only available in the 48 contiguous United States.

are the property of their respective owners.

128-7376

3 of 16

-3-

FCC Regulations

This unit complies with the interference limits relative to a Class B digital device, applicable under Part

15 of the FCC Rules regarding installation in a residential environment. If the unit is not installed in

accordance with these instructions, it could cause harmful interference to audio or television reception.

If this condition persists after corrective action, consult your dealer or experienced installation facility.

Cautions and Warnings

1. Within the home, do not install the Receiver Boom Box in a position that obstructs viewing of

any home entertainment component, such as Television, or stereo system indicators and

displays.

2. Do not install or use the XB9 in locations exposed to direct sunlight, or in areas subject to

extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent

to water such as pools, hot tubs, etc.

3. When outdoors, position the XB9 and antenna where there are no obvious satellite signal

obstructions such as high terrain, trees, overhangs, etc.

4. When installed indoors, unplug the AC Power Adapter from the wall outlet when the XB9 is not to be

used for an extended period of time. If batteries are installed, set the Power On/Off-VOL control to

the Off position to prevent unintentional battery discharge, or remove the batteries.

5. To avoid possible damage to the Receiver Boom Box caused by battery leakage, it is

recommended that the batteries be removed when the Boom Box is not being used for an extended

period of time.

6. Do not install or place the XB9 on an inclined or unstable surface.

7. By adhering to these warnings and safety considerations, serious accidents and/or personal

injury can be avoided.

128-7376

4 of 16

Setting Up and Installing Your Kit

NOTE: The XM® signal can be received andpro-

cessed virtually anywhere as long as there

are no obvioussatellite signal obstructions

such as high terrain, trees, overhangs, etc.

In placing the antenna, therefore, these factors

must be taken into account .

Installation/Wiring Precautions

1. If using the adapter, make sure the adapter cable

is not connected to an AC wall outlet until all inter-

connections have been made and verified. The

adapter power cable should be connected last.

2. Incorrect installation may cause damage to the

system.

3. For antenna positioning, refer to the Antenna

Aiming procedure outlined in the XR9 Satellite

Radio Receiver User Guide, 128-7220.

-4-

XB9 Boom Box

(P/N 144-2477)

1 pc.

Contents XB9

Users Guide

P/N 128-7376

1 pc.

AC/DC Power Adapter

(P/N 136-3990)

1 pc.

Antenna

(P/N 118-1155)

1 pc.

128-7376

5 of 16

-5-

Boom Box XB9 Controls

The Audiovox XM®Boom Box XB9 provides Power ON/

OFF and VOLUME +/- pushbuttons, and a MODE

pushbutton to toggle between Satellite Radio or an aux-

iliary audio input signal. A power-on/low battery LED is

also located on the front panel.

MODE Pushbutton: This pushbutton toggles

between Satellite Radio and an external audio

input signal (MP3, CD, etc.) present at the AUX

input jack.

2.PHONES Jack: Accepts a stereo headphone jack

to provide private listening capability for the Boom

Box.

AUX Jack: Accepts an audio input signal from

an external audio device.

When using the AUX

audio input, turn

the Receiver off

to preserve bat

tery power. Adjust

the volume level

of the external

audio deviceto obtain an audio output from the

XB9. The volume control on the external audio

device should be set to mid-range.

4.VOLUME +/- Pushbuttons: Increaseor decrease

the volume of the audio output signal from the

XB9.To increase the volume level, press the

+pushbutton; to decrease the volume level, press

the -pushbutton.

NOTE: When the XR9 receiver is installed, the

Volume buttons on the Remote Control unit

will control the audio output of the Boom

Box.

5.Power On/Low Battery LED: The LED lights

green when the Power On/Off pushbutton is

pressed to apply power to the XB9.

6.Power On/Off Switch: When pressed, applies

powerto the Boom Box; the power on LED

indicator (5) lights green.

7. EJECT Button: Press this button to release the

spring-loaded XB9 mounting plate to install and

remove the Receiver from the Boom Box.

12 6

128-7376

6 of 16

-6-

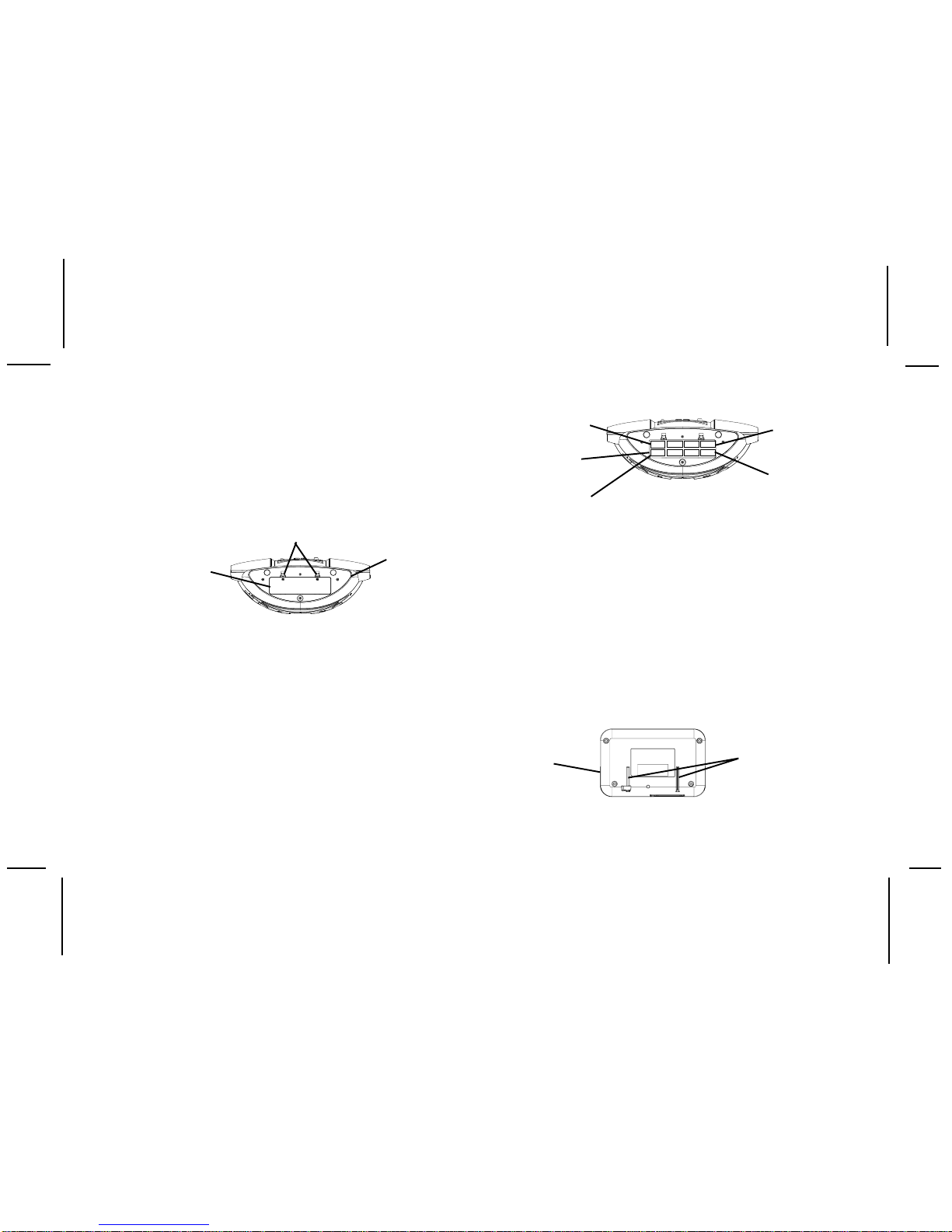

Turn the Boom Box upside down to access

the battery compartment.

Push the battery cover latches forward and flip

up the battery compartment cover to the open

position.

Insert eight (8) C-Cell batteries observing

battery polarity as shown; then close the cover.

3.Installing the Receiver in the XB9

Install the receiver as follows:

IMPORTANT: Make sure boom box power is off before

installing and removing the XR9

Receiver.

a.Press the EJECT button at the top of the XB9; the

spring-loaded mounting plate will tilt forward.

Carefully line up the receiver rear spine grooves

with the guide spines on the mounting plate; gently

push the receiver down onto the plate.

2.Cabling Interconnections

You can begin to enjoy XM®Satellite Radio as soon

as the Receiver and Boom Box Kit installation are

complete. Set up your Audiovox XB9 by following the

interconnect diagram.

NOTE: The batteries are bypassed automatically

whenever the supplied AC Adapter is

plugged into the DC 12V jack on the back

panel.

1.Battery Installation

Your Boom Box can operate independently of AC

power by installing 8 C-Cell batteries as follows:

RECEIVER

REARVIEW

RECEIVER

REARSPINE

GROOVES

BATTERY

COMPARTMENT

COVER

BOTTOMOF

BOOMBOX

COVERLATCHES

BATTERY

COMPARTMENT

(COVERREMOVED)

NEGATIVE

POSITIVE

NEGATIVE

POSITIVE

128-7376

7 of 16

-7-

b.After making sure the connectors are properly

lined up, gently press down on the receiver to

mate the connectors together. The receiver should

now be attached securely to the mounting plate.

Press the receiver into position in the boom box

housing; it will click into place. Apply power to the

XB9 by pressing the Power ON/OFF button; the

LED indicator lights green. If the Receiver does not

turn on at the same time, press the Power On/Off

( ) button in the upper left corner of the Receiver

front panel.

4.Removing the Receiver From the XB9

Press the EJECT button on top of the Boom Box; the

receiver will swing out automatically. Gently grasp each

side of the Receiver at the top and pull straight up to

disengage it from the mounting plate.

INSTALLING/REMOVING

THEXR9 XR9RECEIVER

INSTALLED

MOUNTING

PLATESWUNG

OUT

PUSHIN ATTOPTO

SECUREINPLACE

MOUNTING

PLATEGUIDE

SPINES

MOUNTING

PLATE

RECEIVER

COMPARTMENT

CONNECTOR

GUIDEPIN

EJECTBUTTON

XR9

CONNECTOR

128-7376

8 of 16

-8-

5.Installing the Antenna

For best reception, the supplied antenna should be

placed near a window if in the house or, if outdoors, in

an open area and as high as possible; some

repositioning may be required to achieve optimum

results. The following guidelines are recommended:

a. In a major city, where XM ground repeaters

are present, you can usually place the

antenna away from a window and still achieve

the desired results.

b. You can also place the antenna outside (on the

roof structure), provided it is clear of any

overhead obstructions.

6.Antenna Placement Considerations

The antenna should be placed on a relatively flat

surface whenever possible. When outdoors, the

antenna may be left in its mount atop the Boom

Box provided no overhead obstructions are present.

To mount the antenna:

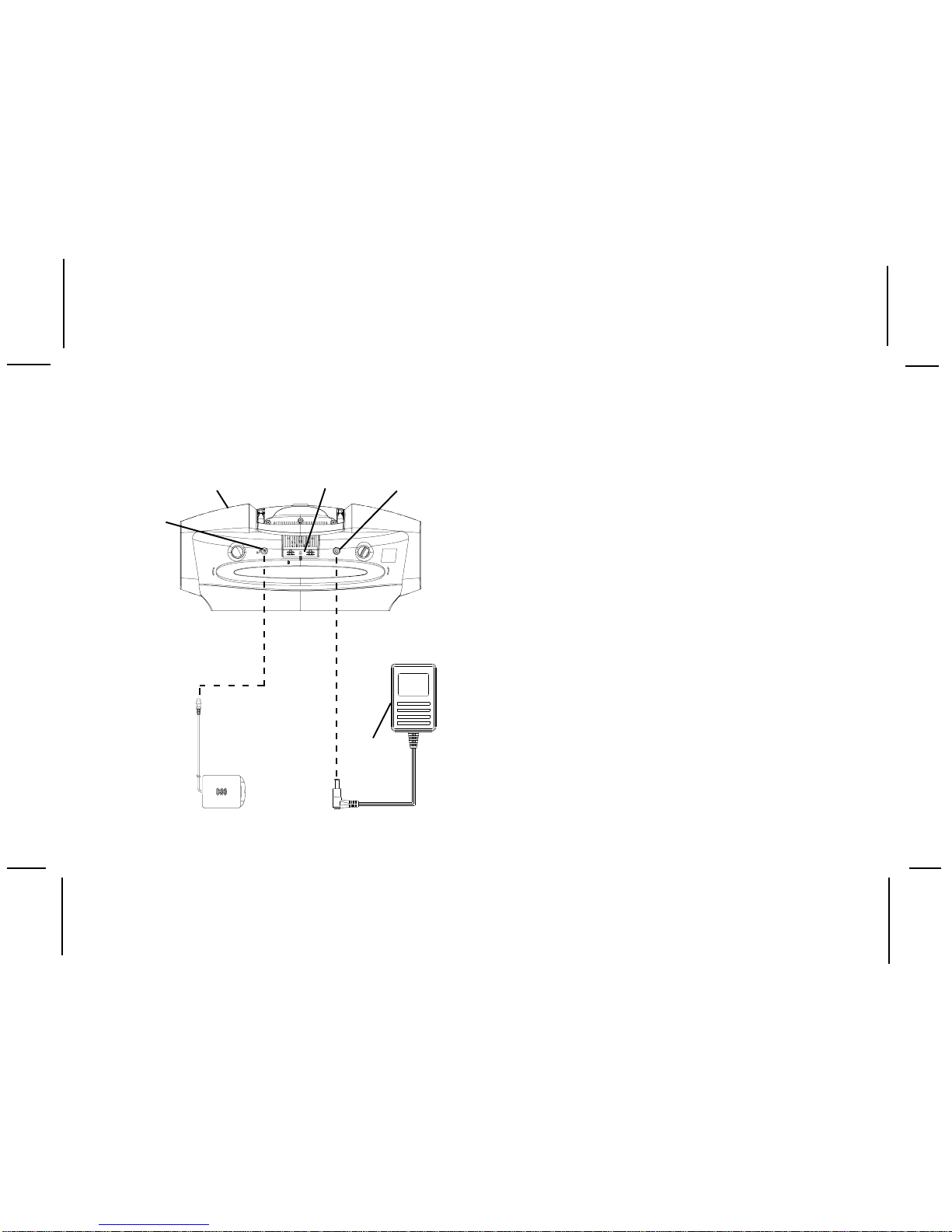

Interconnect Diagram

ANT DC 12V

RECEIVER

BOOM

BOX XB9

ANTENNA

JACK (ANT)

DCPOWER

ADAPTER

JACK

ANTENNA

STORAGE

SHELF

DCPOWER

ADAPTER

(DC 12V 1.5A)

RECEIVER

ANTENNA

TO AC

WALL

OUTLET

128-7376

9 of 16

-9-

a.Plug the antenna into the ANT connector on the

back of the XB9.

b.Leave the antenna in place on the Boom Box,

or remove the antenna from its mount, uncoil

the antenna lead, and place it at the preferred

location inside or outside the home. If the XR9

display says “NO SIGNAL,” the antenna needs to

be repositioned. In addition, even if you are

receiving the XM signal, it is recommended

that you optimize the position of your XM Antenna

as described in this section enabling you to

receive the strongest possible signal and

consistent, mute-free reception. Your XR9 display

has two different signal-strength indicators which

will help you optimize the antenna’s position: The

first is a basic signal strength indicator visible at

the upper right corner of the display screen during

normal listening. It has from zero to three

vertical bars; three bars represent the strongest

signal. The other is a higher-resolution signal-

strength indicator screen showing Terrestrial

and Satellite indications which allow you to

optimally aim your XM Antenna. To access and

use this screen, refer to the XR9 Satellite Radio

Receiver User Guide (128-7220).

7.Positioning the XM Antenna

The antenna supplied with the XB9 is a high-gain type

that can receive XM’s signal from one of XM’s satel-

lites and/or, depending on where you live, XM’s ter-

restrial repeaters. It is recommended that the

antenna be positioned near a south-facing window or

outdoors with a clear view of the southeastern sky in

order to receive the satellite signal. In some cases, it

will be possible to receive XM’s signal through

standard home walls or a roof. To position your

antenna, first set up the Boom Box as described

earlier in this user guide. Next, position the antenna

until you receive the strongest possible satellite sig-

nal. If the satellite signal is not available, you can op-

timize it for a terrestrial signal (where available).

128-7376

10 of 16

-10-

cable; use protective grommets wherever

rough openings are encountered.

d. If the antenna is mounted outside, route the

cable from the antenna position to the interior

of the home, working the cable through the

basement,under a window sill, etc.; make

adjustments and take up slack whenever

necessary.

e. If outdoors, either leave the antenna in place

atop the XB9, or remove the antenna and find a

location free from overhead obstructions such

as tree branches, or the roof of a tent or other

temporary shelter.

f. Plug the antenna cable into the ANT connector

on the back of the Boom Box.

g If not using battery power as the primary power

source, plug the female end of the DC Adapter

cable into the “DC 12V receptacle on the rear of

the Boom Box.

h. Plug the other end of the DC adapter cable

into a 110-volt wall receptacle. Apply power to

the Boom Box and Receiver.

i. You are now ready to enjoy XM programming

outdoors or within your home.

NOTE: Do not cut the antenna cable and attempt to

splice it or attach alternative connectors or

cable. The cable and connectors used in your

XB9 are specially chosen and attached at the

factory to ensure that they will work with XM’s

unique frequency band. Use an XM-approved

antenna extension kit from your local con-

sumer electronics retailer. Failure to do so

could damage the unit.

a.Apply power to the XB9 Boom Box as outlined

previously in paragraph 3b and obtain an audio

output. If no audio is heard, move the antenna

to different positions on the surface until an

audio output is heard. This is the desired

antenna position and should be marked.

b.After determining the optimum position, turn

off XB9 and Receiver power, disconnect the

power adapter from the wall outlet receptacle

(if indoors) and disconnect the antenna cable.

c. When indoors, plan the routing of the antenna

cable to the cradle. Make sure you avoid any

obstructions that could crimp, kink or twist the

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Audiovox Ricevitore

Audiovox

Audiovox HDP100 - Acoustic Research HD Powerlink Manuale utente

Audiovox

Audiovox XMCK10AP - XM Radio Tuner Manuale utente

Audiovox

Audiovox GMRS-2000 Manuale utente

Audiovox

Audiovox Sirius SRSIR-001FM Manuale utente

Audiovox

Audiovox VME 9425 Manuale utente

Audiovox

Audiovox iHD-P01 Manuale utente

Audiovox

Audiovox VME 9120 TS Manuale utente

Audiovox

Audiovox GMRS-2000 Manuale utente

Audiovox

Audiovox VXE 7020 NAV Manuale utente

Audiovox

Audiovox XR9 - XM Radio Tuner Manuale utente

Audiovox

Audiovox SIRIUS CE1000SR Manuale utente

Audiovox

Audiovox SIR-PNP1 Manuale utente

Audiovox

Audiovox SIRIUS SRSIR-001 Manuale utente

Audiovox

Audiovox XM SRXM-001 Manuale utente

Audiovox

Audiovox SIRIUS CE1000SR Manuale utente

Audiovox

Audiovox Phase Linear UV7 Manuale utente

Audiovox

Audiovox Xpress XMH10 Manuale utente

Audiovox

Audiovox SIRIUS SRSIR-001 Manuale utente

Audiovox

Audiovox AV1510D Manuale utente

Audiovox

Audiovox XMH10 Home Cradle Manuale utente

Audiovox

Audiovox VME 8013 - Manuale utente

Audiovox

Audiovox HDP100 - Acoustic Research HD Powerlink Manuale utente

Audiovox

Audiovox Xpress XMB10 Manuale utente

Audiovox

Audiovox XMCK5 - Car XpressEZ Satellite Radio... Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
