Audix Performance AP41 Manuale utente
PERFORMANCE SERIES WIRELESS
AP41 & AP42 USER GUIDE | SCAN. SYNC. PLAY! TM
TABLE OF CONTENTS
Safety Instructions & Certifications 2
Introduction 3
Quick Set Up Guide 4
R41 and R42 Receiver Front Panel 8
R41 and R42 Receiver Back Panel 9
R41 LCD Display 10
H60 Handheld Transmitter 11
B60 Bodypack Transmitter 13
Receiver Operating Instructions / Menu Functions 14
Using the H60 Handheld Transmitter 17
Using the B60 Bodypack Transmitter 19
Performance Tips 21
Rackmounts 22
Rackmount Installation 23
Troubleshooting 25
Specifications 26
Group/Channel Charts 28
SAFETY INSTRUCTIONS
Please read this instruction manual to ensure proper use and care of your system.
Quick Safety Tips
Unplug the receiver from the wall socket when not in use
Use only with the power supply provided
Keep away from water, moisture, heat generating devices and direct sunlight
Clean only with dry cloth
Do not block the receiver from ventilation
Use only with accessories produced by Audix
Operate and store in a safe temperature range 0°C (32°F) - 43°C (110°F)
CERTIFICATIONS
This product complies with FCC Part 74 regulations and conforms to CE standards.
Documentation available upon request. Operation of wireless devices may require a
license in your area. Please comply with regulations pertaining to your area. Users of
wireless microphones in the USA, on frequencies listed under FCC part 74.801, must
comply with eligibility and licensing requirements under FCC Part 74.834.
2
3
INTRODUCTION
Congratulations on the purchase of the Performance Series Wireless system from Audix!
Your system is jam packed with features that will enable you to fine-tune the system as
needed. However, the best part of our design is that the system is simple to use. For most
applications, simply refer to the Quick Set Up Guide to get up and running (pgs 4-7).
Please take a few minutes and read through this manual in order to familiarize yourself
with the system components and the menus. The menus are very intuitive and most
questions about operating the system will be answered by understanding the structure of
the menus.
3
2. Attach antennas to the back of the receiver. Keep each antenna straight while
screwing it into the connector (2a). After attached, bend antennas into position (2b).
2a 2b
4
QUICK SET UP GUIDE
Follow these instructions to get up and running in very little time.
1. Install 2 AA batteries in the handheld transmitter and bodypack. Refer to the
diagrams on the equipment to ensure batteries are positioned correctly.
1a 1b
a.) Handheld transmitter: Unscrew bottom portion of the transmitter to expose
battery holder. Push the first battery up through the housing with negative side
up. Place the second battery below the first with negative side up. The batteries are
spring loaded and will settle into place. Screw the cover back into place.
b.) Bodypack transmitter: With bodypack face down, push the spring release to
the right to open. Place left battery negative side up, and the right battery negative
side down. Snap the battery cover to close.
5
3. Connect power supply. Loop cable through the metal strain relief as shown above
prior to connecting power supply to receiver. Plug into power outlet.
33
4. Connect receiver to mixer or amplifier. Make sure audio levels on the mixer are
muted or off. For guitar, use the 1/4" AF output (line level unbalanced, 4b). For all other
applications use the XLR output (mic level, 4a).
4a 4b
5. Turn on transmitter.
55
5
6. Turn on receiver.
7. On receiver, press and hold the UP or DOWN button to trigger Scan for a clear
Group/Channel. After 8-20 seconds a Group/Channel˝ will appear on the receiver.
6
7
8
8. Sync handheld transmitter to
receiver. Unscrew the battery cover and
locate the window housing infrared
device. From a close proximity (6 inches
/ 152.40 mm) point the infrared window
(located on the opposite side of the
batteries) towards the infrared sensor next
to the SYNC button and press the SYNC
button. Within a few seconds the
transmitter Group/Channel and
Frequency will match the receiver.
9. Sync bodypack transmitter to
receiver. Unscrew the battery cover
and locate the window housing infrared
device. From a close proximity (6 inches
/ 152.40 mm) point the window below
the LCD screen on the bodypack towards
the infrared sensor next to the SYNC
button and press the SYNC button. Within
a few seconds the transmitter Group/
Channel and Frequency will match
the receiver.
6
QUICK SET UP GUIDE
7
Setting up multiple systems utilizes the Scan – Sync functions described to the left. In
general, compatible channels for synchronized use are organized by Group. (See the
Group/Channel chart on page 28.)
Be sure all receivers and transmitters are powered OFF.
1. Power up receiver #1 and matching transmitter: Run the standard Scan and Sync
routine as described in the previous section (Quick Set Up Guide). Leave the system ON.
Move the transmitter at least 6 feet (2 meters) away from the receiver.
2. Power up receiver #2 and matching transmitter: Run the Scan and the receiver
will find a clear channel in the same Group as the previous system. Sync the transmitter to
the receiver.
Adding more systems will follow the same procedure as above.
IMPORTANT: Be sure that all transmitters are at least 6 feet (2 meters) from each other as
you set up multiple systems.
Hint: If you are using more than one frequency band, be sure to set up all systems in the
same band before moving to the next.
MULTIPLE SYSTEMS
7
FRONT PANEL
R42 DUAL RECEIVER
1 2 3 4 5
6
7
1 POWER switch. Press for instant ON.
Press and hold for 3 seconds to turn
system OFF.
2 SYNC button. Automatically synchronizes
the transmitter to the receiver.
3 Infrared sensor. Sends data from receiver
to transmitter when SYNC function
is engaged.
4 High contrast LCD display. See Menu
Functions on page 14 for more details.
5 UP button. Only active in Menu mode.
Scrolls forward through menus. Also acts
as hot key for autoscan when pushed
and held.
8
6 DOWN button. Only active in Menu
mode. Scrolls backwards through
menus. Also acts as hot key for
autoscan when pushed and held.
7 SET button. Press and hold to enter the
Menu mode. Also used to save settings,
exit the Menu mode and toggle
between Frequency˝ and Group/
Channel˝ for quick reference.
66
55 77 44
12 2
3 3
R41 SINGLE RECEIVER

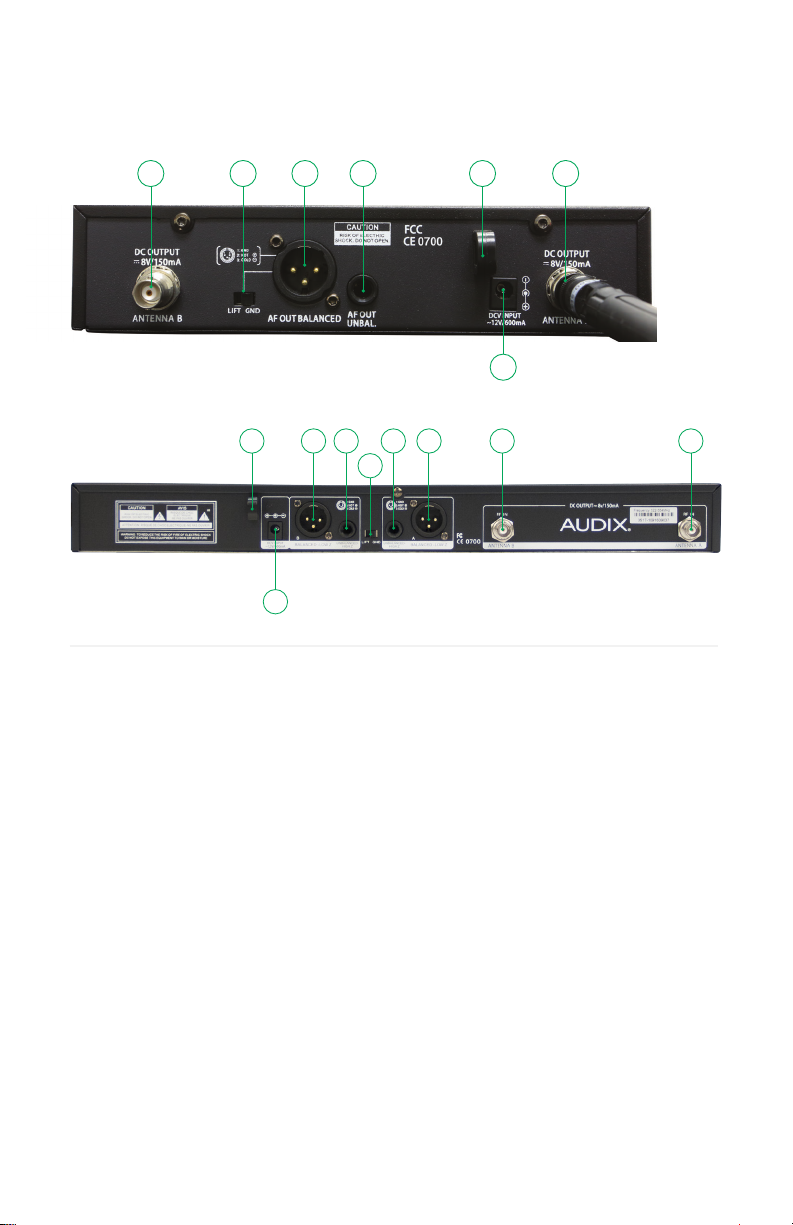

BACK PANEL
1
1 7
2
2
3
3 3
4
4 4
5
5
6
6
7
1 BNC connector for Antenna B.
2 Ground lift switch to help eliminate
ground loops or noise from
other sources.
3 Mic level balanced XLR output for
connecting receiver to an audio mixer.
4 Unbalanced ¼ inch output for
connecting receiver to an amplifier.
9
5 Metal strain relief. Allows power cable
to loop through for added security.
6 DC power jack for external
power supply (12 V).
7 BNC connector for Antenna A.
R42 DUAL RECEIVER
R41 SINGLE RECEIVER
