AUDMIC TE-2026 Manuale utente
Turntable with USB and Bluetooth Reception
User’s Guide
TE-2026
Portable Suitcase Record Player
Turntable Instruction Manual
1
1. Never use a record with cracks or warps.
2. Never use a record that is cracked or warped, as this may cause extreme wear and destruction of the needle.
3. Never use unusual play methods such as scratching. This unit is not designed for such playback.
4. Do not expose the unit to direct sunlight, high temperature or high humidity. This may cause warping or deformation. When holding the
record, hold only the label or the outer edge.
5. Do not touch the record groove. Dust and fingerprints may cause distortion of the sound. Care of the record
6. Use a special record cleaner and cleaner solution (sold separately). Wipe the record cleaner in a circular motion along the record groove.
Accessories Includes
•45 rpm adapter
•2x Stylus(one installed)
•AC/DC power adapter
•7-inch Turntable mat
•User’s quick guide
•User’s manual
• 3 speed turntable plays 33 1/3, 78, and 45 rpm records;
• Auto stop function
• Supports Bluetooth Input
• Aux In 3.5mm audio input
• All-in-one LED control panel
• Built-in stereo speakers
• USB/TF card recording
• USB/TF card playback
• RCA stereo audio outputs
Introduction
Instructions Before Start
Read the manual before using this product. Keep these instructions for future reference.
About Records
About USB /TF cards that can be used with this unit
1. The file format that can be played by this unit is WAV/MP3 format (extension: .wav/.mp3) only. USB in FAT/FAT32 format only.
2. This product is not compatible with USB hubs.
3. When a large capacity USB flash drive or TF card is connected, it may take some time to load the file.
4. Press and hold the Pause/Play/DEL button on the unit to erase the files stored in the USB flash drive/TF card one by one.
5. It is recommended that you make a backup of your files beforehand to prevent them from being erased unexpectedly by pressing the
Pause/Play button on the panel.
About Bluetooth
Main features
1. The Bluetooth devices used in this unit use the same frequency band (2.4GHz) as wireless LAN devices (IEEE802.11b/g/n), so if they are
used near each other, they may interfere with each other, resulting in reduced communication speed or connection failure. In this
case, please use it as far away as possible (about 10m).
2. We do not guarantee the connection with all Bluetooth devices.
3. Also, depending on the conditions, it may take some time to connect.
Received a defective record player ?
Notice:
The gap between the case and the spinning
mechanism is for vibration-absorbing, it's a commonly
used design for starter turntable, which could be
considered being defective mistakenly.
2
PARTS ILLUSTRATION:
1.
Turntable Platter
2.
Turntable spindle
3.
45 RPM adaptor
4.
Tone arm lift lever
5.
Tone arm holder
6.
Auto stop ON/OFF switch
7.
Tone arm
8.
Speed selection switch
9.
Power ON-OFF/Volumebutton
10.
Headphone jack
11.
Stylus
12.
USB connector
13.
TF connector
14.
Modes select key/Record button
15.
Next music track
16.
Pause and Play switch and DELbutton
17.
Previous music track
18.
LED Display
19.
Aux in jack
3
You can control the playback of music from an external device(via AUX) by pressing the " Next Track", " Pause/Play", and "Previous Track"
buttons on the unit
Priority for Bluetooth and AUX Conenction
Priority Note:
1. The AUX-IN (audio input) and USB memory/TF card playback have priority. If the AUX-IN (audio input) terminal is used to connect
an external device, the connection to the AUX-IN (audio input) takes priority over the connection to the USB memory stick/TF
card.
2. The connection to the external device (cable, USB memory stick, or TF card) takes priority over the connection to the DEFINED
(Audio Input).
3. If a cable, USB memory stick, or TF card is plugged into the AUX-IN (audio input), this connection will take priority and you will not
hear the Bluetooth connection sound.
4. If you are already connected to another external device, you cannot connect to the new external device. In this case, please
disconnect the Bluetooth connection with other external devices. The Bluetooth connection distance is up to about 10 meters.
DC Power Input
Audio Output Connect to send audio signal to an external source.
5
Rear Inputs

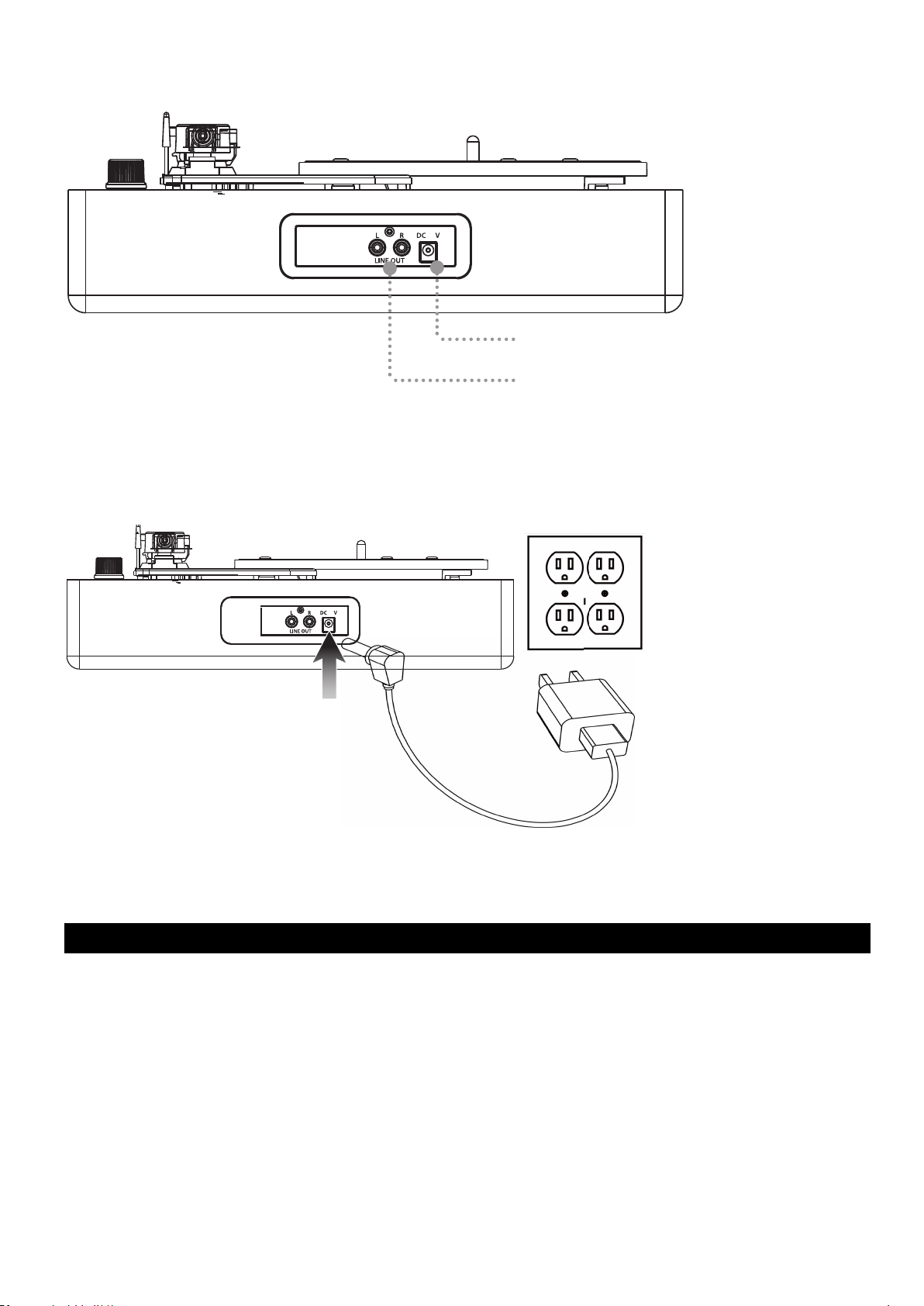

Connecting the main unit to Power
1. Plug the power cord into the DC Input on the back of the unit.
2. Then plug the USB side into a the DC adapter included.
3. Plug in the adapter into the Standard wall power outlet.
5
Dedicated
AC plug
4
It is recommended that you use extreme care when manipulating the tone arm, stylus, and other components of this
turntable. These parts are very sensitive and can easily break or become damaged if they are carelessly handled.
1. Turn the the Power ON/OFF volume button clockwise till the LED display lights up, if not, check the power and adapter.
2. Remove the shroud that protects the stylus, and release the lock that holds the Tone Arm in it’s resting position.
3. Before use, turn the turntable clockwise about 10 times by hand to make sure there is no belt shift or kinks from the pulleys.
4. Select the correct turntable speed based on the type of record you wish to play, and place the record on the turntable. If you are
playing a 45 rpm record, use the included adapter and place it between the turntable and the record.
5. Use the Tone Arm Lift Switch to raise the Tone Arm from its catch.
6. Using your hand, gently swing the Tone Arm into the desired location over the record. The turntable will start spinning as the
Tone Arm is moved into position.
7. Use the Tone Arm Lift Switch to safely lower the stylus onto the record.
Using the Lift Switch instead of your hand will reduce the chance of accidentally damaging the record or the stylus.
8. Slide the Auto Stop Switch to ON to enable the Auto Stop feature. When the record is finished playing, it will automatically stop
the turntable. Use the Lift Switch to raise the stylus off of the record, and gently return the Tone Arm to the catch by hand.
Note:
Some records place their Auto Stop area outside of the range of this unit. In these cases, the record will stop playing before the
last track is reached. Set the Auto Stop Switch to OFF and use the Tone Arm Lift Switch to safely raise the stylus off the record
when the end of the record has been reached.
33 1/3 rpm
12in diameter
78 rpm
10in diameter
45 rpm & adapter
7in diameter
Lock Unlock
Operation---Playing a Record
5
1. Set the auto-stop to "ON" and short press “M” button on the control panel to switch mode to "bt" on the display.
2. Using the controls on your Bluetooth device, search for and select "TE-2026"in your Bluetooth settings to pair. If your
device requests a password, enter the default password "0 0 0 0 " and press OK.
3. When successfully paired and connected, an audible chime will sound. After initial pairing, the unit will stay paired unless
unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is
unable to connect, repeat the above steps.
4. Play, pause or skip a selected track using the controls on the connected Bluetooth Device or the controls on the turntable.
On an iPhone
• Go to SETTINGS > BLUETOOTH
Search for devices (Make sure Bluetooth is
turned ON)
Paired
Bluetooth
Bluetooth
ON
TE-2026
Devices
Now discoverable
12:12 PM
On an Android Phone
Bluetooth settings
Bluetooth devices Scanning
Bluetooth
Device name
TE-2026
Visible
Search for devices
Make device visible
• Go to SETTINGS > BLUETOOTH
Search for devices (Make sure Bluetooth is
turned ON)
12:12 PM
Bluetooth Input--- pairing with Bluetooth
1. Insert your USB/TF card into the USB/TF slot. Press and hold the “M” button for 3 seconds till the display shows
”rEC”, you will hear one time beep sound and it begins to recording meanwhile the display shows the time
counting of the recording.
2. Stop recording. Press and hold the “M” button for few seconds, the recording will stop(display will show "STOP")
and save the recorded audio automatically to USB or TF card as the last song, then you can plug out the USB device.
3. Find below files on your computer for one recorded song, and repeat steps 1-2 above if you want the other
recordings.
File Folder
FILE0001.WAV
(Recorded in WAV format)
⇒ son folder
JL_REC
6
NOTE:
•Recording ONLY support USB in FAT/FAT32 format, and save as WAV. files.
•MAKE A COPY and formating USB flash drive (if in exFAT or NTFS format ) into FAT/FAT32 format.
USB Recording
Make sure that the USB memory / TF card you use has enough space.
For recording, press "M" Mode switching / recording button at the start and end of each song.
This unit does not have a function to automatically separate songs, the recording from the start to the end is
recorded as one file. (Please note that it will not be individual data for each song)
Never remove the USB memory / TF card while recording. If you remove it, the recorded data may be damaged.
RCA Connecting to External Systems

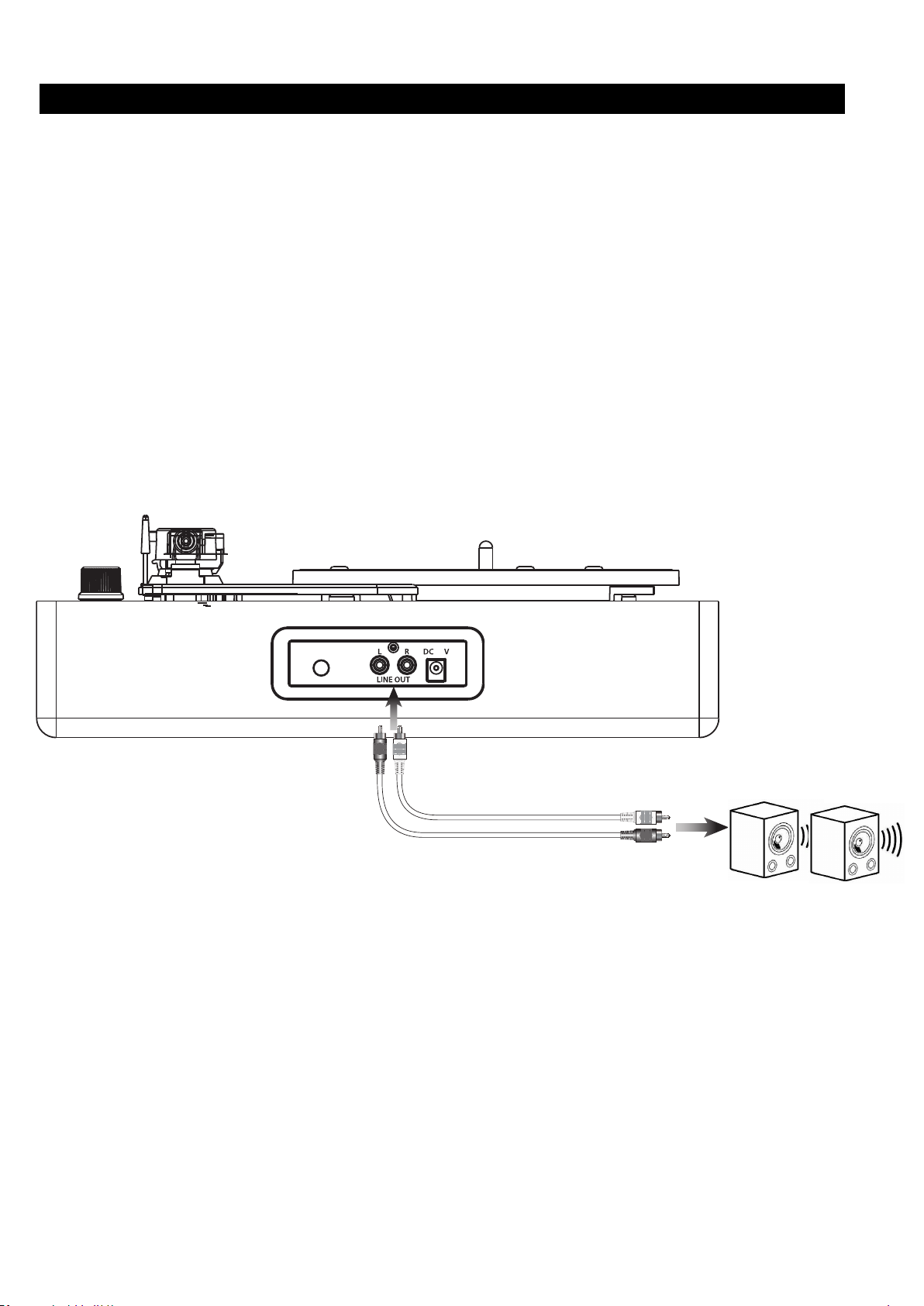

RCA Audio Output
Requires RCA audio cables (red/white, not included). Use to connect the turntable to an external stereo, television, or other source.
1. Connect RCA audio cables to the RCA Audio Output on the back of the turntable, and to the audio input of an
external stereo system.
2. Adjust the external stereo system to accept input from the turntable.
3. Audio played through the turntable will now be heard through the connected stereo system.
To Audio Inputs on external
system
5
7
RCA cable not included
AUX IN Connecting to Audio Source
Requires 3.5 mm audio input cable (not included).
Note: When the Source selector is set to Aux In, When a 3.5mm audio cable is plugged into the unit, it will automatically
detect the input and power ON in Aux In mode.
1. Plug a 3.5 mm audio input cable into the Aux In on the unit and the audio output/headphone output on an MP3
Player or other audio source.
2. Use the controls on your connected music player to select and play audio.
3. Audio played through the connected device will now be heard through the speakers.
AUX cable is not included
1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.
Installing Needle
1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the front of
the needle upward until it snaps into place.
The stylus needle is universal type
and purchasable on Amazon.com.
HOW TO REPLACE THE NEEDLE
The durability time of the recoil needle is about 200-250 hours. Replace the needle if necessary.
Remove the Needle
8
Troubleshooting
There is no power
•Power adaptor is not connected correctly.
•No power at the power outlet.
•Use the wrong adapter instead of he original one included.
•Power button is not turned on, turn the volume/ON/OFF button clockwise to turn on.
Volume is too low, turn it clockwise to volume up.
Stylus protector is still on.
Tone arm is lift up by the lever.
Volume is not loud enough or not good: connect to the external powered speakers.
Power is on, but the platter does not turn
•Turntable drive belt has slipped off.
•An aux in cable is plugged into the aux in jack, unplug it.
•Bluetooth is connected, disconnect it and reset the mode to "PHO"
Turntable is spinning, but no sound, or not loud enough
USB Recording not working
USB is not formatted in FAT/FAT32
USB flash drive has little room for storage
USB is pulled out when recording is going.
User didn't long press"M" till enter into recording mode.
My record is skipping.
•Use the tone arm lift raise up and down the arm for 10 times before initial spinning.
•Change vinyl records or clean the vinyl records grooves properly.
•The needle is not in the middle of the stylus or broken, replace it.
•Put the record player on the flat surface with 4 legs/corners on the ground.
•The white stylus protector is till on.
9
Product Name Vintage Suitcase Bluetooth Turntable Record Player
Speaker Driver 5W *2
Dimension L14.1” x D11.22’’x H4.9’’(L360 x D285 x H125mm)
Power DC5V 1A
Input Connections supported 1 x 3.5mm Aux jack
1 x Bluetooth input
1 x USB slot
1 x SD/TF slot
Power Output 5 Watts
Power Input: 5V/1A
3 Speeds 33; 45; 78 rpm
Specifications
10
FCC Statements
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
RF Exposure Statement
The distance between user and products should be no less than 20cm.
Model: TE-001
FCC ID: AUD-TE001
Made In China
AUDMICINDUSTRIALLIMITED
