Autel TS609 Manuale utente

Trademarks

Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiTPMS®, MaxiRecorder®, and

MaxiCheck®are trademarks of Autel Intelligent Technology Corp., Ltd.,

registered in China, the United States and other countries. All other marks are

trademarks or registered trademarks of their respective holders.

No part of this manual may be reproduced, stored in a retrieval system or

transmitted, in any form or by any means, electronic, mechanical, photocopying,

recording, or otherwise without the prior written permission of Autel.

Disclaimer of Warranties and Limitation of Liabilities

All information, specifications and illustrations in this manual are based on the

latest information available at the time of printing.

Autel reserves the right to make changes at any time without notice. While

information of this manual has been carefully checked for accuracy, no

guarantee is given for the completeness and correctness of the contents,

including but not limited to the product specifications, functions, and illustrations.

Autel will not be liable for any direct, special, incidental, indirect damages or any

economic consequential damages (including the loss of profits).

IMPORTANT

Before operating or maintaining this unit, please read this manual carefully,

paying extra attention to the safety warnings and precautions.

For Services and Support

pro.autel.com

www.autel.com

www.maxitpms.com

1-855-288-3587/1-855-AUTELUS (North America)

0086-755-22672493/86532091 (China)

[email protected]

For technical assistance in all other markets, please contact your local

distributor.

Safety Information

For your own safety and the safety of others, and to prevent damage to the

device and vehicles upon which it is used, it is important that the safety

instructions presented throughout this manual be read and understood by all

persons operating or coming into contact with the device.

There are various procedures, techniques, tools, and parts for servicing

vehicles, as well as in the skill of the person doing the work. Because of the

vast number of test applications and variations in the products that can be

tested with this equipment, we cannot possibly anticipate or provide advice

or safety messages to cover every circumstance. It is the automotive

technician’s responsibility to be knowledgeable of the system being tested. It

is crucial to use proper service methods and test procedures. It is essential

to perform tests in an appropriate and acceptable manner that does not

endanger your safety, the safety of others in the work area, the device being

used, or the vehicle being tested.

Before using the device, always refer to and follow the safety messages and

applicable test procedures provided by the manufacturer of the vehicle or

equipment being tested. Use the device only as described in this manual.

Read, understand, and follow all safety messages and instructions in this

manual.

Safety Messages

Safety messages are provided to help prevent personal injury and

equipment damage. All safety messages are introduced by a signal word

indicating the hazard level.

DANGER

Indicates an imminently hazardous situation that, if not avoided, will result in

death or serious injury to the operator or to bystanders.

WARNING

Indicates a potentially hazardous situation that, if not avoided, could result in

death or serious injury to the operator or to bystanders.

iii

Safety Instructions

The safety messages herein cover situations Autel is aware of. Autel cannot

know, evaluate or advise you as to all of the possible hazards. You must be

certain that any condition or service procedure encountered does not

jeopardize your personal safety.

DANGER

When an engine is operating, keep the service area WELL VENTILATED or

attach a building exhaust removal system to the engine exhaust system.

Engines produce carbon monoxide, an odorless, poisonous gas that causes

slower reaction time and can lead to serious personal injury or loss of life.

SAFETY WARNINGS

Always perform automotive testing in a safe environment.

Wear safety eye protection that meets ANSI standards.

Keep clothing, hair, hands, tools, test equipment away from all moving

or hot engine parts.

Operate the vehicle in a well-ventilated work area, for exhaust gases are

poisonous.

Put the transmission in PARK (for automatic transmission) or NEUTRAL

(for manual transmission) and make sure the parking brake is engaged.

Put blocks in front of the drive wheels and never leave the vehicle

unattended while testing.

Be extra cautious when working around the ignition coil, distributor cap,

ignition wires and spark plugs. These components create hazardous

voltages when the engine is running.

Keep a fire extinguisher suitable for gasoline, chemical, and electrical

fires nearby.

Do not connect or disconnect any test equipment while the ignition is on

or the engine is running.

Keep the test equipment dry, clean, free from oil, water or grease. Use a

mild detergent on a clean cloth to clean the outside of the equipment as

necessary.

Do not drive the vehicle and operate the test equipment at the same

time. Any distraction may cause an accident.

Refer to the service manual for the vehicle being serviced and adhere to

all diagnostic procedures and precautions. Failure to do so may result in

personal injury or damage to the test equipment.

To avoid damaging the test equipment or generating false data, make

sure the vehicle battery is fully charged and the connection to the

vehicle DLC is clean and secure.

Do not place the test equipment on the distributor of the vehicle. Strong

electro-magnetic interference can damage the equipment.

CONTENTS

SAFETY INFORMATION................................................................................................II

SAFETY MESSAGES....................................................................................................II

SAFETY INSTRUCTIONS............................................................................................. III

1 USING THIS MANUAL........................................................................................... 6

CONVENTIONS............................................................................................................6

2 GENERAL INTRODUCTION.................................................................................8

MAXITPMS TS609 DISPLAY TABLET...................................................................... 9

MAXIVCI V200 – VEHICLE COMMUNICATION INTERFACE.................................... 13

OTHER ACCESSORIES............................................................................................. 14

3 GETTING STARTED............................................................................................ 16

POWER UP............................................................................................................... 16

VCI CONNECTION....................................................................................................17

4 SERVICE PROCEDURES...................................................................................18

5 COMPLIANCE INFORMATION.......................................................................... 21

6 WARRANTY...........................................................................................................24

LIMITED ONE YEAR WARRANTY............................................................................. 24

1Using This Manual

This manual contains device usage instructions.

Some illustrations shown in this manual may contain modules and optional

equipment that are not included in your system. Contact your sales

representative for availability of other modules and optional tools or

accessories.

Conventions

The following conventions are used.

Bold Text

Bold text is used to highlight selectable items such as buttons and menu

options.

Tap OK.

Notes and Important Messages

Notes

ANOTE provides helpful information such as additional explanations, tips,

and comments.

NOTE

New batteries reach full capacity after approximately 3 to 5 charging and

discharging cycles.

Important

IMPORTANT indicates a situation that, if not avoided, may result in damage

to the test equipment or vehicle.

IMPORTANT

Keep the cable away from heat, oil, sharp edges and moving parts. Replace

damaged cables immediately.

Hyperlink

Hyperlinks or links that take you to other related articles, procedures, and

illustrations are active in electronic documents. Blue italic text indicates a

selectable hyperlink and blue underlined text indicates a website link or an

email address link.

Illustrations

Illustrations used in this manual are samples, the actual testing screen may

vary for each vehicle being tested. Observe the menu titles and on-screen

instructions to make correct option selection.

2General Introduction

When it comes to ultra-portability, MaxiTPMS TS609 (hereinafter referred to

as TS609) is your perfect companion. TS609 offers maximum convenience

and swift diagnosis. The intuitive user interface makes using the device

effortless through a 5.5-inch LCD touch screen that displays at 1280 x 720

quality. Together with the ability to quickly read and clear Original Equipment

Manufacturers (OEM) enhanced codes for TPMS module of the majority of

the makes and models on the market, TS609 provides you with superior

special functions for TPMS services with ease.

There are two main components of the TS609 system:

TS609 Display Tablet – the central processor and monitor for the

system.

MaxiVCI VCI200 (Vehicle Communication Interface) – the device for

accessing vehicle data.

This manual describes the construction and operation of both the devices

and how they work together to deliver diagnostic solutions.

MaxiTPMS TS609 Display Tablet

Functional Description

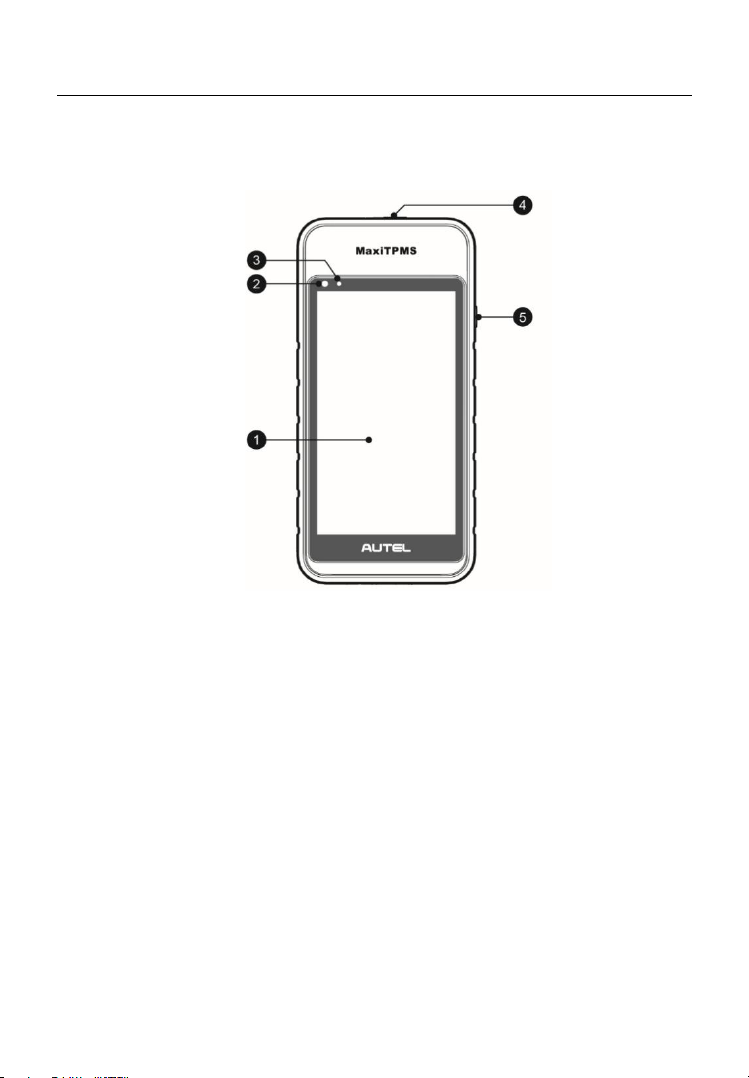

Figure 2- 1 Display Tablet Front View

1. 5.5” LCD Capacitive Touchscreen

2. Ambient Light Sensor – detects ambient brightness.

3. Power LED – indicates battery level & charging or system status.

4. TPMS Service Symbol – indicates the position of the embedded TPMS

antenna.

5. Lock/Power Button – long press button to turn tablet off and on. Quick

press button to lock screen.

The power LED displays green, yellow or red depending on the charging

status and operating state:

A. Green

Illuminates green when the Display Tablet is fully charged.

B. Yellow

Illuminates yellow when the Display Tablet is charging.

C. Red

Illuminates red when the Display Tablet is powered on and when a

problem is detected.

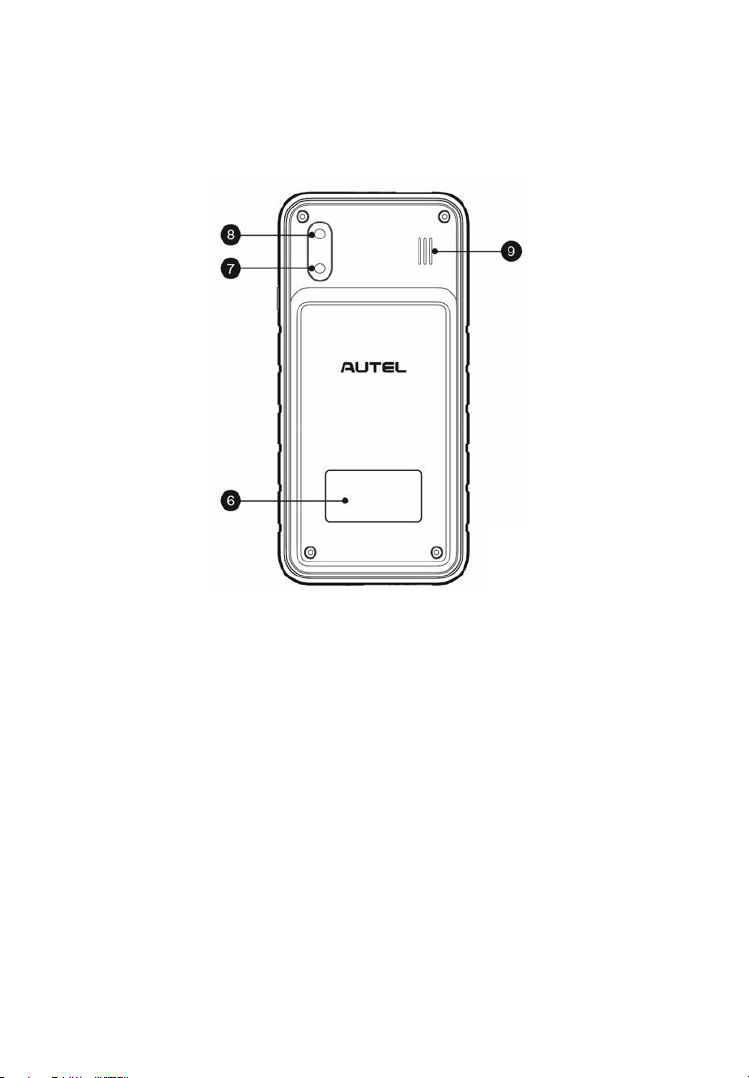

Figure 2- 2 Display Tablet Back View

6. Sticker

7. Rear Camera

8. Camera Flash

9. Speaker
