AutoCAD®2010

Preview Guide

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 2

Table of Contents

Introduction ........................................................................................................................................................3

User Interface .....................................................................................................................................................3

Initial Setup.....................................................................................................................................................3

Workspaces....................................................................................................................................................4

Application Menu............................................................................................................................................4

Ribbon............................................................................................................................................................5

Quick Access Toolbar.....................................................................................................................................7

New Features Workshop ................................................................................................................................9

Document..........................................................................................................................................................10

Parametric Drawing......................................................................................................................................10

Dynamic Blocks............................................................................................................................................16

Annotation Tools...........................................................................................................................................20

Color Selection .............................................................................................................................................22

Measure Tools..............................................................................................................................................23

Reverse Tools ..............................................................................................................................................24

Spline Editing Tools......................................................................................................................................25

Purge Tools ..................................................................................................................................................27

Viewport Rotation Tools................................................................................................................................28

External References.....................................................................................................................................28

Sheet Sets....................................................................................................................................................30

Quick Views..................................................................................................................................................31

Communicate....................................................................................................................................................31

PDF Support.................................................................................................................................................31

Drawing File Format .....................................................................................................................................33

3D Printing....................................................................................................................................................34

eTransmit......................................................................................................................................................35

Autodesk Seek .............................................................................................................................................35

Explore..............................................................................................................................................................37

Conceptual Design .......................................................................................................................................37

Free-Form Design.........................................................................................................................................40

Customize.........................................................................................................................................................44

CUIx File.......................................................................................................................................................44

Action Macros...............................................................................................................................................44

Online License Transfer................................................................................................................................46

Summary...........................................................................................................................................................47

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 3

Introduction

With AutoCAD®2010 software, you can tackle your most challenging problems with ease. Your designs can

now exist in any shape imaginable, thanks to free-form design tools. Many critical features have been

automated, making your workflow more efficient and the move to 3D design even smoother. Sharing and

working on projects with colleagues has never been easier, thanks to multiple upgrades to our PDF capabilities

and the incredible addition of 3D printing. With these and countless other new capabilities you’ve been asking

for, AutoCAD 2010 takes any idea and turns it into a reality faster than ever before.

User Interface

Initial Setup

Easily tailor the AutoCAD environment to meet your needs using Initial Setup, which is displayed the first time

you launch AutoCAD. With Initial Setup you can choose your industry as well as workspace and drawing

template preferences. The choices you make in the Initial Setup affect the default settings of various AutoCAD

functionality, including drawing templates, Autodesk®Seek filters, Autodesk Developer Network partners, the

Unified Online Experience portal, and workspaces.

Figure 1. Initial Setup

You can access Initial Setup from the User Preferences tab of the Options dialog box.

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 4

Figure 2. Initial Setup on User Preferences tab of the Options dialog box

Workspaces

When you specify Initial Setup options, AutoCAD automatically creates a new workspace based on your

choices and sets it current. The name of the current workspace is displayed in the status bar next to the

Workspace Switching icon and you can select it to access the Workspace menu.

Figure 3. Workspace menu

Application Menu

The Application menu, in the upper left corner of the AutoCAD display, has been streamlined to provide easy

access to common tools. You can create, open, save, print, and publish AutoCAD files, send the current

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 5

drawing as an email attachment, and produce electronic transmittal sets. In addition, you can perform drawing

maintenance, such as audit and purge, and close drawings.

A search tool at the top of the Application menu enables you to query the Quick Access toolbar, Application

menu, and the currently loaded ribbon to locate commands, ribbon panel names, and other ribbon controls.

Buttons at the top of the Application menu provide easy access to Recent or Open documents and a new option

in the Recent Documents list enables you to sort by access date in addition to size, type, and ordered list.

Figure 4. Application menu

Ribbon

The ribbon has been updated to provide greater flexibility, easier access to tools, and consistency across

Autodesk applications.

You can drag a ribbon panel off the ribbon to display it as a sticky panel. Sticky panels remain displayed, even

when selecting a different tab, until you select the option to Return Panels to Ribbon.

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 6

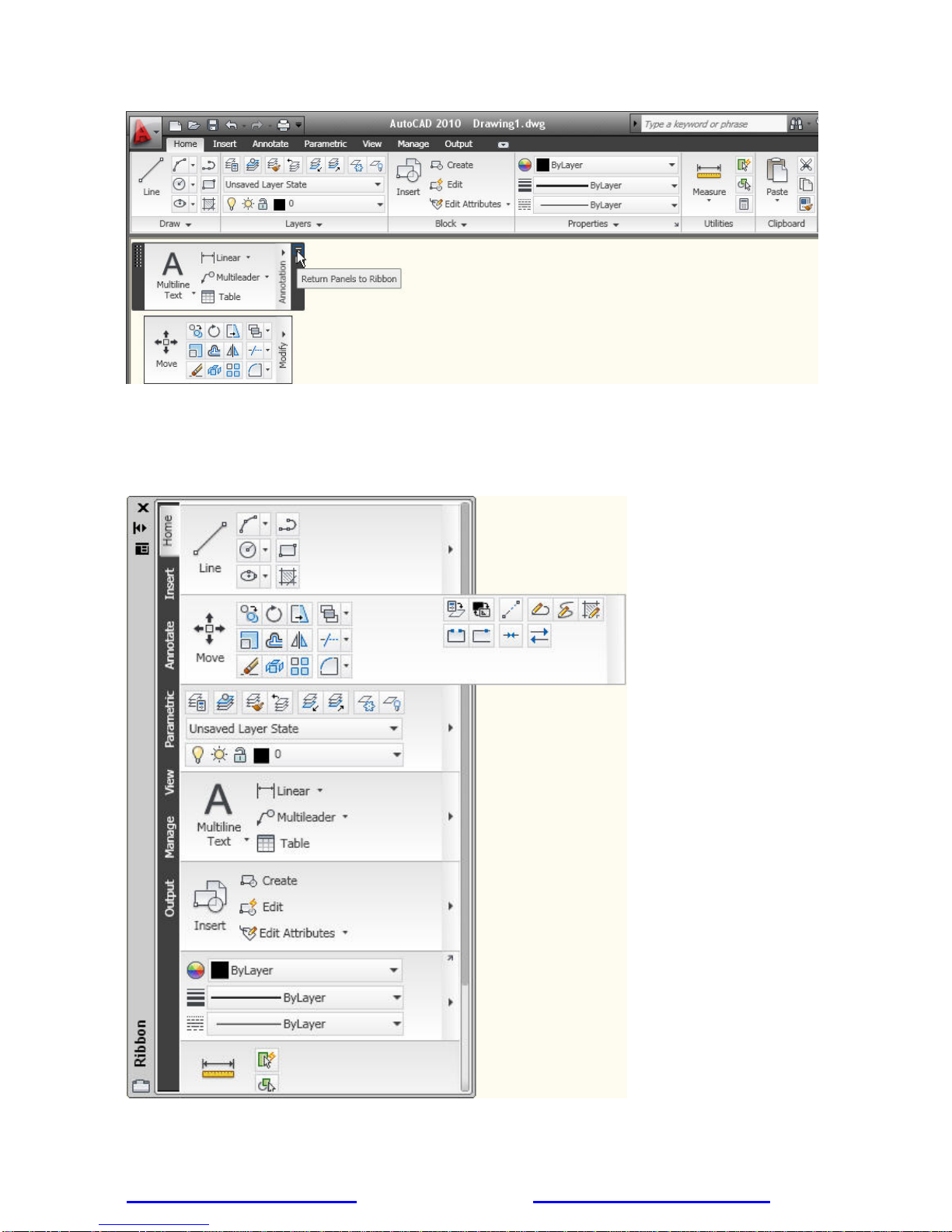

Figure 5. Ribbon and sticky panels

The vertical ribbon, which can be displayed by undocking the ribbon from its horizontal position, has been

updated to show the tab names along the side. The panel titles are displayed by default and those with

additional tools include slide-out panels. When resizing the vertical ribbon, buttons automatically flow to the next

or previous row and other elements, such as slider bars, automatically shorten or lengthen.

Figure 6. Vertical ribbon with slide-out panel

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 7

If you customized the Dashboard in AutoCAD 2008, you can easily convert your custom dashboard panels to

new ribbon panels using the Transfer tab in the Customize User Interface (CUI) Editor. The newly converted

panels are then displayed under the Ribbon Panels node in the same CUIx file as the dashboard panels. Once

converted, you can add the new panels to a tab or transfer them to another CUIx file.

Figure 7. Dashboard conversion

Enhanced ribbon functionality in AutoCAD 2010 enables you to customize contextual ribbon tab states which

control the display of ribbon tabs and panels based on either the type of object selected in the drawing window

or the active command. You can display a ribbon tab that is assigned to a ribbon contextual tab state either on

its own tab or with its panels merged onto each of the ribbon tabs in the current workspace. To add a ribbon

tab, drag it from the Tabs node in the Customizations In pane to the contextual tab state. For example, if you

want the Home tab to become active whenever you select an Arc object, drag the Home-2D ribbon tab to the

Arc selected node under the Contextual Tab States. Select it and modify its display type to indicate if it should

be displayed as its own tab or merged onto each ribbon tab.

Figure 8. Ribbon Contextual Tab States

Quick Access Toolbar

The Quick Access toolbar has been enhanced with more functionality and to ensure consistency with other

Windows®applications. The Undo and Redo tools include history support and the right-click menu includes new

options that enable you to easily remove tools from the toolbar, add separators between tools, and display the

Quick Access toolbar above or below the ribbon.

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 8

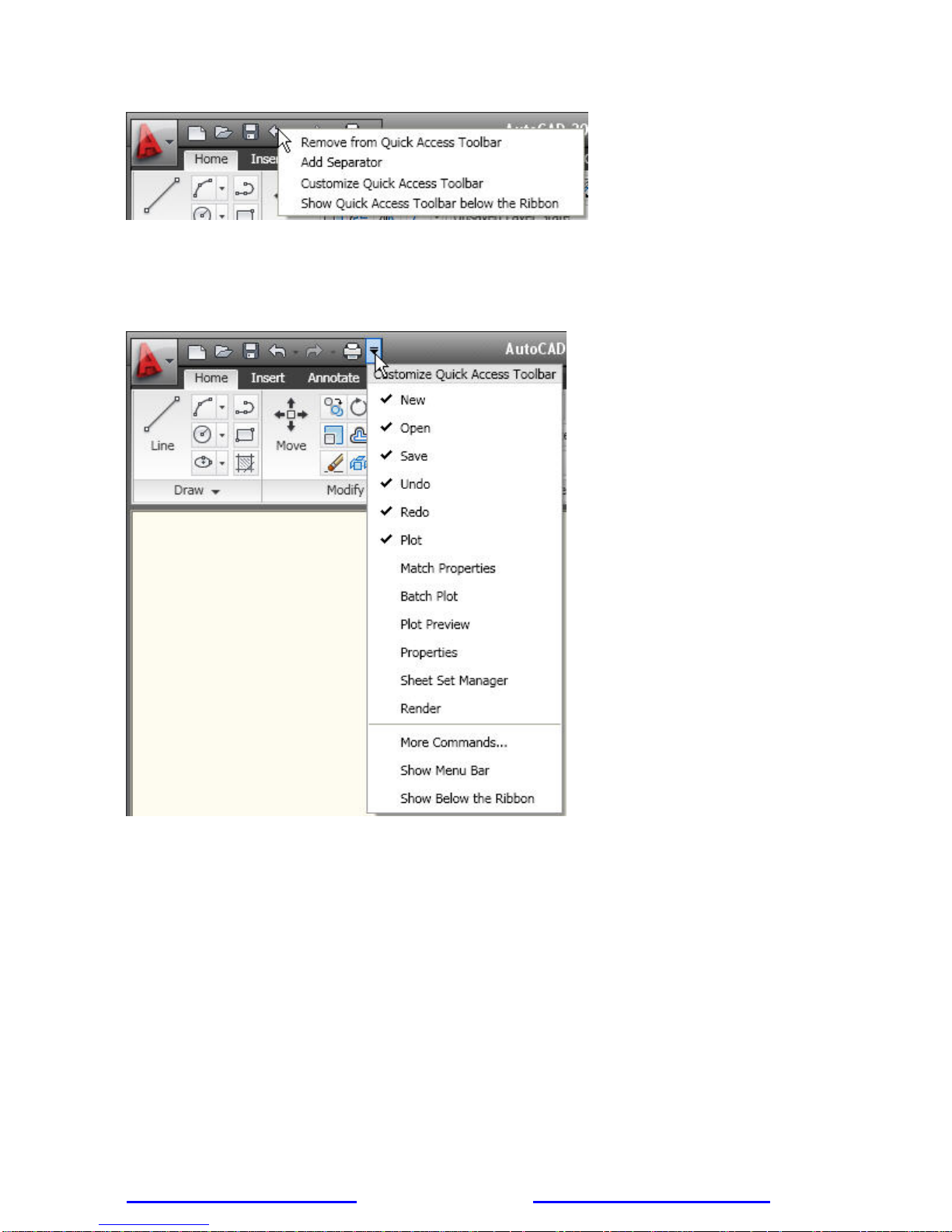

Figure 9. Quick Access toolbar right-click menu

In addition to the right-click menu, the Quick Access toolbar includes a new flyout menu, which displays a list of

common tools that you can select to include in the Quick Access toolbar. The flyout menu provides easy access

to additional tools using the Command List pane in the CUI Editor. Other options enable you to show the menu

bar or display the Quick Access toolbar below the ribbon.

Figure 10. Quick Access toolbar flyout menu

You can further customize the Quick Access toolbar using the new Quick Access toolbars node in the CUI

Editor. Create multiple versions of the Quick Access toolbar and then add them to the appropriate workspaces.

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 9

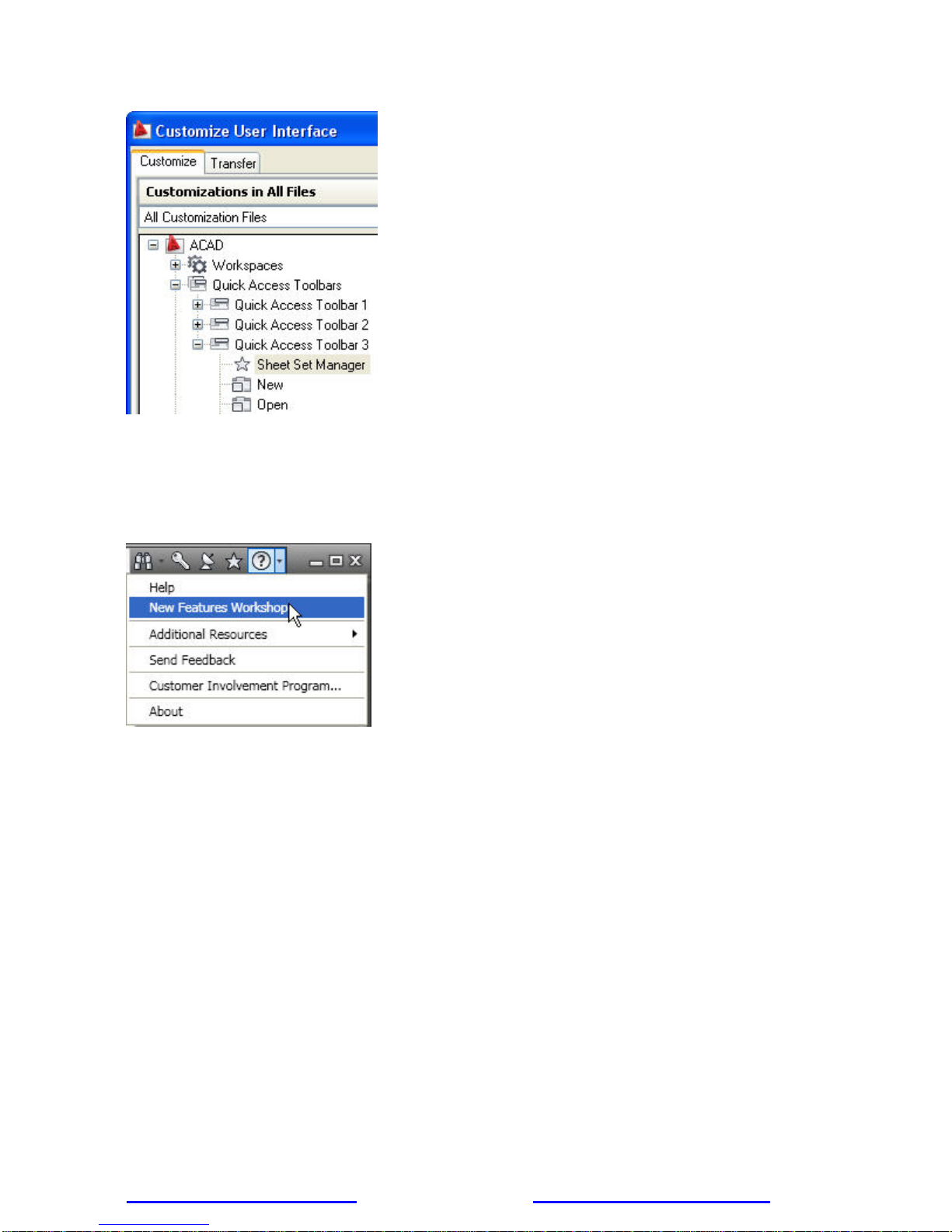

Figure 11. Quick Access toolbar customization

New Features Workshop

The New Features Workshop has been updated to include AutoCAD 2010 functionality. This interactive

learning tool helps you discover the newest functionality with minimal effort. You can access the New Features

Workshop from the drop-down menu on the InfoCenter toolbar, to the right of the Help button.

Figure 12. Access to the New Features Workshop

AUTOCAD 2010 PREVIEW GUIDE

www.autodesk.com/autocad http://heidihewett.blogs.com/ 10

Document

AutoCAD is synonymous with documentation for good reason. Drive your projects from concept to completion

with the powerful documentation tools in AutoCAD 2010. Work faster with automation, management, and

editing tools that minimize repetitive tasks and speed your time to completion. No matter your project’s size or

scope, you can meet the challenge with AutoCAD—continuously leading and innovating documentation for over

25 years.

Parametric Drawing

Powerful new parametric drawing functionality in AutoCAD 2010 enables you to dramatically increase

productivity by constraining drawing objects based on design intent. Geometric and dimensional constraints

help ensure that specific relationships and measurements remain persistent even as objects are modified. The

tools for creating and managing geometric and dimensional constraints are available on the Parametric ribbon

tab, which is automatically displayed in the 2D Drafting and Annotation workspace.

Figure 13. Parametric ribbon tab

Establishing Geometric Relationships

Geometric constraints establish and maintain geometric relationships between objects, key points on objects, or

between an object and the coordinate system. Pairs of key points on or between objects can also be

constrained to be vertical or horizontal relative to the current coordinate system. For example, you could specify

that two circles must always be concentric, that two lines are always parallel, or that one side of a rectangle is

always horizontal.

Applying Geometric Constraints

Geometric relationships are defined with geometric constraints, located on the Geometric Panel of the

Parametric tab of the ribbon, or with the GEOMCONSTRAINT command. When applying constraints, an icon

appears next to the cursor to help you remember which constraint you selected.

Figure 14. Concentric geometric constraint icon

When applying a constraint to points, a temporary marker identifies the closest valid point when rolling over an

object. It generally corresponds with points that can be used as object snaps.

Whether selecting objects or points on objects to constrain, the order and pick location affects how the objects

update: the second object selected updates to satisfy the constraint. After the constraint is applied, though,

either object will update when the other is modified.
