Autoscript LED8TFT-ME Manuale utente
www.autoscript.tv
EN
Part No. LED8TFT-ME
LED 8 Inch TFT
On-Camera Prompters
LED 8 Inch TFT
On-Camera Prompter
Copyright © 2014
All rights reserved.
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph,
magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom
Ltd reserves the right to make changes to the information or specifications without obligation to notify any
person of such revision or changes. Changes will be incorporated in new versions of the publication.
We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes
to product specifications and features. Should this manual not contain information on the core functionality
of your product, please let us know. You may be able to access the latest revision of this manual from our
website.
Vitec Videocom Ltd reserves the right to make changes to product design and functionality without
notification.
Trademarks
All product trademarks and registered trademarks are the property of The Vitec Group Plc.
All other trademarks and registered trademarks are the property of their respective companies.
Published by:
Vitec Videocom Ltd
Supports Technical Publications Department
Western Way, Bury St Edmunds
Suffolk IP33 3TB
United Kingdom
Email: [email protected]
1
Contents
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Prompter Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Prompter Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the Vertical Hood Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the Prompter Assembly Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fitting the Reflective Glass Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fitting the Light Shield Cloth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting the Prompter Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Powering Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control Panel Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Menu Display and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Main Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setup Menu Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2
Safety
Important information on the safe installation and operation of
this product. Read this information before operating the product.
For your personal safety, read these instructions. Do not operate
the product if you do not understand how to use it safely. Save
these instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury and
avoid possible damage to the product.
Intended Use
The LED 8 inch TFT high brightness on-camera prompter has been
designed to provide a high quality teleprompting facility for television
broadcasting.
The prompter is intended for use by television camera operators, and
because of its light weight design it is particularly suitable for small jib
applications within a TV studio environment, or on outside broadcasts
(OB) when protected from weather by a suitable waterproof cover.
Health and Safety
Electrical Connection
WARNING!
Where there is a risk of personal injury or injury to others,
comments appear supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated
equipment, process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK
Where there is a risk of electric shock, comments appear
supported by the hazardous voltage warning triangle.
WARNING! Risk of personal injury or injury to others. All
personnel must be fully trained and adhere to correct manual
handling techniques and Healthy & Safety regulations. It is
the responsibility of the local organisation to enforce safe
working practices at all times.
WARNING! Risk of personal injury or injury to others.
Care must be taken when handling and installing the
reflective glass panels. Always store spare glass panels in
the original packaging.
WARNING! Risk of electric shock. Always check cables for
signs of damage. Damaged cables can cause personal injury
and/or damage the equipment.
CAUTION! This product must be connected to a power
supply of the same voltage (V) and current (A) as indicated
on the product. Refer to the technical specifications for the
product.
CAUTION! Only use the power cable specified for this
product and certified for the country of use.
CAUTION! Using alternative power sources will invalidate
the system EMC liability.
CAUTION! Always use a fuse of the correct type and rating
for the product. Refer to the Technical Specifications for the
product
3
Safety and About this Manual
Mounting and Installation
Water, Moisture and Dust
Ventilation
Operating Environment
Cleaning
Maintenance
About this User Guide
This user guide describes the installation of the LED 8 inch TFT onto a
suitable camera support as part of a full prompting system, using the
range of compatible mounting equipment available for various camera
configurations.
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally.
WARNING! Do not install this product onto a camera
support or other equipment that is not designed to support
the weight of the product and its payload.
WARNING! Always ensure that all power and auxiliary
communications cables are routed so that they do not
present any danger to personnel. Take care when routing
cables in areas where robotic equipment is in use.
WARNING! Protect the product from water, moisture and
dust. The presence of electricity near water can be
dangerous.
WARNING! When using this product outside, protect from
rain using a suitable waterproof cover.
WARNING! Slots and openings are intended for ventilation
purposes to ensure reliable operation of the product, and
protect it from overheating. Do not block or cover any slots
and openings.
CAUTION! The product should not be used outside the
operating temperature limits. Refer to the product technical
specifications for the operating limits for the product.
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before cleaning.
CAUTION! Do not use solvent or oil-based cleaners,
abrasives or wire brushes.
WARNING! Servicing or repair of this product must only be
performed by qualified and trained electrical engineers.
WARNING! The fitting of non-approved parts and
accessories, or the carrying out of non-approved alterations
or servicing can be dangerous and could affect the safety of
the product. It may also invalidate the terms and conditions
of the product warranty.
4
Components and Connections
On-Camera Prompter Key Components
The illustration below highlights the key components used in a full
prompter installation.
2
6
7
5
4
1
8
9
3
1Camera mounting plate
2Prompter support sliding rods
3Hood and prompter mounting angle brackets
4Folding hood
5Reflective glass
6LED TFT monitor display
7Built-in tally light
8Prompter assembly support bar
9Light shield cloth
5
Components and Connections
Prompter Installation Components
The following section describes the range of component parts available
for a complete prompter installation using the LED 8” TFT monitor.
Box Contents
1
2
3
4
5
No. Part Description
1 FH-8E Folding hood (unassembled)
2 RGFH-8 Reflective glass panel
3 MT-BLUE Small mounting plate for tripod and
jib applications with 8" prompters
4 PSU-XLR 12V DC power supply unit
5 SNSR Tally light opto sensor
6 LED8TFT-M 8 inch LED TFT prompter monitor
6
6
Components and Connections
Prompter Monitor Connections Prompter Monitor Control Panel
1VGA IN socket
2Composite video IN1 socket
3Composite video IN2 socket
4Tally light sensor IN socket
5Tally light repeat OUT socket
612V DC OUT accessory socket
712V DC IN power socket
1
3467
5
2
1Backlight setting buttons and standby indicator
2Video input selection button
3Onscreen menu navigation buttons
4AUTO VGA button
2
3
4
1
7
Installation
Mounting the Prompter Components
Fitting the Camera Mounting Plate
The MT-BLUE camera mounting plate must be fitted between the head
support and the camera body to allow installation of the prompter
system.
1. Fit the wedge plate adaptor to the MT-BLUE mounting plate.
2. Fit the MT-BLUE mounting plate to the camera support.
Assembling the Folding Hood
The hoods are supplied flat-packed and require some basic assembly.
When used for outside broadcasts and other portable applications, the
hoods can easily be folded flat again for transportation.
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally.
8
Installation

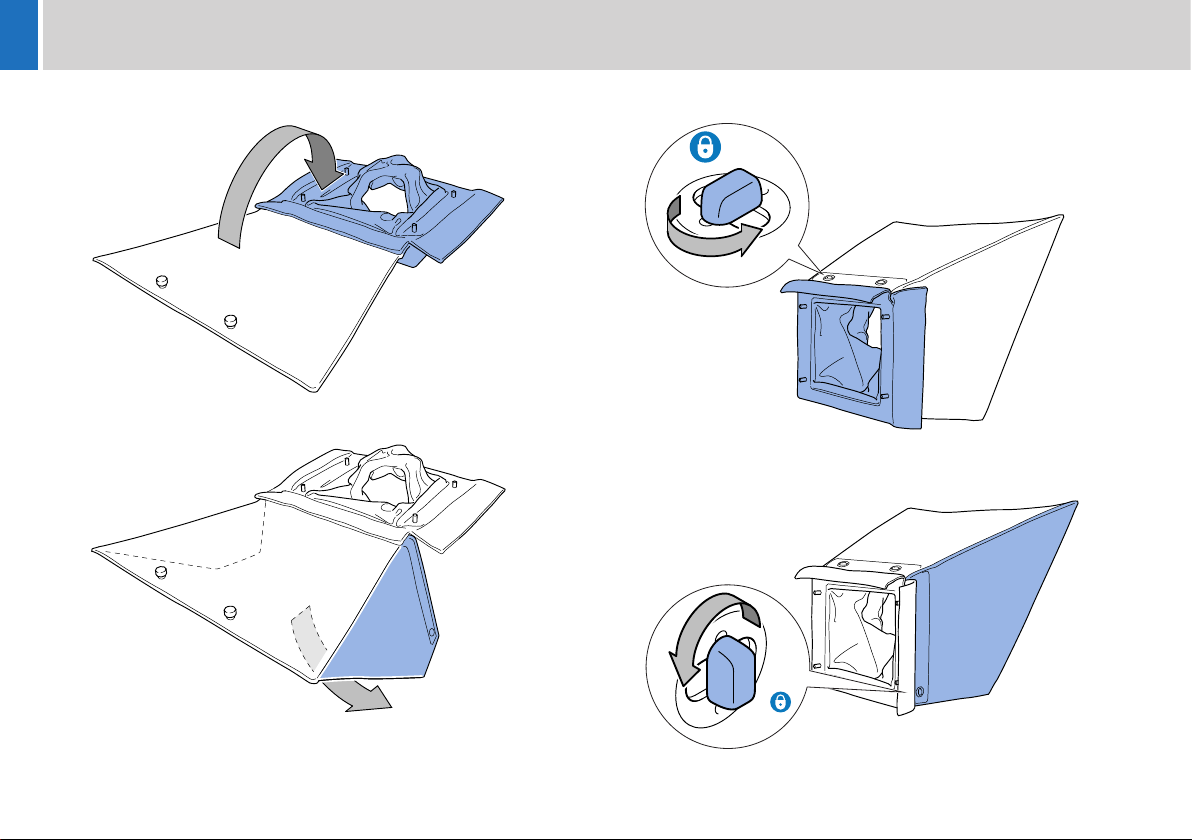

1. Fold the back plate of the hood out away from the top flag.
2. Fold the side flags outwards.
3. Align the two eyelets in the top flag with the tabs and twist to lock.
4. Align the single eyelets in both the side flags with the tabs and
twist to lock.
