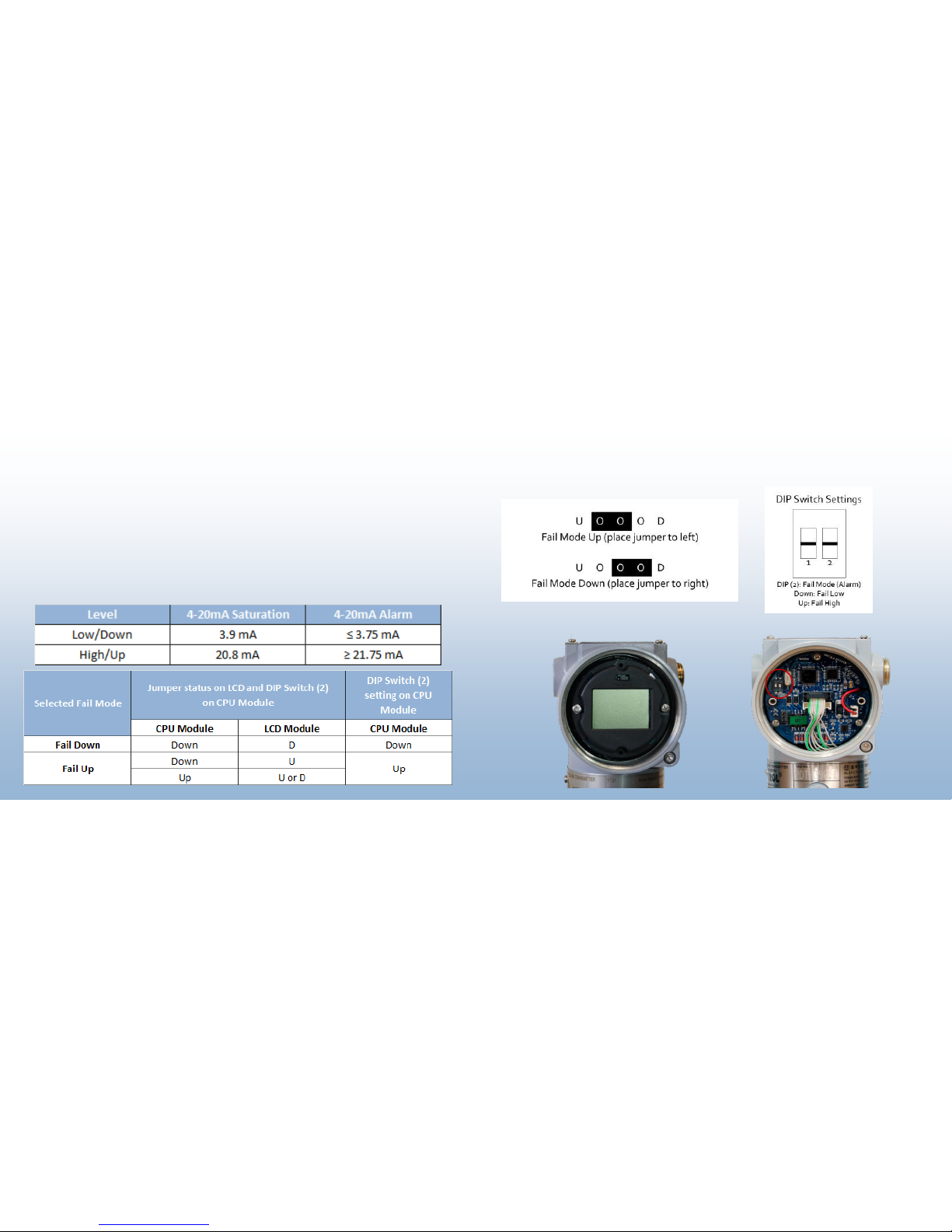

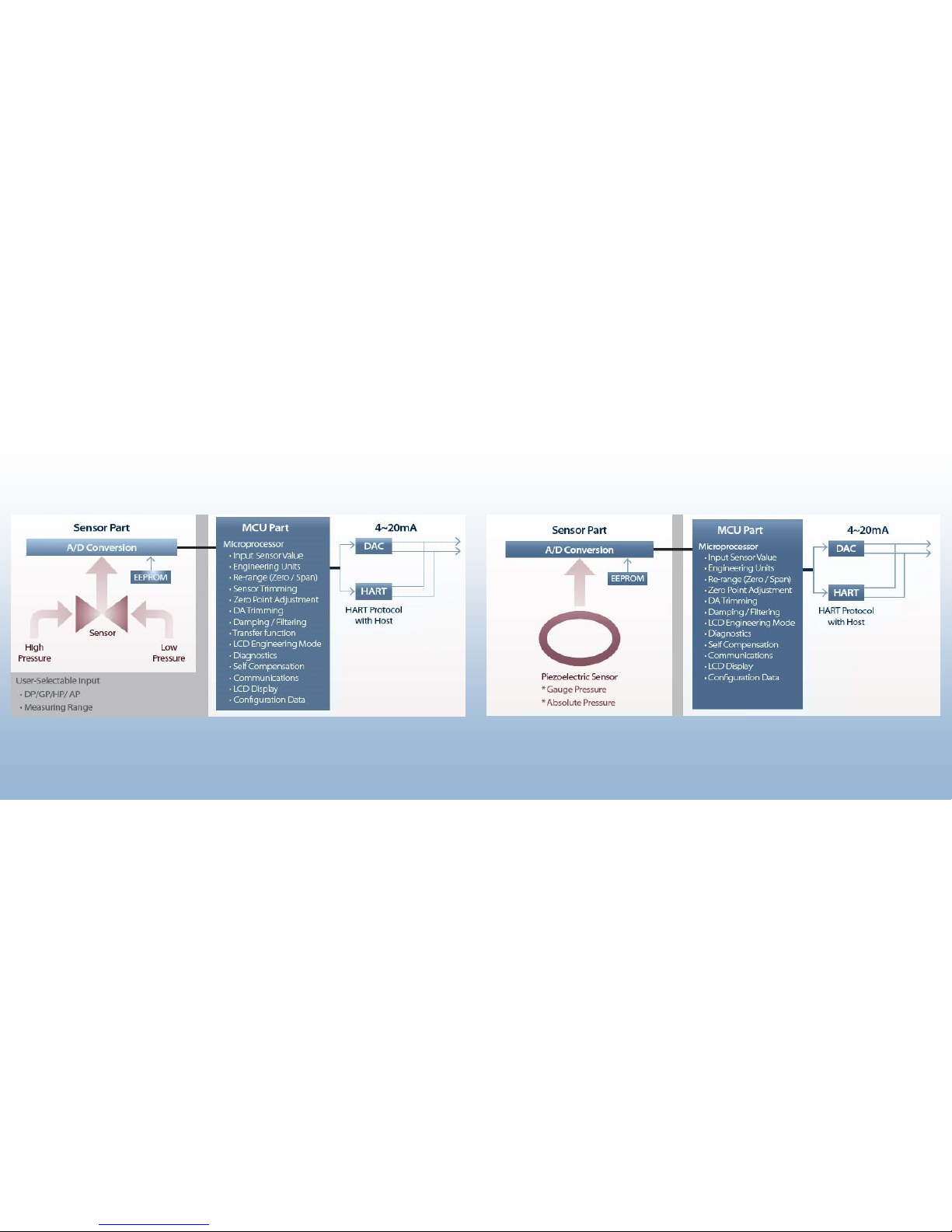

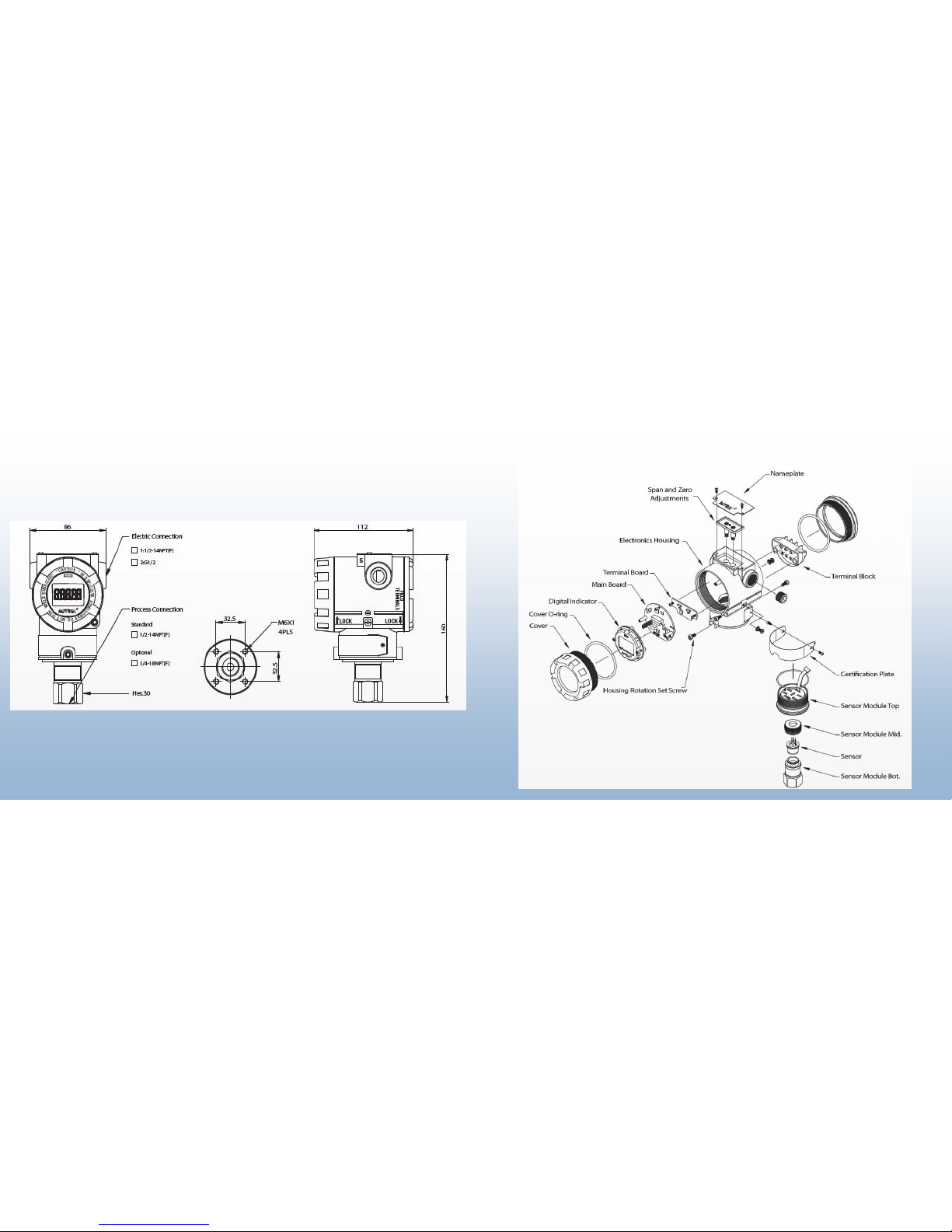

Getting Started
Before installation check the model, specifications, and installation location for the transmitter. Install
using proper engineering practice.
Mount transmitter securely and stabilize any impulse piping.
Follow the published pressure and temperature limits for ordered transmitter and options.
For process temperatures ≥212°F, use of adequate impulse lines, capillaries (diaphragm seals), or
cooling elements are recommended.
Set Units, URL, and LRL (in menus 21, 22, and 23 respectively). See full menu tree at end of manual.
After installation of a 3100 D/H/G or 3200 G always perform a Zero Trim (menu 11 - note this is not the
same as Zeroing). Ensure applied process to transmitter is zero before attempting Zero Trim.
Do not perform Zero Trim for 3100 A/ 3200 A (absolute) unless a true zero PV can be applied to these
units. Instead a Zero Adjust (menu 12) is recommended.
Zero Adjust is also recommended for 3100/ 3200 L (tank level application) to compensate for tank noz-
zle offsets.
