Avalue Technology SPC-2133 Manuale utente

Part No. E2017S130A2R

SPC-2133

21.5" Fanless Full IP-65 Stainless Steel Chassis Touch Panel

PC with Intel® Apollo Lake Solution

Quick Reference Guide

3rd Ed –31 December 2019

SPC-2133

2 SPC-2133 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

SPC-2133 Quick Reference Guide

Content

1. Getting Started ........................................................................................................4

1.1 Safety Precautions....................................................................................................4

1.2 Packing List...............................................................................................................4

1.3 System Specifications...............................................................................................5

1.4 System Overview......................................................................................................7

1.4.1 Bottom View............................................................................................................................. 7

1.5 System Dimensions ..................................................................................................8

2. Hardware Configuration .........................................................................................9

2.1 SPC-1533 connector mapping................................................................................10

2.1.1 Serial port connector (COM).................................................................................................. 10

SPC-2133

4 SPC-2133 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x SPC-2133 Panel PC

1 x Power Adapter

1 x DC-in extended cable

Quick Reference Guide

SPC-2133 Quick Reference Guide

1.3 System Specifications

Component

Mother Board

EBM-APL N3350

CPU

Onboard Processor

CPU Cooler (Type)

full flat rear cover

Memory

4GB DDR3L

Power Supply

External power adapter

Adapter

AC/DC adapter 24V/2.5A 90 Plug Type ACC-ADP-060N-03R

System Fan

Fanless

Speaker

2 x 5W

Wireless LAN

ACC-MPCIE-WIFI-13R (Optional)

Operating System

Windows 10

Storage

Hard Disk Drive

1 x 2.5” Drive Bay

Solid State Drive

1 x 2.5” Drive Bay

Panel

LCD Panel

21.5" 21.5" FHD TFT LCD AUO T215HVN01.1

LCD Control Board

Built-in

B/L Inverter/Converter

Built-in

Touch Screen

H8593C 21.5" PCAP Touch YoungFast

Touch Controller

For E968X000143R : EETI EXC3188 (Come with touch screen)

External I/O

Serial Port

1 x COM DB9

USB Port

3 x USB 2.0

LAN Port

1 x LAN

Wireless LAN Antenna

Internal 2 x antenna (Optional)

Expansion Slots

1 x MiniPCIe Slot

Others

Side waterproof power button

Mechanical

Power Type

AT/ATX

Power Connector

Type

DC in 4pin M8

Dimension

546 x 378 x 69 mm

Weight

9 Kgs

Color

Silver stainless

Fan-less

Full System Fan-less

Others

External waterproof DC cable

SPC-2133

6 SPC-2133 Quick Reference Guide

Others

N4200 SKU: Tall USB cap in plastic, DB9 cap in plastic, other caps in metal.

With rectifier solution in system.

Reliability

EMI Test

CE, FCC Class B for all SKUs

Model Name: SPC-2133 & OI-21V2X

Safety

LVD for EBM-APL N4200 SKU

Model Name: OI-21V2X

Dust and Rain Test

Full IP-65, IP69K for all SKUs

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz,

30min/axis

Mechanical Shock

Test

With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test

EC-60068-2-32 (96.5cm)

Operating

Temperature

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Storage Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Note:

Specifications are subject to change without notice.

Quick Reference Guide

SPC-2133 Quick Reference Guide

1.4 System Overview

1.4.1 Bottom View

Connectors

Label

Function

Note

COM

Serial port connector

DB-9 male connector

USB2.0

3 x USB2.0 connector

LAN

RJ-45 Ethernet connector

DC IN

DC Power-in connector

SPC-2133

8 SPC-2133 Quick Reference Guide

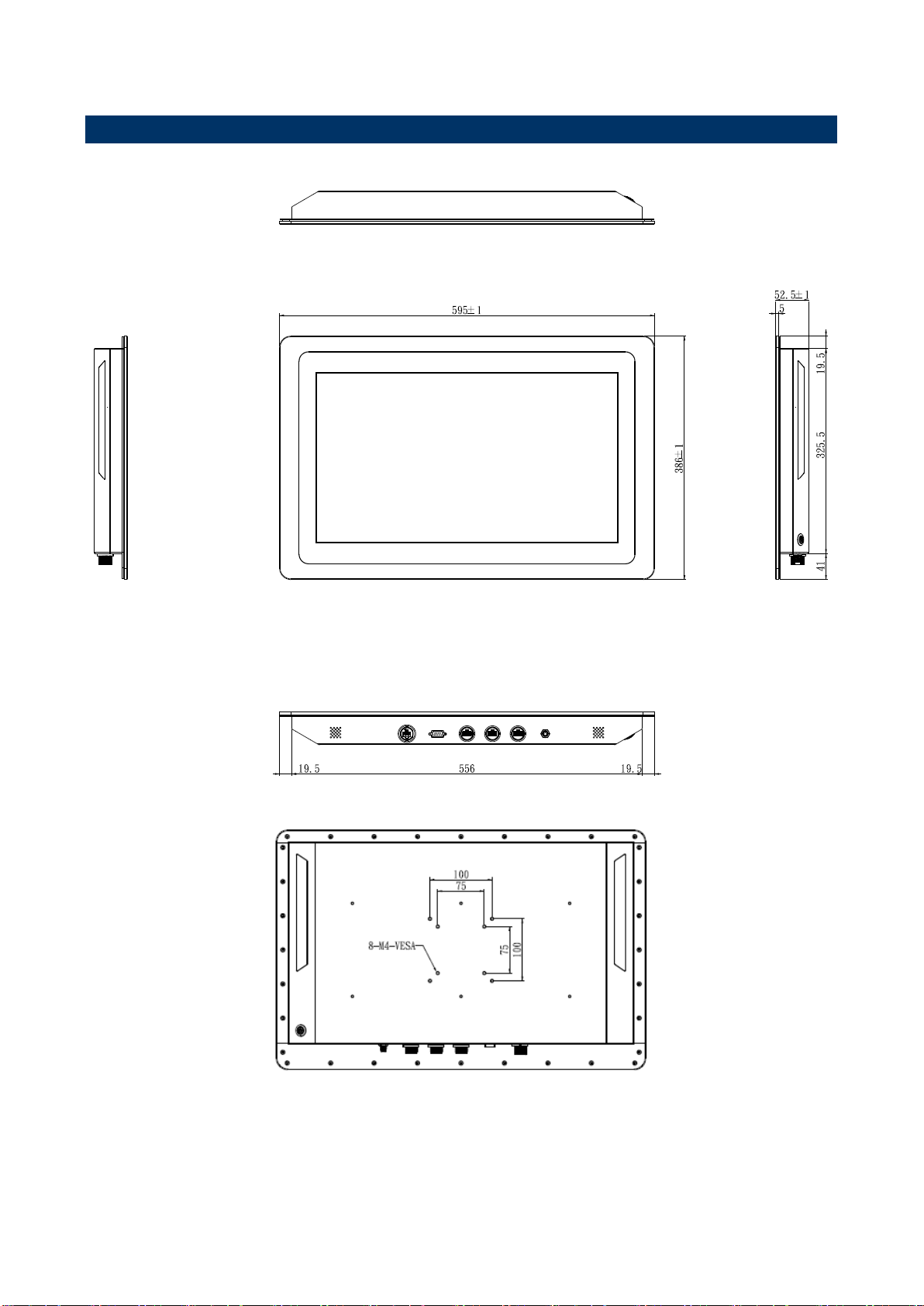

1.5 System Dimensions

(Unit: mm)

Quick Reference Guide

SPC-2133 Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- EBM-APL User’s Manual

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

SPC-2133

10 SPC-2133 Quick Reference Guide

2.1 SPC-2133 connector mapping

2.1.1 Serial port connector (COM)

Signal

DCD

DSR

RXD

RTS

TXD

CTS

DTR

GND

Indice
