Avaya CU-360 Manuale utente

QUICK START GUIDE

Avaya Collaboration

Unit CU360

2 3

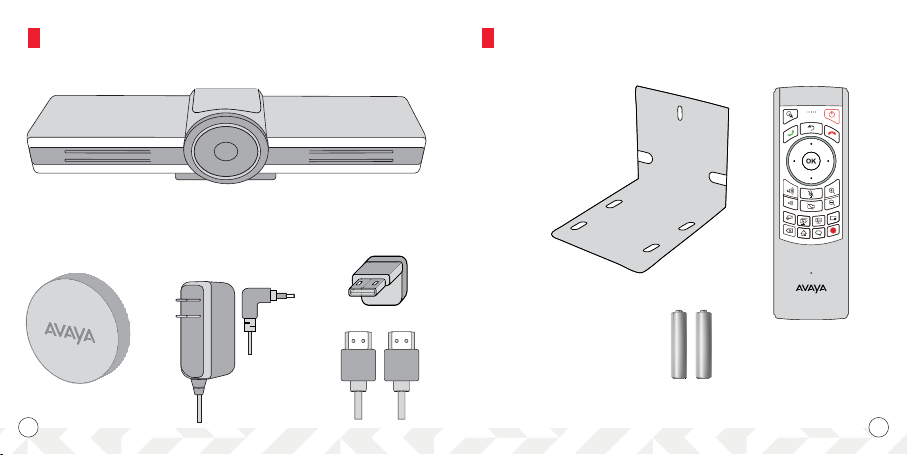

WHAT’S IN THE BOX WHAT’S IN THE BOX

One Remote Control

2 AAA batteries

Please dispose of used batteries at an

appropriate recycling facilities, or at a

designated drop-off site in your community.

One Rubber Cap

Avaya CU360 Collaboration Unit Wall mount

One Power Adapter

220V and 110V with

regional converters

4 screws 4 *40mm

4 plug 6*40mm

1 tripod UNC screw

One HDMI Cable

90 degree

HDMI adapter

4 5

Setting Up the Device Video Privacy

NOTE: if you are not using WiFi, make sure to connect a LAN / Ethernet cable.

CONTROLLING THE CU360: USING THE WEB

1. When the CU360 is connected to the TV and

your Network, the IP address (X.X.X.X) will be

displayed in the top left corner of the screen.

2. Using a device connected to the same

network, type http://[IP ADDRESS] into the

web browser.

3. Enter the default user name of Admin and

the password 1234.

4. A Configuration Wizard will be initiated (only

if the system has not yet been configured).

More details about system configuration can

be found in the CU360 User Guide, available at:

support.avaya.com

3. Plug in the power

adapter.

2. Plug the HDMI cable

into the TV and CU360.

1. Place the CU360

above your TV, and use

the hinge to secure it.

Use the rubber cap

to cover the camera

for privacy

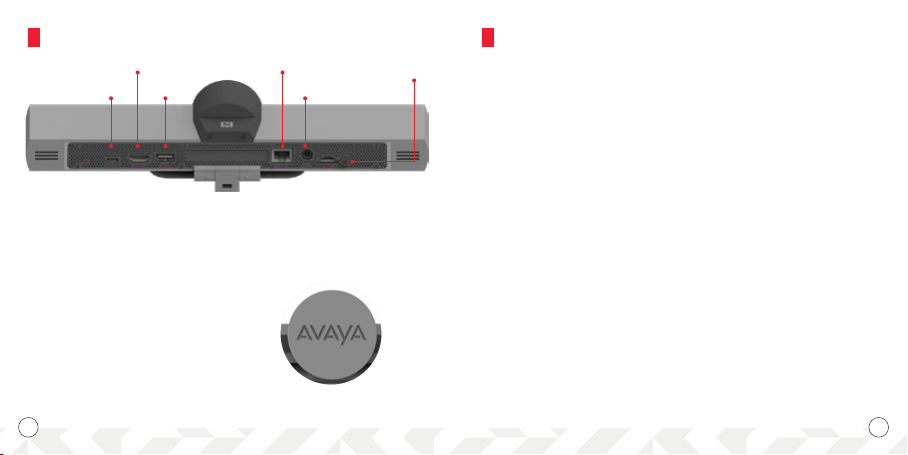

Power SupplyUSB C USB A

EthernetHDMI On / Off

Button

CONNECTING THE CU360 TO THE TV

6 7

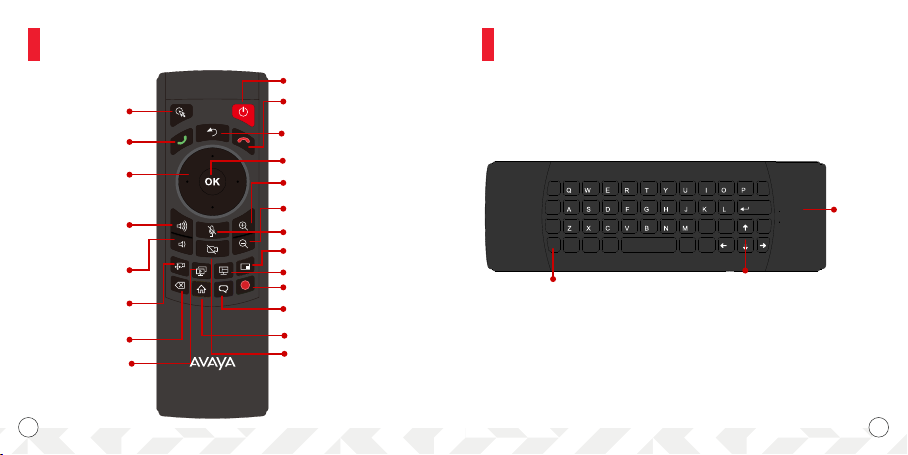

CONTROLLING THE CU360: USING THE

REMOTE CONTROL

CONTROLLING THE CU360: USING THE

REMOTE CONTROL

ENTER

BACK

DEL

1 2 3 4 5 6 7 8 9 0

! ? # $ & * )(

_ - + = \

: , . [

., :

PG UP ]

“

FN <

/ ;

>HOME ENDPG DWN

CTRL

SHIFT

ESC

CAPS

ALT @

@SPACE

Power Button

Zoom in

Back

OK button

Zoom out

Audio mute/unmute

Decline Call/

Disconnect

Change PiP position

Change layout

Start/Stop Recording

Enable/Disable

tracking camera

Home

Video mute/unmute

Arrow keys

(Pan, Tilt or Zoom camera &

navigate)

Battery cover

(push and slide to open)

Function key

(enables/disables yellow

digits/symbols)

Increase

volume

Decrease

volume

Control far/

near camera

Delete

Mouse

Arrow keys

(Pan, Tilt or zoom

camera & navigate)

Call/Accept

Call

Start/Stop

presentation

8 9

USE THE REMOTE CONTROL

The remote control provided is ready to use. If

this is the first time you are using this remote, you

must:

• insert the batteries included into the remote

control.

• follow the pairing instructions included in this

guide.

PAIRING THE REMOTE CONTROL

The remote control included is already-paired

with your CU360 unit. If you are using a different

wireless remote control, or your remote control is

not paired, please follow the procedure below.

10 11

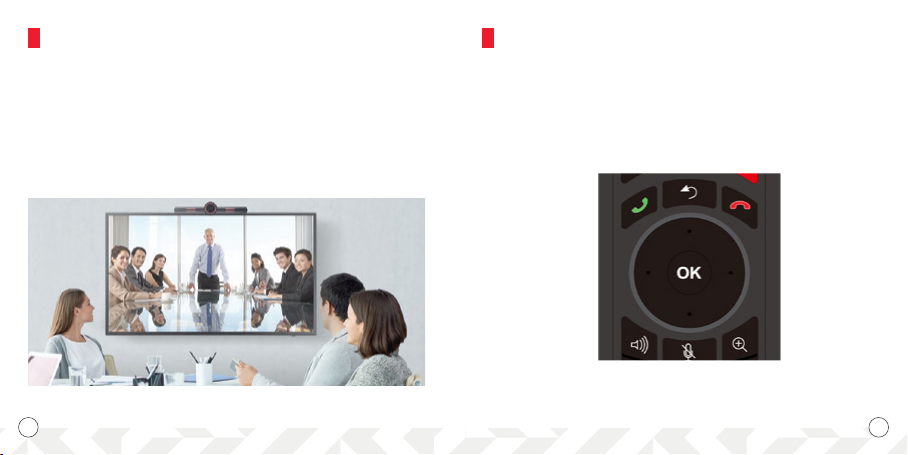

1. Check that the are 2 charged AAA batteries

inside the remote control.

2. Unplug the codec unit from power.

3. Press the Back key and the OK

key together, until the small blue

LED on top of the remote quickly

flashes a few times.

4. While the LED light is still flashing, plug in the

codec unit.

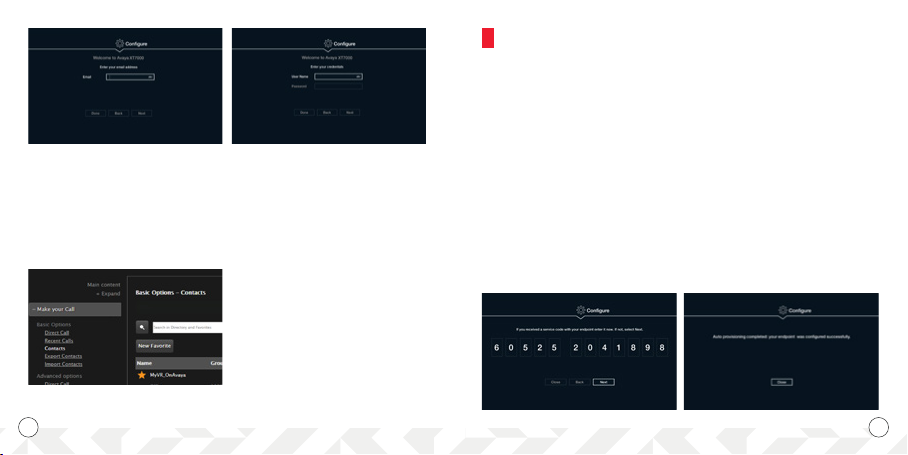

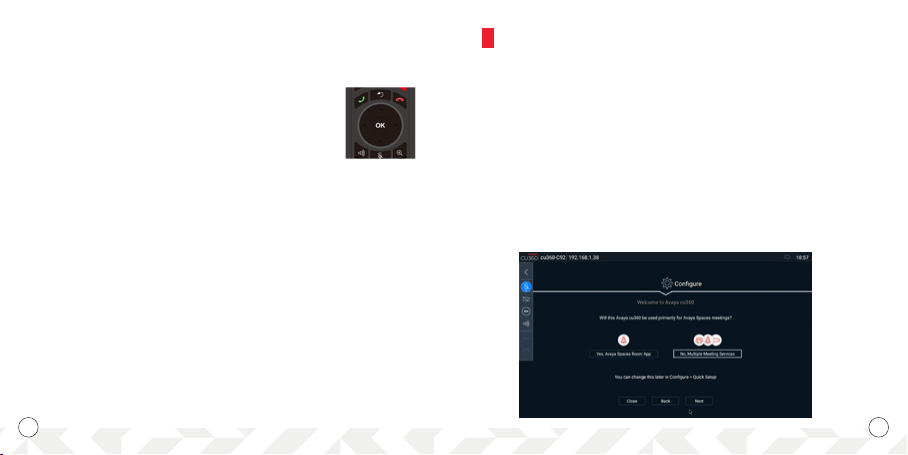

1. On the CU360 screen, choose your preferred

language.

2. If a new build is available you can choose to

upgrade the device before continuing with

the setup.

3. Choose between “Yes, Avaya Spaces Room

App” or “No, Multiple Meeting Services”.

CU360 SETUP: QUICK SETUP

Note: You must keep the remote control close

to the unit. If the pairing is successful the LED

stops flashing. If the pairing fails, disconnect all

the cables from the CU, including USB and repeat

steps 1-4.

12 13

4. If you select,“No, Multiple Meeting Services”

choose one of the following the options:

- Easy to start

- Autoprovisioning

- Manual setup

14 15

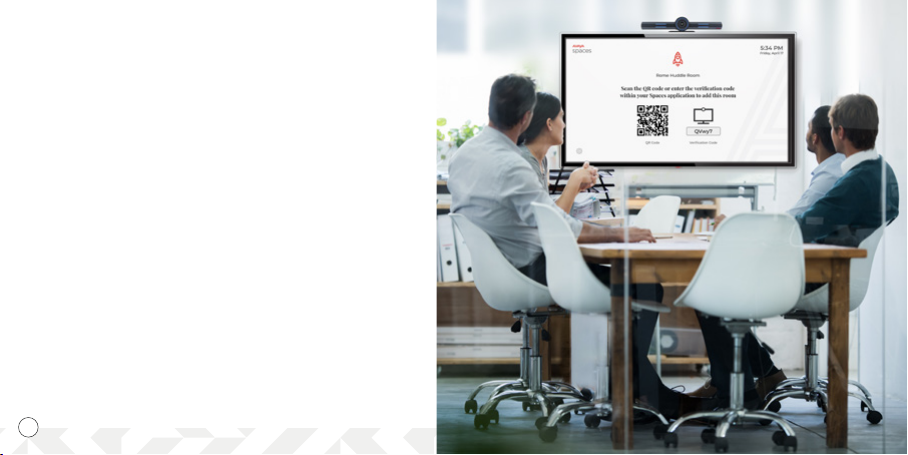

If you select, “Yes, Avaya Spaces Room App”

complete these steps and then jump to page 24:

1. Enter the Device Name for the Space

meeting.

2. The Code to Join is displayed as both a QR

code and a verification code.

3. To pair the CU360 to the meeting you can:

Frame the QR code with your Avaya Spaces

app on your mobile device

Enter the verification code in the Join Spaces

Room field on your Spaces web page.

SPACES MEETING EASY TO START (AVAYA MEETINGS AND

AVAYA WORKPLACE ON-PREMISES

DEPLOYMENTS)

The “Easy to Start” procedure allows you to

configure the system in a few quick steps for

Avaya deployments (Cloud or On-Premises) by

inserting your Avaya Workplace user credentials

on CU360 screen.

1. Insert your email address.

2. Insert your credentials.

3. Select Done when completed.

The system is automatically configured and

scheduled meetings are displayed in the calendar

menu. Please refer to the Deployment Guide on

the Avaya Support Site (https://support.avaya.

com) for more details.

16 17

Note: If you are configuring your Avaya Equinox

Meeting Onlines account, at the end of the wizard

your Personal Virtual Room appears under

Favorite Contacts.

AUTO-PROVISIONING

1. If you received an Avaya Workplace

Management Service Code from your local

IT Admin, enter it when prompted and the

CU360 endpoint is automatically configured

for your local deployment.

2. If a Service Code is entered, the procedure is

complete. If the Service Code is left blank, the

Manual Setup mode is initiated.

18 19

Note:

The Avaya Workplace On-Premises deployment

brand replaces the previous Equinox On-Premises

one.

The Avaya Workplace Management brand

replaces the previous Equinox Management one.

MANUAL SETUP

When you choose this option, you can manually

define Basic Settings such as

• System name

• Language

• Manual image calibration

• Manual network settings

• H.323 or SIP Registration

This setup mode is applicable for Avaya

Workplace deployments not configured

to support the Easy to Start or the Auto-

Provisioning wizard and for other Avaya or Third

Party Vendor deployments where the Endpoint

needs to be manually configured.
