Avaya P333T

Quick Start Guide

Unpack

Rack mount (optional)

Connect the cables

Configure

Run Web-based

Manager (optional)

Power up

Unpack

Check the package contents for the following:

!If any items are missing or damaged, contact your supplier.

Equipment

• One Avaya P333T Layer 2 Workgroup Switch

• One AC power cable

• One RJ-45 to DB-9 serial adapter cable

• Four rubber feet

• Four screws with washers for rack mounting

!Ethernet connection cables are not supplied

Documentation

• Avaya P333T Quick Start Guide (this document)

• Avaya P330 Release Notes

• Avaya P330 Documentation and Utilities CD (see detail below)

• Avaya Communication Warranty and License Agreement

Avaya P330 Documentation and Utilities CD

The CD contains the latest User's Guides for the Avaya P330 stackable switches and files for

use with the Embedded Web Manager.

User's Guides

You can view and print these Guides using Adobe® Acrobat® Reader.

Auxiliary Files for use with the Embedded Web Manager

Please refer to the documentation for information on how to use these files.

• Java plug-in

• Help files

Adobe Acrobat Reader

This application allows you to view and print the User's Guides on this CD.

Rack mount (optional)

1. Snap open the hinged ends of the unit’s front panel to reveal the screw holes.

2. Position the unit in the rack.

3. Secure the unit to the rack, taking care not to overtighten the screws.

4. Snap closed the hinged ends of the front panel.

!You can now safely connect the cables to the unit.

WARNING: Disconnect all cables from the unit before proceeding with the rack

installation.

P333T

EXPANSION

SLOT

FDX

FIV

COLLNK

Tx Rx

LAG

HspdFC

SYS

OPR PWR

11 12

13 14 15 16 17

1LAG

234 5

CONSOLE

2118 19 20 2322 24

6LAG 78 1110 LAG 12

P333T

EXPANSION

SLOT

FDX

FIV

COLLNK

Tx Rx

LAG

HspdFC

SYS

OPR PWR

11 12

13 14 15 16 17

1LAG

234 5

CONSOLE

2118 19 20 2322 24

6LAG 78 1110 LAG 12

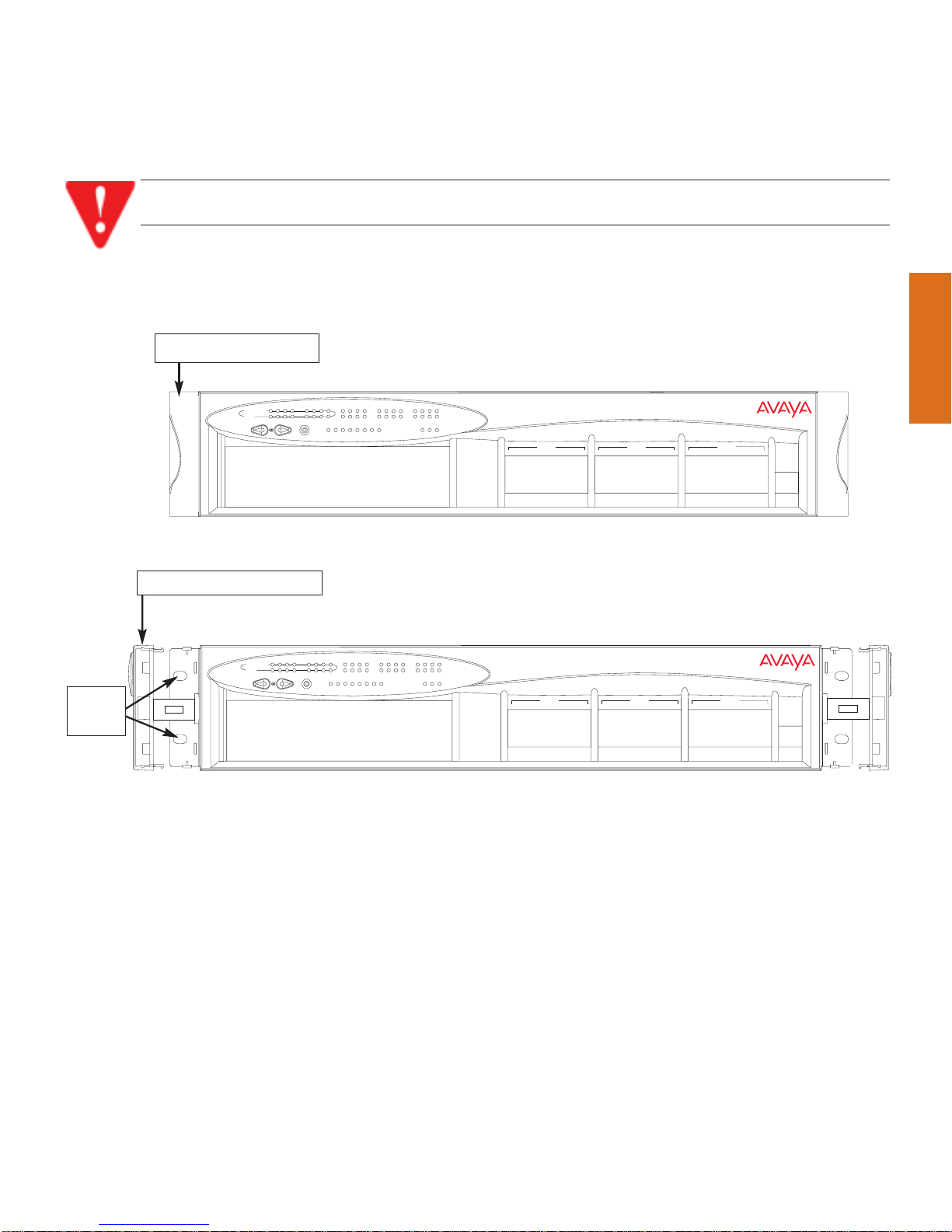

Closed hinged end

Open hinged end

Screw

holes

Power up

Avaya P330 AC Version

1. Insert the power cord into the power connector (BUPS or Power Supply) on the rear of the

unit.

2. Insert the other end of the power cord into the electricity supply or the BUPS connector.

!The unit powers up and performs a self test procedure. The LEDs flash at regular

intervals after the self-test procedure is completed successfully.

Avaya P330 DC Version

WARNING: Before performing any of the following procedures, ensure that DC

power is OFF.

CAUTION: This product is intended for installation in restricted access areas and is

approved for use with 18 AWG copper conductors only. The installation must comply

with all applicable codes.

1. Connect the power cable to the switch at the input terminal block on the rear of the unit.

!The terminals are marked “+”, “-“ and the IEC 5019a Ground symbol.

!The size of the three screws in the terminal block is M3.5.

!The pitch between each screw is 9.5mm.

2. Attach the appropriate lugs at the wire end of the power supply cord.

3. Wire the DC power supply to the terminal block.

!The unit powers up and performs a self test procedure. The LEDs flash at regular

intervals after the self-test procedure is completed successfully.

WARNING: The proper wiring sequence is:

• ground to ground

• positive to positive

• negative to negative

Always connect the ground wire first and disconnect it last.

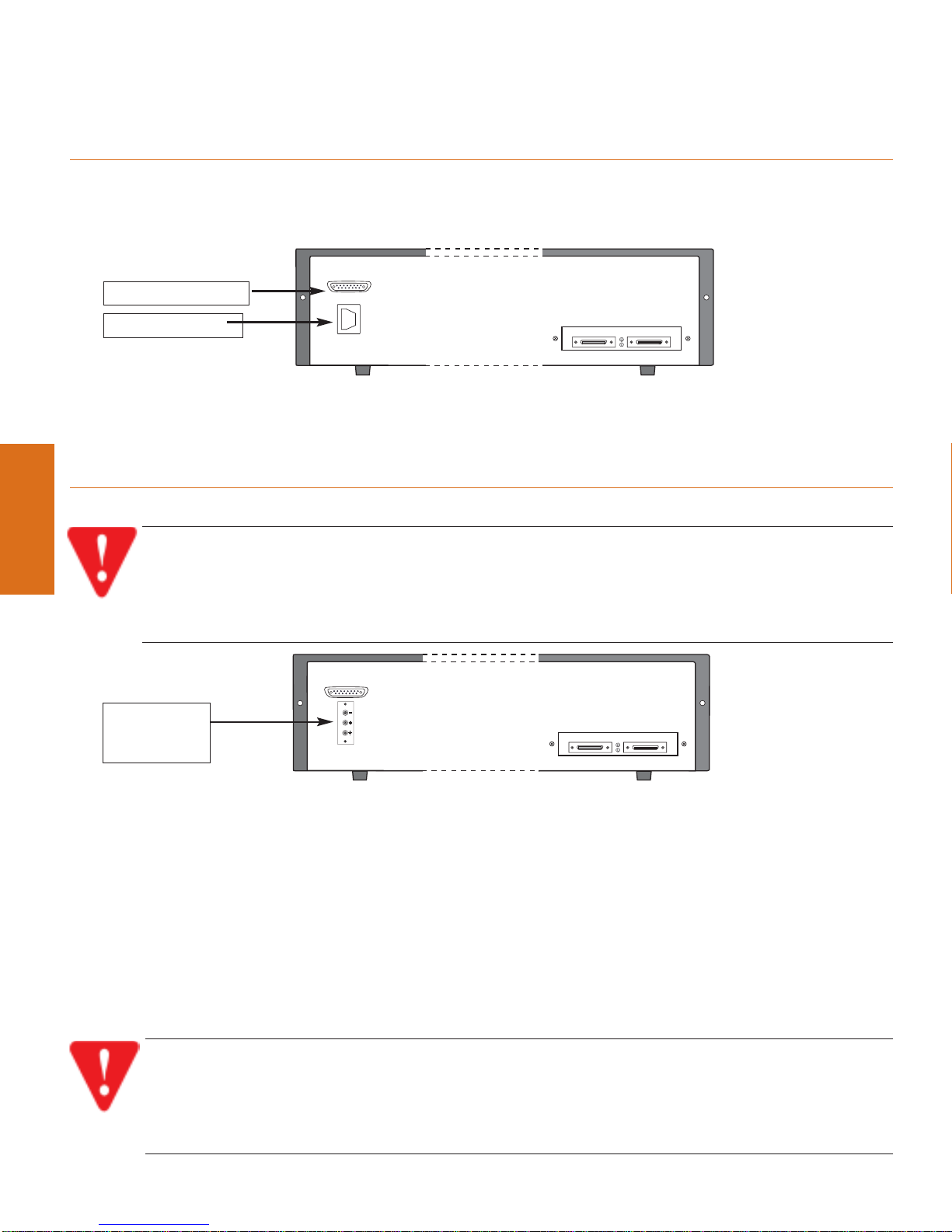

BUPS connector

AC connector

DC terminal

block

FIV – Force Initial Version (see Avaya P330

User’s Guide)

LNK – When ON, link is OK

COL – When ON, indicates a collision on the

port in HDX mode

Tx, Rx – Shows traffic activity for

transmitted and received packets

FDX – Shows Full/Half Duplex mode

FC – When ON, Flow Control is enabled for

a port in FDX mode

Hspd – Shows speed of port (10 Mbps or

100/1000 Mbps)

LAG – When ON, the port is included in a

Link Aggregation Group (LAG).

ROUT – Shows switch’s mode of operation

SYS – Shows whether this module is the

Avaya P330 Stack Master agent

OPR – Shows CPU boot status

PWR – Shows when power is on

Connect the cables

Connect PCs, servers, routers, workstations, and hubs

1. Connect the Ethernet connection cable (not supplied) to a 10/100 Mbps port on the front

panel of the Avaya P330.

!You should use standard RJ-45 connections. You must use CAT-5 cable for 100 Mbps

operation.

2. Connect the other end of the cable to the Ethernet port of the PC, server, router, worksta-

tion, switch or hub.

!Use a cross cable when connecting the Avaya P330 to a switch or hub.

3. Check that the appropriate link (LNK) LEDs light up.

Connect the console cable

1. Configure the serial port settings of the PC or terminal as follows: Baud Rate – 9600, Parity

– no, Data bits – 8, Stop bits – 1, Flow control – no.

2. Connect the supplied special RJ-45 connector to the port marked “Console” on the front

panel of the Avaya P330.

3. Connect the other end of the cable to a terminal or PC with terminal emulation software

installed.

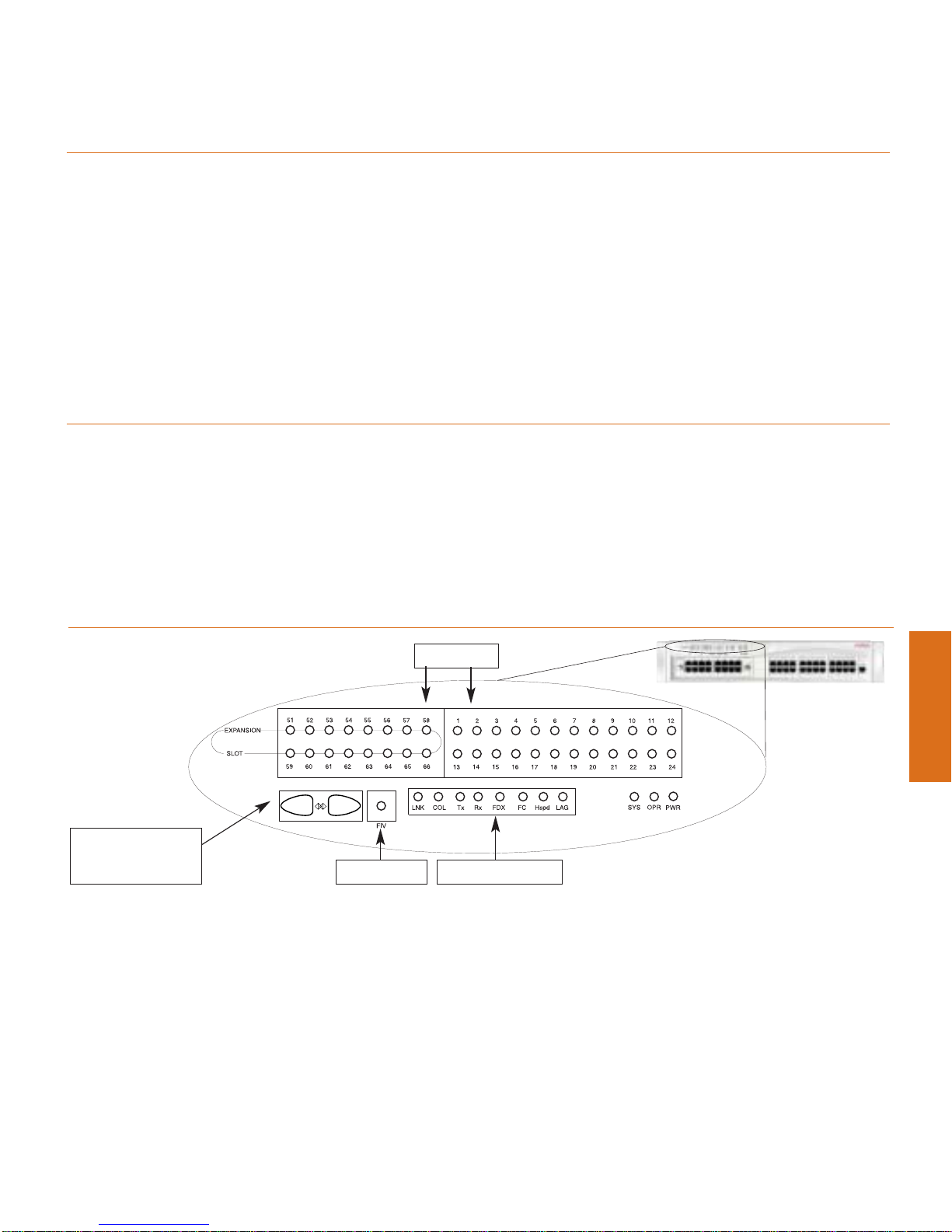

Avaya P333T LEDs Port LEDs

Left/Right &

Reset Switches Function LEDsFIV switch

Basic configuration

To connect a PC terminal or VT-100 terminal to the Avaya P330

1. If you are using a PC, initiate a VT-100 terminal emulation session using an application

such as Windows® HyperTerminal.

2. Press Enter.

3. Type the User name root when prompted and press Enter.

4. Type the default password root when prompted and press Enter.

!The P330-N(super)# prompt appears.

!Nis the number of the switch in the stack.

Assigning the Stack IP Address

!Commands are shown as follows: set interface inband;

parameters which you need to enter are shown in

as follows:

<vlan>

1. Type set interface inband

replacing

and

with the VLAN, IP address and net mask of

the stack and press Enter.

2. At the P330-N(super)# prompt, type reset and press Enter to reset the stack.

3. After the Reset, perform login again as described above.

!The P330-N(super)# prompt appears.

4. Type set ip route

, replacing

and

with the destination and gateway IP addresses.

5. Press Enter to save the destination and gateway IP addresses.

Configuration Parameter Default Setting

Port Speed and Duplex Mode • 10/100-TX ports: Auto-negotiation

• 100Base-FX ports: 100 Mbps full duplex

• 1000Base-X ports: 1000 Mbps full duplex

Flow Control • 10/100 and 100 Mbps: Disabled

• 1000 Mbps: Disabled (no pause)

Backpressure • 10/100: Enabled (when in half duplex mode)

• 100Base-FX & 1000 Mbps: Not applicable

Auto-negotiation • 10/100-TX ports: Enabled

• 100Base-FX ports: Not applicable

• 1000Base-X ports: Enabled

Administration State Enabled

Port VLAN ID 1

Tagging Mode Clear

Port Priority Regular

Setting the Parameters

If you wish to change the default parameters shown and configure the mandatory

parameters, we recommend that you use the Command Line Interface (CLI).

!For further information, please refer to Chapter 6 of the Avaya P330 User’s Guide.

Configuration Parameter Default Setting

Avaya P330 IP Address 149.49.32.134

BootP Mode Never

Default Gateway 0.0.0.0

Management PC SLIP IP Address 192.168.10.2

VLAN Management ID 1

Spanning Tree Enabled

TFTP Mode Limited

TFTP Server 0.0.0.0

TFTP File Name viisa

Default Switch Parameters

Default Port Parameters

Run the Web-Based Manager (optional)

!To configure the Avaya P330 you can use the P330 Web-based Manager in addition to

using the CLI.

System Requirements

Minimum hardware and Operating System requirements are:

• Pentium® II 400 Mhz-based computer with 128 Mb of RAM

• Screen resolution of 1024 x 768 pixels

• Microsoft® Internet Explorer® 5 or Netscape Navigator® 4.x

• Windows® 95, NT® 4.0 (server/workstation) or Windows 2000 (server/workstation)

• Sun Microsystems Java™ plug-in version 1.2.2 (supplied)

Running the Embedded Manager

!Assign an IP address to the P330 before starting this procedure.

1. Open your browser.

2. Enter the URL of the switch in the form http://aaa.bbb.ccc.ddd

!aaa.bbb.ccc.ddd is the IP address of the switch.

!You are prompted to log into the switch.

!The user name is “root”.

The default password for read-write access is “root”.

!The Web management passwords are the same as those of the CLI. If you have created

additional CLI user names or changed the default passwords then you can use those

passwords for Web management as well.

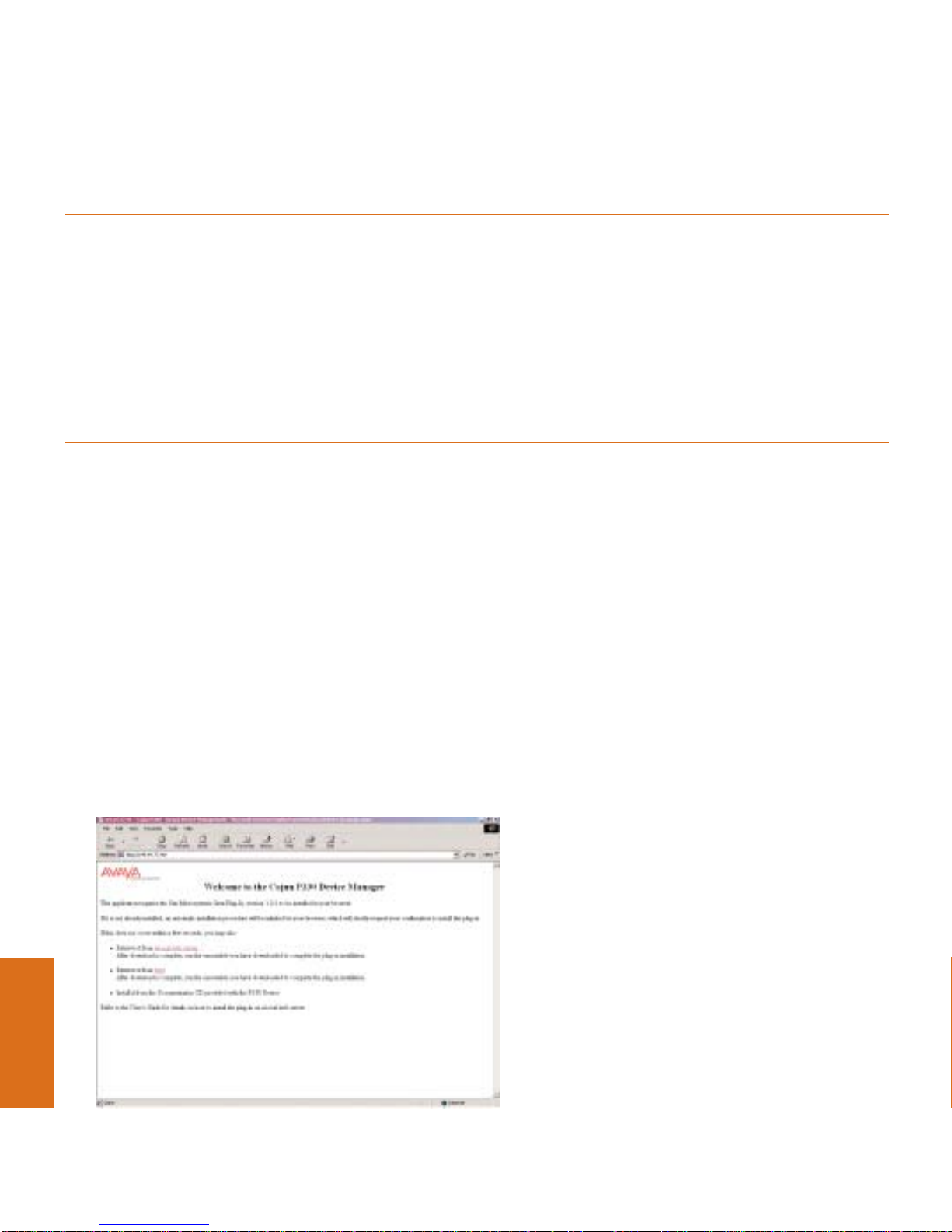

!The welcome page is displayed:

!If the network manager has configured the system the plug-in should be installed auto-

matically.

If the plug-in is not installed automatically, there are three ways to install the plug-in

manually:

• Either install the plug-in from the CD as follows:

1. Close all unnecessary applications on your PC.

2.Insert the “Avaya P330 Documentation and Utilities” CD in the CD drive.

3.Click Start on the Task bar.

4.Select Run.

5.Type x:\emweb-aux-files\plugin_1_2_2.exe (where x: is the CD drive letter)

6.Follow the on-screen instructions.

• Or install the plug-in from the Avaya site by clicking on the link on the welcome page.

• Or, if the network manager has placed the files on the local site, install the plug-in from

there by clicking the link on the welcome page.

!If you have the Java plug-in already installed or once you have successfully installed the

plug-in as described above, the Web-based manager opens in your browser.

Documentation and Online Help

Refer to the Avaya P330 Documentation and Utilities CD for full instructions.
