Avenview HDMI-C5-S Manuale utente

HDMI-C5 Series

Part #: HDMI-C5-S

Part #: HDMI-C5-SR

Part #: HDMI-C5-4

Part #: HDMI-C5-8

www.avenview.com

Description

The HDMI-C5 Series Extender solution consists of Transmitter, Transceiver and Receiver. The

system can extend HDMI signals over Cat 5 / 5e / 6 FTP cable. By cascading Transceivers, it is

possible to extend the HDMI signals with almost unlimited capacity. The HDMI-C5 Series Extender

solution is ideal for digital signage, public information display, and large scale demonstration,

where crystal-clear, high-resolution digital video needs to be shown.

By taking the advantage of cost efficient Cat 5 / 5e / 6 cable, the Cat5 HDMI Extender can simplify

installation. With its unlimited cascading capacity, you can extend digital video displays almost

anywhere. The Transmitter and Transceiver units are fitted with magnetic pads, enabling them to

be quickly attached to metal surfaces. A screw fixing plate is also included for permanent

installations.

Features

Unlimited cascading of HDMI over Cat 5/5e/6 cable

Video Amplifier bandwidth: 1.65GHz

Compliant with HDMI 1.2, HDCP and DVI 1.0

Maximum distance between Transmitter and Transceiver (distance is based on UTP cable

skew 30ns/100m):

80m (275 ft) at 480p

50m (160 ft) at 720p / 1080i

20m (65 ft) at 1080p

Maximum distance between Transceiver and HDMI-HR Receiver (distance is based on

UTP cable skew 30ns/100m):

30m (100 ft) at 480p / 720p / 1080i

15m (50 ft) at 1080p

Built-in EQ control to adjust the video quality

LEDs status to indicate HDMI signal activity

Equipped with magnetic pad and metal plate for easy installation

Compact size

www.avenview.com

System Devices and Functions

Transmitter HDMI-C5-S and Transceiver HDMI-C5-SR

Built-in EQ control to adjust the video quality

Built-in one HDMI input

Built-in one HDMI output for local monitor

Built-in one RJ45 port for system output which can be connected by Cat 5 / 5e / 6

cable and send signal to System Receiver

Transceiver DVI-C5-4 and DVI-C5-8

Built-in one HDMI input

Built-in one HDMI output to monitor the signal broadcast

Built-in one RJ45 DVI Output

Built-in 4 / 8 RJ45 ports for system output which can be connected by Cat 5 / 5e / 6

cable and send signal to 4 / 8 of System Receiver or Transceiver

Connection Diagram of HDMI-C5 Series

www.avenview.com

Cable and Accessories

HDMI Cable (Included)

Package Content

HDMI-C5

(Transmitter

Receiver Set)

HDMI 1 Port Transmitter

HDMI 1 Port Receiver

HDMI to HDMI cable 1.8m

DC 5V 2A Adapter

User Manual

HDMI-C5-SR

Transceiver

HDMI 1 Port Transceiver

DC 5V 2A Adapter

User Manual

HDMI-C5-4

Transceiver

HDMI 4 Port Transceiver

HDMI to HDMI cable 1.8m

DC 5V 3A Adapter

Rack Kit

User Manual

HDMI-C5-8

Transceiver

HDMI 8 Port Transceiver

HDMI to HDMI cable 1.8m

DC 5V 3A Adapter

Rack Kit

User Manual

www.avenview.com

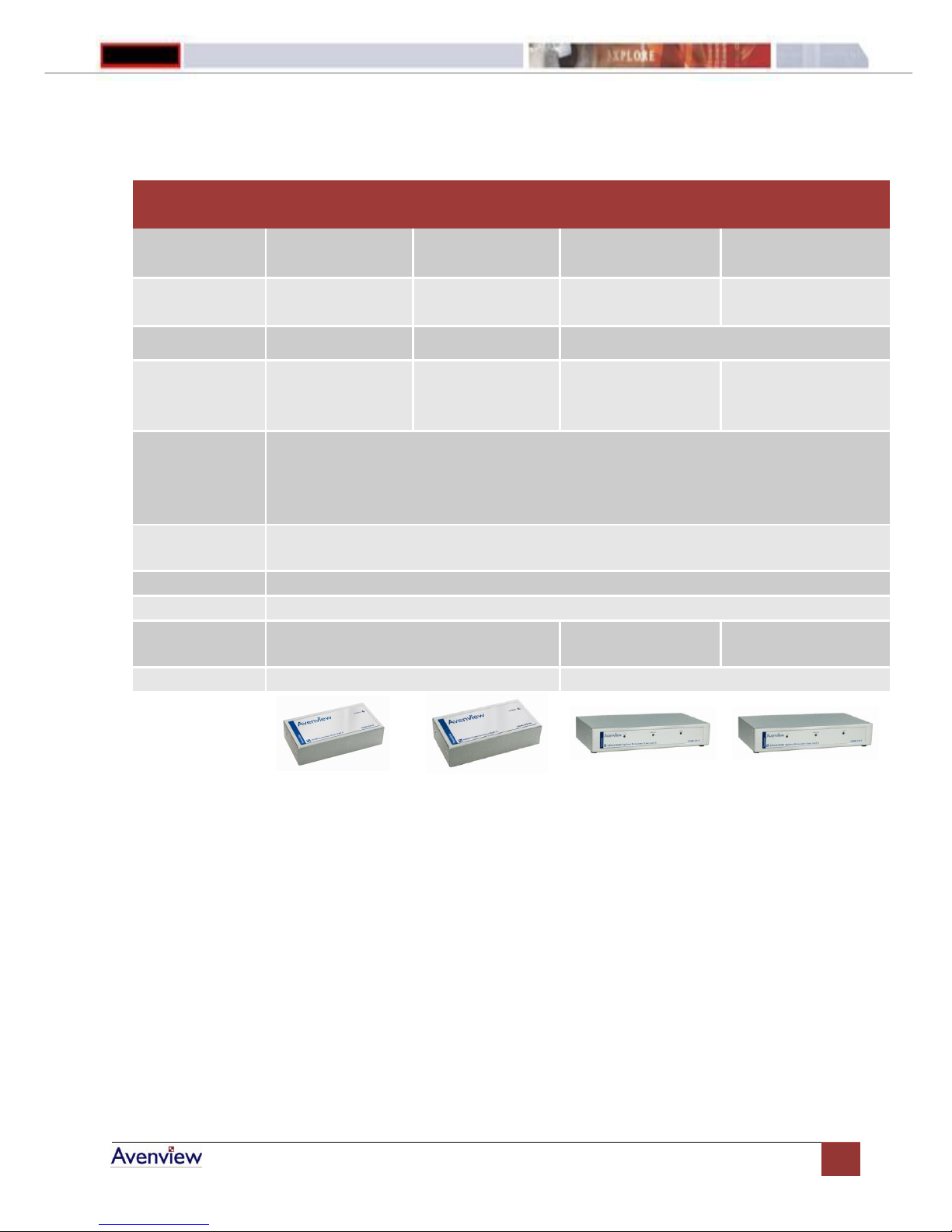

Specifications

Model

HDMI-C5-S

HDMI-C5-SR

HDMI-C5-4

HDMI-C5-8

Description

1 Port HDMI

Transmitter

1 Port HDMI

Transceiver

4 Port HDMI

Transceiver

8 Port HDMI

Transceiver

Input

HDMI Female x 1

RJ45 x 1

HDMI Female x 1

Output

HDMI Female x 1

RJ45 x 1

HDMI Female x 1

RJ45 LINK OUT x

HDMI Female x 1

RJ45 HDMI Out x 4

RJ45 LINK OUT x 1

HDMI Female x 1

RJ45 HDMI Out x 8

RJ45 LINK OUT x 1

Maximum

Distance &

Resolution

With each cascading length:

< 80m (275ft) @ 480p

< 50m (160ft) @ 720p / 1080i

< 20m (65ft) @ 1080p

Video

Control

EQ x 1

Signal Type

HDMI

LED

Power and Activity

Power

Consumption

DC 5V 750mA

DC 5V 1.8A

DC 5V 2.5A

Dimensions

62 x 113 x 29

1U, 240 x 180 x 44

Features, availability and specifications are subject to change without notice.

Avenview Inc.

[email protected]

www.avenview.com
