Avenview C-VGA-DVI Manuale utente

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

AV Connectivity, Distribution And Beyond...

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or

warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications

and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted

by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims

any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model #: C-VGA-DVI

VGA to DVI Converter

Military Residential

Medical Aviation

Education Industrial

Coroprate House Of Worship

www.avenview.com

Product Application & Market Sectors

www.avenview.com Page 3

TABLE OF CONTENTS

1. GETTING STARTED ..........................................................................................................................1

1.1 IMPORTANT SAFEGUARDS..............................................................................................................1

1.2 SAFETY INSTRUCTIONS ..................................................................................................................1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2

2. INTRODUCTION ..............................................................................................................................3

2.1 PACKAGE CONTENTS .....................................................................................................................3

2.2 BEFORE INSTALLATION...................................................................................................................4

3. INSTALLATION..................................................................................................................................5

3.1 Top Cover Adjustment Guide .......................................................................................................6

3.2 Receiver (Input) – D-SUB .............................................................................................................7

4. SPECIFICATIONS ...............................................................................................................................8

www.avenview.com Page 1

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

•Any product, on which the serial number has been defaced, modified or removed.

•Damage, deterioration or malfunction resulting from:

•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

•Repair or attempted repair by anyone not authorized by us.

•Any damage of the product due to shipment.

•Removal or installation of the product.

•Causes external to the product, such as electric power fluctuation or failure.

•Use of supplies or parts not meeting our specifications.

•Normal wear and tear.

•Any other causes which does not relate to a product defect.

•Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview C-VGA-DVI, VGA to DVI Converter has been tested for conformance to safety regulations and requirements,

and has been certified for international use. However, like all electronic equipment’s, the C-VGA-DVI should be used with care.

Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

!Do not dismantle the housing or modify the module.

!Dismantling the housing or modifying the module may result in electrical shock or burn.

!Refer all servicing to qualified service personnel.

!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage

or other hazards

!Keep the module away from liquids.

!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on

to the housing, unplug the module immediately.

!Have the module checked by a qualified service engineer before using it again.

!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

1. GETTING STARTED

www.avenview.com Page 2

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

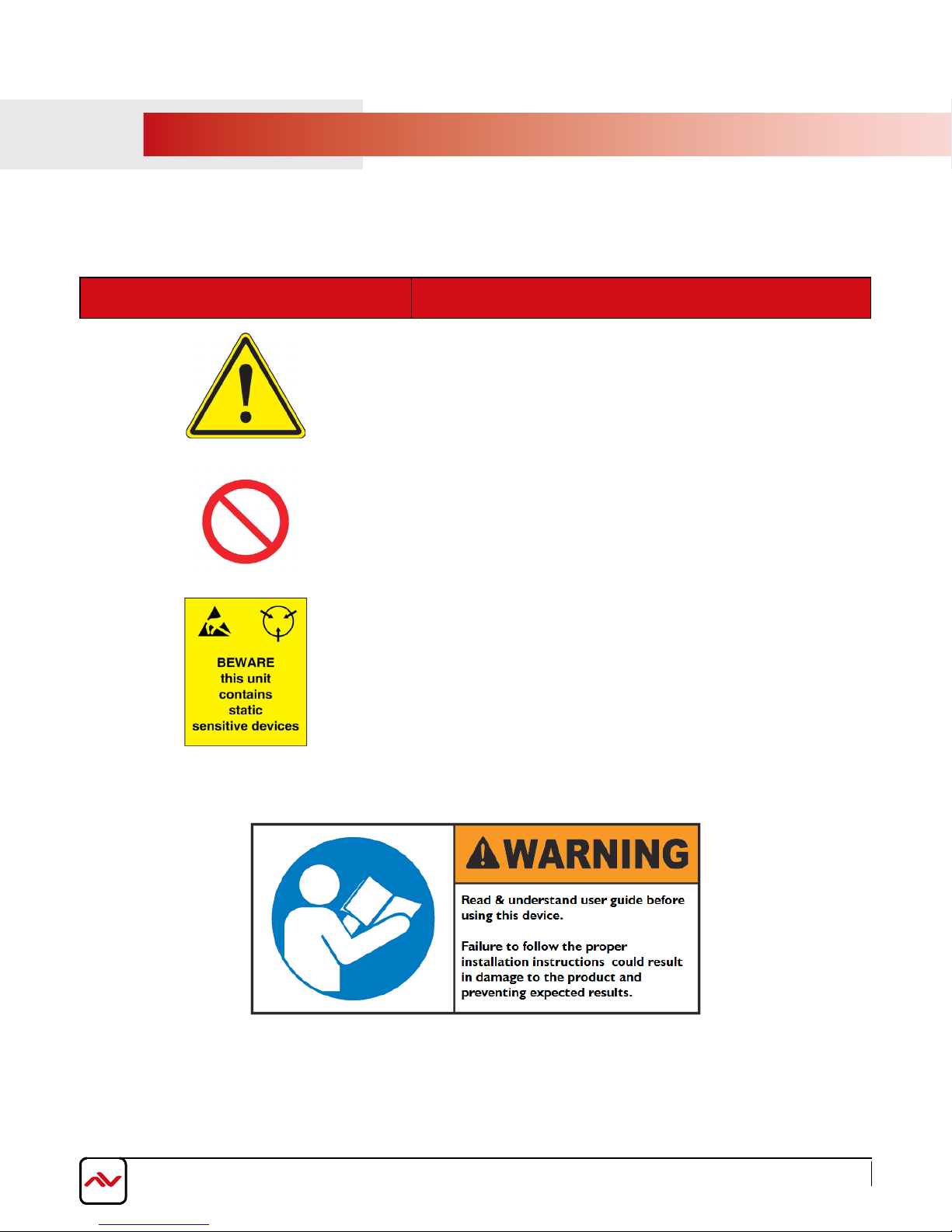

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE

ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL

SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL

VOID THE WARRANTY AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.

PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

www.avenview.com Page 3

2. INTRODUCTION

Avenview C-VGA-DVI converts analog VGA signal from Desktop or Laptop to DVI digital signal, so that any DVI compatible

monitors such as LED, LCD or Projectors can be utilized.

- Converts VGA to DVI Signal

- Output Connector: DVI 24 pin (female), 15 pin D-sub (female)

- Input Connector: 15 pin D-Sub

- Compatible with DVI Standard by DDWG

- Manual screen control key for corresponding to versatile resolution

- Supports up to WUXGA(1920X1200)@60Hz and 1080p(1920x1080) and

- UXGA, WSXGA+, SXGA, XGA, SVGA, VGA resolution

2.1 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

1 C-VGA-DVI X 1

2 Power Adapter X1

3 User’s Manual X 1

www.avenview.com Page 4

2.2 BEFORE INSTALLATION

•Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.

•Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.

•Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.

•Do not twist or pull by force ends of the video cable. It can cause malfunction.

www.avenview.com Page 5

3. INSTALLATION

Follow these steps to connect Avenview C-VGA-DVI converter:

1. Connect the VGA connector C-VGA-DVI

2. Connect DVI display to C-VGA-DVI DVI Output

3. Plug the 5V DC power supply

1. DVI Out 2. VGA Out

3. VGA In 4. Power In

5. Power LED Indicator 6. Resolution LED Indicator

Please ensure that the display resolution set in PC is supported by the Monitor/TV.

2 3 4

www.avenview.com Page 6

3.1 Top Cover Adjustment Guide





Clock



–





Phase



–



Left



Reset



Right





Down



BUTTON NAME DESCRIPTION

Clock Adjusts clock : increase (+) / decrease (–)

Phase Adjusts phase : increase (+) / decrease (–)

Reset Reset to initial setting

Up/Down/Right/Left

(///)Adjusts screen location

www.avenview.com Page 7

3.2 Receiver (Input) – D-SUB

RECEIVER (INPUT)

– D-SUB PIN

SIGNAL

ASSIGNMENT PIN SIGNAL

ASSIGNMENT

1RED 6RGND 11 GND

2GREEN 7GGND 12 No Connect

3BLUE 8BGND 13 H Sync

4GND 9No Connect 14 V Sync

5GND 10 SGND 15 No Connect

TRANSMITTER

(OUTPUT) -

DVI PIN

SIGNAL

ASSIGNMENT PIN SIGNAL

ASSIGNMENT

1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0-

2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+

3T.M.D.S. Data2 Shield 11 T.M.D.S. Data1 Shield 19 T.M.D.S. Data0 Shield

4No Connect 12 No Connect 20 No Connect

5No Connect 13 No Connect 21 No Connect

6No Connect 14 +5V Power 22 T.M.D.S Clock Shield

7No Connect 15 Ground (for +5V) 23 T.M.D.S Clock+

8No Connect 16 Hot Plug Detect 24 T.M.D.S Clock-

C1 No Connect C2 No Connect C3 No Connect

C4 No Connect C5 No Connect
