Avery Dennison Pathfinder 6140 Manuale utente

Avery Dennison® and Pathfinder® are registered trademarks of Avery Dennison Corporation.

Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A.

PATHFINDER® 6140

QUICK REFERENCE

For more detailed information, refer to the additional manuals available

on our Web site (www.averydennison.com/printers) or on your smart

device.

Removing/Inserting the Battery

Charge the main battery before use.The battery must be charged

using only the 9462, 9465, or 6054/6055 charger.

Battery Type: 8.4V/3.4A Lithium-Ion.

Battery Recharge Time: 1 – 3 hours, depending on charger used.

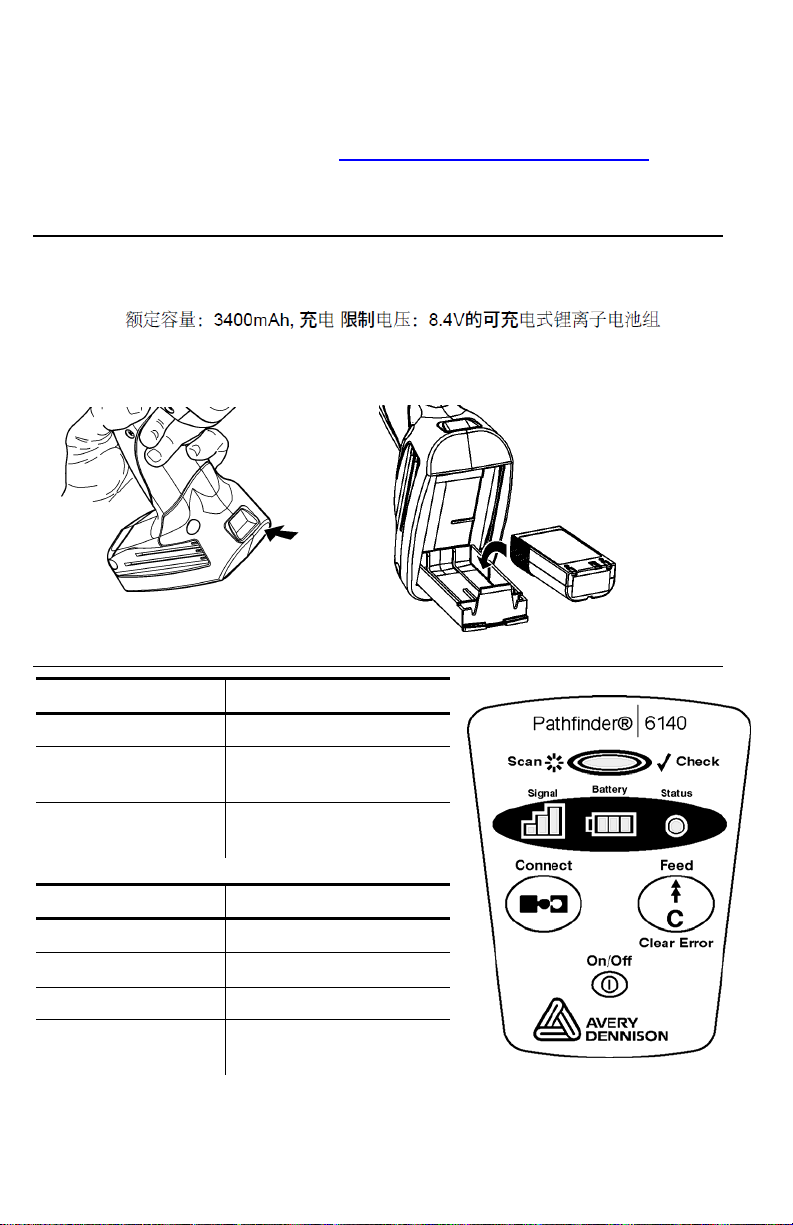

Using the Operator Panel

Button

Description

On/Off Turns the printer

on and off

Connect Connects the printer with

your smart device

Feed/

Clear Error Feeds supply through the

printer or clears the error

condition

Icon Description

Signal Shows the signal strength

Battery Shows the remaining

battery power

Status Red=Error

Scan Green = successful scan

Red = unsuccessful scan

2-EN

Loading Supplies

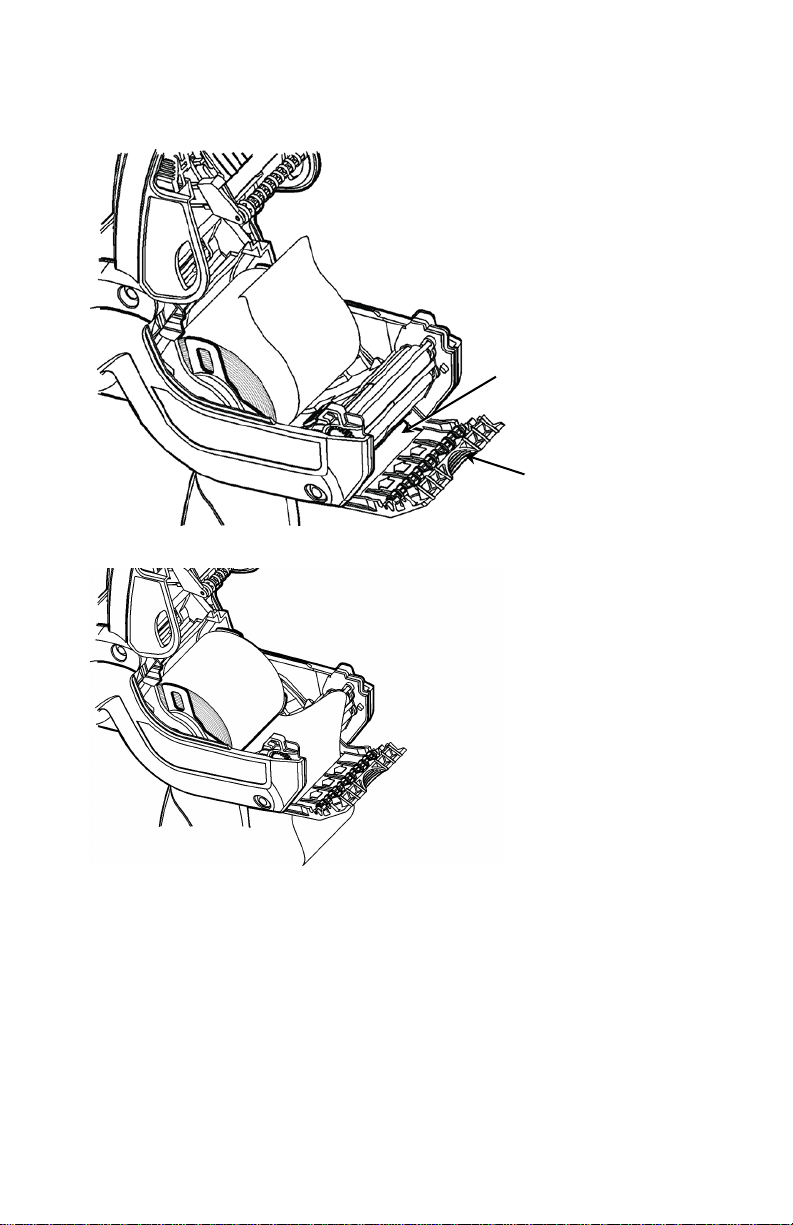

1. Push the latch buttons to open the supply cover.

2. Spread the supply holder tabs apart so it adjusts to the size of your

supply roll and lock the supply holder in place.

3. Place a roll of supply in the supply holder as shown.

4. For non-peel mode, close the supply cover, make sure the printer is

on, then press Feed.

For peel mode, continue to step 5.

Supply Holder

Supply Lock Tab

Latch

Button

EN-3

Peel Mode

5. Remove the first four inches of labels from the backing paper.

6. Press down on the label deflector.

7. Feed the backing paper under the label deflector.

8. Push the label deflector up until it snaps into place.

9. Hold the backing paper and close the cover completely.

10. Make sure the printer is on and press Feed.

Label

Deflector

Backing Paper

Opening

4-EN

Using Bluetooth®

♦Your 6140 printer with Bluetooth can be paired/connected with a

smart device. The exact pairing/connecting process may differ by

device; refer to your smart device manual for specific instructions.

♦Turn your 6140 printer on before you pair/connect it with your smart

device.

♦The 6140 printer is automatically discoverable by your smart device.

♦Once your smart device is connected to the 6140, the printer’s

display shows the signal strength.

♦You can press Connect on the 6140 printer to reestablish a

connection with the last known, connected smart device.

Troubleshooting

Problem Solution

Printer does not print,

has voids, or is too light. Use a fully-charged battery.

Correctly load supply.

Clean the printhead.

Completely close the supply cover.

Make sure your printer and smart device

are connected.

Printer does not feed. Use a fully-charged battery.

Correctly load supply.

Clear any jammed labels.

Printer fails to respond. Use a fully-charged battery.

Correctly load supply.

Clear any jammed labels.

Clean the printhead.

Make sure your printer and smart device

are connected.

Scanner does not scan a

bar code. Alter the scan angle and distance.

Clean the scanner window.

Check bar code for voids.

Printer does not connect

to the smart device

Use a fully-charged battery.

Make sure the printer and smart device are

not too far apart (typically no more than 10

meters line of sight).

Make sure another smart device is not

already connected to the printer.

Make sure your Bluetooth feature on your

smart device is turned on.

Note: For optimal printer performance regularly follow the Cleaning

& Maintenance section in your Equipment Manual.

ZH-1

PATHFINDER® 6140

快速参考

有关详细信息，请参阅我们网站上(www.averydennison.com/printers)或您的

智能设备上的附加手册。

取下/装入电池

在使用前为主电池充电。电池

仅

能使用 9462、9465 或6054/6055

充电器充电。

电池类型：

电池充电时间：1 - 3个小时，这取决于所使用的充电器。

使用操作面板

按钮说明

On/Off（开/关）开启和关闭打印机

Connect（连接）将打印机与您的智能设

备连接

Feed/Clear Error

（送纸/清除错误）

为打印机送纸或清除错

误状态

图标说明

Signal (信号) 显示信号强度

Battery (电池) 显示电池剩余电量

Status (状态) 红色=错误

Scan (扫描) 绿色 = 成功扫描

红色 = 扫描失败

2-ZH

加载耗材

1. 推压闭锁按钮以打开耗材盖。

2. 将耗材固定凸缘分开，让它根据您的耗材纸卷大小调整并锁定固定凸缘到位。

3. 将耗材纸卷装放在耗材固定器上，如图所示。

4. 对于非剥离模式，关闭耗材盖，确保打印机开启，然后按Feed（送纸）。

对于剥离模式，请继续步骤 5。

闭锁按钮

耗材支架

耗材锁定凸缘

ZH-3

剥离模式

5. 取下衬纸上的前 4 英寸长度的标签。

6. 下推标签导向器。

7. 将衬纸穿过标签导向器下方。

8. 上推标签导向器，直至啮合。

9. 固定衬纸并完全关闭护盖。

10. 确保打印机开启并按下 Feed（送纸）。

标签导向器

衬纸开口

4-ZH

使用 Bluetooth®

♦您的 6140

打印机具有蓝牙功能，可联合/连接智能设备使用。确切的联合/连接过程可

能因设备的不同而有所差异；请参阅您的智能设备手册的特定说明。

♦在联合/连接至智能设备之前，请先开启您的 6140 打印机。

♦6140 打印机将自动被您的智能设备发现。

♦您的智能设备一旦连接至 6140，打印机的显示屏将出现信号强度。

♦您可在 6140 打印机上按下 Connect

（连接）重新建立与最后已知的连接智能设备的连接。

故障排除

故障

解决方案

打印机无法打印，出现空白或

颜色太浅。使用完全充电的电池。

正确加载耗材。

清洁打印头。

完全关闭耗材盖。

确保您的打印机和智能设备已连接。

打印机不能进纸。使用完全充电的电池。

正确加载耗材。

清除任何卡住的标签。

打印机没有响应。使用完全充电的电池。

正确加载耗材。

清除任何卡住的标签。

清洁打印头。

确保您的打印机和智能设备已连接。

扫描仪不能扫描条码。改变扫描角度和距离。

清洁扫描仪窗口。

检查条码是否无效。

打印机没有连接至智能设备。使用完全充电的电池。

确保打印机和智能设备之间相距不远（通常不

超过 10米的视线）。

确保没有将其它智能设备连接到打印机。

确保您的智能设备上的蓝牙功能已开启。

说明:有关定期优化打印机性能，请按照您的设备手册内的“清洁与维修”章节

进行。

CF-1

PATHFINDER® 6140

RÉFÉRENCE RAPIDE

Pour plus d'informations, consultez les manuels disponibles sur notre

site web (www.averydennison.com/printers) ou sur votre appareil

intelligent.

Retrait/Installation de la batterie

Chargez la batterie principale avant de l’utiliser.

La batterie doit être chargée en utilisant le chargeur 9462, 9465

ou 6054/6055 uniquement .

Utilisation du panneau de commandes

Bouton Description

On/Off

(Marche/Arrêt) Pour allumer et éteindre

l’imprimante.

Connect

(Connecter) Pour connecter

l'imprimante à l'appareil

intelligent

Feed/Clear Error

(Avance papier/

Effacer erreur)

Pour faire avancer le

papier ou effacer le

message d'erreur

Icône

Description

Signal

(Signal) Indique l'intensité du

signal

Battery

(Batterie) Indique le niveau de

charge restante

Status

(État) Rouge = Erreur

Scan

(Scannérisation) Vert = réussite

Rouge = échec

2-CF

Chargement des consommables

1. Appuyez sur les boutons de verrouillage pour ouvrir le volet des

consommables.

2. Écartez les languettes du support pour l'adapter à la taille du

rouleau d'étiquettes et verrouillez-le en place.

3. Placez un rouleau d’étiquettes sur le support comme illustré.

4. En Mode Non-Peel (sans décollage des étiquettes), fermez le

volet des consommables, assurez-vous que l'imprimante est

allumée, puis appuyez sur Feed (Avance papier).

En Mode Peel (avec décollage des étiquettes), passez à l'étape 5.

Bouton de verrouillage

Languette de

verrouillage de

l'alimentation

Support
