BP-545D Series

USER’S

MANUAL

DIRECT THERMAL BAR CODE PRINTER

COMPLIANCES ......................................................................................................................... 1

1. Introduction ................................................................................................................. 3

2. Getting Started ............................................................................................................ 3

2.1 Unpacking and Inspection ...................................................................................... 3

2.2 Equipment Checklist............................................................................................... 3

2.3 Printer Parts............................................................................................................ 5

2.3.1 Front View ....................................................................................................... 5

2.3.2 Rear View........................................................................................................ 5

3 Setup ............................................................................................................................. 6

3.1 Setting Up the Printer ............................................................................................. 6

3.2 Loading Label Stock ............................................................................................... 7

3.3 Peel-Off Installation Assembly (Option) ................................................................. 9

3.4 Loading Label for Peel-off Mode (Option) ............................................................ 12

3.5 External Label Roll Mount Installation (Option).................................................... 14

3.6 Cutter Module Installation (Option)....................................................................... 15

3.7 Loading Label in Cutter Mode .............................................................................. 18

3.8 Internal Ethernet Print Server Module Installation (Option).................................. 19

3.9 Diagnostic Tool..................................................................................................... 22

3.9.1 Start the Diagnostic Tool ............................................................................... 22

3.9.2 Printer Function (Calibrate sensor, Ethernet setup, RTC setup………)........ 23

3.10 Setting Ethernet by Diagnostic Utility (Option) ................................................... 24

3.10.1 Using USB interface to setup Ethernet interface ........................................ 24

3.10.2 Using RS-232 interface to setup Ethernet interface ................................... 25

3.10.3 Using Ethernet interface to setup Ethernet interface .................................. 26

3.11. Install Memory Card .......................................................................................... 28

4. Power on Utilities...................................................................................................... 30

4.1 Gap/Black Mark Sensor Calibration ..................................................................... 30

4.2 Gap/Black Mark Calibration, Self-test, Dump Mode............................................. 31

4.3 Printer Initialization ............................................................................................... 34

4.4 Set Black Mark Sensor as Media Sensor and Calibrate the Black Mark Sensor. 35

4.5 Set Gap Sensor as Media Sensor and Calibrate the Gap Sensor....................... 35

4.6 Skip AUTO.BAS ................................................................................................... 35

5. Maintenance .............................................................................................................. 36

5.1 Cleaning................................................................................................................ 36

Contents

6. Troubleshooting........................................................................................................ 38

6.1 LED Status ........................................................................................................... 38

6.2 Print Quality .......................................................................................................... 39

7. LED and Button Operation....................................................................................... 40

7.1 LED....................................................................................................................... 40

7.2 Button Operation .................................................................................................. 40

Revise History ............................................................................................................... 44

CAUTION

1. HAZARDOUS MOVING PARTS IN CUTTER MODULE. KEEP FINGER AND OTHER BODY

PARTS AWAY.

2. THE MAIN BOARD INCLUDES REAL TIME CLOCK FEATURE HAS LITHIUM BATTERY

CR2032 INSTALLED. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN

INCORRECT TYPE.

3. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER INSTRUCTIONS.

1. Introduction

Thank you for purchasing the BIRCH BP-545DSeries Direct Thermal Bar Code Printer.

Although it is a compact desktop printer, it is reliable and with superior throughput

performance.

This printer provides both thermal transfer and direct thermal printing at user selectable

speed of: 2.0, 3.0, 4.0 or 5.0 inches per second. It accepts roll feed, die-cut, and fan-fold

labels for both thermal transfer and direct thermal printing. All common bar codes

formats are available. Fonts and bar codes can be printed in 4 directions, 8 different

alphanumeric bitmap fonts and a build-in true type font capability. You will enjoy high

throughput for printing labels with this printer.

2. Getting Started

2.1 Unpacking and Inspection

This printer has been specially packaged to withstand damage during shipping. Please

carefully inspect the packaging and printer upon receiving the bar code printer. Please

retain the packaging materials in cover you need to reship the printer.

2.2 Equipment Checklist

Printer

BarTender UltraLite CD disk

Quick start guide

USB port cable

External universal switching power supply

Power Cord

Label Spindle

Fixing tab x2

1.5” core adapter x2

If any parts are missing, please contact the Customer Service Department of your

purchased reseller or distributor.

Dealer option

Peel off module assembly.

Guillotine cutter

Full cut: Paper thickness: 0.06~ 0.19mm, 500,000 cuts

Partial cut: Paper thickness: 0.06~0.12mm, 500,000 cuts

Paper thickness: 0.19mm 200,000 cuts

Main board integrated with internal Ethernet

Internal Ethernet print server module

User option

K-012A Smart Keyboard Display Unit (KDU)

External Ethernet print server

 External wireless (802.11b/g) print server

 External roll mount, media OD. 214 mm (8.4”) with 3” core label spindle

 Barcode Scanner

2.3 Printer Parts

2.3.1 Front View

Fig.1 Top Front View

2.3.2 Rear View

1 2 345

1. USB Interface

2. Cen tronics Interface

3. RS-232C DB-9 Interface

4. Po wer Jack

5. Po wer Switch

6. Rear Label Guide

Top Cover Open Lever

LED Indicator

Feed Button

Top Cover

Clear Window

Backing Paper Opening

Label Opening

Front Panel

.2 Rear View

3 Setup

3.1 Setting Up the Printer

1. Place the printer on a flat, secure surface.

2. Make sure the power switch is off.

3. Connect the printer to the computer with the Centronics or USB cable.

4 Plug the DC power cord into the power jack at the rear of the printer, and then

plug the AC power cord into a properly grounded receptacle.

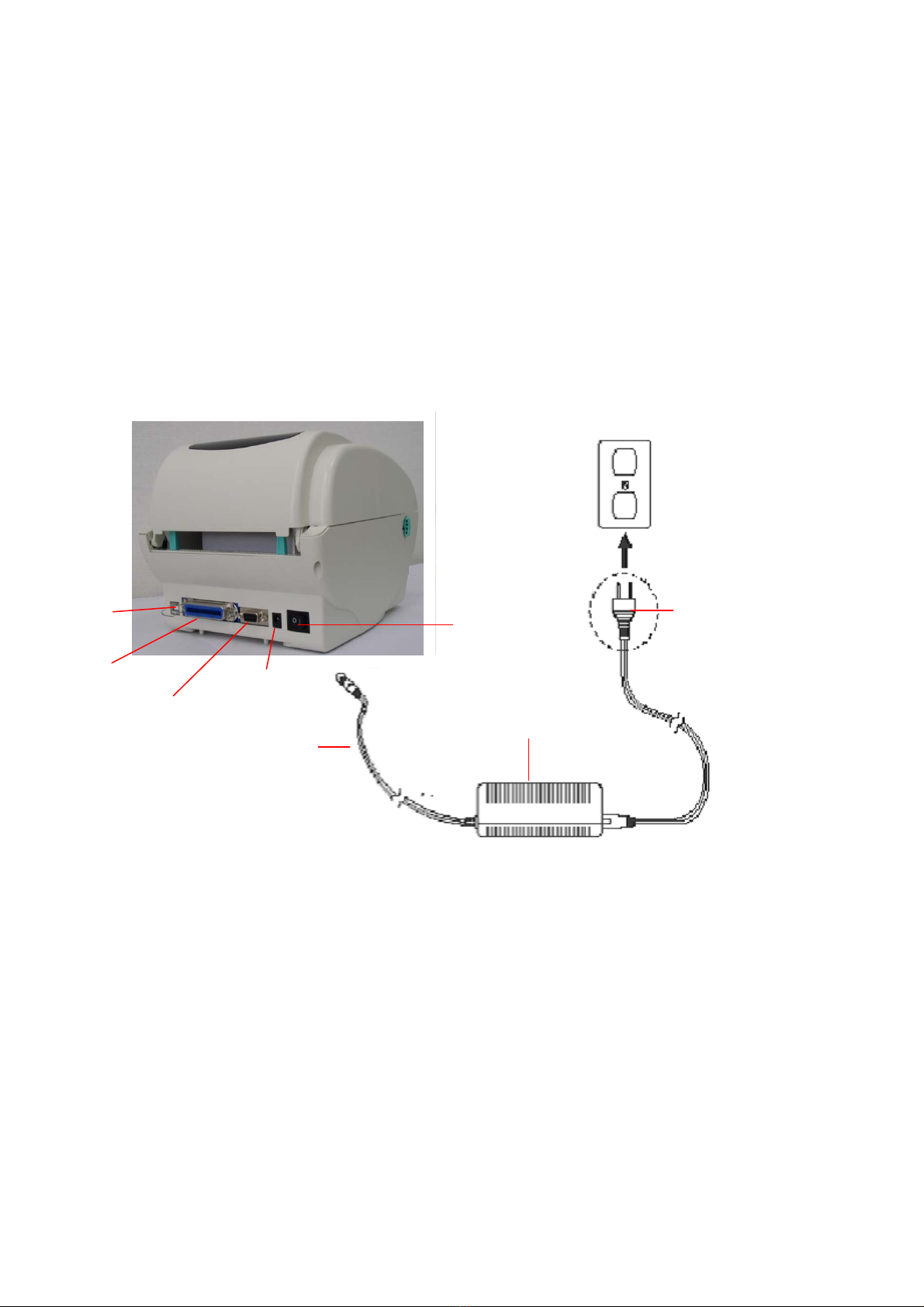

Fig. 5 Attach a power supply to a printer

Power Cord

Power Switch

Power Supply

Plug

USB

RS-232C

Centronics

Power Jack

3.2 Loading Label Stock

1. Insert a 1” label spindle into a paper roll (If your paper core is 1 inch, remove the 1.5

inch core adapter from the fixing tab).

Fig 6 Label roll installation (I)

2. Open the printer’s top cover by releasing the green top cover open levers located

on both sides of the printer and lifting the top cover.

3. Place a roll of paper into internal paper roll mount.

4. Feed the paper, printing side face up, through the label guides and place the label

over the platen.

5. Adjust the black center-biased label guides in or out by turning adjustment knob so

they are slightly touch the edges of the label backing.

Fig. 7 Label roll installation (II)

Label Roll

1” Label Spindle

Label Roll Mount

Platen

1.5” Core Adapter

Adjustment Knob

Fixing Tab

Label Guide

Printing Side Face up
