Avision AV220D2 Plus Manuale utente

Sheet-fed Duplex Scanner

Quick Guide

Avision Inc.

ENGLISH

Trademarks

Microsoft is a U.S. registered trademark of Microsoft

Corporation.

Windows and MS-DOS are trademarks of Microsoft Corporation.

IBM, IBM PC are registered trademarks of International Business

Machines Corp.

ENERGY STAR®is a U.S. registered mark.

Other brands and product names herein are trademarks or

registered trademarks of their respective holders.

reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language,

in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual, or otherwise, without the prior

written permission of Avision Inc.

Material scanned by this product may be protected by

governmental laws and other regulations, such as copyright

laws, the customer is solely responsible for complying with all

such laws and regulations.

Warranty

The information contained in this document is subject to

change without notice.

Avision makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties

of fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

Quick Guide

iii

Table of Contents

1. Introduction.............................................. 1-1

2. Scanner Installation.................................. 2-1

2.1 Installing the ADF Paper Tray........................ 2-2

2.2 Installing the ADF Output Paper Tray ............. 2-3

2.3 Installing Front Paper Tray ........................... 2-4

2.4 Installing the Scanner Driver and Connecting ......

the Cables.................................................. 2-5

3. Completing Your First Scan .......................3-1

3.1 Loading Your Paper ..................................... 3-1

3.2 Verifying Your Scanner Installation ................ 3-4

4. ISIS Interface Operation........................... 4-1

5. Using the Buttons...................................... 5-1

5.1 Installing Button Manager V2 ........................ 5-1

5.2 Checking the Button Configurations Before .........

Scanning ................................................... 5-2

5.3 Scanning From One Touch of the Buttons ....... 5-4

6. Maintenance.............................................. 6-1

6.1 Cleaning the ADF ........................................ 6-1

6.2 Cleaning the Calibration Area........................ 6-2

7. Troubleshooting ........................................ 7-1

7.1 Clearing a Paper Jam ................................... 7-1

Quick Guide

1-1

1. Introduction

Congratulations on your purchase of the color sheet-fed

image scanner. With this scanner, you can quickly scan

documents in duplex (double-sided) mode to increase

productivity.

Before you install and operate the new scanner, please take

a few minutes to read through this manual. It provides

proper instructions for you to unpack, install, operate and

maintain the scanner.

The following figure indicates the package contents. Please

check all the items against your checklist. If you do not

receive all the items, please contact your authorized local

dealer immediately.

1-2

1. Scanner Main Unit

2. ADF Paper Tray

3. ADF Output Paper Tray

4. Front Tray & Extension Wire

5. USB Cable

6. Power Adapter & Power Cord

Note:

1. Only use the AC adapter included in the machine. Using

other AC adapters may damage the machine and void the

warranty.

2. Please unpack the packing carefully, and check the contents

against the checklist. If any items are missing or damaged,

please contact your dealer immediately.

1 2

45 6

Quick Guide

2-1

2. Scanner Installation

Precautions

Keep the scanner out of direct sunlight. Direct

exposure to the sun or excessive heat may cause

damage to the unit.

Do not install the scanner in a humid or dusty place.

Be sure to use the proper AC power source.

Place the scanner securely on an even, flat surface.

Tilted or uneven surfaces may cause mechanical or

paper-feeding problems.

Retain the scanner box and packing materials for

shipping purposes.

2-2

2.1 Installing the ADF Paper Tray

1. Attach the ADF Paper Tray to the clip joint of the

scanner as indicated below. When properly insert, you

will hear a snap-in sound.

ADF Paper

Tray

Clip Joint

Quick Guide

2-3

2.2 Installing the ADF Output Paper Tray

1. Hold the Output paper tray some 30 degrees as shown in

below.

2. Insert the right protrusion of the Output Paper Tray into

the hole on the front of the scanner.

3. Insert the left pin of the Output Paper Tray slightly into the

hole on the front of the scanner.

Scanner

Output

Paper Tray

Hole

2-4

2.3 Installing Front Paper Tray

If you wish to feed paper from the front tray, please remove

the ADF output tray first and then install the front paper tray.

1. Insert the left protrusion of the front paper tray into the

hole on the front of the scanner.

2. Press the right protrusion to fit into the hole of the scanner.

3. Insert the extension wire to the front tray.

Hole

Protrusion

Front Tray

Extension

Wire

Quick Guide

2-5

2.4 Installing the Scanner Driver and Connecting the

Cables

NOTE:

1. The Windows system CD may be required when installing

on some PC’s.

2. To ensure your computer can identify the USB scanner,

please install scanner driver first before connecting the

scanner to your computer.

3. The scanner driver contains both TWAIN driver and WIA

driver. If you are running Windows Me, Windows XP, or

Windows Vista, after the installation of scanner driver is

completed, this scanner allows you to scan via a TWAIN

user interface or a WIA (Windows Image Acquisition)

interface. Start your TWAIN-compatible image editing

software application to select a TWAIN or WIA user

interface. Or you might launch Microsoft’s Scanner and

Camera Wizard to scan via a WIA user interface.

2.4.1 Connecting to Power

Before connecting, make sure the power switch is off.

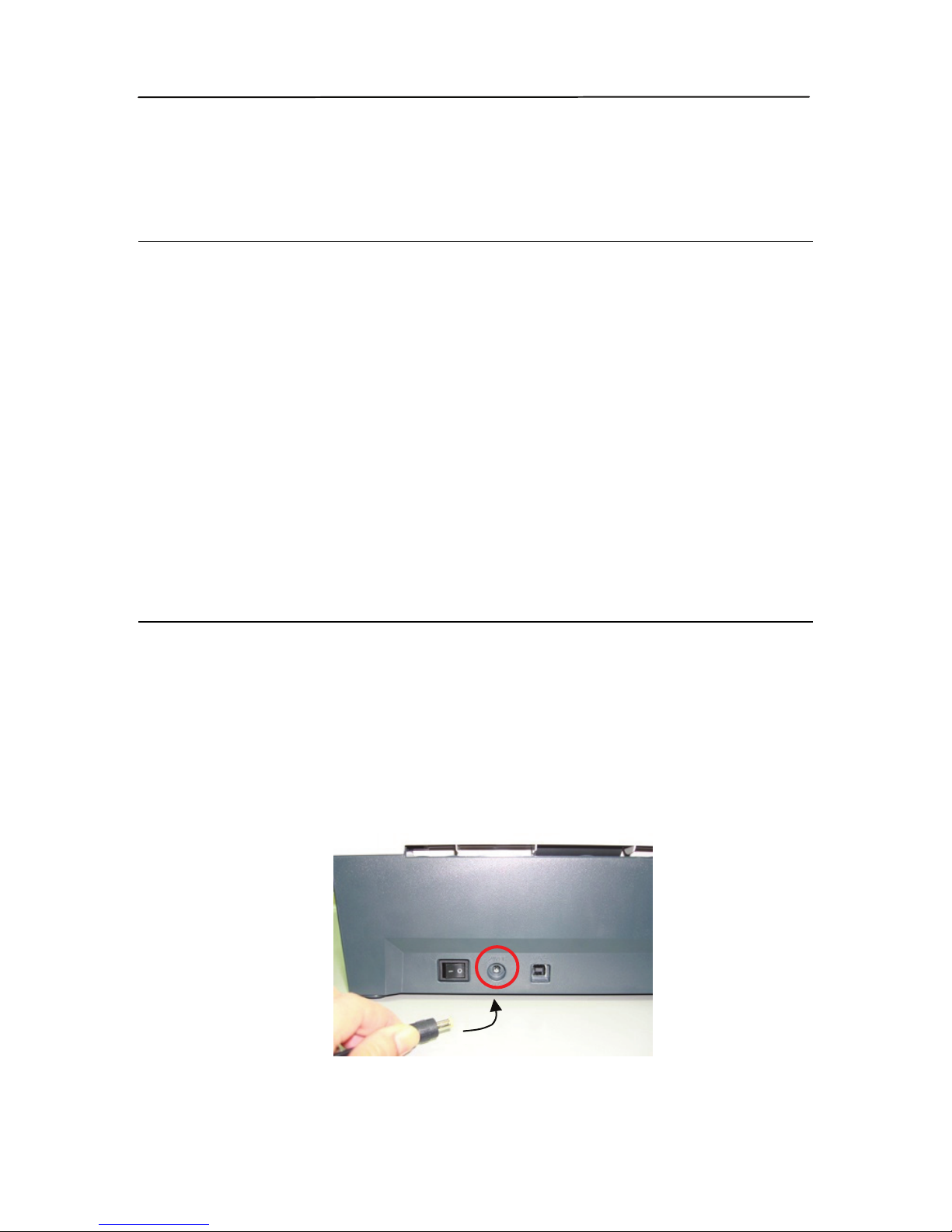

Plug the small end of the power adaptor into the power jack of

your scanner. Insert the other end to an appropriate power

outlet.
