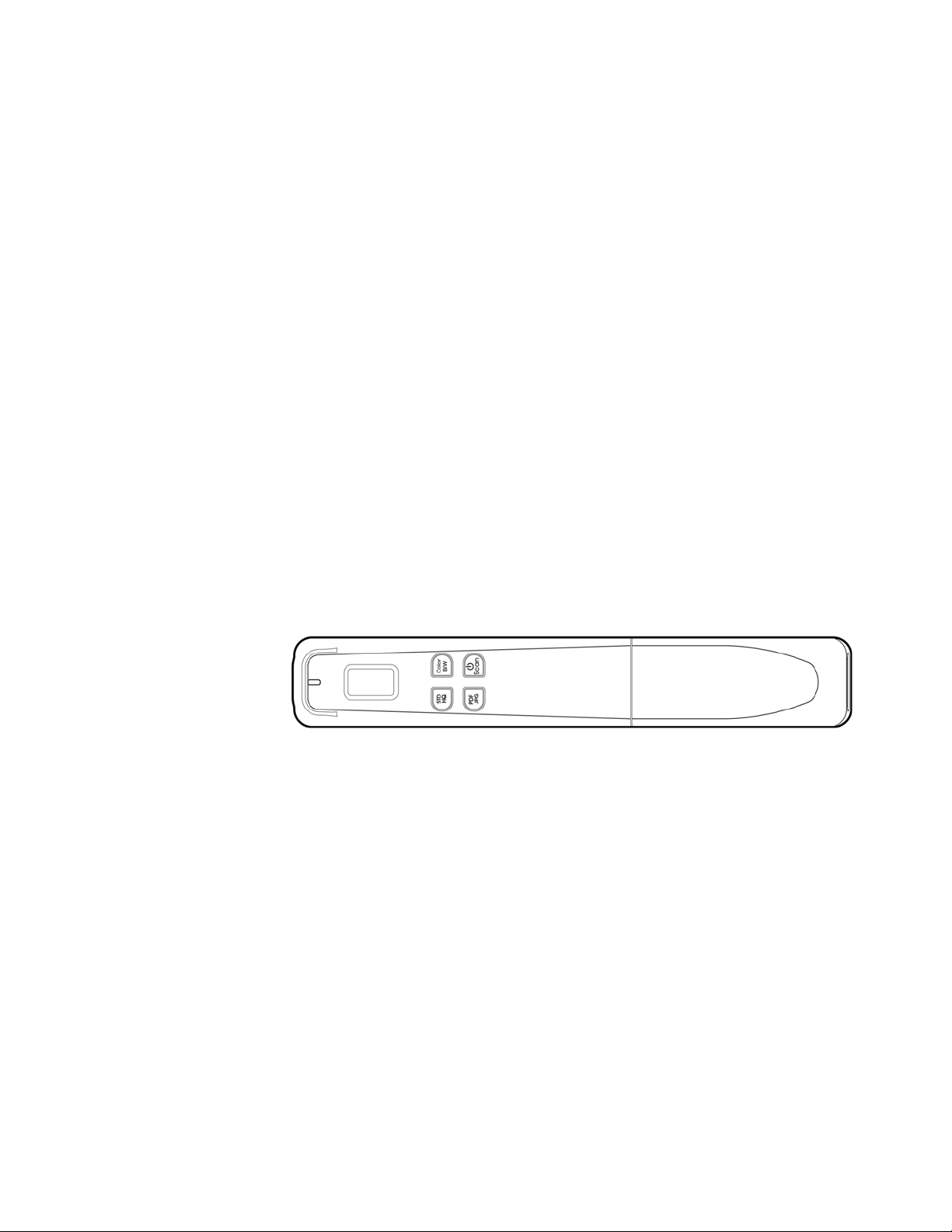

Avision MiWand 2 Lite Manuale utente
Hand-Held Scanner
User’s Manual
Regulatory model: HF-1408B
Avision Inc.
manual-en-250-0859-E-miwand2lite-v100
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows, Windows XP, Windows Vista, Windows 7, and Windows 8 are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
IBM, IBM PC are registered trademarks of International Business Machines Corp.
Other brands and product names herein are trademarks or registered trademarks of their
respective holders.
Copyright
All rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or computer language, in any
form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise, without the prior written permission of Avision Inc.
Material scanned by this product may be protected by governmental laws and other
regulations, such as copyright laws, the customer is solely responsible for complying with all
such laws and regulations.
Warranty
The information contained in this document is subject to change without notice.
Avision makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Disposal of Waste Equipment by Users in Private Union
This symbol on the product or on its packaging indicates that the product can not be
disposed of with your other household waste. Instead it should be sent to appropriate
facilities for recovery and recycling in an effort to protect human health and the
environment. Fore more information about where you can drop off your waste equipment
for recycling, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
ii
User’s Manual
FCC Radio Frequency Interference Statement
This product has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation. The FCC Class B limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult your point of purchase or service representative for additional suggestions.
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU Directives:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
Restriction of the use of certain hazardous substances (RoHS) Directive 2011/65/EU
This product satisfies the Class B limits of EN55022, EN55024, safety requirements of EN
60950 and ROHS requirements of EN50581.
*This machine is certified as Class 1 LED product. This means that this machine does not
produce hazardous laser radiation.
iii
iv
Table of Contents
1. Overview ........................................................................... 1-1
1.1 Introduction.................................................................................... 1-1
1.2 Package Contents............................................................................ 1-1
1.3 Top View ........................................................................................ 1-2
1.4 Rear View....................................................................................... 1-3
1.5 Bottom View ................................................................................... 1-3
1.6 Scanner Indicator Light .................................................................... 1-4
1.7 LCD Display .................................................................................... 1-5
2. Installation........................................................................ 2-1
2.1 Precautions..................................................................................... 2-1
2.2 Install the Batteries (not included) ..................................................... 2-1
2.3 Install micro SDTM Card (not included) ................................................ 2-2
3. Operation........................................................................... 3-1
3.1 Suitable and Unsuitable Original Types ............................................... 3-1
3.2 Turn on the Scanner ........................................................................ 3-1
3.3 Choose Your Desired Scan Settings .................................................... 3-1
3.4 Start Wand Scanning (Hand-Held)...................................................... 3-2
3.5 View or Download the Scanned Images (Windows)............................... 3-3
3.5.1 Computer System Requirements for USB Connection.................3-4
3.5.2 After Successful Connection ...................................................3-4
3.5.3 Safely Disconnect Scanner/micro SD Card From PC ...................3-4
3.6 View or Download Images with iPad ................................................... 3-5
4. Maintenance ...................................................................... 4-1
4.1 Calibrate the Scanner....................................................................... 4-1
4.2 Clean the Rollers and Glass............................................................... 4-2
5. Troubleshooting................................................................. 5-1
5.1 Error Messages................................................................................ 5-1
5.2 Frequently asked questions and answers............................................. 5-2
5.3 Technical Service............................................................................. 5-5
6. Specifications .................................................................... 6-1
User’s Manual
1. Overview
1.1 Introduction
Congratulations on your purchase of the portable handheld scanner. With this scanner, you
can scan and store your photos or documents directly to a micro SDTM card without any
computer. Simply turn on the scanner, press the Power/Scan button to start and slide the
scanner on the surface of your document and press the Power/Scan button again to stop.
The scanned image is stored into your micro SD card.
Before you install and operate the product, please take a few minutes to read through this
manual. It provides proper instructions for you to install, operate and maintain the
product. The following figure indicates the package contents. Please check all the items
against your checklist. If you do not receive all the items, please contact your authorized
local dealer immediately.
1.2 Package Contents
Scanner
Carry Bag
Online Registration Notice
Quick Start Guide
USB Cable
Calibration Sheet
Note:
Retain the scanner box and packing materials in case you may use them for
shipping purposes.
Please register the product on our web site at http://www.avision.com to have
complete support.
1-1
1.3 Top View
2 3 4
1
7
5 6
Item Name Description
1System indicator
light
Indicates the operating/warning status of the
scanner.
2 LCD display Displays battery status and scan settings.
3 Color selector Press to choose Color or Black and white
4 Power/Scan
button Press to power on, press again to start a scan and
end a scan.
5 Resolution
selector Press to choose STD (300 dpi), HQ (600 dpi), or
STD HQ (1200 dpi).
6 File format
selector Press to choose JPEG or PDF.
7 Battery
compartment Slide to remove the cover.
1-2
User’s Manual
1.4 Rear View
1 2
Item Name Description
1 USB port Used to plug the micro end of the USB cable to
connect to PC for power charging or images
transferring.
2 Memory
card slot Used to insert a memory card.
1.5 Bottom View
1
2
Ite
m Name Description
1Sensor
rollers
The rollers are sensors and should only be rolled in
one direction. Do NOT roll back and forth while
scanning, except during calibration.
2Glass While rolling scanner over a document, the optical
sensor in the glass reads and scans the image.
1-3
1.6 Scanner Indicator Light
Scanner
Indicator
Light
Status Indication
Off Scanner is off or scanner is on and ready for use
Orange briefly Powering on for initialization
Green, steadily on Scanning in progress in STD mode (300 dpi)
Orange, steadily on Scanning in progress in HQ mode (600 dpi)
Orange, flashing Scanning in progress in STD HQ mode (1200 dpi)
Green or Orange
flashing Processing scanned image
Red, flashing No SD card, SD card full, card error, no scan
performed after initiating wand scan mode, or low
battery
1-4
User’s Manual
1-5
1.7 LCD Display
Item Name Description
1Battery status Indicates the power status of the battery.
2Scan count Indicates scan count.
3 File format Indicates current file format for the scanned image.
Choice: PDF, JPEG.
4 Color mode Indicates current color mode. Choice: Color, Black
and White.
5 USB Indicates the scanner is connected to a computer.
6 Memory card Indicates an inserted memory card.
7 Resolution Indicates current resolution. Choice: STD (300 dpi),
HQ (600 dpi), STD HQ (1200 dpi).
4
5
6
7
1
2
3
User’s Manual
2. Installation
2.1 Precautions
Keep the product out of direct sunlight. Direct exposure to the sun or excessive
heat may cause damage to the unit.
Do not install the product in a humid or dusty place.
Place the product securely on an even, flat surface. Tilted or uneven surfaces may
cause mechanical or paper-feeding problems.
Retain the product box and packing materials for shipping purposes.
2.2 Install the Batteries (not included)
1. Push and remove the battery cover on the scanner.
2. Insert 2x AA batteries into the battery compartment. Make sure the batteries are
inserted with the correct polarity. (note correct + - direction)
3. Insert the battery cover.
Note:
The scanner does not recharge the rechargeable batteries.
2-1
