Avita TOUCH FREE Manuale utente
TOUCH FREE Infrared Thermometer
NT22
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan
China, AViTA(WUJIANG)
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer
Contents
Introduction ........................................................................................................................ 1
Important Information before Use ........................................................................... 2
Product Identification ..................................................................................................... 4
Description of LCD Display........................................................................................... 5
Battery Installation ........................................................................................................... 6
Switching Between Fahrenheit or Celsius .............................................................. 7
Switching between 4 Kinds of Measuring Mode................................................ 7
Tips for Measuring Human Temperature............................................................... 8
Measuring Human Temperature................................................................................ 9
Measuring Object/Liquid Temperature ................................................................11
Memory Function ...........................................................................................................12
Cleaning and Disinfecting...........................................................................................13
Error Codes........................................................................................................................14
Technical Specification .................................................................................................15
EMC Tables.........................................................................................................................16
Explanation of Symbols................................................................................................18
1
Introduction
This Touch Free Infrared Thermometers is intended for home use and
the intermittent measurement of human body forehead temperature in
people of all ages.
1. 2 in 1 thermometer: Human Body/Object
2. Fever Indication (Human Body Mode only)
3. °C/°F Switch-able Function
4. Multi-memory Recall
5. One-second Reading
6. Power Saving-Auto Power Off
Auto power-off after idling to ensure battery life.
7. Warning indication
"low battery" symbol, and “Lo"/ "Hi" symbol indicating out of
measuring range.
8. Large LCD Display
9. Large Button Design
10. Economic design and convenience
This is a “Non-contact” medical thermometer that enables
temperature readings, designed for sanitary conditions, cleanliness,
and convenience. Simply move the thermometer close to the
subject's forehead or object at the distance indicated by the device.
11. Accurate and Reliable
12. User Friendly
Due to our unique design of the measuring software, users don't
need to have special skill to operate this device.
13. Instant Measurement
By using our unique technology, users can get their precise body
temperature instantly and accurate.
14. Handicapped persons and children need assistance by another
person to use the device.
2
Important Information before Use
When using this product, please be sure to follow all the notes listed
below. Any action against these notices may cause injury or affect the
accuracy.
1. Do not disassemble, repair, or remodel the thermometer.
2. Be sure to clean the thermometer lens each time after usage.
3. Avoid direct finger contact with the lens.
4. No modification of this equipment is allowed.
5. It is recommended that user may take 3 temperatures. If they are
different, use the highest reading.
6. Do not expose the thermometer to extreme temperature, very high
humidity, or direct sunlight.
7. Avoid extreme shock or dropping the device.
8. Before the measurement, patients and thermometer should stay in
steady state room condition for at least 30 minutes.
9. Avoid measuring temperature in 30 minutes after exercise, bathing,
or returning from outdoor.
10. To protect the environment, dispose of empty batteries at
appropriate collection sites according to national or local
regulations.
11. Please use the thermometer solely for its intended purpose.
12. There are no absolute body temperature standards. Keep reliable
records of your personal temperature to serve as a reference for
judging a fever.
13. Under any circumstances, the temperature taking result is ONLY for
reference. Before taking any medical action, please consult your
physician.
14. It is recommended calibrate the device every 1 year..
15. CAUTION: Please keep this device away from pets, pests, and
children.
16. CAUTION: Please keep away from children and pets, because
small parts may be inhaled or swallowed.
3
17. If any serious incident that has occurred in relation to the device
should be reported to the manufacturer and the competent
authority of the Member State in which the user is established.
18. If you would require any assistance during setting up, using or
maintaining, please contact the manufacturer.
19. Avoid using the device near an operating cell phone or microwave
oven.
4

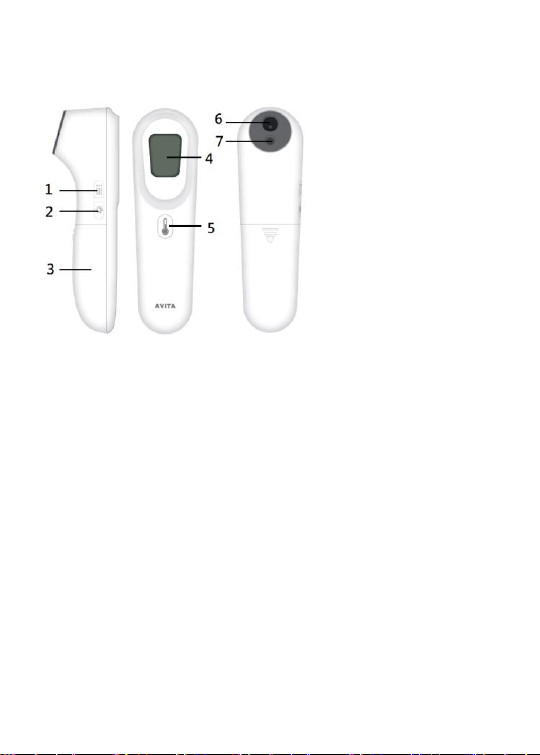

Product Identification
1
Memory Button
2
Mode Button
3
Battery Cover
4
Display LCD
5
Measure Button
6
Measurement Sensor
7
Distance Detection Sensor
5
Description of LCD Display
Measuring sequence in process
Night Mode (Mute Mode)
Human Mode
Object Mode
Degree of measurement
Celsius Scale
Fahrenheit Scale
Low battery indicator
Frowning Face
(temperature is equal or higher than 38°C)
Smiling Face
(temperature is lower than 38°C)
Memory Symbol and sets of records
6
Battery Installation
Low battery warning:
When the battery power becomes low, the low battery symbol “ ”
will appear on the display. The thermometer can still be used during
this time, but the batteries should be replaced as soon as possible. If the
batteries run out completely, “Lo” will be displayed along with the
low battery symbol “ ”. In this case, the batteries will need to be
replaced before using the thermometer again.
CAUTION:
Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Replacing the Battery:
1. Gently slide the battery cover back.
2. Carefully remove the old batteries and properly discard.
3. Insert new batteries (Two 1.5V alkaline AAA(LR03) Size) according to
the proper polarity.
4. Slide the battery cover back on.
NOTE: Battery-operated
1. Please properly dispose of the batteries away from small children
and heat.
2. It is recommended to remove the batteries if the unit will not be
used for an extended period of time.
3. Batteries must be disposed of in accordance with local
environmental and institutional policies.
4. Dispose of used batteries in accordance with the applicable legal
regulations. Never dispose of batteries in the normal household
waste.
7
Switching Between Fahrenheit or Celsius
Your thermometer can display results in either degrees Celsius (°C) or
degrees Fahrenheit (°F). With combination of Memory and Mode
button are able to change the mode to either °C or °F with a beep
sound.
Switching between 4 Kinds of Measuring Mode
1 Under power on status, you can press the Mode Button to switch
different measuring mode. There are 4 kinds of mode which including
Human, Object, Human/Night, and Object/Night Mode (in order).
2. The beep sounds will be off (mute) when your choice in Human/Night
Mode, and Object/Night Mode, and the Moon symbol “ ” will
appears on the LCD in both Night Modes.
NOTE:
Each press will comes with a beep sound to ensure the setting is
activated. (Except both Night Modes)
8
Tips for Measuring Human Temperature
Bear in mind that the thermometer needs to have been in the room in
which the measurement is taken for at least 30 minutes before use.
NOTE:
•Attempting to take temperature readings from sites on the body
other than the forehead may produce inaccurate results.
•The patient should remain still while the reading is being taken.
•Readings taken while asleep should not be compared directly to
readings taken while awake, as body temperature while asleep is
typically lower.
•Do not take body temperature readings within 30 minutes of being
outdoors, exercising or bathing.
