SwitchView®DVI and MM2 Switches

Firmware Revision

Release Notes

March 2007

This document outlines:

1. Firmware Version and Compatibility

2. Important Installation Notes

3. How to Update Firmware

4. Enhancements

5. Fixes

6. Known Issues

===============================================================================

2SVPUA20, 4 SPVUA20, 2SVDVI10 and 4SVDVI10 Firmware Version and Compatibility

Version

===============================================================================

The following information applies to the following switching system revisions:

Switches Version Label Revision File

V4.1

V41N or V41R

V44N or V44R 2SVPUA20_061129_V45.uni

2SVPUA20

V45N or V45R Latest revision

V4.1

V41N or V41R

V44N or V44R 4SVPUA20_061129_V45.uni

4SVPUA20

V45N or V45R Latest revision

A7 (US only)

V7.6

V77N or V77R

V78N or V78R

2SVDVI10_061129_V79.uni

2SVDVI10

V79N or V79R Latest revision

A7 (US only)

V7.6

V77N or V77R

V78N or V78R

4SVDVI10_061129_V79.uni

4SVDVI10

V79N or V79R Latest revision

===============================================================================

Important Installation Notes

===============================================================================

Prior to starting the firmware upgrade process, please be sure you have the following:

oA powered-on host PC with a mouse and a keyboard directly connected to it. One of its USB ports needs to be

available for connecting with the KVM switch.

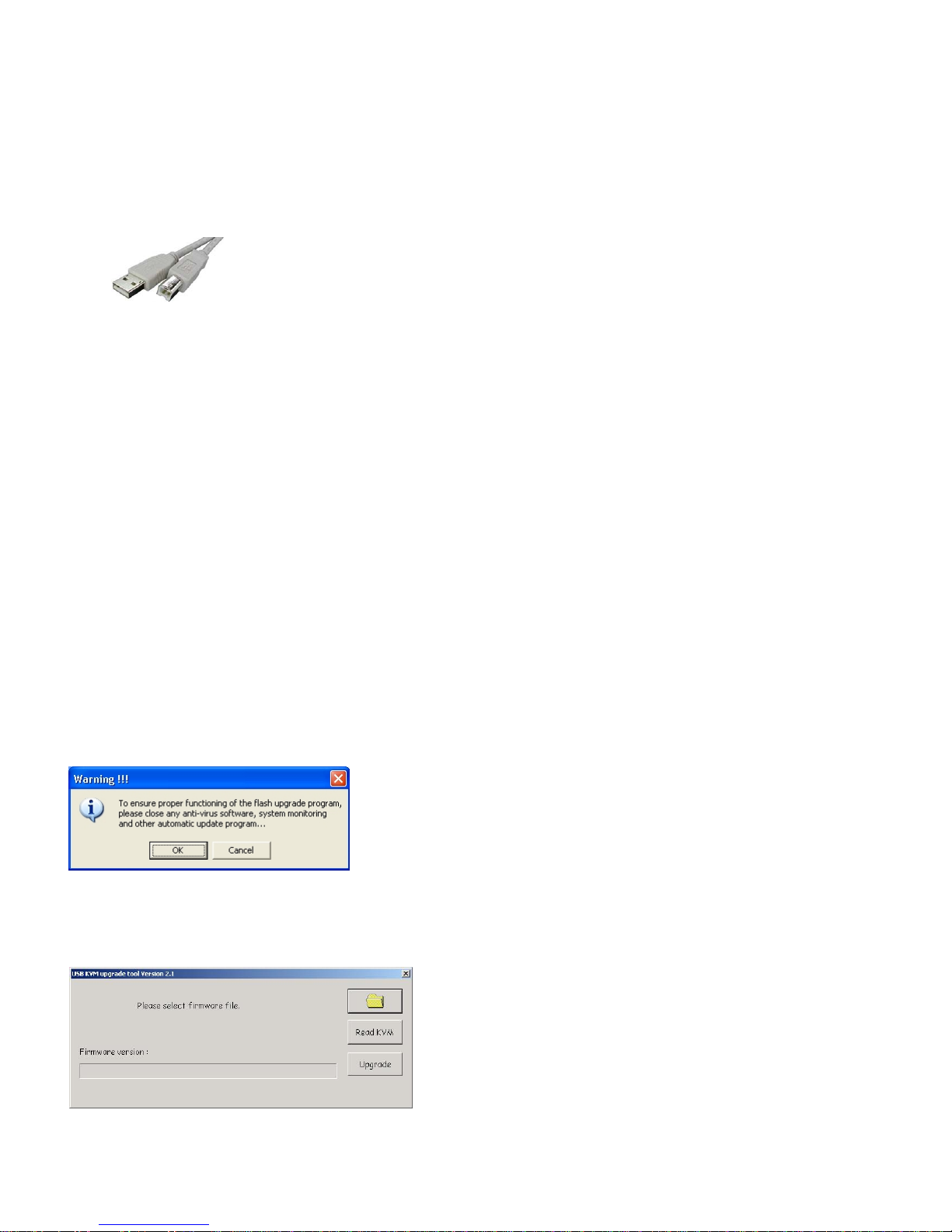

oA USB cable (TypeA-to-TypeB) is needed to connect to the USB port 1 of the firmware-upgradeable KVM

switch.

oThe firmware upgrade utility.

oThe firmware upgrade file (*.uni ).

===============================================================================

How do I update the firmware on my 2SVPUA20, 4 SPVUA20, 2SVDVI10 and 4SVDVI10 switches?

===============================================================================

1. Unplug all the cables (including the power adapter cable) from the firmware upgradeable KVM switch.

2. Power on your host PC (host PC runs on Windows platform) and download both firmware upgrade utility and the

firmware upgrade file, *.uni, to the host PC.

3. Press and keep holding down the PC 1 push-button (on the front-panel of the KVM switch).

4. Use a USB cable (TypeA-to-TypeB) to connect a USB port on the host PC and USB port 1 of your KVM Switch.

You will hear 3 quick beeps and see the red (hub port control status) LED of port 1 in solid state. Your

USB KVM switch is now in upgrade mode.

5. Double-click the icon of the upgrade utility.

A warning message box appears; please read it carefully for important information. Click OK.

A firmware file selection dialog box prompts you to locate the upgrade file.

6. Click the browse folder button to locate the firmware upgrade file. It has a file name with a .uni extension.

Please be sure that you select the correct download for the specific upgrade file applicable to your KVM model.

Select the upgrade file and click Open to load the file

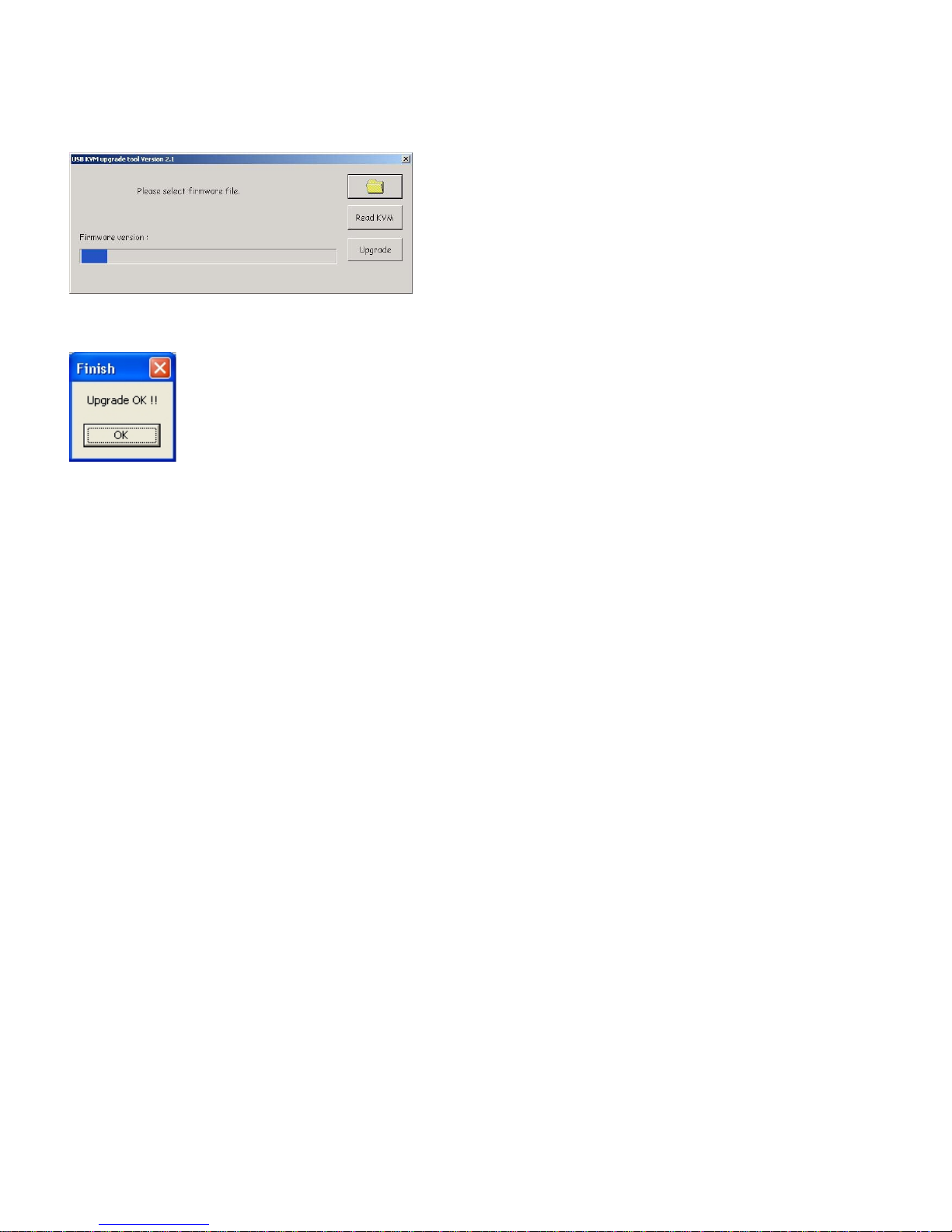

7. Press the Download button to begin the upgrade process for your KVM switch.

Do not disconnect the USB cable while the file is being downloaded; the red (hub port control status) LED of port 2

will remain lit during this procedure. The file transfer progress can be monitored through the progress bar; please wait

until the file download is completed.

8. Once the upgrade process is completed, a prompt will display, indicating a successful upgrade.

9. Unplug the USB cable from your KVM Switch to reset it, then reconnect all cables between the switch and the

target PCs including the keyboard/mouse and peripherals.

10. Check and verify the enhanced functionality of the upgraded KVM switch.

==============================================================================

Enhancements

===============================================================================

This release of firmware contains the following enhancements for the 2SVDVI10 and 4 SVDVI10 switches:

1. Not Applicable

===============================================================================

Fixes

===============================================================================

This release of firmware contains the following fixes:

1. Support for Logitech®LX™700 keyboard and mouse

2. Support for Logitech MX5000 keyboard and mouse

3. Support for Logitech S510 keyboard and mouse

4. Support for Logitech MX500 mouse

5. Support for Logitech MX900 mouse

6. Support for Logitech MediaPlay Cordless mouse

7. Support for Logitech G7 Optical mouse

8. Support for Microsoft®Wireless Optical Desktop Pro 2.0 keyboard and mouse

9. Support for Microsoft Intellimouse Explorer 4.0 mouse, USB and PS/2

10. Support for Microsoft Intellimouse Optical mouse, USB and PS/2

11. Support for Microsoft Digital Media Pro keyboard

12. Support for Microsoft Notebook Optical 3000 mouse

13. Support for Microsoft Comfort Optical 3000 mouse

14. Support for Dell SK-8135 Rev. E keyboard

15. Support for Genius Wireless Twin Touch Optical mouse

===============================================================================

Known Issues

===============================================================================

This release of firmware/software contains the following known issues:

1. Keyboards and mice that are connected to the switch’s console ports will not work with their bundled

software. As a result, some of the programmable buttons on these keyboards and mice would not work.
