AWOW VT11 Manuale utente

VT11

User Manual

Note：

•This manual is mainly for Windows 10. There might be some slight differences if you use

other windows systems.

•This manual contains the common functions of most models. Maybe it does not fit very

well with your model for some functions, or maybe some of your model functions are not

contained in this manual.

•The illustrations in this manual may differ from the actual products. Please prevail in kind.

■ Before using the computer, please read the safety precautions and important tips

carefully and patiently first!

VT11 User Manual

Content

Chapter 1 - Know your computer..............................................................................2

Front View............................................................................................................ 2

Left View............................................................................................................... 4

Right View............................................................................................................ 4

Bottom View......................................................................................................... 5

Using the keyboard............................................................................................. 6

Positioning the display panel.............................................................................8

Chapter 2 - Operating Windows10........................................................................... 9

Configuring the operating system in initial use...............................................9

Operating System Interface...............................................................................9

Start menu..........................................................................................................10

Keep the computer in sleep mode or shut down..........................................11

Tasks view..........................................................................................................12

Connect to the wireless network.....................................................................13

Chapter 3 - Troubleshooting....................................................................................14

Display issues....................................................................................................14

Sleep problems..................................................................................................14

Voice problems..................................................................................................14

Battery problems............................................................................................... 15

Other problems..................................................................................................15

VT11 User Manual

Chapter 1 - Know your computer

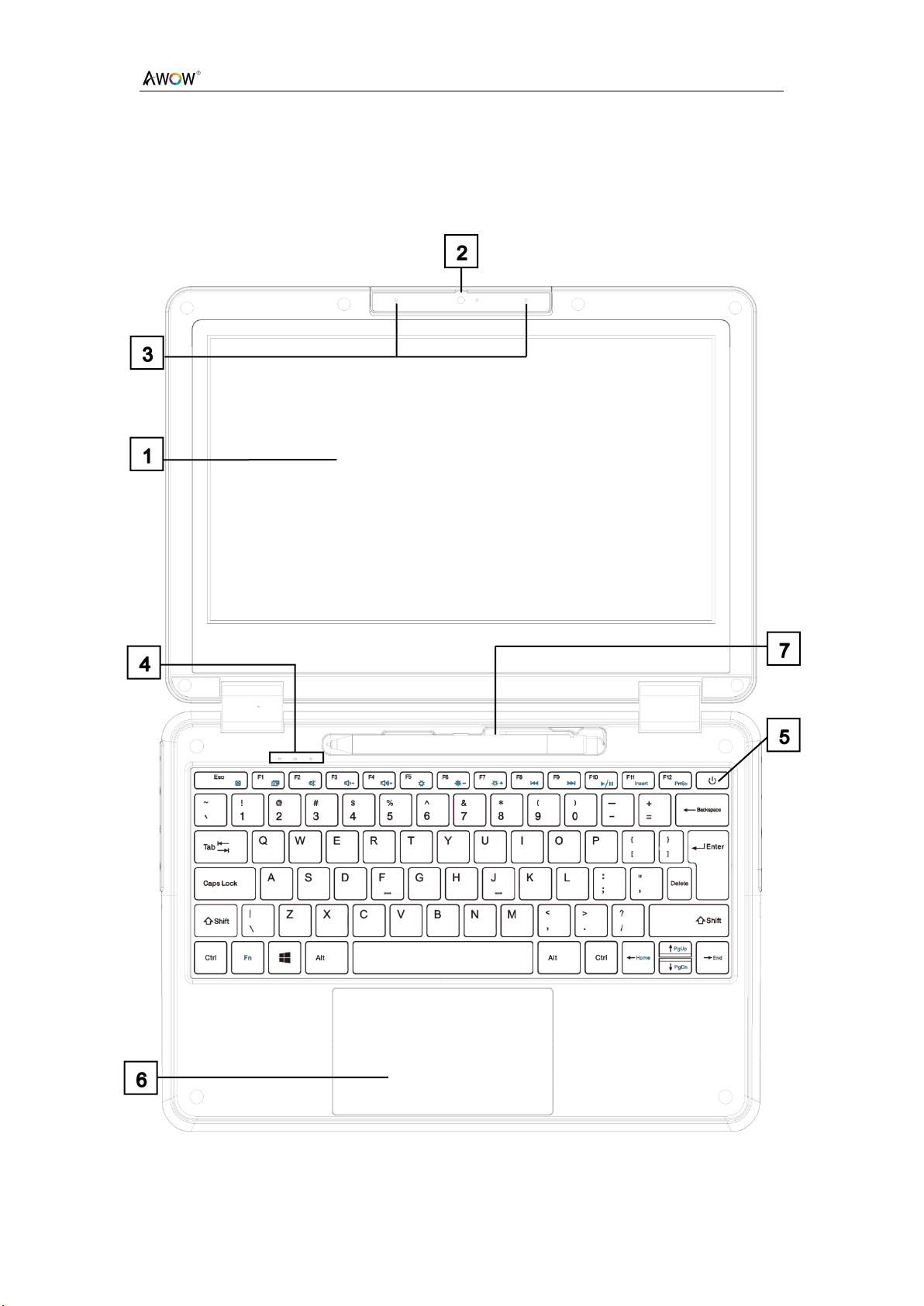

Front View

VT11 User Manual

Attention：

When you close the display, please be careful not to leave pens or any other

objects in between the display and the keyboard. Otherwise, the display may

be damaged.

1. LCD

The LCD display with LED backlight provides brilliant

visual output.

2. Build-in Camera

Use the camera for video communication for taking

photos.

3. Built-in Mic

Capture sound which can be used for video

conferencing, voice narration, or audio recording.

4. System status

indicator

System status (Please reference Tab 1-1).

5. Power button

Press this button to turn on the computer.

6. Touch pad

The touch pad functions as a conventional mouse.

One piece multi-touch.

Click Pad: To move the pointer on the screen, slide

your fingertip over the pad in the direction in which you

want the pointer to move.

Left-click area: Clicking in this area corresponds to the

functions of clicking the left button on a conventional

mouse.

Right-click area: Clicking in this area corresponds to

the functions of clicking the right button on a

conventional mouse.

7. Stylus slot

Contain the Stylus

Tab1-1

LED

LED Color

LED Status

LED Behavior

Power

LED

Blue

System On

Solid On

System in standby / Lid

closed

Slow blinking

System off

Off

Touch-pad

LED

Blue

Touch pad disable

Solid On

Touch pad enable

Off

Caps

Blue

Caps Lock on

Solid on

Caps Lock off

Off

VT11 User Manual

Lock

Left View

1. AC power adapter jack

Connects to the AC adapter.

2. USB port

Connects to USB devices (USB 3.0).

3. HDMI port

Connects to devices with HDMI input.

4. Type-C port

Connects to Type-C devices.

5. Power Charge LED

Indicates the power charging status

USB Port:

You can connect a USB device to your computer by inserting its USB plug

(Type-A) into the USB port on your computer.

Power Charge LED:

Charging

Solid on Red

Full-charged

Solid on Blue

DC: S4,S5 off

Off

Right View

1. Micro SD card slot

Accepts a micro SD card.

VT11 User Manual

2. USB port

Connects to USB devices (USB 3.0).

3. LAN port

Connects network with RJ45 port

4. Earphone jack

Connects to earphone

Micro SD Card Slot:

The computer supports the following types of memory cards:

Micro Secure Digital (SD) card

Micro Secure Digital High Capacity (SDHC) card

Micro Secure Digital Extended Capacity (SDXC) card

Note：

1. You can only insert one memory card in the slot each time.

2. Please insert memory card until into the bottom of the slot.

3. Remove the memory card from the memory card slot and gently pull the

memory card out of the slot.

4. Before removing the memory card, safely remove hardware and eject

media utility to disable the card to avoid data corruption.

Bottom View

1. Speaker

Provide audio output

VT11 User Manual

Using the keyboard

Keyboard function keys

Pressing certain function key to enter the corresponding system settings

immediately.

Keyboard Function:

Turn on/off

Touch-pad

Display Setting

Mute

Volume Down

Volume Up

Settings

Decrease Display

Brightness

Increase Display

Brightness

Rewind

Fast-forward

Play / Pause

Insert

Print Screen

Function key combinations:

Through the use of the function keys, you can change operational feature

instantly. To use this function, press and hold ; then press one of the

function keys.

VT11 User Manual

The following describes the features of each function key.

Fn + Home: Activates the home key function.

Fn + End: Activates the end key function.

Fn + PgUp: Activates the PgUp key function.

Fn + PgDn: Activates the PgDn key function.

VT11 User Manual

Positioning the display panel

The display panel can be opened to any angle up to 360 degrees.

VT11 User Manual

Chapter 2 - Operating Windows10

Configuring the operating system in initial use.

The first time you use, you need to configure the operating system. The

configuration process may include the following steps:

1. Accepting the End User License Agreement

2. Configuring the Internet connection

3. Registering the operating system

4. Creating a user account

Operating System Interface

Windows 10 comes with a powerful and useful start menu.

To open the start menu, do one of the following:

•Press the Windows key on the keyboard

•Select Start on the lower-left corner of the desktop

1. Settings button

2. Power button

3. Start button

4. Search box
