AXIOMTEK IPC914-213-FL Series Manuale utente

IPC914-213-FL Series Quick Installation Guide

VersionA1 December 2012

Printed in Taiwan

9416G914030E

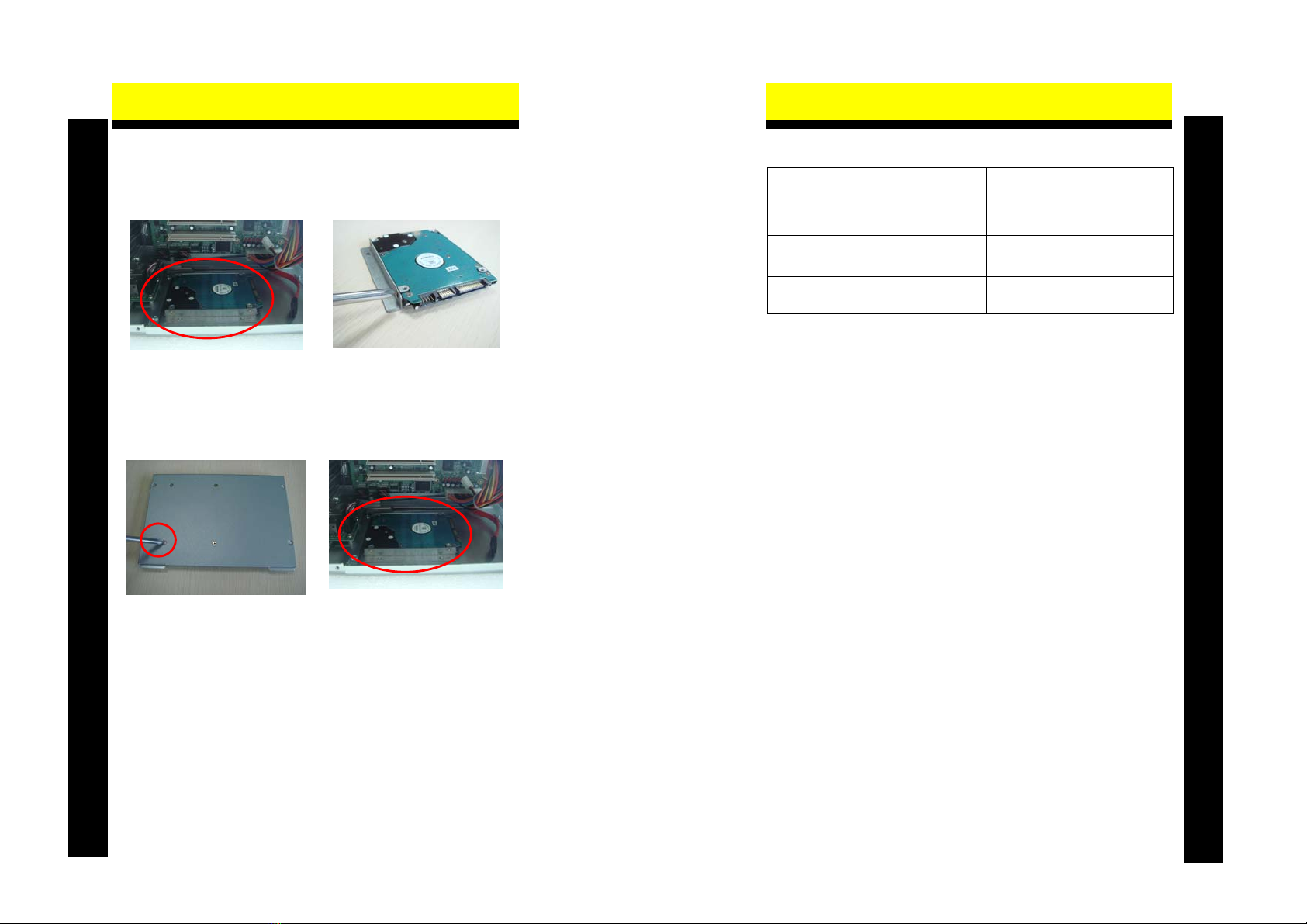

Step 3 Locate the Hard Disk Drive from the side. Use

assembly parts to fix HDD with the bracket.

Step 4 Install and fix the HDD with the side cover and then

connect the power cable and SATA cable.

There is a User’s Manual CD-ROM for the Fanless System IPC914-213-FL. Please consult your local vendor for

assistance if you have any difficulties in installing. the system.

IPC914-213-FL Series Quick Installation Guide

Version A1 December 2012

Printed in Taiwan

9416G914030E

I. Packing List

9IPC914-213-FL Series Finless

System Unit x 1

9Driver CD x 1

9Wall Mount Bracket x 2 9Quick Manual x 1

919V 150W Adapter x1(for AC

Version) 9Screw Pack x 1

9Food Pad x 4 9Thermal Pad for RAM x 1

¾Do not try to apply power to the system if any

damaged components.

II. Installing the CPU

Step 1 Turn off the system, and disconnect the power

connector.

Step 2 Loosen screws to remove the top and right side

cover from the chassis.

Step 3 Loosen the CPU Card screws from the left side

Heatsink and then remove the left side heatsink

cover from the chassis.

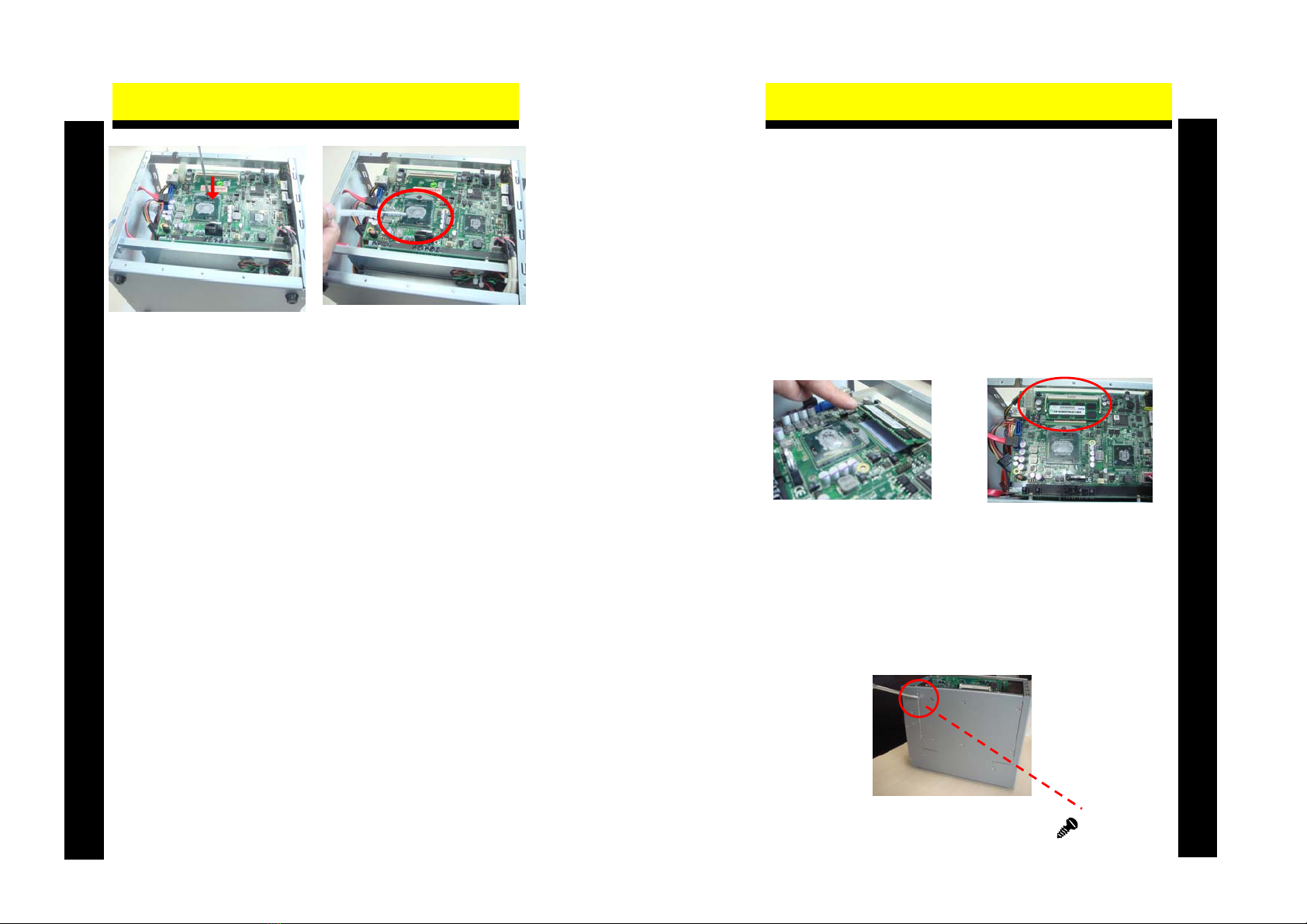

Step 4 Align pins of the CPU with pin holes of the socket.

Be careful of the CPU’s orientation that you need to

align the arrow mark on the CPU with the arrow key

on the socket. Place the CPU into the socket, and

use a screwdriver to lock it on to the socket and

stick the thermal grease on CPU.

There is a User’s Manual CD-ROM for the Fanless System IPC914-213-FL. Please consult your local vendor for

assistance if you have any difficulties in installing. the system.

IPC914-213-FL Series Quick Installation Guide

VersionA1 December 2012

Printed in Taiwan

9416G914030E

III. Installing the Memory Module

Step 1 Turn off the system, and disconnect the power

connector.

Step 2 Loosen screws to remove the top cover & right

side cover from the chassis

Step 3 Loosen the CPU Card screws from the left side

Heatsink and then remove the left side heatsink

cover from the chassis.

There is a User’s Manual CD-ROM for the Fanless System IPC914-213-FL. Please consult your local vendor for

assistance if you have any difficulties in installing. the system.

IPC914-213-FL Series Quick Installation Guide

Version A1 December 2012

Printed in Taiwan

9416G914030E

Step 3 Please follow steps below to install the memory

module:

1. Please attach the thermal pad (1pcs) on the

memory socket before install the memory.

2. Align the memory module with the socket that

notches of memory module must match the

socket keys for a correct installation.

3. Install the memory module into the socket and

push it firmly down until it is fully seated. The

socket latches are clipped on to the edges of

the SO-DIMM.

IV. Installing the Hard Disk Drive

Step 1 Turn off the system, and disconnect the power

connector.

Step 2 Loosen screws to remove the right side cover from

the chassis.

There is a User’s Manual CD-ROM for the Fanless System IPC914-213-FL. Please consult your local vendor for

assistance if you have any difficulties in installing. the system.
