AXIOMTEK TBOX312-870-FL Manuale utente

4 9416N312010E

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 March 2014

Printed in Taiwan

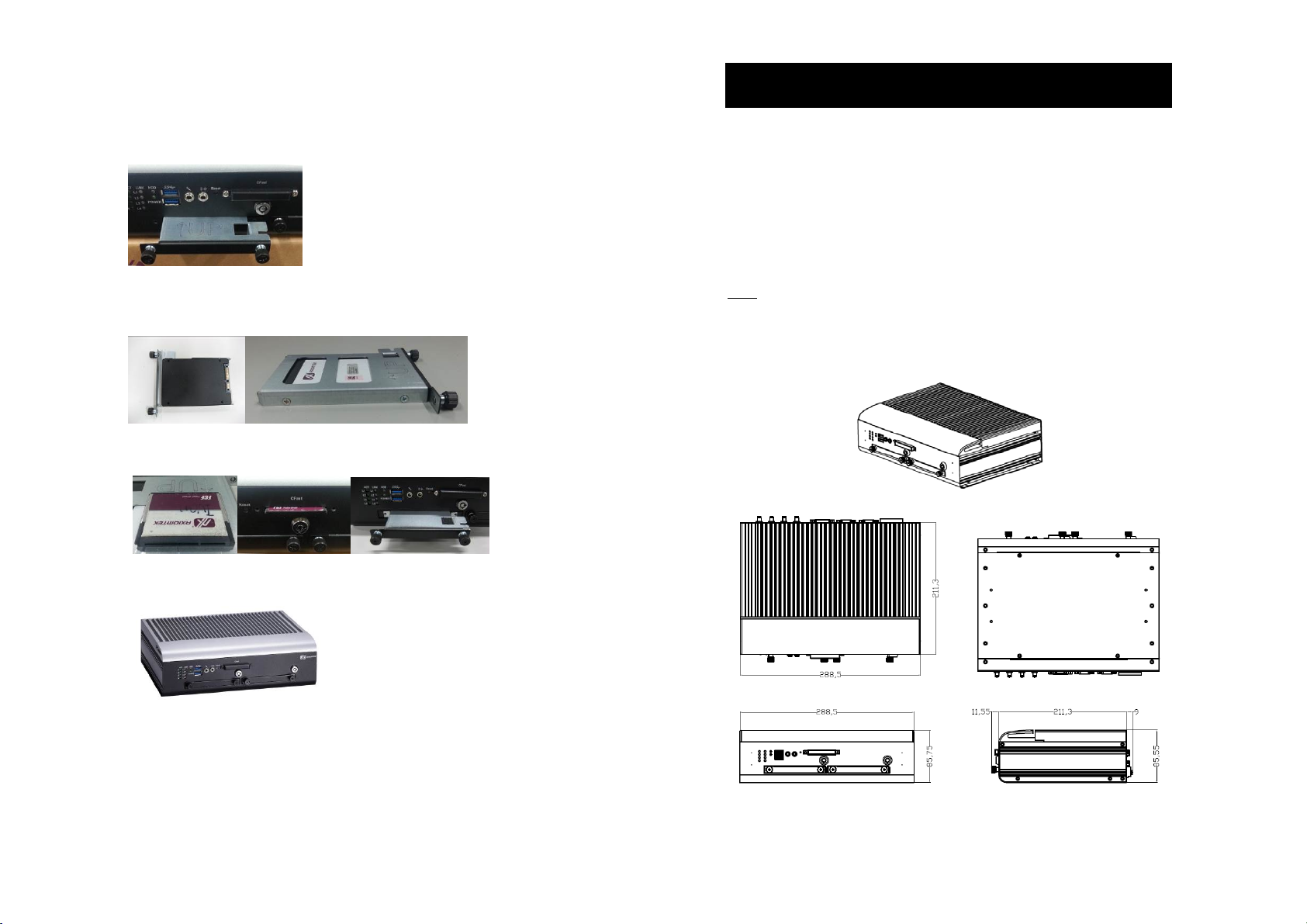

Installing the swappable HDD/SSD and CFast Card

Step 1 Turn off the system, and unplug the power cord. Locate

thumb screw at the front side, unlock and loosen screws.

Step 2 Assembly the HDD/SSD bracket together with the SATA

HDD/SSD

Step 3 Slide CFast card or HDD/SSD into slot carefully

Step 4 Fasten screws of HDD/CFast bracket

tBOX312-870-FL Quick Installation Guide

9416N312010E 1

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 March 2014

Printed in Taiwan

Checklist

tBOX312-870-FL System Unit x 1 CD x 1 (for Driver & Manual)

Quick Installation Guide x 1 Foot Pad x4

Screws Pack x 1 DIO female connector

Wallmount Bracket x 1 Power female connector

Optional Mini Card Module

Optional CFast Card

Key x2

Optional HDD/SSD

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Dimensions

tBOX312-870-FL Embedded System

2 9416N312010E

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 March 2014

Printed in Taiwan

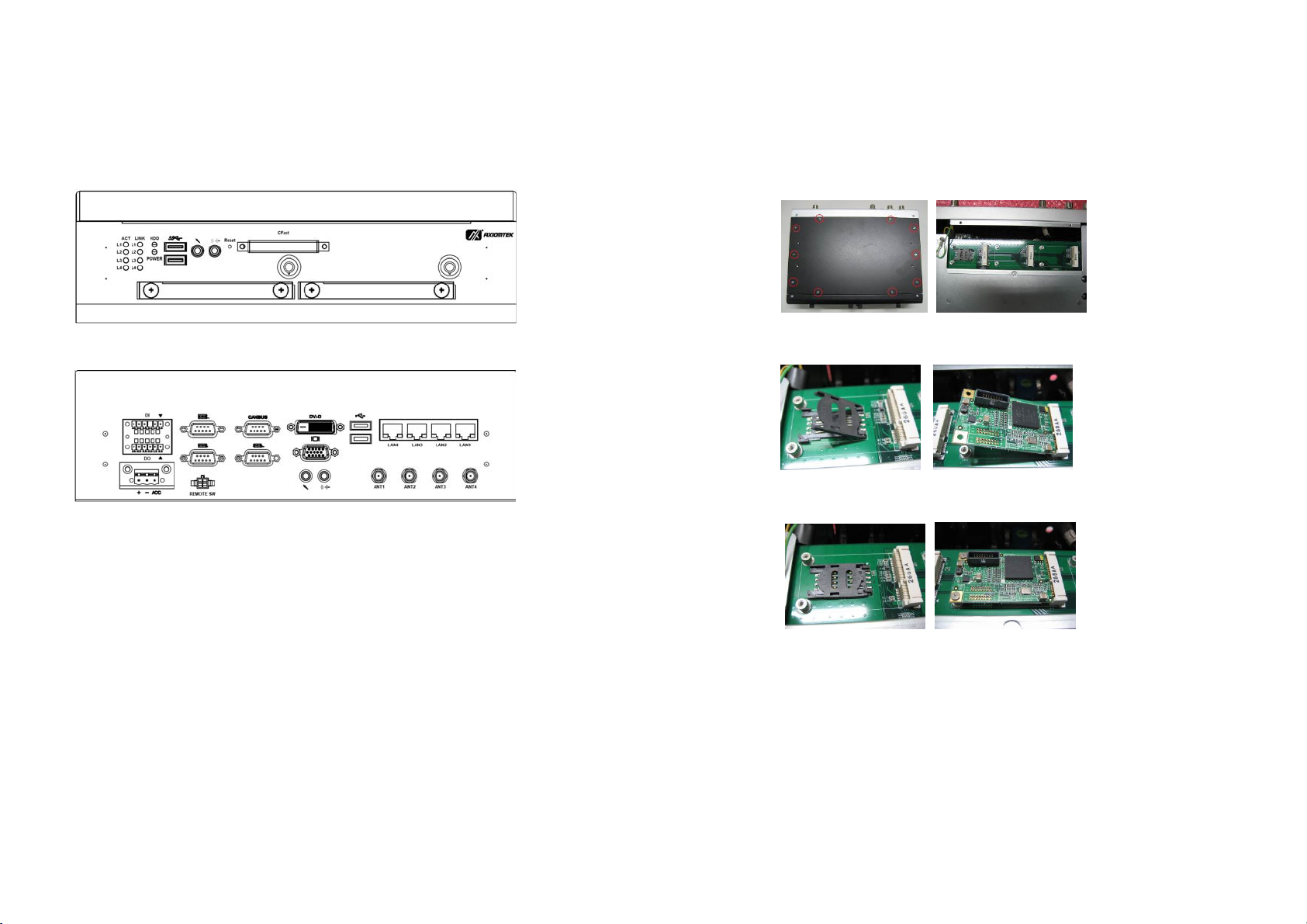

I/O Outlets

The following figures show you I/O outlets on front and rear panels of

the tBOX312-870-FL Series.

Front View

Rear View

9416N312010E 3

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 March 2014

Printed in Taiwan

Installing the PCI Express Mini Card

Step 1 Turn off the system, and unplug the power cord.

Step 2 Turn the system upside down to locate screws at the

bottom, loosen screws to remove the bottom cover.

Step 3 Slide SIM or Mini card into slot cautiously.

Step 4 Fasten screw of Express Mini Card.

Step 5 Close the cover to the chassis, and fasten all screws.
