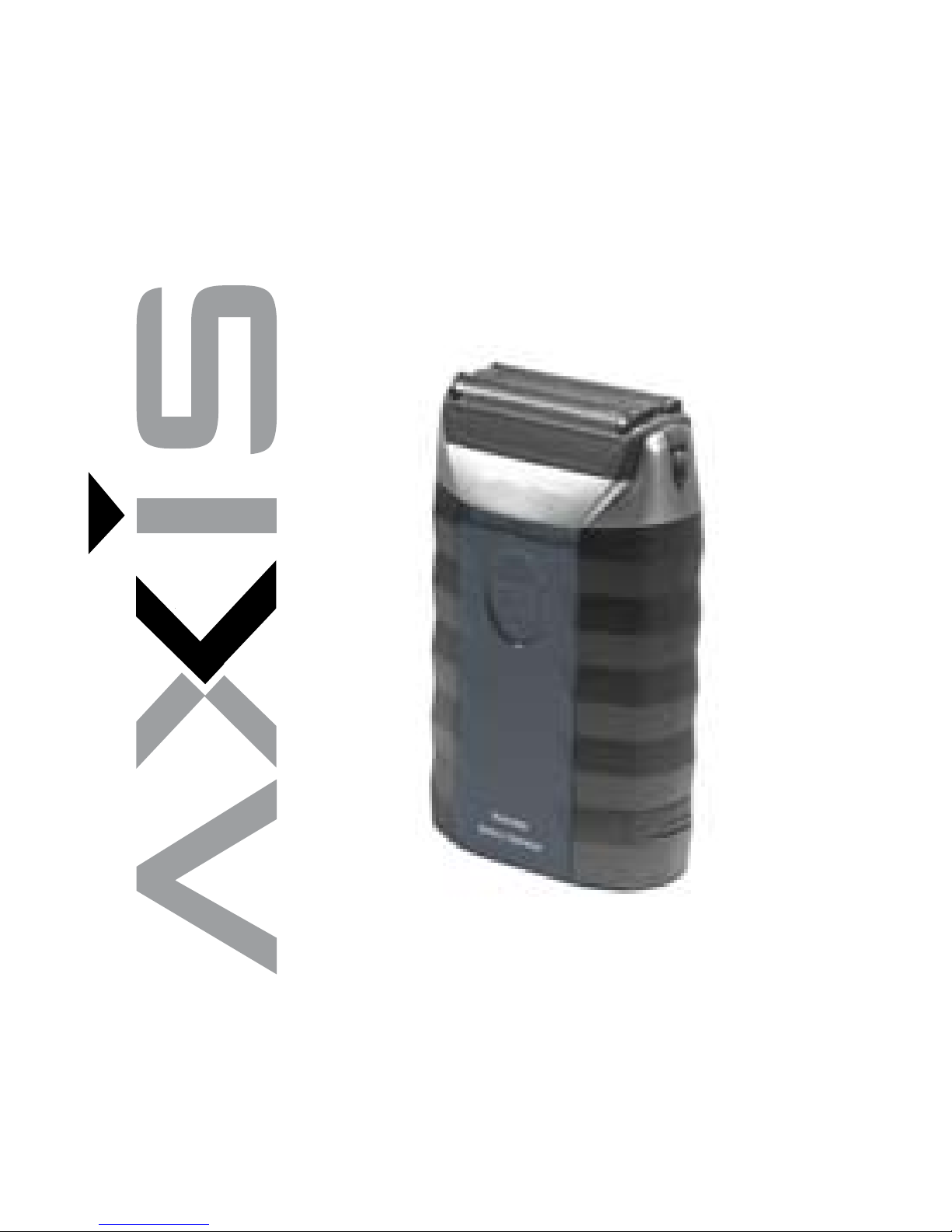

Axis AX-1300 Manuale utente
REV |MODEL: AX-1300
PLEASE READ DIRECTIONS COMPLETELY BEFORE USE.
AXIS SHAVERS INSTRUCTION MANUAL
AXIS/Bodyline Products International, Inc.
198 N. Brandon Drive
Glendale Heights, Illinois 60139 USA
Made in China
Congratulations!
You are now the proud owner
of an Axis battery-powered
Shaver AX-1300.
Before using your shaver, please
read the instructions in this
manual carefully for its proper use
and care. Please keep the manual
handy for ready reference.
play hard, be smooth.
Axis Rev |4| English
Axis Rev |5| English
IMPORTANT
SAFETY INSTRUCTIONS
When using an electrical appliance, basic precau-
tions should always be followed, including the
following:
Read all instructions before using your shaver.
WARNING
> Always provide close adult supervision when using
your shaver near children or the disabled.
> Follow all instructions in this manual carefully. Do
not use attachments with your shaver that have
not been specifically recommended by us.
> Do not use a unit that is not operating normally,
has been immersed in water or other liquid.
> Never operate your shaver outdoors. Avoid use in
the vicinity of aerosol products or where oxygen is
being administered.Also, keep the cord away from
heated surfaces.
> Do not insert foreign objects into any of the open-
ings in the unit.
Axis Rev |6| English
Axis Rev |7| English
headguard
inner cutter
oscillator
on/off switch
battery
compartment
body case
outer foil
frame base
release button
outer foil
frame base
outer foil frame
outer foil
outer foil
frame base
release button
PARTS OF YOUR SHAVER
> Avoid exposing the unit to direct sunlight or ambi-
ent temperatures above 140°F (60°C).
> To avoid injury to the face, do not use the unit if
the cutters or head assembly have been damaged.
> For home use only.
SAVE THESE INSTRUCTIONS
Axis Rev |8| English
Axis Rev |9| English
SHAVING TIPS
1. Keep the unit clean and dry at all times.
2. Wash and dry your skin thoroughly prior to shaving.
3. In order to achieve the closest shave and avoid
unnecessary wear on the foils, be sure that both
foils contact the skin simultaneously. Do not hold
the shaver at an angle where only one foil contacts
the skin - this will cause distortion of the foil and
may result in skin irritation.
4. Stretch your skin with your free hand while using
short, circular strokes. This will make the hairs
stand out from your face and allow the cutting
heads to reach them more easily. Shave against
the grain for optimum results.
5. To facilitate cutting and avoid foil wear, do not
apply the shaver to your skin with high pressure.
6. The normal replacement period for the foil
screens is about 6 months. In order to maintain
shaving performance and comfort, replace the
cutters at least once a year. To order replacement
parts, please refer to the “Ordering Replacement
Parts” section of this manual.
Axis Rev |10| English
Axis Rev |11| English
TO INSERT THE BATTERIES
1. Slide the On/Off Switch down to the “Off” position.
2. Remove the Battery Compartment Cover by
pulling it straight down from the shaver body.
3. Insert 2 “AA” alkaline batteries. Be sure to orient
the batteries properly to the (+) and (-) indicators.
Caution: When your device requires
new batteries, please insert only
2 new AA alkaline batteries. You
must not combine one old or used
battery with one new battery as seri-
ous leakage will occur and thus damage the unit.
*If you use your shaver daily, the alkaline batteries
will provide approximately 50 minutes of shaving
operation time. If the operating power seems low,
replace the batteries.
USING YOUR SHAVER
1. Remove the protective plastic headguard.
2. Ensure that the foil screens and inner cutters
are not damaged. Replace damaged parts before
using. To obtain replacement parts, refer to the
Axis Rev |12| English
Axis Rev |13| English
the skin upward and stroke the shaver in an easy
up and down motion. To avoid damaging the
delicate foils, do not apply high pressure.
6. A special linear cutting head, located between
the foil screens, shaving the long curly hairs.
WASHING IN WATER
1. Switch the shaver off. Depress the
outer foil base release buttons on the
side of the unit and gently lift the foil
screen assembly off.
2. Switch the shaver on and allow
“Ordering Replacement Parts” section
of this manual.
3. Slide the on/off switch up to the “on”
position.
4. Gently stretch the skin of your face
with your free hand while moving the
shaver slowly and smoothly against the
grain of your beard. Hold the shaver at
a 90° angle to your face while main-
taining contact with the foils.
5. To shave the chin area, gently pull
$PSSFDU *ODPSSFDU
Axis Rev |14| English
Axis Rev |15| English
fresh cold or lukewarm water to run over the
cutters.
3. When finished cleaning, switch the shaver off
and replace the foil screen assembly, making sure
it locks into place.
* Clean the inner blade with the brush at least once
every three (3) washings.
ClEANING WITH THE BRUSH
1. Your razor should be cleaned with the brush
provided after ever three wet cleanings.
2. Switch the shaver off. Depress the outer foil
base release buttons on the
side of the unit and gently lift
the foil screen assembly off.
3. Gently brush the hairs from
the inner cutters, the inside
surface of the foil screen as-
sembly and the shaver’s case.
To remove the inner cutters for
cleaning, gently lift straight up
from its mount.
4. To clean the delicate outer
correct incorrect
Axis Rev |16| English
Axis Rev |17| English
foil screens, gently wipe the surface of the foils with
tissue paper, being sure not to apply a great deal
of pressure.
5. When finished cleaning, reseat the inner cutters
on the mounts and replace the outer foil assembly,
making sure it locks into place.
*To ensure proper operation, the outer foil base
assembly must be properly seated. To avoid dam-
aging the delicate foils, do not remove them from
their frame. (see figure 1
*To avoid damage, be sure to thoroughly wipe pre-
shave lotion or shaver oil from the shaver body.
STORING THE SHAVER
If the shaver is to remain unused for a long period
of time, remove the batteries and store the unit in a
cool, dry place.
IMPORTANT: For best shaving performance
and results, we recommend that you replace your
shaver’s foil screens every six months and inner
cutters at least once a year.
Axis Rev |18| English
Axis Rev |19| English
TO REPlACE FOIl SCREENS
Skin irritation or a deterioration of shave quality typ-
ically indicates that your foils need to be replaced.
Replacement intervals will vary with individual use
and hair types.
1. Remove the outer foil assembly by pressing the
release buttons on both
sides of the shaver and
gently lift it off.
2. Position the replace-
ment head assembly
over the cutters. Be careful not to damage the foils.
Gently slide the head assembly down until it seats
firmly into place.
TO REPlACE THE INNER CUTTERS
NOTE: Always replace foil screens when replac-
ing the inner cutters.
1. Remove the foil screen assembly by pressing
the release buttons on both sides of the shaver
and lifting the assembly off.
2. Grasp each of the two sets of inner cutters on
