Aztech DSL 300P Scheda informativa del prodotto

 Windows® 98 Second Edition and Windows® 2000 are registered trademarks of Microsoft Corp.

 All other company or product names are trademarks or registered trademarks or service marks of their

respective owners.

ADSL

Modem Card

DSL300P

Easy Start

Read Me First

Version 0.61

Modem Card Easy Start

About this

Easy Start This booklet contains information on setting up the ADSL

modem card DSL300P. It touches on the key installation

procedures to help you setup your modem in a breeze!

Product warranty does not apply to damage caused by lightning, power surges or wrong voltage usage.

Installation Notes

•The graphics and screens illustrations shown in this easy start may differ from

what you see from your system, but the steps still apply.

•A Philips Screwdriver is required for the card installation.

•The documentation for your computer should come in handy during the card

installation. Have it ready by your side.

•It is recommended that any existing modem card be removed before installing your

new modem card.

Safety Precaution

•Do not remove your card from its protective bag until you are ready to install it.

•Always try to hold your card by its edges. Avoid touching any electronic components

on your card.

•Static electricity can cause permanent damage to your card. To prevent such a

damage, you must ground yourself while installing the card:

» Use a grounding strap, which is a coiled wire with a clip at one end and an

elastic strap at the other. Wear the strap around your wrist and attach the

clip to any non-painted metal surface of the computers chassis. OR

» If you do not have a grounding strap, touch any non-painted surface of the

computers chassis before you begin installation, and again every minute or

so until the installation is completed.

Modem Card Easy Start

Installing the Modem Card

Mounting Screw

Modem Card

Cover

Plate PCI-bus Slot

After removing the cover of your

computer, locate any available

PCI-Bus slot and remove its cover

plate.

1. Insert the modem card

firmly into the PCI-Bus

slot.

2. Secure the modem card

with the mounting screw

and replace the cover of

your computer.

Power off your computer and any connected devices before connecting your

modem card!

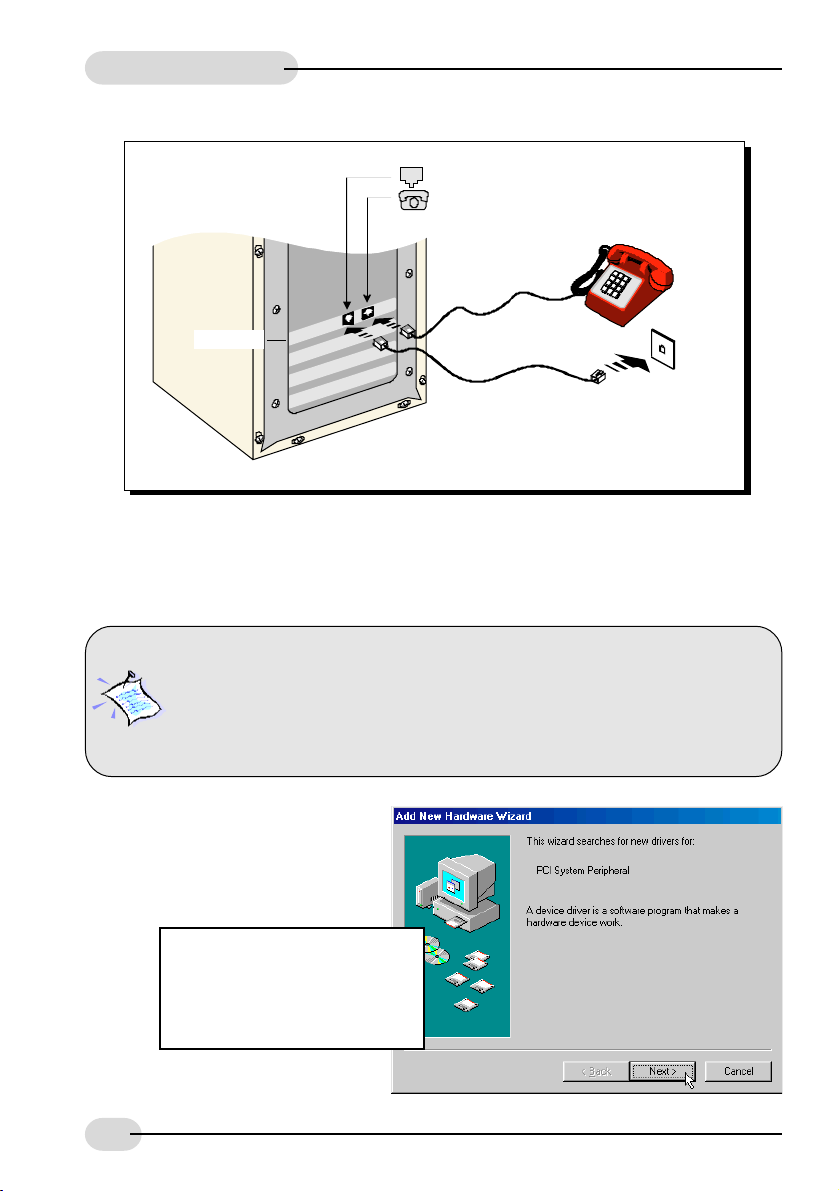

Connecting the Modem Card

The connection for the Telephone set is optional. The Phone jack provides

convenience to users who share the same telephone point for the modem and the

telephone set.

Modem Card Easy Start

Installing the Modem Drivers in

Windows®98 Second Edition (SE)

1. Power on your computer to

start Windows. It will detect

the newly-installed modem

card and prompt for its drivers.

Place the DSL300P

Installation CD into your

CD-ROM drive and click

Next.

Have the Windows Installation CDready during installation, as it may be required.

Depending on the protocol you use, there are 2 sets of drivers provided in the Installation

CD. If you are using the RFC1483 protocol, the drivers are found in the LAN directory.

IfyouareusingtheRFC2364 protocol, the drivers are found in theWANdirectory.The

followingscreenshots shows theRFC2364protocol being used.

Telephone set

Telephone

Wall Socket

Telephone

extension cord

from Telephone set

to Telephone Wall Socket

DSL300P

Modem Card Easy Start

2. Click the option "Search for

the best driver for your

device. (Recommended)." and

click Next.

3. Select Specify a location and click Browse...

For LAN users, navigate to the \LAN directory

on your CD-ROM and click OK.

For WAN users,navigate to the \WAN

directory on your CD-ROM and click OK.

Click Next.

4. Click Next again to proceed

with installation of the

driver found.

5. Click Finish when Windows

has finished installing the

driver.

Modem Card Easy Start

8. After restarting, check that the drivers

have been installed properly by right-

clicking My Computer and selecting

Properties. Click on the Device

Manager tab.

9. If the drivers were not installed

properly, a yellow exclamation mark

will appear beside the installed

device. In this case, uninstall the

drivers before attempting another

installation.

6. When prompted for the Windows®98 SE CD, remove the Installation CD in

your CD-ROM drive and replace with your Windows CD.

7. Click Yes when prompted to

restart your system.

10. Proceed to set the Virtual Circuit Identification in order to establish an ADSL

connection.

Modem Card Easy Start

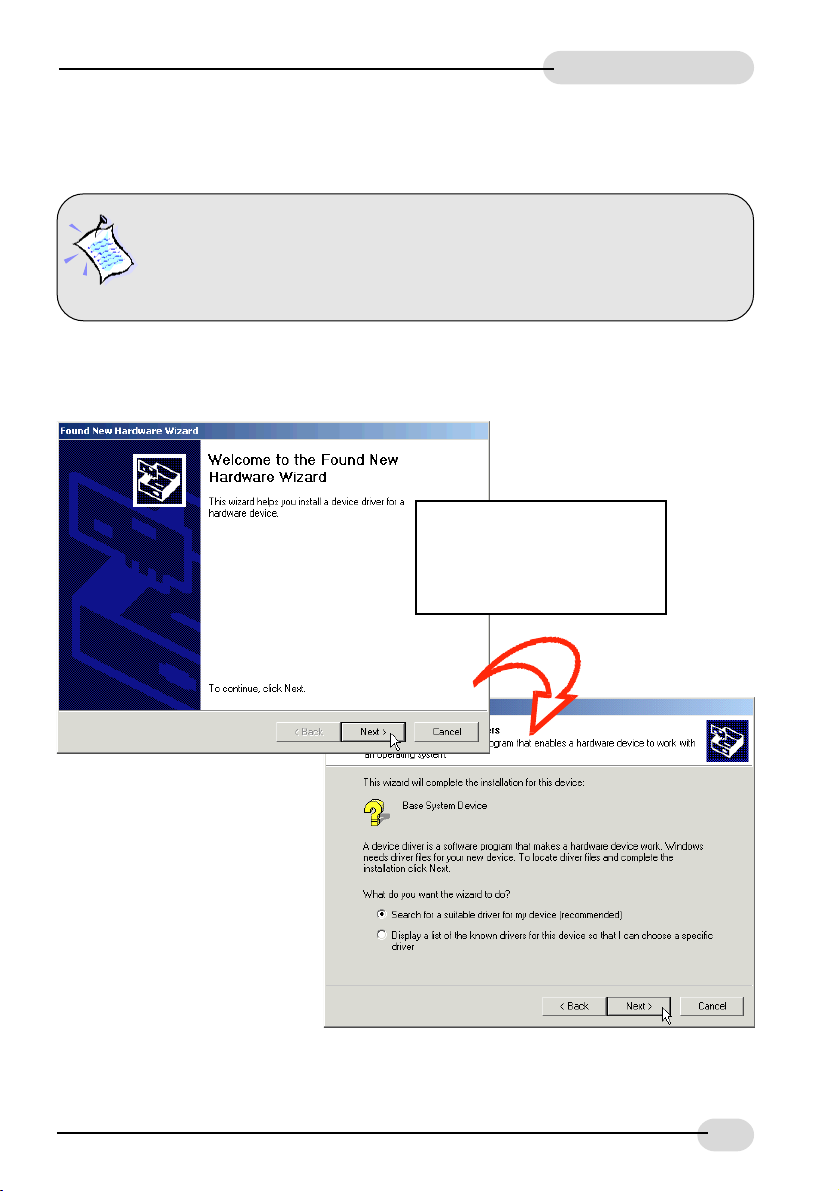

Installing the Modem Drivers in Windows®2000

1. Power on your computer to start Windows. It will detect the newly-installed

modem card and prompt for its drivers.

2. Place the DSL300P

Installation CD into your

CD-ROM drive and click

Next.

3. Select "Search for a

suitable driver for my

device

(recommended)" and

click Next.

Depending on the protocol you use, there are 2 sets of drivers provided in the

Installation CD. If you are using theRFC1483 protocol, the drivers are found in the

LAN directory. If you are using theRFC2364 protocol, the drivers are found in the

WANdirectory. The following screen shots are taken from the RFC1483 protocol.

Modem Card Easy Start

7. Click Finish.

8. A Digital Signature Not

Found Window may

appear twice. Click Yes.

This prompt is displayed

due to different driver

versions.

6. Windows will prompt that a

driver has been found. Click

Next. If prompted for the

Installation CD, click OK.

4. Select

"Specify a

location" and

click Next.

5. Click Browse...

For LAN users,

navigate to the \LAN

directory on your CD-

ROM and click OK.

For WAN users,navigate to the \WAN directory on your CD-ROM and click OK.

Modem Card Easy Start

9. To verify that the drivers have been installed properly, right-click My Computer

and select Properties. Click on the Hardware tab and then Device Manager....

If the drivers were not installed properly, a yellow exclamation mark will

appear beside the installed device. In this case, uninstall the drivers before

attempting another installation.

10. Proceed to set the Virtual Circuit Identification in order to establish an ADSL

connection.

Modem Card Easy Start

Monitoring the ADSL Line / Setting the Virtual

Circuit Identification

To set the Virtual Path Identifier (VPI) and the Virtual Connection Identifier (VCI)

and monitor the ADSL line, double-click on the Conexant AccessRunner ADSL

icon in the Control Panel.

Under the General tab, the ADSL Line Information shows the status of the line.

When the connection is established, information such as the numbers and rates of

bytes received/transmitted are displayed.
