Getting to Know:
A-LINE SERIES
Maria
Baby Lock Consumer Helpline: 800-313-4110
www.babylock.com
Model BL23A
Maria
Whether you’re interested in decorating, fashion or sewing with an artistic flair, Maria is the
perfect machine to bring those ideas to life. This exciting multi-purpose machine includes
23 built-in stitches, a 1-step buttonhole and adjustable stitch widths. And with 5 included
accessory feet, Maria is outgoing enough to handle a variety of creative projects.
This Getting to Know Guide will take you through a simple, step-by-step process on how to
wind your bobbin, thread the machine, set stitches and more. Once you’re familiar with your
machine, refer to the instructions and reference guide (packaged with your machine) for
additional directions.
Like all machines in the A-Line Series, Maria has the features and the durability to handle all
of your projects – you can always count on her to be there for you. Be sure to ask your
Baby Lock Retailer about Maria's friends in the A-Line Series, like Natalie, Audrey, Lauren and
Grace. From classic tailored looks to modern-day fashions, the machines in the A-Line Series
will help you sew and serge with success – all with the quality you’ve come to expect from
Baby Lock.

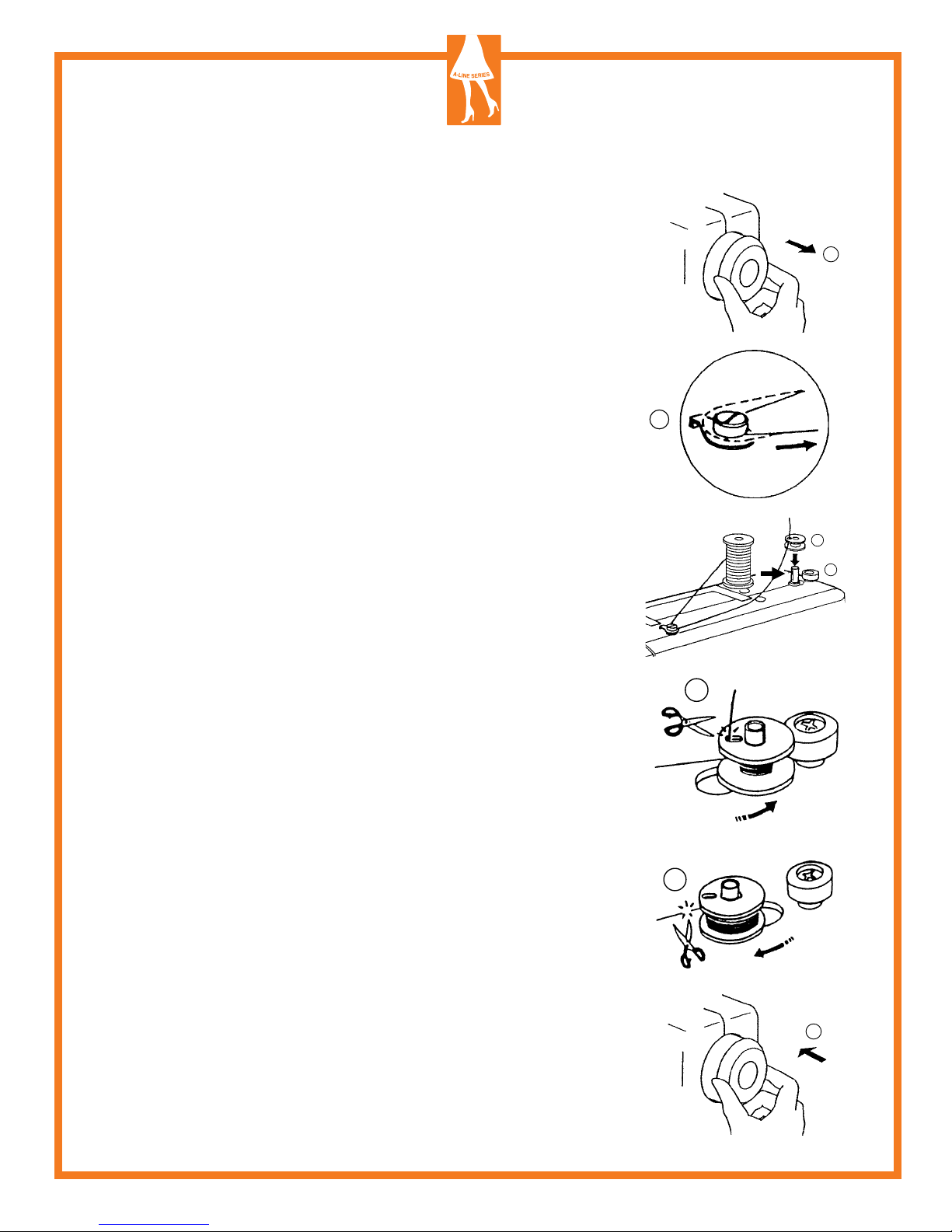

Winding the Bobbin
1
1. Pull the handwheel out to the right.
2. Draw the thread from the spool. Guide the thread around the
bobbin winder thread guide.
3. Insert the thread through the hole in the bobbin from the inside to
the outside. Put the bobbin on the bobbin winder spindle.
4. Push the bobbin to the right.
5. With the free end of the thread held in your hand, lightly press the
foot control. Stop the machine when it has made a few turns, and
cut the thread close to the hole in the bobbin. This keeps it from
tangling in the bobbin case.
6. Press the foot control again until the bobbin is fully wound,
and then stop the machine. Return the bobbin winder spindle to its
original position by moving the bobbin winder spindle to the left,
and cut the thread.
7. Push the handwheel in to the left (original position).
1
2
3
4
5
6
7

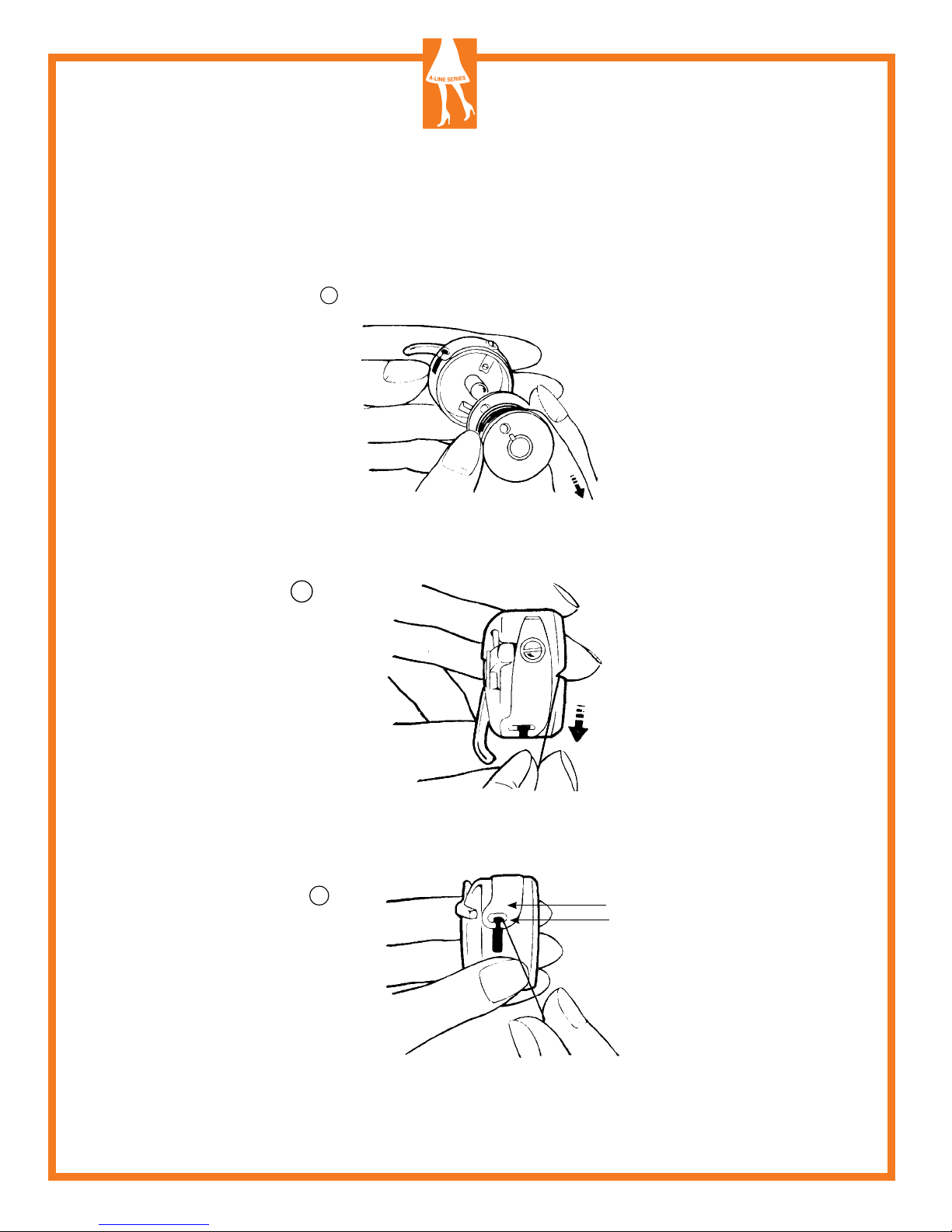

Threading the Bobbin Case
2
1. Place the bobbin into the bobbin case. Make sure the thread unwinds in the direction of the arrow.
2. Pull the thread into the bobbin case slot.
3. Draw the thread under the tension spring and into the delivery eye.
* Leave about 4 inches of free thread.
1
2
3
Tension Spring
Delivery Eye

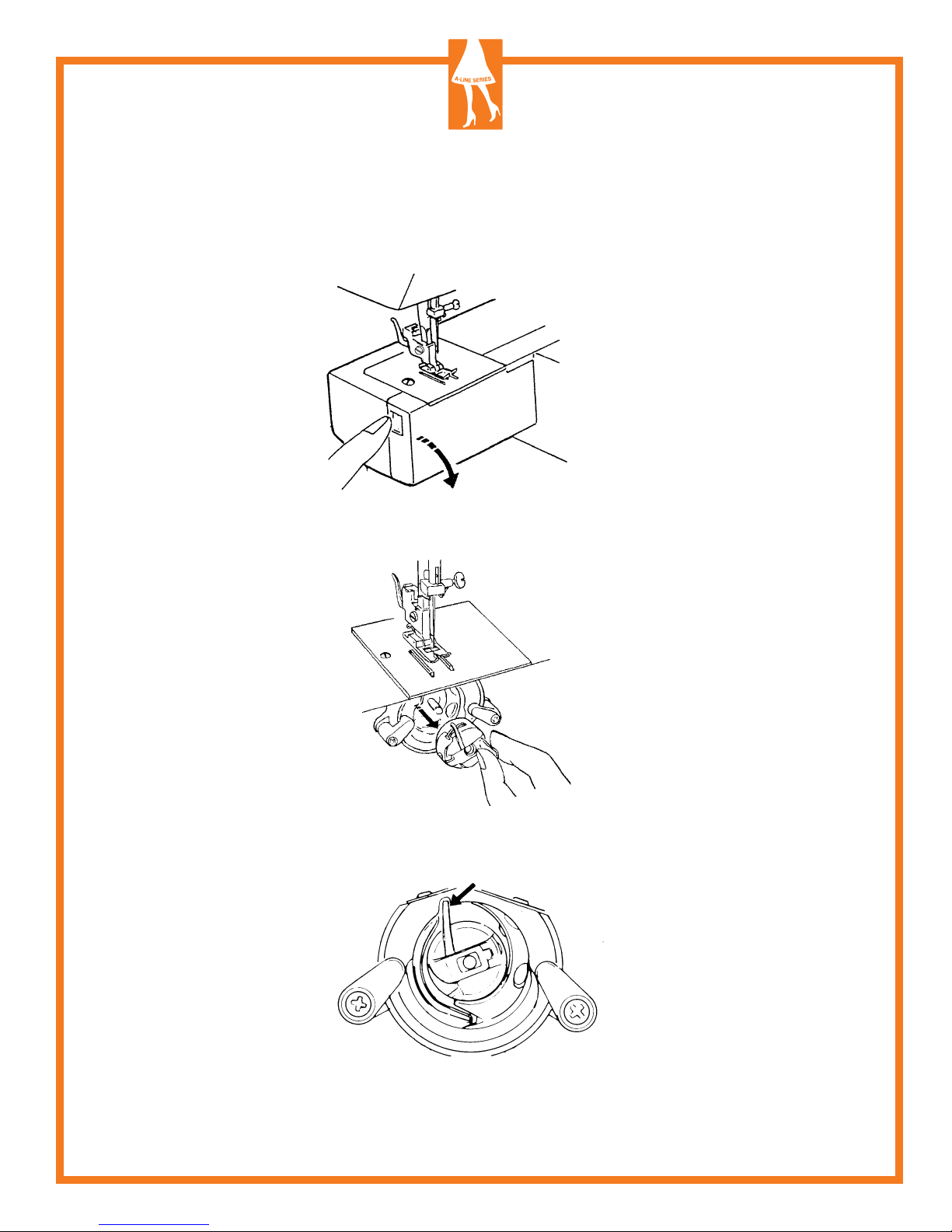

Removing & Inserting the Bobbin Case
3
1. Open the hook cover.
2. Raise the needle by turning the handwheel towards you. Take out the bobbin case by holding the latch.
3. When inserting the bobbin case, pull and hold the latch and then place the bobbin case into the
hook as far in as possible.

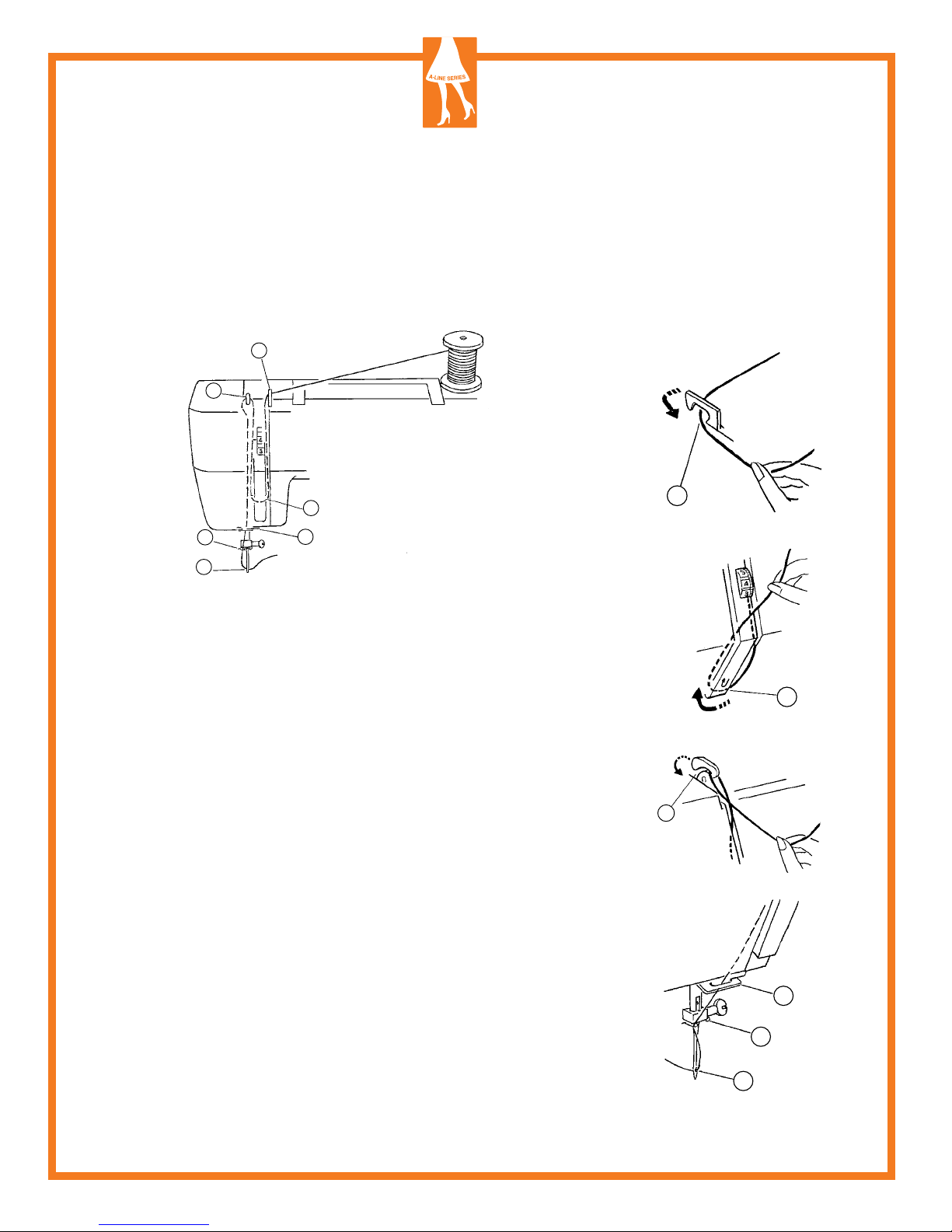

Threading the Machine
4
2. While holding thread near spool, draw thread down into the tension area
and then around the check spring holder.
3. Firmly draw thread up and through the take-up lever from right to left.
4. Then draw thread down and slip it into the lower thread guide.
5. Draw thread down and slip it into needle bar thread guide on either right
or left side of needle bar.
6. Thread needle eye from front to back.
Raise take-up lever to its highest position by turning the handwheel toward you. Raise presser foot.
Place spool of thread on spool pin as shown, with thread coming from the back of the spool.
1. Following the numbers, thread the machine. Draw thread into thread guide using both hands.
6
1
4
2
5
3
1
2
3
4
5
6
Note: You may want to cut the end of thread with sharp scissors for easier needle threading.
Using the Needle Threader
1. Raise the needle to its highest position by turning the handwheel towards you. Pull down the
needle threader knob as far as it will go.
2. Turn the knob in the direction of the arrow in the illustration, and then insert the Threader hook
into the needle eye. Lead the thread around threader guide and under Threader hook.
3. Turn the knob in the direction of the arrow in the illustration, drawing the thread loop through
the needle.
4. Pull the thread through the needle eye.
The needle threader can be used with a #11 to #16 needle or a Stretch needle103/705S.
Thread weight 50 to 90 should also work well.
1
2
5
3 4
3
4
Threader hook
Threader guide
Drawing Up the Bobbin Thread
1. Raise the presser foot and hold the needle thread lightly with your left hand.
2. Turn the handwheel slowly toward you with your right hand until the needle goes down and
continue turning the handwheel until the take-up lever is at its highest position. Lightly pull
up the needle thread to form a loop of bobbin thread.
3. Pull 6 inches of both threads back and under the presser foot.
3
2
1
6

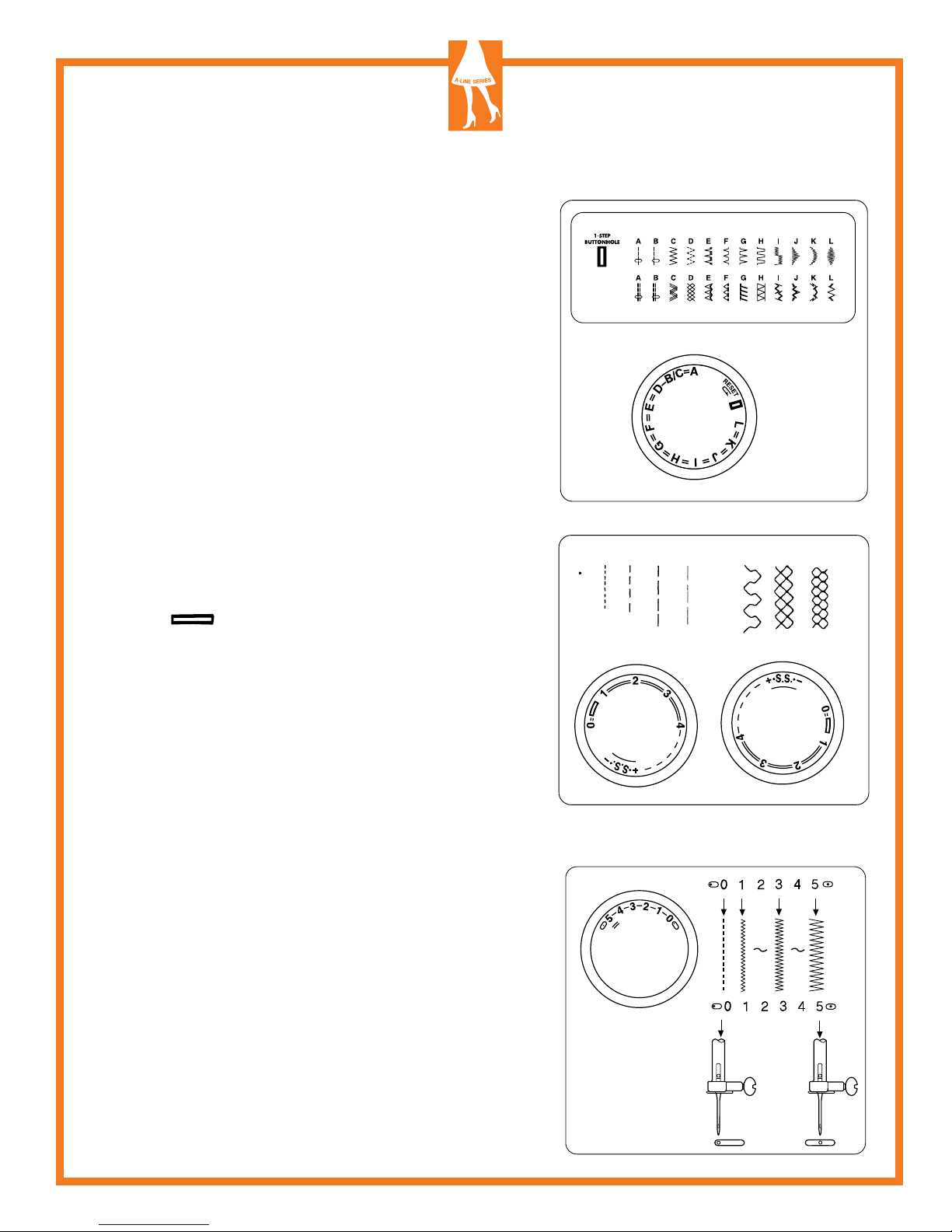

Setting the Stitch
7
Stitch Length Dial
Place the desired number at the setting mark by turning
the stitch length dial.
• Thehigherthenumber,thelongerthestitchlength.
• “”isthecorrectsettingforbuttonholestitching.
• Adjustthestitchlengthdialinthe0.3to4range
when you sew the zig zag stitch.
Selecting Stretch Stitch Patterns
When sewing stretch stitches, set the stitch length dial at "S.S."
to sew the stretch stitch pattern correctly.
If forward and reverse feeding becomes unbalanced due to the
type of fabric, adjust the balance as follows:
• Ifpatternsarecompressed,turnthedialtowardthe"+".
• Ifpatternsaredrawnout,turnthedialtoward"_".
••
12340 + •S.S. •-
Stitch Pattern Selector Dial
Raise the needle above the fabric and match the desired
pattern with the setting mark by turning the pattern
selector dial.
Stitch Width Dial
Turn the stitch width dial to set the desired stitch width at
the setting mark. The higher the number, the wider the stitch
width.
NOTE: Raise the needle above the fabric, when you turn the
stitch width dial.
Variable Needle Positions
Select straight stitch "A" and turn the stitch width dial for
needle positions ranging from the center (when set on 5) to
the left position (when set on 0).
•
•
Starting to Sew
8

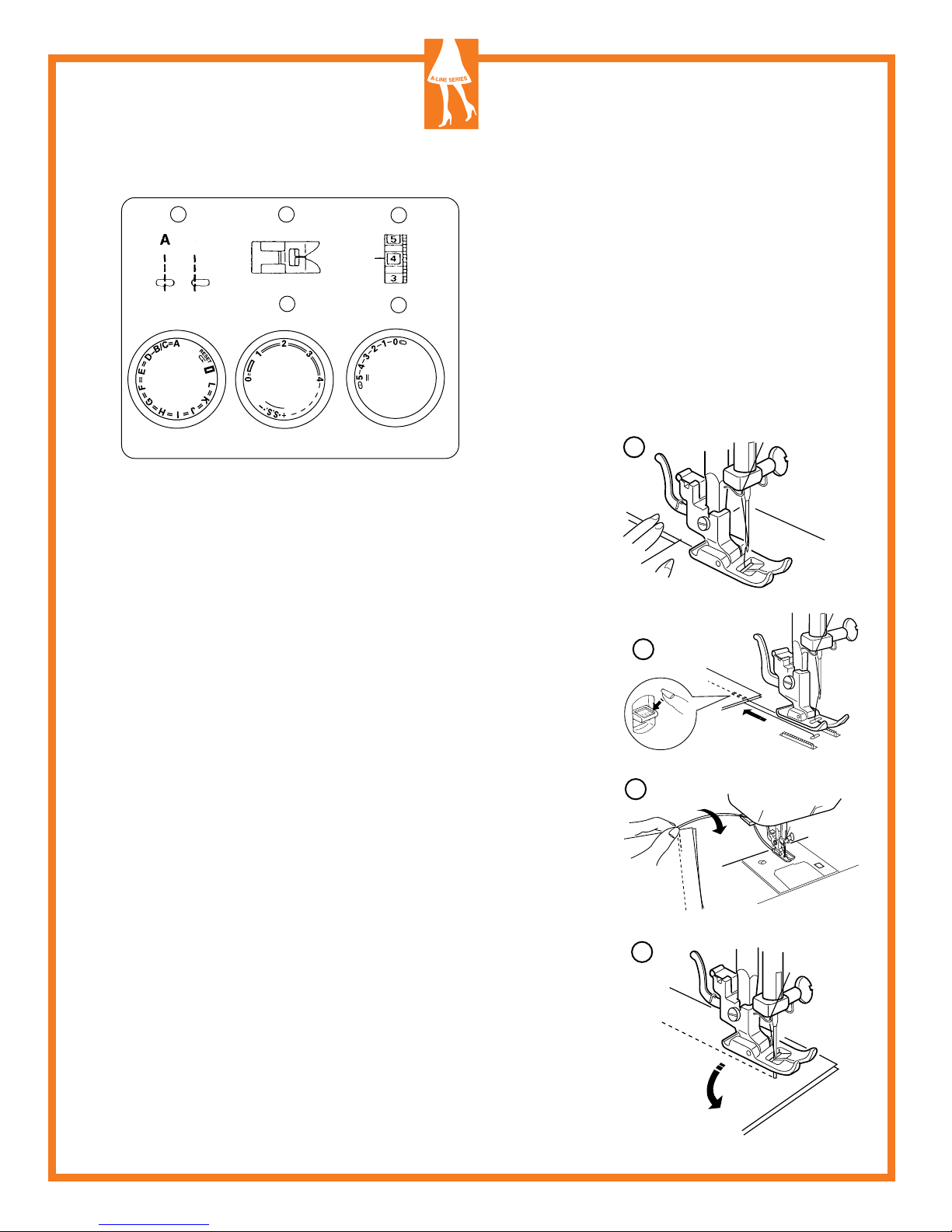

Straight Stitch Sewing
(1) Pattern selector dial: A or B
(2) Presser foot: Zig zag foot
(3) Thread tension: 2 - 6
(4) Stitch length: 1.5 - 4
(5) Stitch width: 0
• •
•
B
5
4
3
2
1
1. Raise the presser foot and position the fabric
next to a stitching guide line on the needle plate.
Lower the needle into the fabric. Lower the presser foot
and move the threads toward the back of the machine.
Press the foot control.
2. Gently guide the fabric along the guide line letting the
fabric feed by itself.
•Forfasteningtheendsofseams,pressthereverse
stitch button and sew several reverse stitches.
3. Raise the presser foot and remove the fabric, moving the
threads to the back. Cut the threads in the thread cutter on the
face cover. The threads are cut the proper length for
starting the next seam.
4. To change the sewing direction, stop the machine and turn the
handwheel toward you to bring the needle down into the fabric.
Raise the presser foot. Pivot the fabric around the needle to
change sewing direction as desired. Lower the presser foot
and continue sewing.
1
2
3
4
