BAFANG DP C01.CAN BUS Manuale utente

BF-UM-C-DP C01-EN November 2019

USER MANUAL FOR DISPLAY

CONTENT

7.1 Important Notice 

7.2 Introduction of Display 2

7.3 Product Description 3

7.3.1 Specifications 3

7.3.2 Functions Overview 3

7.4 Display 4

7.5 Key Definition 4

7.6 Normal Operation 5

7.6.1 Switching the System ON/OFF 5

7.6.2 Selection of Support Levels 5

7.6.3 Headlights / backlighting 5

7.6.4 Walk Assistance 5

7.6.5 Reset mileage 5

7.6.6 Selection mode 5

7.6.7 Battery capacity indication 5

7.7 Settings 6

7.7.1 Setting 6

7.7.2 View Information 7

7.8 Error Code Definition 10

7 USER MANUAL FOR

DP C01.CAN

2BF-UM-C-DP C01-EN Novmber 2019

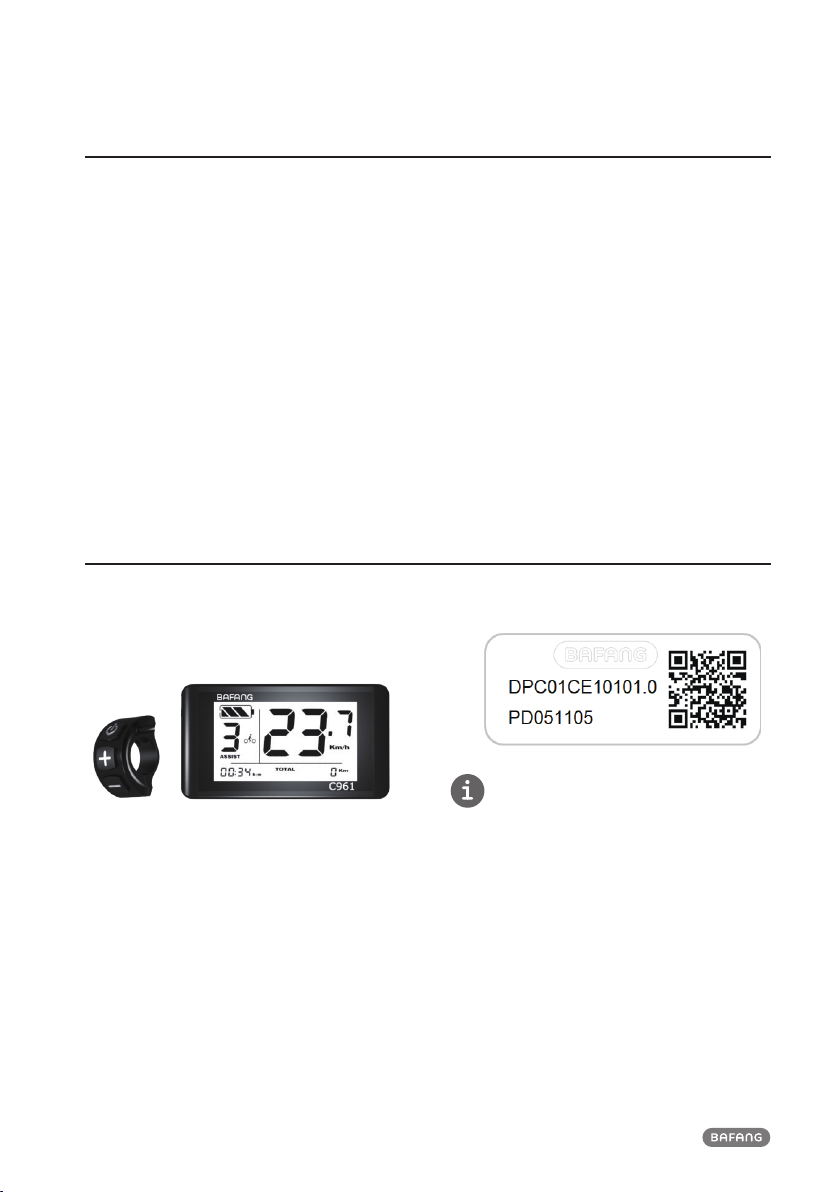

7.2 INTRODUCTION OF DISPLAY

• Model: DP C01.CAN BUS

• The housing material is PC and PVC:

• The label marking is as follows:

Note: Please keep the QR code label attached

to the display cable. The information from the

Label is used for a later possible software

update.

7.1 IMPORTANT NOTICE

• If the error information from the display

cannot be corrected according to the inst-

ructions, please contact your retailer.

• The product is designed to be waterproof. It

is highly recommended to avoid submerging

the display under water.

• Do not clean the display with a steam jet,

high-pressure cleaner or water hose.

• Please use this product with care.

• Do not use thinners or other solvents to

clean the display. Such substances can

damage the surfaces.

• Warranty is not included due to wear and

normal use and aging.

BF-UM-C-DP C01-EN November 2019

USER MANUAL FOR DISPLAY

7.3 PRODUCT DESCRIPTION

7.3.1 Specifications

• Operating temperature: -20℃~45℃

• Storage temperature: -20℃~50℃

• Waterproof: IP65

• Bearing humidity: 30%-70% RH

7.3.2 Functional Overview

• Speed display (switching between km and

miles).

• Battery capacity indication.

• The lighting system.

• Indication of performance support.

• Kilometer stand (including single-trip dis-

tance, total distance).

• Time display for single journeys.

• Walk assistance model.

• Indication of error messages.

4BF-UM-C-DP C01-EN Novmber 2019

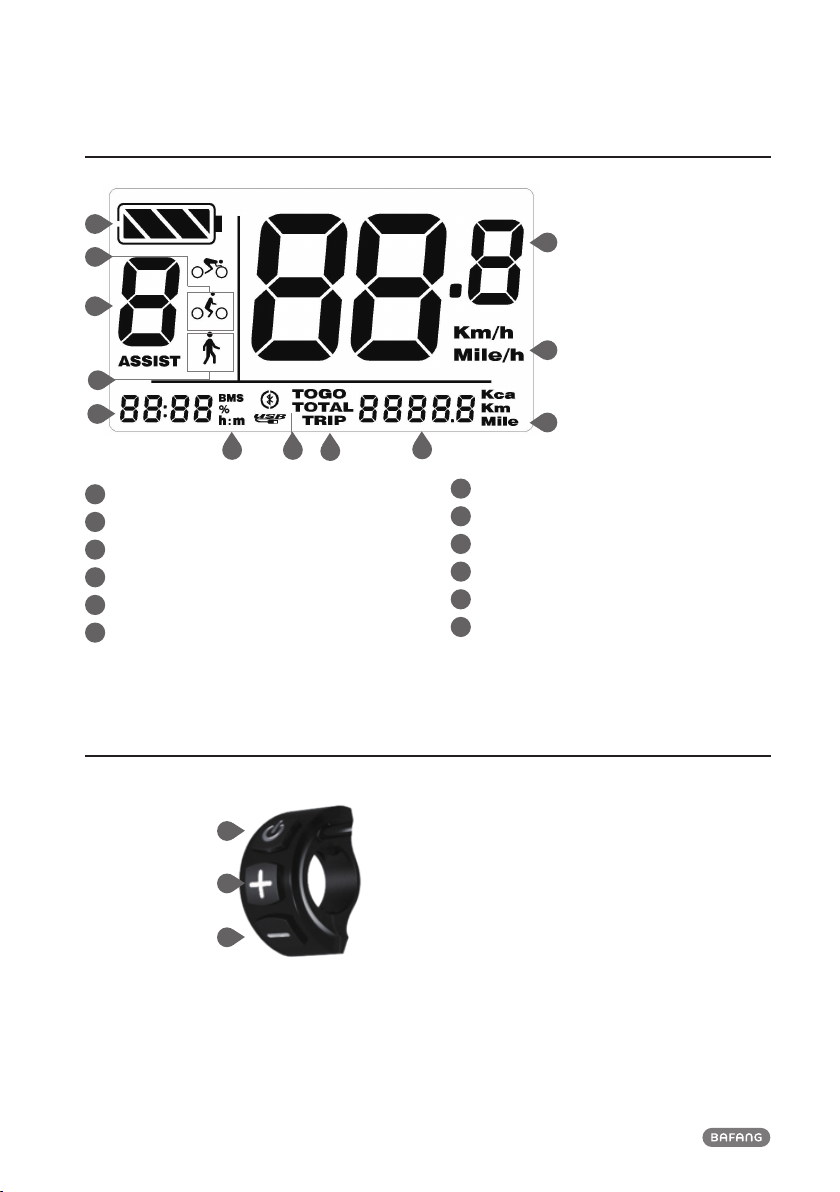

7.4 DISPLAY

1Display of battery capacity in real time

2Riding mode

3Support level

4Walking assistance

5Time

6Battery information

7Total kilometers (ODO)

8Daily kilometers (TRIP)

9Trip data

10 Unit of trip

11 Unit of speed

12 Speed display in real-time

7.5 KEY DEFINITION

Mode/System On/Off

Down

BF-UM-C-DP C01-EN November 2019

USER MANUAL FOR DISPLAY

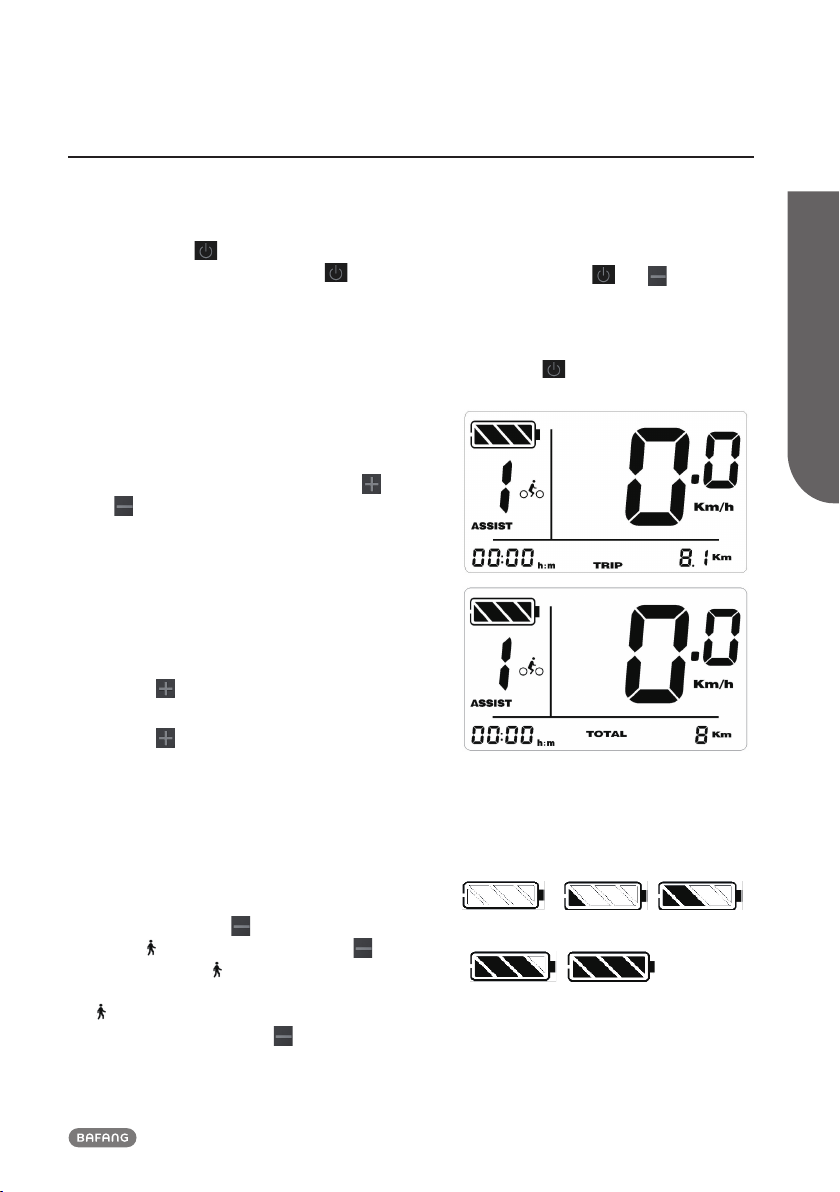

7.6 NORMAL OPERATION

7.6.1 Switching the System ON/OFF

Press and hold (>2S) on the display to

turn on the system. Press and hold (>2S)

again to turn off the system.

If the "automatic shutdown time" is set to 5

minutes (it can be reset with the "Auto Off"

function, See "Set Auto Off"), the display

will automatically be turned off within the

desired time when it is not in operation.

7.6.2 Selection of Support Levels

When the display is turned on, press the

or (<0.5S) button to switch to the sup-

port level, the lowest level is 0, the highest

level is 5 (the amount of support level can

be set). When the system is switched on,

the support level starts in level 1. There is no

support at level 0.

7.6.3 Headlights / backlighting

Hold the (>2S) button to activate the

frontlight and taillights.

Hold the (>2S) button again to turn

off the frontlight. The brightness of the

backlight can be set in the display settings

"Brightness".

7.6.4 Walk Assistance

The Walk assistance can only be activated

with a standing pedelec.

Activation: Press the button until this

symbol appears. Next hold down the

button whilst the symbol is displayed, now

the Walk assistance will activate. The symbol

will blink and the pedelec moves approx.

5 km/h. After releasing the button, the

motor stops automatically and switches back

to level 0.

7.6.5 Reset mileage

When HMI power on, at the single trip inter-

face press and hold and synchro-

nously for 3 seconds to reset TRIP and exit.

7.6.6 Selection mode

Brieﬂy press (0.5s) to view TRIP or ODO.

As following:

7.6.7 Battery capacity indication

The battery capacity is displayed in real time

as 100% to 0% (as shown in the ﬁgure

below).

<5% 5%-25% 25%-50%

50%-75% 75%-100%

6BF-UM-C-DP C01-EN Novmber 2019

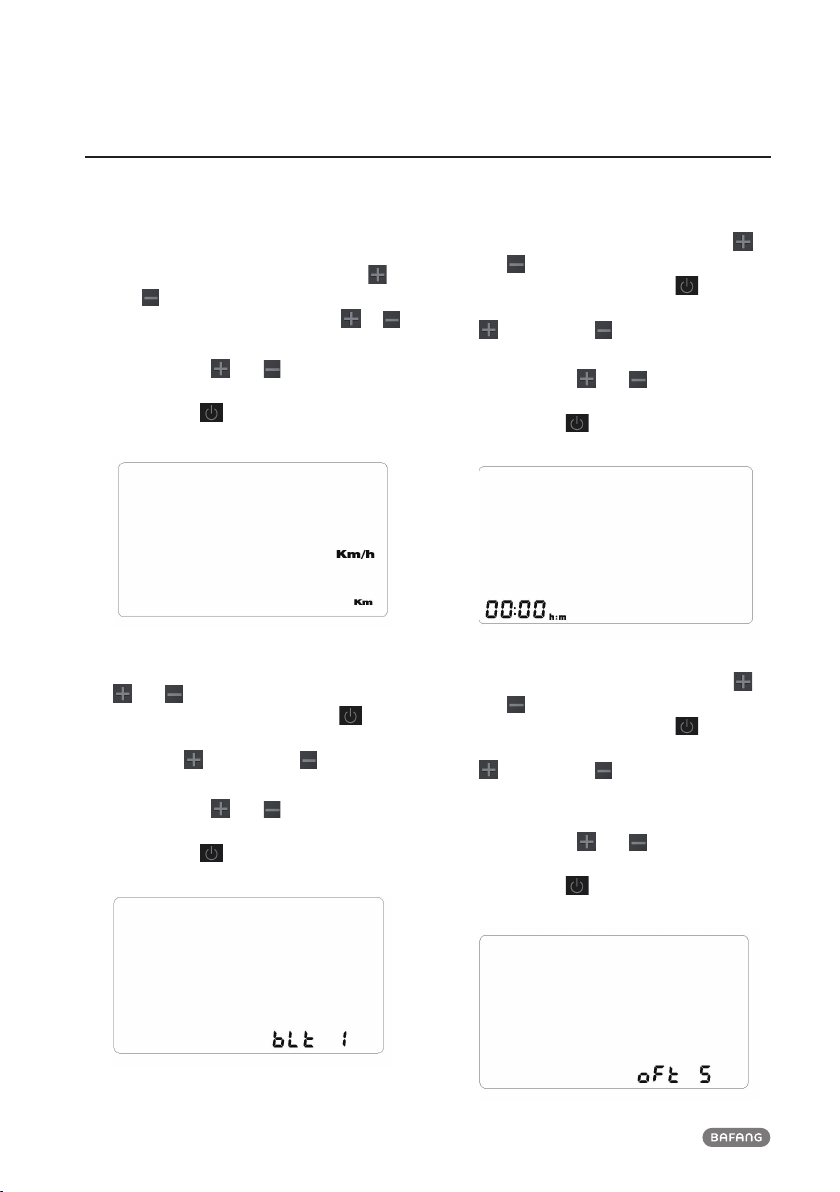

7.7 SETTINGS

7.7.1 Setting

7.7.1.1 Selection of unit in km/Miles

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, and then brieﬂy press (<0.5S) or

to select "Km/h" or "Mile/h".

Press and hold and button together

to save and exit to the main interface. Or

press (<0.5S) to save and enter next item

"Set display brightness".

7.7.1.2 Set display brightness

When the system is on, press and hold

and for 2 seconds to the setting

interface, repetitively press (<0.5S) until

the brightness (bLt) interface (as below), and

then press to increase or to reduce

(brightness for 1-8).

Press and hold and button together

to save and exit to the main interface. Or

press (<0.5S) to save and enter next item

"Set Clock".

7.7.1.3 Set Clock

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until the

clock interface (as below), and then press

to increase or to reduce ((hour and

minute).

Press and hold and button together

to save and exit to the main interface. Or

press (<0.5S) to save and enter next item

"Set Auto Off".

7.7.1.4 Set Auto Off

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until the

auto off interface (as below), and then press

to increase or to reduce time (0-60

minute), 0 minute means disable automatic

off function.

Press and hold and button together

to save and exit to the main interface. Or

press (<0.5S) to save and enter next item

"Set support level".

BF-UM-C-DP C01-EN November 2019

USER MANUAL FOR DISPLAY

7.7.1.5 Set support level

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until the

support level interface (as below), and then

press or to select level (3/5/9).

Press and hold and button together

to save and exit to the main interface.

7.7.2 View Information

All data in this item cannot be changed, only to

be viewed.

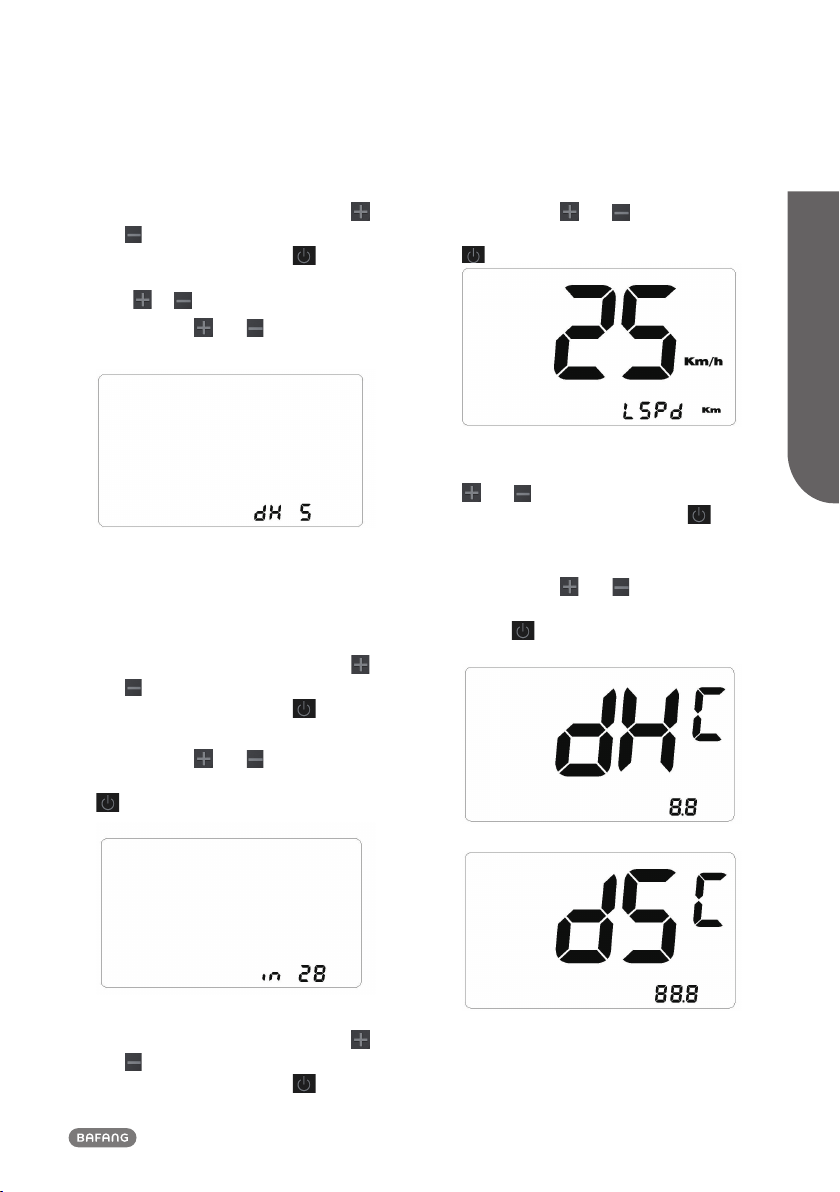

7.7.2.1 Wheel Size

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until the

wheel size interface (as below).

Press and hold and button together

to exit to the main interface. Or press (<0.5S)

to enter next item "Speed Limit".

7.7.2.2 Speed Limit

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until the

speed limit interface (as below).

Press and hold and button together

to exit to the main interface. Or press (<0.5S)

to enter next item "Display Information".

7.7.2.3 Display Information

When the system is on, press and hold

and for 2 seconds to the setting

interface, repetitively press (<0.5S) until

display hardware version (dHc) or software

version (dSc) interface (as below).

Press and hold and button togeth-

er to exit to the main interface. Or press

(<0.5S) to enter next item "Controller

Information".

Hardware version of display

Software version of display

8BF-UM-C-DP C01-EN Novmber 2019

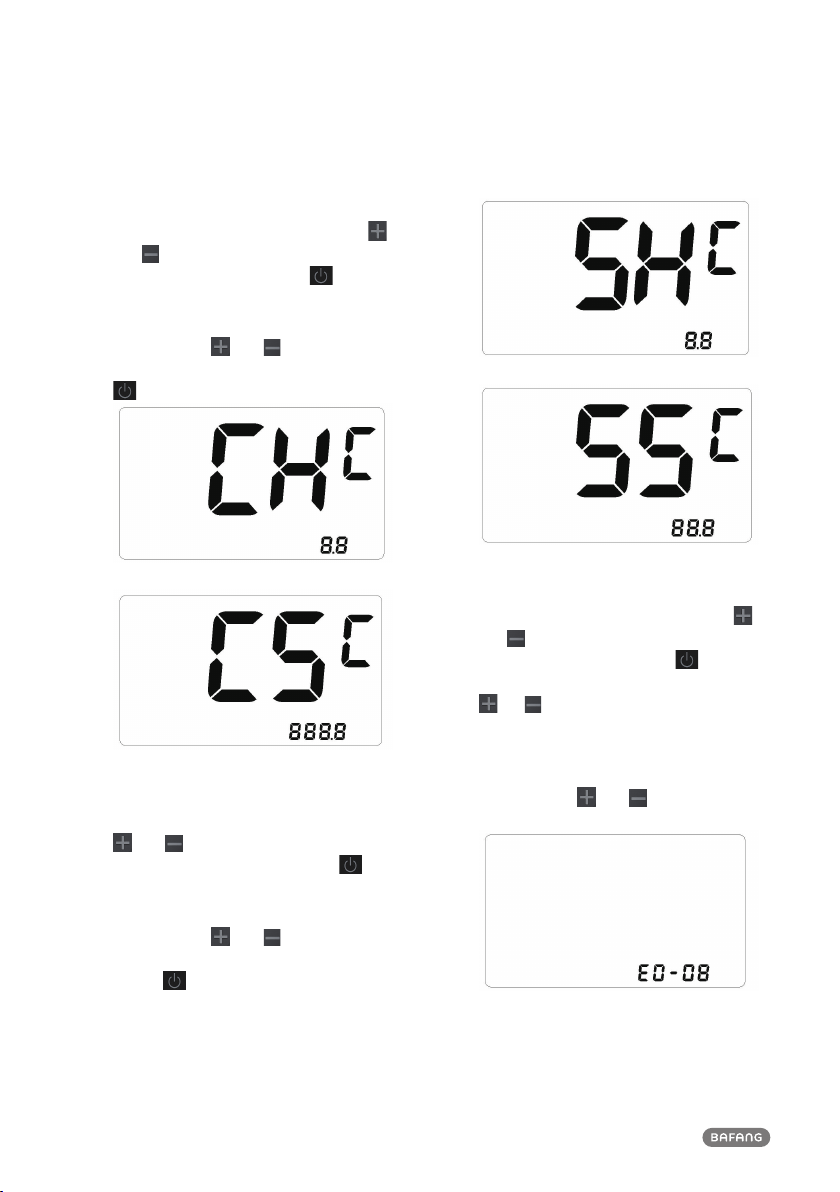

7.7.2.4 Controller Information

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until con-

troller hardware version (CHc) or software

version (CSc) interface (as below).

Press and hold and button together

to exit to the main interface. Or press (<0.5S)

to enter next item "Torque Information".

Hardware version of controller

Software version of controller

7.7.2.5 Torque Information

When the system is on, press and hold

and for 2 seconds to the setting

interface, repetitively press (<0.5S) until

torque hardware version (SHc) or software

version (SSc) interface (as below).

Press and hold and button togeth-

er to exit to the main interface. Or press

(<0.5S) to enter next item "Message of

Error Code".

Hardware version of torque

Software version of torque

7.7.2.6 Message of Error Code

When the system is on, press and hold

and for 2 seconds to the setting inter-

face, repetitively press (<0.5S) until error

code interface (as below), and then press

or to view message of error code.

It shows error information for the last ten

times by "E0" to "E9". Error code "--"means

that there is no error.

Press and hold and button together

to exit to the main interface.

BF-UM-C-DP C01-EN November 2019

USER MANUAL FOR DISPLAY

7.7.2.7 Battery Information

1) When the system is on, press and hold

and for 2 seconds to view battery

information, repetitively press (<0.5S) or

to view all info of battery.

Press and hold and button together

to exit to the main interface.

Content Explanation

b01 Current temperature (°C)

b04 Voltage (V)

b06 Discharge (A)

b07 Remaining Capacity (A/h)

b08 Total Capacity (A/h)

b09 Default Loader Status (%)

b10 Instant charge (%)

b11 Charging cycles (number)

b12 Maximum time in which no char-

ge was made (Hr)

b13 Time since last charge (Hr)

d00 Number (individual)

d01 Cell Voltage 1 (m/V)

d02 Cell Voltage 2 (m/V)

dn Cell Voltage n (m/V)

NOTE: If no data is detected, "--" is displayed.

2) View hardware and software version of

battery

Brieﬂy press (0.5s) to display hardware

and software version of battery.

“bHc” means BMS Hardware check;

“bSc” means BMS Software check.

Hardware version of battery

Software version of battery

10 BF-UM-C-DP C01-EN Novmber 2019

7.8 ERROR CODE DEFINITION

The display can show the errors of a pedelec. If an error is detected, one of the following error codes will be

displayed.

Note: Please read the description of the error code carefully. If you see the error code, restart the system ﬁrst. If the

problem is not resolved, please contact your dealer.

Error Declaration Troubleshooting

04 The throttle is not back in its correct

position.

Check the throttle can adjust back into its

correct position, if the situation does not

improve, please change to a new throttle.(only

with this function)

05 The throttle has fault.

1. Check the connector of throttle whether

they are correctly connected.

2. Disconnect the throttle, If the problem still

occurs, please contact your retailer.

(only with this function)

07 Overvoltage protection

1. Remove the battery.

2. Re-Insert the battery.

3. If the problem persists, please contact your

retailer.

08 Error with the hall sensor signal

inside the motor Please contact your retailer.

09 Error with the Engine phase’s Please contact your retailer.

The temperature inside the engine

has reached its maximum protection

value

1. Turn off the system and allow the Pedelec

to cool down.

2. If the problem persists, please contact your

retailer.

11 The temperature sensor inside the

motor has an error Please contact your retailer.

12 Error with the current sensor in the

controller Please contact your retailer.

13 Error with the temperature sensor

inside of the battery Please contact your retailer.

Indice

Altri manuali BAFANG Accessori per biciclette

BAFANG

BAFANG MM G333.250.C Manuale utente

BAFANG

BAFANG H550 Manuale utente

BAFANG

BAFANG C965 Manuale utente

BAFANG

BAFANG C965 Manuale utente

BAFANG

BAFANG DPC-10 Biktrix Manuale utente

BAFANG

BAFANG DP E08.CAN Manuale utente

BAFANG

BAFANG DP C15.CAN Manuale utente

BAFANG

BAFANG DP C10.UART Manuale utente

BAFANG

BAFANG DP C18.UART Manuale utente

BAFANG

BAFANG DP C230.CAN Manuale utente

BAFANG

BAFANG BT C01.340.UART Manuale utente

BAFANG

BAFANG E-SYSTEM Manuale utente

BAFANG

BAFANG MM G31.250 Manuale utente

BAFANG

BAFANG DP C15.UART Manuale utente

BAFANG

BAFANG DP C01.RS 232.7 Manuale utente

BAFANG

BAFANG DP C171.UART Manuale utente

BAFANG

BAFANG DP C181.CAN Manuale utente

BAFANG

BAFANG M625 Manuale utente

BAFANG

BAFANG DP C07.UART Manuale utente

BAFANG

BAFANG CR A101.C 1.0 Manuale utente

BAFANG

BAFANG DP E170.CAN Manuale utente

BAFANG

BAFANG H500F Manuale utente

BAFANG

BAFANG DP C13.CAN Manuale utente

BAFANG

BAFANG DP C10.UART Manuale utente

Manuali Accessori per biciclette popolari di altre marche

Sigma

Sigma BC 16.16 Manuale utente

Playcore

Playcore Dero Setbacks Manuale utente

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuale utente

Cateye

Cateye RAPID X2 Manuale utente

buratti meccanica

buratti meccanica Clorofilla Trail Manuale utente

Shimano

Shimano SG-8R20 Istruzioni operative

BOB

BOB YAK Manuale utente

APLIC

APLIC 303303/20190717TW012 Manuale utente

SRAM

SRAM AXS BlipBox Manuale utente

Garmin

Garmin EDGE 500 Manuale utente

Shimano

Shimano FD-RX810 Manuale utente

Cateye

Cateye V2C - Manuale di istruzioni

KMART

KMART 43115907 Manuale utente

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuale utente

NVO Components

NVO Components STEM Manuale utente

DAXYS

DAXYS BP188 Manuale utente

XLC

XLC BV-W17 Manuale utente

Deda Elementi

Deda Elementi SUPERBOX Manuale utente
