6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 1 of 4

CTB-60R/GS

Gas Char Broiler

PARTS LIST

Serial Number Natural L.P. Other

Model Number: CTB-60R/GS Type of Gas

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Dante

SERIES

(CTB-24 Shown)

CTB-60R/GS

Gas Char Broiler

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

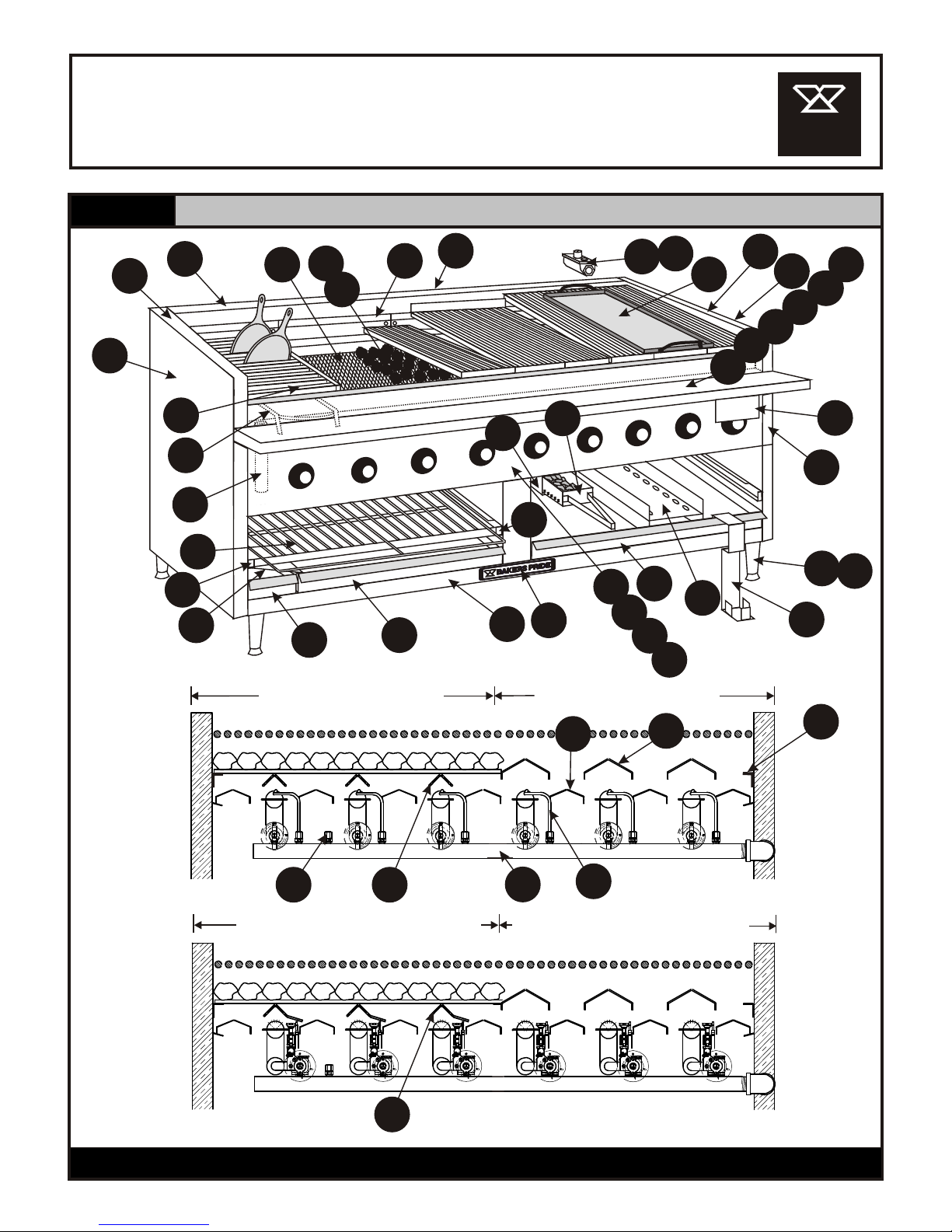

Figure A Exterior / Interior

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00

RATING

PLATE

GB (w/Standard Valves) RB (w/Standard Valves)

GB (w/Opt. Auto. Safety Valves) RB (w/Opt. Auto. Safety Valves)

613

24 27 28

2930 3132

35 36 37

41 43

45 46

48 49

54 55

(CTB-60 Shown)

440 34 12

225 33 1

6313

41 56 57

42 43

50 49

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Exterior / Interior

Item Part # Description Item Part # Description

CTB-60R/GS

Gas Char Broiler

6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 3 of 4

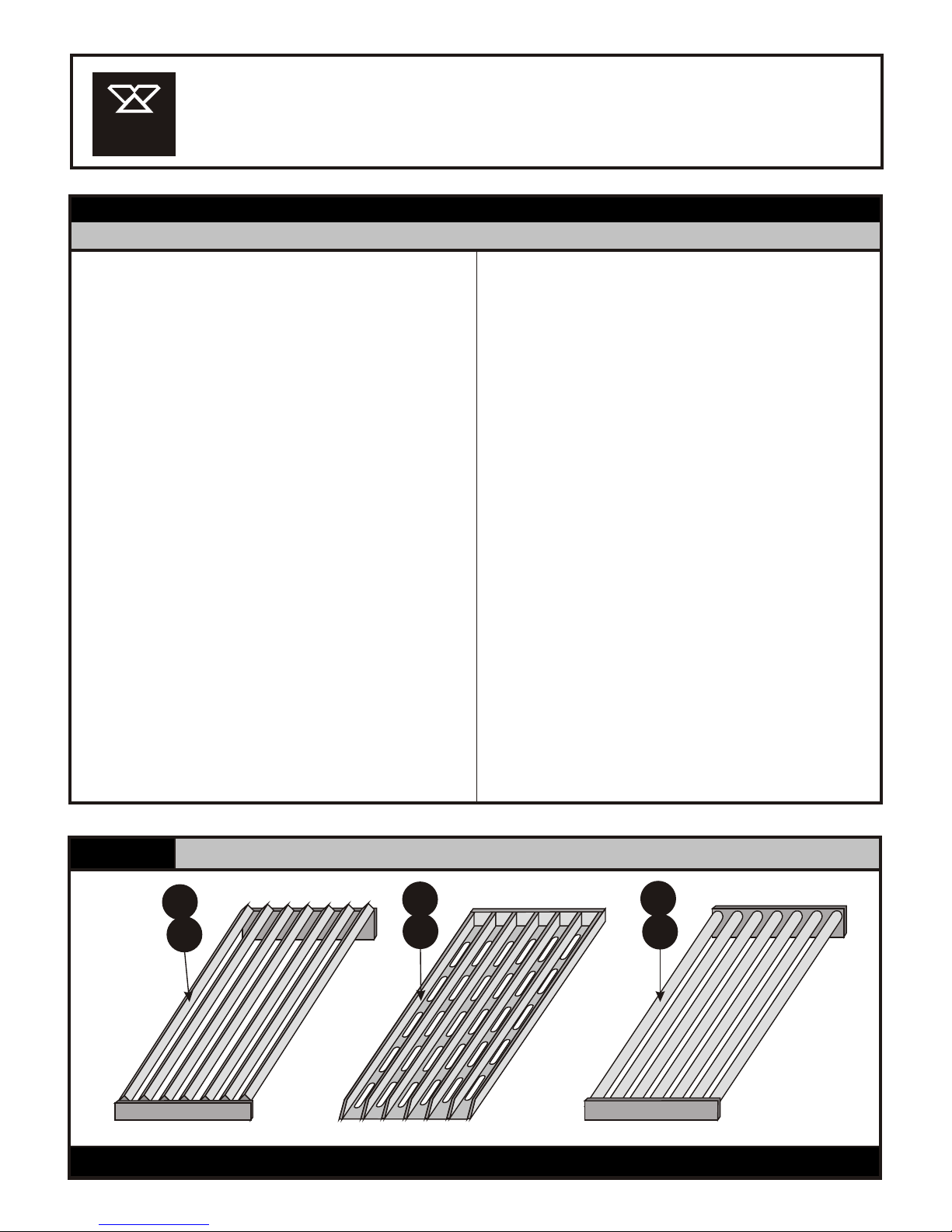

Figure B Grates

1 R3042X Pilot Tube, 7 3/8" w/Nut & Ferrule 30 G5174K Control Panel, CE-60

2 N3068P Pressure Tap Nozzle 31 U1323A Control Panel Overlay-60

3 G5073X Radiant S/S (Standard) 32 U1328A Control Panel Overlay, CE-60

4 G5069K Grease Drawer 33 R1122A Manifold-60

5 G5070U Grease Shield Assy 34 G5162K Front Trim-60

6 G5072K Heat Shield 35 G5166K Back Trim-60

7 G5128U Grease Drain Assy-60 36 G5143K Top Grate Support, 18 1/2" /3

8 G5212K Manifold Cover 37 G5154K Outer Back-CTB60

9 G5060K Side Trim, Left 38 G5054K Outer Side, Left-CTB

10 G5061K Side Trim, Right 39 G5055K Outer Side, Right-CTB

11 G5205K Rating/Instruction Plate Mount 40 G5178K Drip Pan, 22 1/2" /1

12 U1044X Bakers Pride Name Plate, 8" 41 G5167K Drip Pan, 26 1/2" /1

13 G5039K Bottom Grate Support, L or R Side 42 S1014Y Legs, 4" (Standard) each

14 T1047X Glo-Stones, 1/2 Lot (20#) 43 S1014X Legs, 4" (Standard) Set/4

15 T1048X Glo-Stones, Full Lot (40#) 44 G5135K Work Deck-60

16 T1197X Top Roll-A-Grate, 9" (Standard) /1 45 G5124U Front Brace Assy-60

17 T1198X Top Roll-A-Grate, 6" (Standard) /8 46 G5244K Work Deck-60, 10"

18 T1212A Top Grate, 6", Cast Iron (Optional) 47 G5245U Front Brace Assy-60, 10"

19 T1216A Top Grate, 4 1/2", Cast Iron (Optional) 48 G5312K Work Deck-60, 12"

20 T1210X Meat Grate, 6" (Optional) 49 G5313U Front Brace Assy-60, 12"

21 T1211X Meat Grate, 9" (Optional) 50 T1209U Breakfast Griddle, 11"W (Optional)

22 T1213T Fajita Top Grate (Optional) 51 T1207U Wire Rack, 27" /2

23 T1214T Fajita Bottom Grate (Optional) 52 G5131U Left Wire Rack Guide Assy

24 T1204A Bottom Grate, S/S, 28" /2 53 G5132U Right Wire Rack Guide Assy

25 G5040U Bottom Grate Support /9 54 G5180U Smoker Box Assy (No Drawer)

26 G5041U Bottom Grate Support (CE) /9 55 G5187U Drawer, Smoker Box

27 M1067X Pressure Regulator 1", 10"W.C. (LP) 56 G5182U Log Support (Optional)

28 M1418A Pressure Regulator 1", 3.5"W.C. (Nat) 57 G5186K Bottle Holder, RH (Optional)

29 G5170K Control Panel-60

20 19

18 17

CTB-60R/GS

Gas Char Broiler

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

Figure C

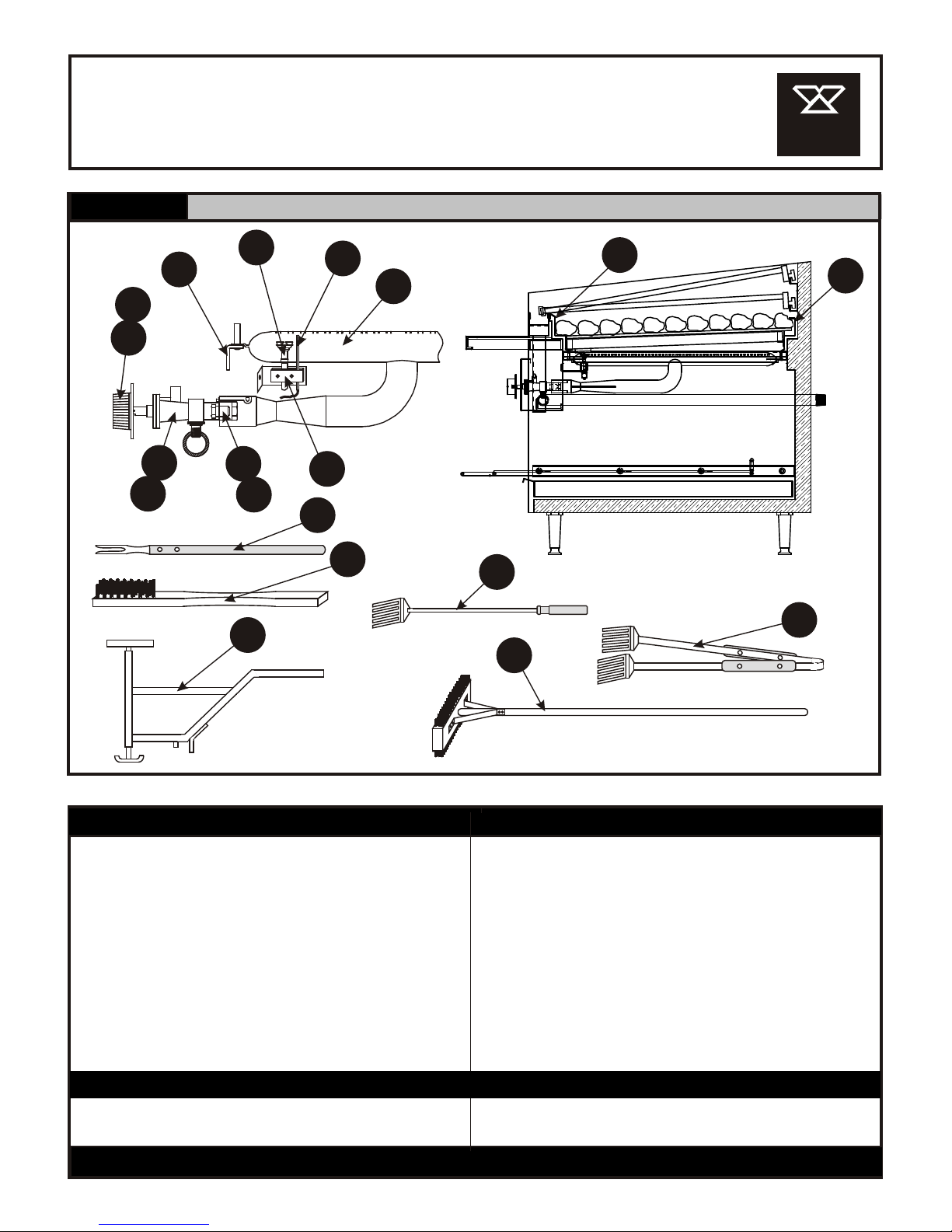

Burner / Accessories / Supports

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00

Item Part # Description

910

11 12

16 18

Conversion Kit (LP to Nat) Conversion Kit (Nat to LP)

1 R3136X Hood Orifice #54 (LP) 11 G5028U Burner Support Assy, 17" /6

2 R3130X Hood Orifice #44 (Nat) 12 G5044U Radiant Support Assy, Rear 18" /3

3 L5077X Burner, Center Feed 13 G5046U Radiant Support Assy, Front 18" /3

4 R3032X Gas Valve 14 T5018V Spatula, Chef-Aide, 20" Single

5 S1094X Knob, Gas Valve 15 T5017X Wire Brush, Chef-Aide, 18"

6 R3128X Gas Valve (used w/Pilot Safety) 16 G5221U Grate Lifter

7 S1301X Knob, Gas Valve, CE (used w/Pilot Safety) 17 T5016A Meat Fork

8 G5064K Pilot Bracket (used w/Pilot Safety) 18 T5019V Steak Turner

9 M1359X Pilot Burner (used w/Pilot Safety) 19 T5104V Twin Head Grate Brush

10 M1358X Thermocouple, 10" (used w/Pilot Safety)

9 R3130X Hood Orifice #44 (Nat) 9 R3136X Hood Orifice #54 (LP)

1 M1418A Pressure Regulator 1", 3.5"W.C. (Nat) 1 M1067X Pressure Regulator 1", 10"W.C. (LP)

19 18

15 14

13 12

11 10
