Bakers Pride DANTE LCB-60GS Manuale utente

(LCB-60GS Shown)

6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #,Voltage/Phase & type of Gas. Page 1 of 4

LCB-72R/GS

Gas Char Broiler

PARTS LIST

Serial Number Natural L.P. Other

Model Number: LCB-72R/GS Type of Gas

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Dante

SERIES

LCB-72R/GS

Gas Char Broiler

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

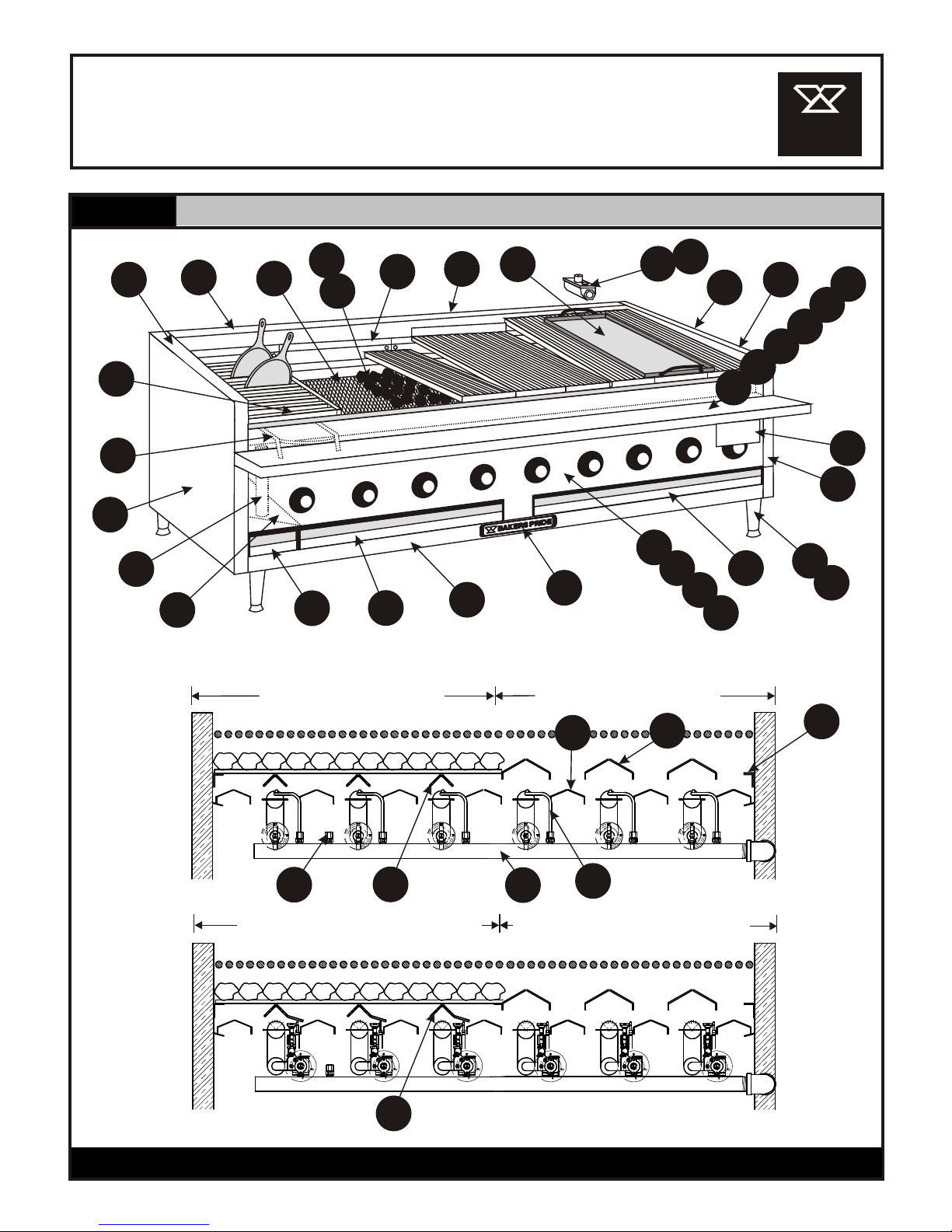

Figure A Exterior / Interior

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00

GB (w/Standard Valves) RB (w/Standard Valves)

GB (w/Opt. Auto. Safety Valves) RB (w/Opt. Auto. Safety Valves)

RATING

PLATE

910

27 28

29 30 31 32

35 36 37

41 43

45 46

48 49

(LCB-60 Shown)

935 24 15

14 36 37 50 27 28 39 10 49

4243

613

25 33

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Exterior / Interior

6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 3 of 4

Item Part # Description Item Part # Description

LCB-72R/GS

Gas Char Broiler

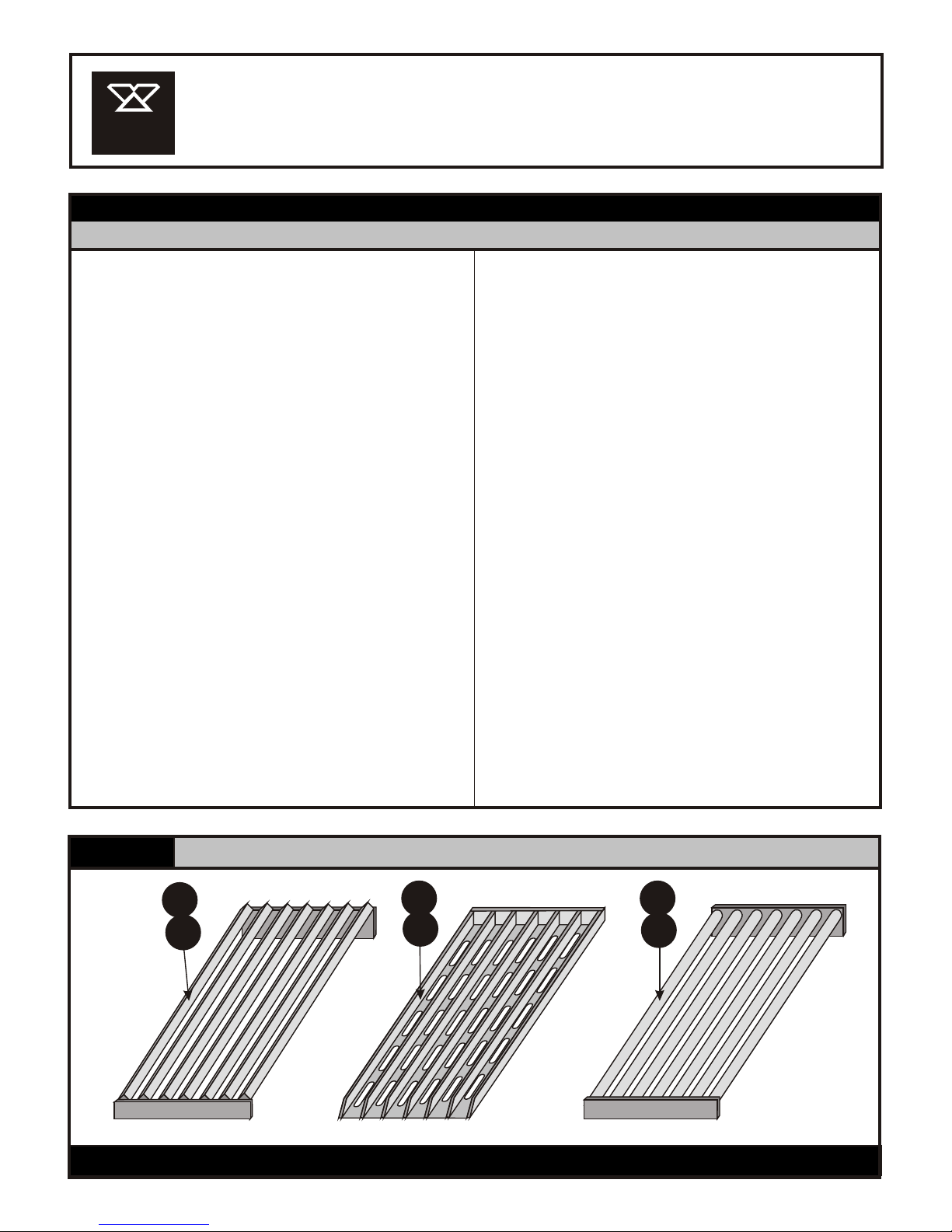

Figure B Grates

1 R3042X Pilot Tube, 7 3/8" w/Nut & Ferrule 26 G5041U Bottom Grate Support (CE) /11

2 N3068P Pressure Tap Nozzle 27 M1067X Pressure Regulator 1", 10"W.C. (LP)

3 G5073X Radiant S/S (Standard) 28 M1418A Pressure Regulator 1", 3.5"WC (Nat)

4 G5069K Grease Drawer 29 G5171K Control Panel-72

5 G5070U Grease Shield Assy 30 G5175K Control Panel, CE-72

6 G5072K Heat Shield 31 U1324A Control Panel Overlay-72

7 G5129U Grease Drain Assy-72 32 U1329A Control Panel Overlay, CE-72

8 G5212K Manifold Cover 33 R1123A Manifold-72

9 G5060K Side Trim, Left 34 G5163K Front Trim-72

10 G5061K Side Trim, Right 35 G5167K Back Trim-72

11 G5205K Rating/Instruction Plate Mount 36 G5043K Top Grate Support, 22 1/2" /3

12 U1044X Bakers Pride Name Plate, 8" 37 G5159K Outer Back-LCB72

13 G5039K Bottom Grate Support, L or R Side 38 G5056K Outer Side, Left-LCB

14 T1047X Glo-Stones, 1/2 Lot (20#) 39 G5057K Outer Side, Right-LCB

15 T1048X Glo-Stones, Full Lot (40#) 40 G5179K Drip Pan, 28 1/2" /1

16 T1197X Top Roll-A-Grate, 9" (Standard) /1 41 G5068K Drip Pan, 32 1/2" /1

17 T1198X Top Roll-A-Grate, 6" (Standard) /10 42 S1014Y Legs, 4" (Optional) each

18 T1212A Top Grate, 6", Cast Iron (Optional) 43 S1014X Legs, 4" (Optional) Set/4

19 T1216A Top Grate, 4 1/2", Cast Iron (Optional) 44 G5136K Work Deck-72

20 T1210X Meat Grate, 6" (Optional) 45 G5125U Front Brace Assy-72

21 T1211X Meat Grate, 9" (Optional) 46 G5284K Work Deck-72, 10"

22 T1213T Fajita Top Grate (Optional) 47 G5285U Front Brace Assy-72, 10"

23 T1214T Fajita Bottom Grate (Optional) 48 G5314K Work Deck-72, 12"

24 T1205A Bottom Grate, S/S, 34" /2 49 G5315U Front Brace Assy-72, 12"

25 G5040U Bottom Grate Support /11 50 T1209U Breakfast Griddle, 11"W (Optional)

20 19

18 17

LCB-72R/GS

Gas Char Broiler

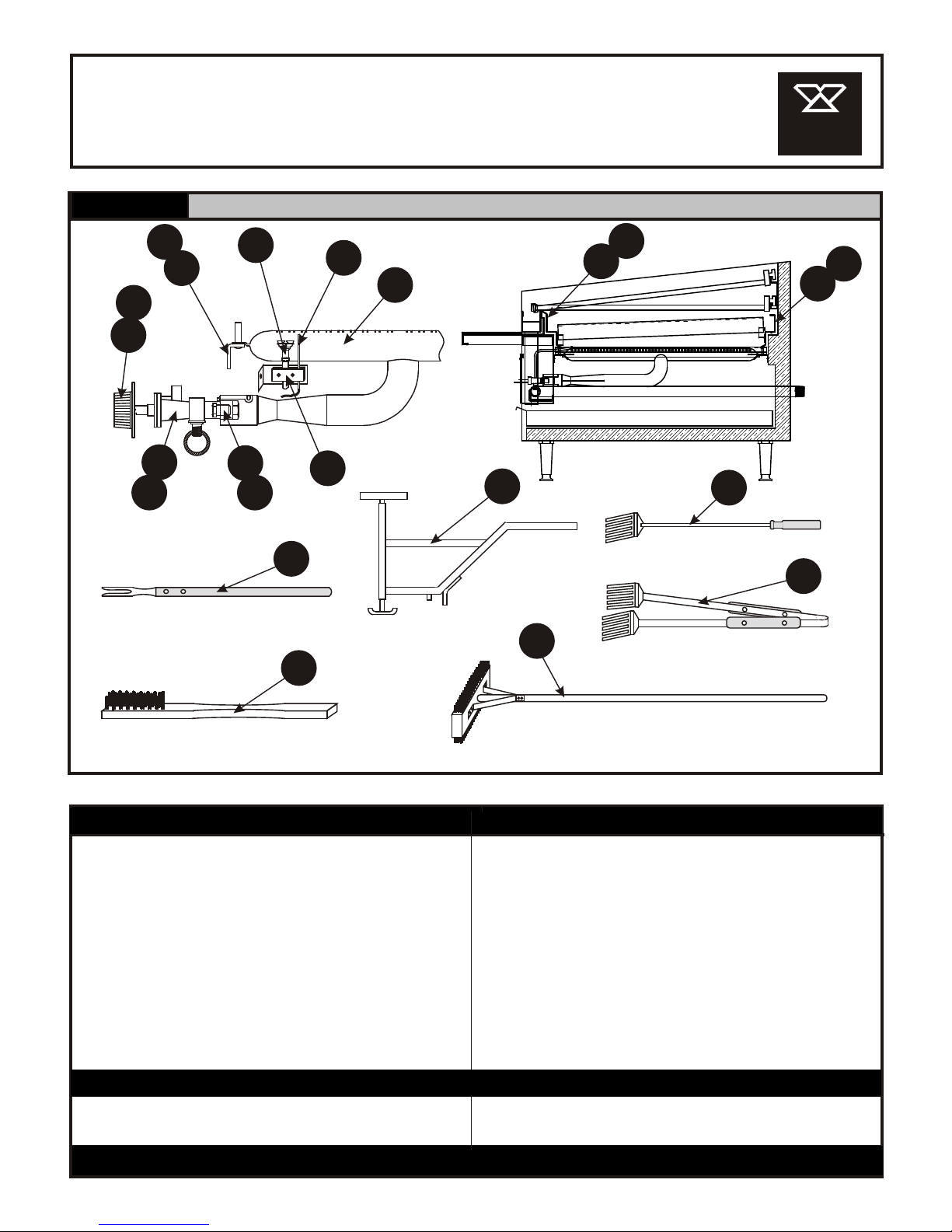

Figure C

Burner / Accessories / Supports

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00

Item Part # Description

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

910

Conversion Kit (LP to Nat) Conversion Kit (Nat to LP)

20 21

1 R3136X Hood Orifice #54 (LP) 12 G5029U Burner Support Assy, 23" /4

2 R3130X Hood Orifice #44 (Nat) 13 G5044U Radiant Support Assy, Rear 18" /3

3 L5077X Burner, Center Feed 14 G5046U Radiant Support Assy, Front 18" /3

4 R3032X Gas Valve 15 G5045U Radiant Support Assy, Rear 12" /1

5 S1094X Knob, Gas Valve 16 G5047U Radiant Support Assy, Front 12" /1

6 R3128X Gas Valve (used w/Pilot Safety) 17 T5018V Spatula, Chef-Aide, 20" Single

7 S1301X Knob, Gas Valve, CE (used w/Pilot Safety) 18 T5017X Wire Brush, Chef-Aide, 18"

8 G5064K Pilot Bracket (used w/Pilot Safety) 19 G5221U Grate Lifter

9 M1359X Pilot Burner (used w/Pilot Safety) 20 T5016A Meat Fork

10 M1358X Thermocouple, 10" (used w/Pilot Safety) 21 T5019V Steak Turner

11 G5028U Burner Support Assy, 17" /2 22 T5104V Twin Head Grate Brush

11 R3130X Hood Orifice #44 (Nat) 11 R3136X Hood Orifice #54 (LP)

1 M1418A Pressure Regulator 1", 3.5"WC (Nat) 1 M1067X Pressure Regulator 1", 10"WC (LP)

16 15

14 13

1211 10
