Bakers Pride Dante FLB-24GS Manuale utente
6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 1 of 4
FLB-24R/GS
Gas Char Broiler
PARTS LIST
Serial Number Natural L.P. Other
Model Number: FLB-24R/GS Type of Gas
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
Dante
SERIES
(FLB-72 Shown)
4
21
GB (w/Standard Valves) RB (w/Standard Valves)
GB (w/Opt. Auto. Safety Valves) RB (w/Opt. Auto. Safety Valves)
RATING
PLATE
(FLB-60 Shown)
FLB-24R/GS
Gas Char Broiler
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address BAKERS
PRIDE

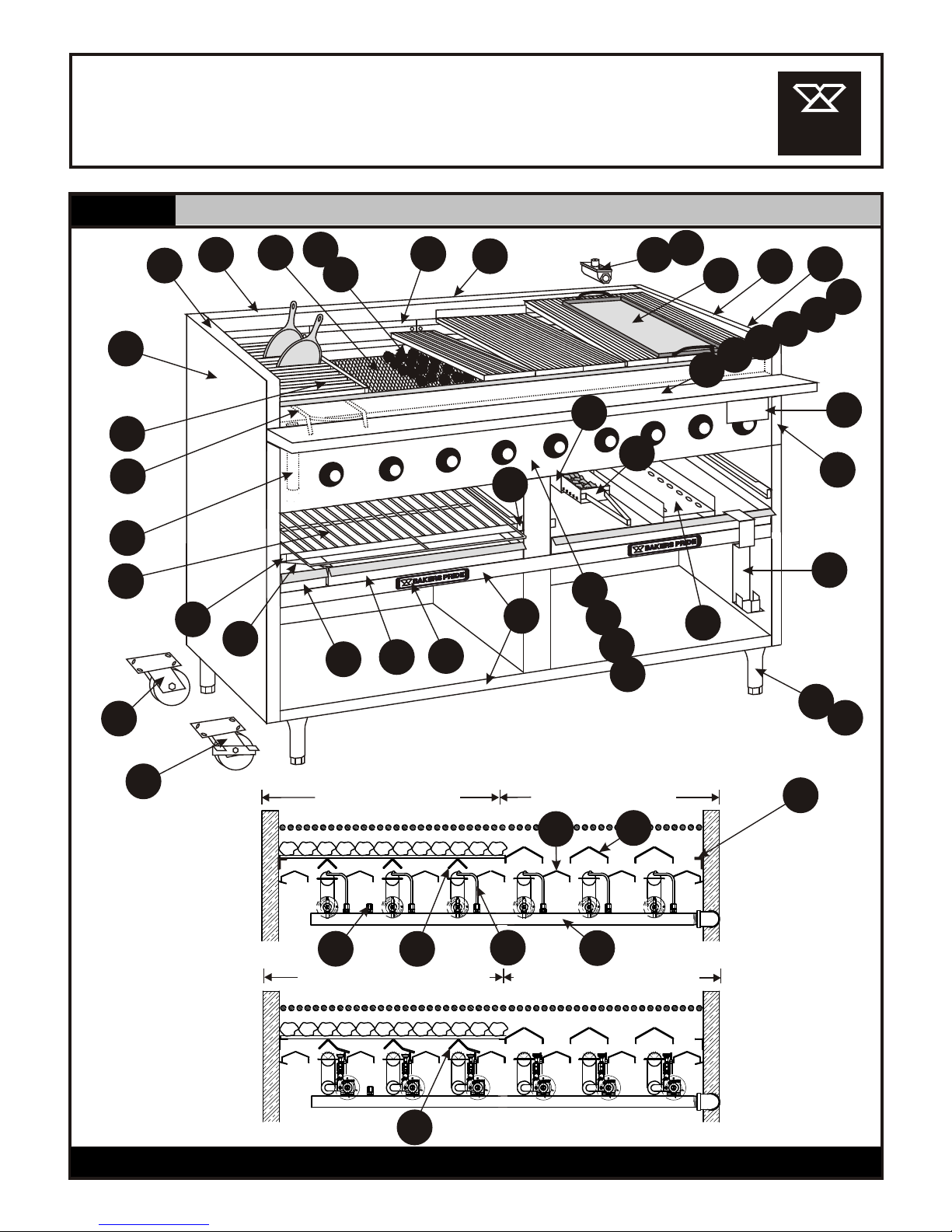

Figure A Exterior / Interior
Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00
3
5
6
7
8
910
11
12
13
14
15
22
23
24
25
26
27 28
29
30
31
32
33
34
35 36 37
38
39
40
41 42
43
44
45 46 47 48 49 50
51
52
53
54
55
56
57
58
1514
13
12
11
10
9
8
7
6
54
3
21
40
39
38
37
36
35
34
33
32
31
30
29
28
26
25
24
23
22
58
57
56
55
54
53
52
51 50
49
48
47
46
45
44
43 42
41
27
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
Exterior / Interior
6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 3 of 4
Item Part # Description Item Part # Description
FLB-24R/GS
Gas Char Broiler

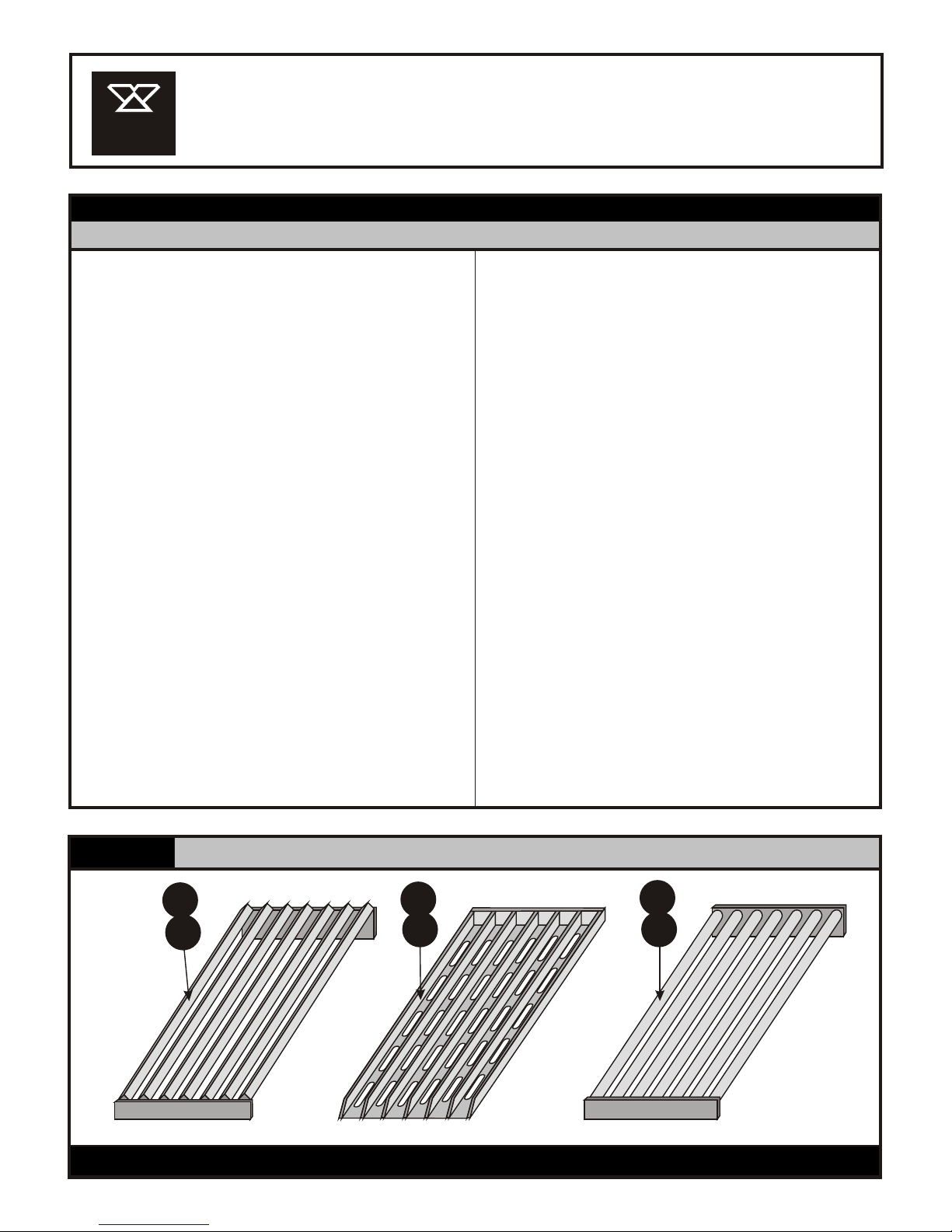

Figure B Grates
16
17
18
19
20
21
1 R3042X Pilot Tube, 5" w/Nut & Ferrule 30 G5066K Control Panel, CE-24
2 N3068P Pressure Tap Nozzle 31 U1320A Control Panel Overlay-24
3 G5073X Radiant S/S (Standard) 32 U1325A Control Panel Overlay, CE-24
4 G5069K Grease Drawer 33 R1119A Manifold-24
5 G5070U Grease Shield Assy 34 G5058K Front Trim-24
6 G5072K Heat Shield 35 G5059K Back Trim-24
7 G5032U Grease Drain Assy-24 36 G5042X Top Grate Support, 20 1/2" /1
8 G5212K Manifold Cover 37 G5049K Outer Back-FLB 24
9 G5060K Side Trim, Left 38 G5052K Outer Side, Left-FLB
10 G5061K Side Trim, Right 39 G5053K Outer Side, Right-FLB
11 G5205K Rating/Instruction Plate Mount 40 G5067K Drip Pan, 16 1/2" /1
12 U1044X Bakers Pride Name Plate, 8" 41 S1049A Legs, 6" (Standard) each
13 G5039K Bottom Grate Support, L or R Side 42 S1049Y Legs, 6" (Standard) Set/4
14 T1047X Glo-Stones, 1/2 Lot (20#) 43 S1022X Casters, 4" No/Lock (Optional) each
15 T1048X Glo-Stones, Full Lot (40#) 44 S1023X Casters, 4" W/Lock (Optional) each
16 T1197X Top Roll-A-Grate, 9" (Standard) /1 45 G5035K Work Deck-24
17 T1198X Top Roll-A-Grate, 6" (Standard) /2 46 G5031U Front Brace Assy-24
18 T1212A Top Grate, 6", Cast Iron (Optional) 47 G5286K Work Deck-24, 10"
19 T1216A Top Grate, 4 1/2", Cast Iron (Optional) 48 G5289U Front Brace Assy-24, 10"
20 T1210X Meat Grate, 6" (Optional) 49 G5306K Work Deck-24, 12"
21 T1211X Meat Grate, 9" (Optional) 50 G5307K Front Brace Assy-24, 12"
22 T1213T Fajita Top Grate (Optional) 51 T1209U Breakfast Griddle, 11"W (Optional)
23 T1214T Fajita Bottom Grate (Optional) 52 T1206U Wire Rack Assy, 21" /1
24 T1201A Bottom Grate, S/S, 20" /1 53 G5131U Left Wire Rack Guide Assy
25 G5040U Bottom Grate Support /3 54 G5132U Right Wire Rack Guide Assy
26 G5041U Bottom Grate Support (CE) /3 55 G5180U Smoker Box Assy (No Drawer)
27 M1009X Pressure Regulator 3/4",10"WC (LP) 56 G5187U Drawer, Smoker Box
28 M1184X Pressure Regulator 3/4",3.5"WC(Nat) 57 G5182U Log Support (Optional)
29 G5065K Control Panel-24 58 G5186K Bottle Holder, RH (Optional)
21
20 19
18 17
16
FLB-24R/GS
Gas Char Broiler

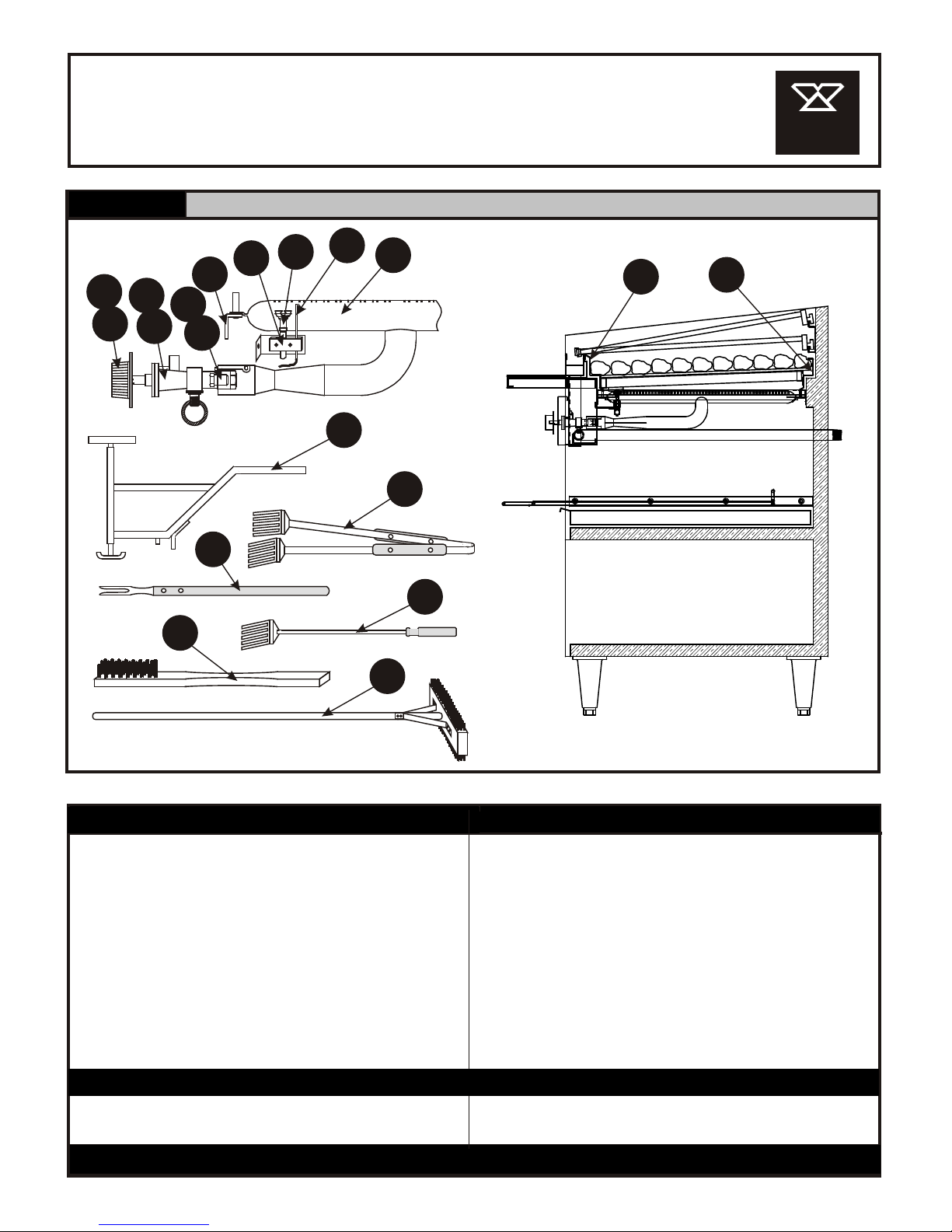

Figure C
Burner / Accessories / Supports
Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00
Item Part # Description
Item Part # Description
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address BAKERS
PRIDE
1
2
3
4
6
5
7
8910
11 12
Conversion Kit (LP to Nat) Conversion Kit (Nat to LP)
13
14
15
16
17
18
19
3 R3130X Hood Orifice #44 (Nat) 3 R3136X Hood Orifice #54 (LP)
1 M1184X Pressure Regulator 3/4", 3.5"WC (Nat) 1 M1009X Pressure Regulator 3/4", 10"WC (LP)
1 R3136X Hood Orifice #54 (LP) 11 G5028U Burner Support Assy, 17" /2
2 R3130X Hood Orifice #44 (Nat) 12 G5044U Radiant Support Assy, Rear 18"/3
3 L5077X Burner, Center Feed 13 G5046U Radiant Support Assy, Front 18" /1
4 R3032X Gas Valve 14 T5018V Spatula, Chef-Aide, 20" Single
5 S1094X Knob, Gas Valve 15 T5017X Wire Brush, Chef-Aide, 18"
6 R3128X Gas Valve (used w/Pilot Safety) 16 G5221U Grate Lifter
7 S1301X Knob, Gas Valve, CE (used w/Pilot Safety) 17 T5016A Meat Fork
8 G5064K Pilot Bracket (used w/Pilot Safety) 18 T5019V Steak Turner
9 M1359X Pilot Burner (used w/Pilot Safety) 19 T5104V Twin Head Grate Brush
10 M1358X Thermocouple, 10" (used w/Pilot Safety)
12
13
19
15 14
17
18
16
7
5641
211 8910 3
