Bakers Pride APC-18 Manuale utente

7/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 1 of 4

Electric Conveyor Oven

PARTS LIST

Serial Number

Model Number

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Voltage

Cycles

120/240V

120/208V

50hz 60hz

230/400V

APC-18

APC-18 Phase

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/00

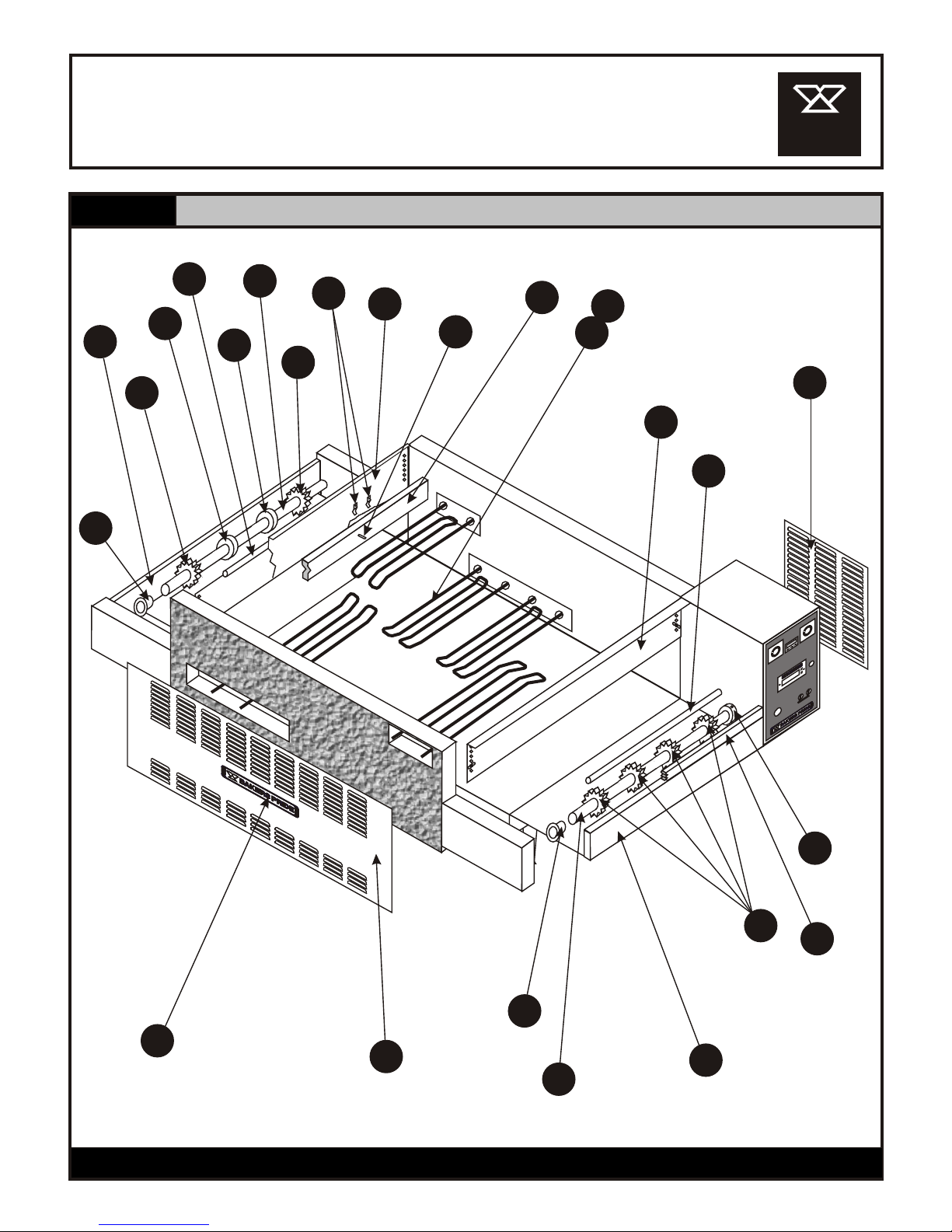

Figure A FRONT VIEW

APC-18

Electric Conveyor Oven

LIGHT DARK

3456

LIGHT DARK

3456

MICRO-DRIVE

12:30

TOP HEAT TEMPERATURE BOTTOM HEAT

CONTROL

POWER

CONVEYOR

RESET

COOK TIME

17 17

25 25

19 39 431

26 24

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

7/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 3 of 4

Item Part # Description Item Part # Description

Figure B REAR VIEW

APC-18

Electric Conveyor Oven

689

13 14 15

34 35

40 41

1 B5032K Control Box Cover 22 S3194X Bushing, Duronze w/Flats (4)

2 B5036X Cover, Front & Rear (2) 23 L1121X Element, 208V/2KW (5)

3 B5037K Heat Shield, Receiving End 24 L1123X Element, 230V/2KW (5)

4 B5038K Heat Shield, Loading End 25 S3181X Idler Disk (2)

5 B5039K Outer Side Panel (2) 26 B3050K Element Support (Sensor Mount)

6 M1136X Motor Pick Up, Hall Effect 27 B5001T Loading Tray (Optional)

7 B5053X Tie Rod, 3/8" x 21 1/2" (2) 28 B5002T Receiving Tray (Optional)

8 M1131X Motor, 90VDC 29 B5079T Product Stop

9 M1252X Brush, Motor 30 U1043X Name Plate, Bakers Pride

10 S3178X Conveyor Belt, 18" 31 M1164X Thermocouple, "J" Type (Temp. Sensor)

11 S3124A Connecting Link, Conveyor Belt 32 M1181X Phase Control, 230V/20A

12 S3148X Chain, #25, 1/4" Pitch (Drive) 33 M1191X Phase Control, 380-440V

13 S3149A Master Link, #25 34 M1208X Fan, Large Axial, 208V

14 S1014Y Leg, 4" Adjustable (each) 35 M1193X Fan, Large Axial, 115V

15 S1014X Leg, 4" Adjustable (set/4) 36 M1228X Mercury Relay, 2 Pole, 208/240, 30A

16 S3179X Sprocket, 1/2" Bore (On Motor) 37 M1205X Mercury Relay, 3 Pole, 208V O/S

17 S3180X Sprocket, 3/4" Bore (6) 38 P1068X 5 Pole Terminal Block

18 S3146X Sprocket, 3/4" Bore (Drive Shaft) 39 P1105A Wire Clip, 1/8" Victor

19 B3069T Shaft, Idler 3/4" 40 B5055U Crumb Tray Assy., Rear

20 B3070T Shaft, Drive 3/4" 41 B5056U Crumb Tray Assy., Front

21 S3152X Shaft Collar

3332

36 6

13 14 15

Figure C

CONTROL PANEL

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/00

Item Part # Description

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

APC-18

Electric Conveyor Oven

LIGHT DARK

3456

LIGHT DARK

3456

MICRO-DRIVE

TOP HEAT TEMPERATURE BOTTOM HEAT

CONTROL

POWER

CONVEYOR

RESET

COOK TIME

475

12:30

OFF OFF

10 12

1 B5040X Control Panel 8 M1143X Speed/Time Control, 115V

2 M1180X Potentiometer, Clarostat 9 M1230X Speed/Time Control, 240V

3 M1133X Circuit Breaker (Conveyor Reset) 10 M1229X Circuit Breaker, 4 Pole, 30A

4 M1239X Temperature Controller, CAL3200, "F" 11 M1219X Circuit Breaker, 3 Pole, 380/415-20A

5 M1240X Temperature Controller, CAL3200, "C" 12 M1198X Circuit Breaker, 2 Pole, 40A

6 P1127X Pilot Light, Amber 13 S1205X Knob, Control

7 U1174X Overlay, Conveyor

11 12

213
