Bakers Pride BK-18 Manuale utente

7/01 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 1 of 4

P18S / BK18

Electric Countertop Oven

PARTS LIST

Serial Number: 115V 200V 208-240V

Model Number: P18S BK18 Voltage (Single Phase Only)

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

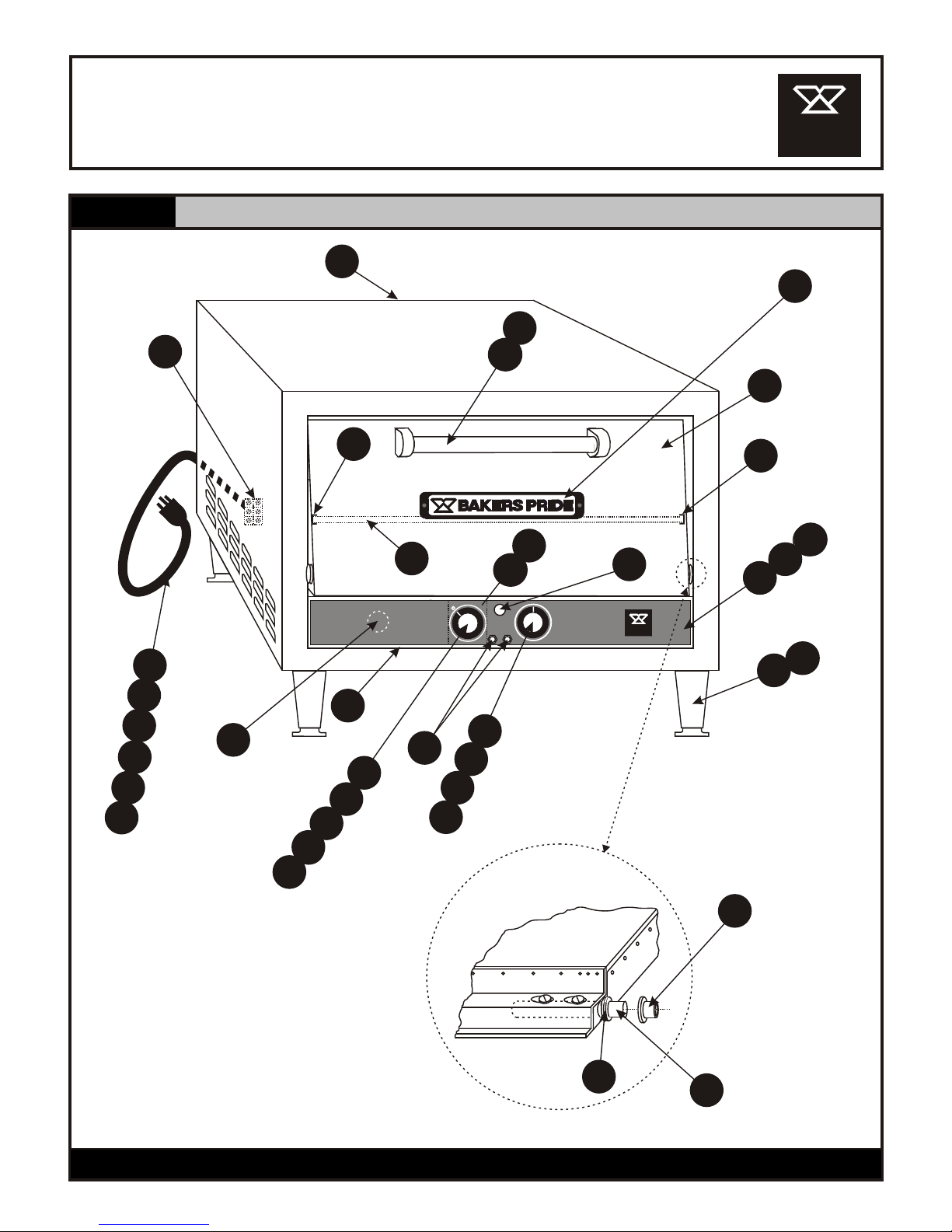

Figure A Exterior / Door / Controls (Rotary Timers)

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/01

300

450

650

300

450

650

BAKERSBAKERS

PRIDEPRIDE

BAKERSBAKERS

PRIDEPRIDE

300

450

650

20 21 22

P18S / BK18

Electric Countertop Oven

11 10

87654

4321

23 22

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

7/01 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 3 of 4

Item Part # Description Item Part # Description

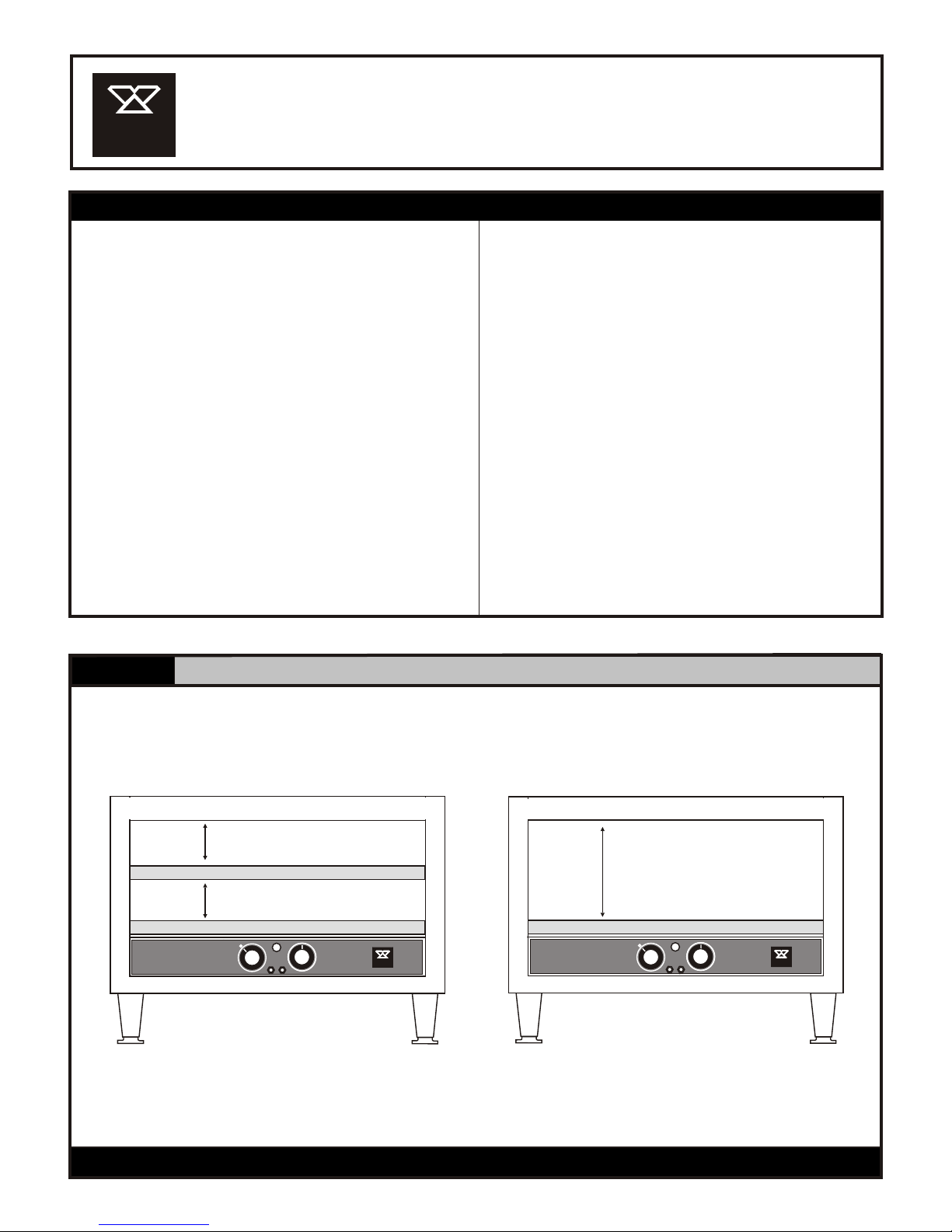

Figure B DECK ARRANGEMENT BY MODEL

P18S BK18

PIZZA

3 1/4”

BAKERSBAKERS

PRIDEPRIDE

300

450

650

BAKE

7 1/2”

BAKERSBAKERS

PRIDEPRIDE

300

450

650

1 M1098X Thermostat w/Knob, EGO (Standard) P-18 20 U1302X Control Panel Overlay,EGO (P-18)

2 M1192X Thermostat w/Knob, EGO (High Heat) P-18 21 U1307A Control Panel Overlay,EGO Hi-Heat (P-18)

3 M1110X Thermostat w/Knob, KA-72, 550deg (BK-18) 22 U1314A Control Panel Overlay (BK-18)

4 S1311X Knob (Thermostat & Timer) 23 U1297A 18 Minute Timer Overlay(50 cycles)

5 M1332X Timer, Rotary-Elec, 60 Min, 120V (BK-18) 24 U1296A 72 Minute Timer Overlay(50 cycles)

6 M1346X Timer, Rotary-Elec, 60 Min, 220V (BK-18) 25 S3019X Bushing, Door

7 M1331X Timer, Rotary-Elec, 15 Min, 120V (P-18) 26 D3106X Door Assy w/Handle

8 M1345X Timer, Rotary-Elec, 15 Min, 220V (P-18) 27 S3001X Door Rod

9 D3157K Control Panel 28 Q3021X Door Rod Spacer Kit (1 Kit per Door)

10 M1330A Circuit Breaker, 3Amp 29 D3105K Outer Back

11 M1335X Audio Alarm 30 S1316U Door Handle Assy, 10"

12 P1127X Pilot Light, Amber 31 Q2041A Screw, 1/4-20 x 1/2 Rd Hd (Door Handle)

13 P1089A Terminal Block, 3 Pole 32 U1044X Bakers Pride Nameplate, 8"

14 P6004X Line Cord 125V/15A (US) P & BK 33 S1014X 4" Adjustable Leg (Set/4)

15 P6005X Line Cord 250V/15A (US & Japan) P & BK 34 S1014Y 4" Adjustable Leg (each)

16 P6383X Line Cord 125V/20A (Canada) 35 T3150A Intermediate Wire Rack (Option, BK18)

17 P6009X Line Cord 250V/20A (Canada) 36 D3162U Wire Rack Support Assy, Left (Option)

18 P6006X Line Cord, 230V/16A "C" Type (CE) 37 D3163U Wire Rack Support Assy, Right (Option)

19 P6343X Line Cord, 230V/13A (UK)

P18S / BK18

Electric Countertop Oven

Figure C

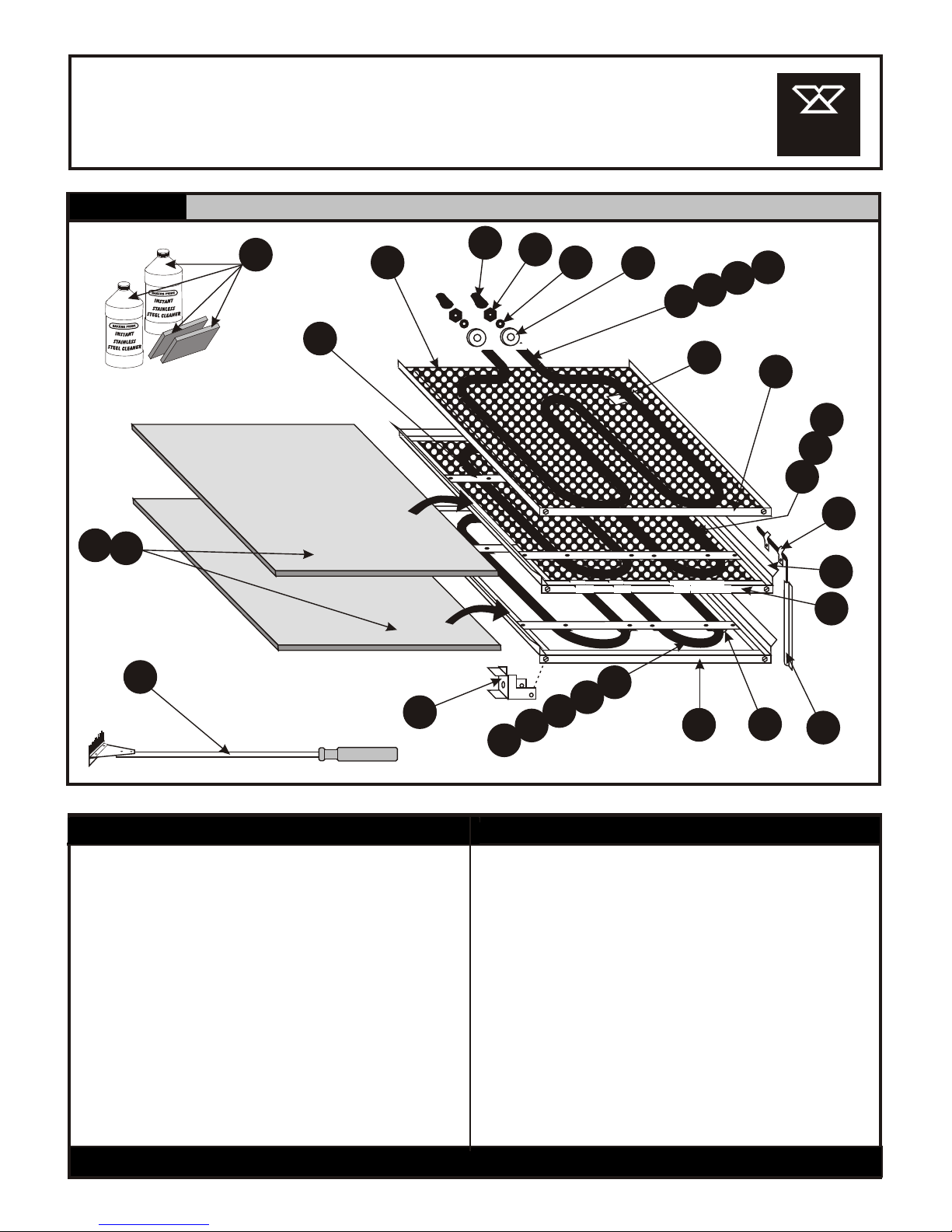

Interior Components & Accessories

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/01

Item Part # Description

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

1 L1024X Element 115V/600W (US/Can) P-18, T,C & B 13 K1355X Baffle & Top Elem. Clips (5) BK

2 L1171X Element 115V/850W (US/Can) BK-18, T & B 14 P1042A Element Clip, 5/16", Center & Bottom

3 L1025X Element 208-240V/850W (US/Can/CE)P Top, BK T&B 15 T1120Y Ceramic Deck, 17 1/2 x 17 3/4 x 1/2 (each)

4 L1026X Element208-240V/1KW (US/Can/CE) P-18 C & B 16 T1120X Ceramic Deck, 17 1/2 x 17 3/4 x 1/2 (set/2)

5 L1112X Element 200V/850W (Japan) P-18 Top 17 D3140Z Fresh Dough Baffle

6 L1113X Element 200V/1000W (Japan) P-18 C & B 18 D3152T Hearth Frame Assy

7 T5118X StainlessSteel Cleaner (2 16oz Bottles w/pads) 19 D4039K Deck Support

8 T5107Y Deck Scraper Brush 20 D3151K Element Support

9 P1019X Porcelain Spacer 21 D3131K Baffle Trim

10 Q3016A Washer, Star, #6 22 D3142K Deck Trim

11 Q1002A Nut, 6-32 23 D1134K Capillary Cover

12 S1061X 6-32 Terminal Cap 24 Q4021X Clip 3/16", Temp Sensor (2)

P18S / BK18

Electric Countertop Oven

16 15

12 11 10 9
