Bandspeed AirMaestro 3100AG Access Point
User’s Guide
- 2 -
SAFETY AND REGULATORY NOTICES
FCC STATEMENT
The Bandspeed AirMaestro 3100AG Access Point has been tested and found to
comply with the specifications for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference
that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used according to the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which is found by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna;
•Increase the separation between the equipment or devices;
•Connect the equipment to an outlet other than the receiver's;
•Consult a dealer or an experienced radio/TV technician for assistance;
FCC Caution: Any change or modification to the product not expressly approved
by Bandspeed could void the user's authority to operate the device.
FCC Caution: Operation within the 5150 to 5250GHz band is restricted to indoor
use only.
FCC RF Radiation Exposure Statement: To comply with the FCC and ANSI
C95.1 RF exposure limits, the antenna(s) for this device must comply with the
following:
•Access points with 2.4 GHz or 5 GHz integrated antenna must operate
with a separation distance of at least 20 cm from all persons using the
cable provided and must not be co-located or operating in conjunction with
any other antenna or transmitter.
•End-users must be provided with specific operations for satisfying RF
exposure compliance.
- 3 -
Note: Dual antennas used for diversity operation are not considered co-located.
Canadian Department of Communications Industry Canada (IC) Notice:
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 et
CNR-210 du Canada.
"To prevent radio interference to the licensed service, this device is intended to
be operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing."
" Pour empêcher que cet appareil cause du brouillage au service faisant l'objet
d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres
afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne
d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence. "
- 4 -
Important Factory Defaults
Here are the factory defaults that you may need to get your AirMaestro 3100AG AP up
and running on your local network. The defaults were chosen to provide quick initial
access to the system and you will likely want to change some of them.
Bandspeed recommends that you change your admin/root password immediately and that
you configure some level of security. These Quick Start topics will be covered in later
sections.
IP address DHCP (need a DHCP server on Ethernet
network)
admin/root password Bandspeed
SSID Bandspeed
Frequency band 802.11b/g 2.4GHz on WIF 1, 802.11a
5.0GHz on WIF 3, background monitoring
on WIF 2.
Channels Automatic Intelligent Channel Selection
Security None
Serial Port 115,200 baud, 8 data bits, no parity bits, 1
stop bit, no flow-control, null-modem cable
- 5 -
Configuring AirMaestro 3100AG IP Address Over
Ethernet
The AirMaestro 3100AG is configured with DHCP-assigned IP address at the factory
(see Important Factory Defaults). You can access the AirMaestro 3100AG’s
configuration web page by creating an isolated network with a personal computer, a
DHCP server, an Ethernet switch (or hub) and the AirMaestro 3100AG in one of the
configurations shown using a standard CAT-5 cable with RJ-45 connectors.
To determine the IP address of the AirMaestro 3100AG, run the Bandspeed Management
Console application and it will display details information about AirMaestro 3100AG
systems.
Figure 1: Possible Ways to Configure AirMaestro 3100AG’s IP Address over
Ethernet
- 6 -
- 7 -
Launch your personal computer’s web browser, enter the IP address (see Important
Factory Defaults) in the "Address" field and press <Enter>.
When prompted for user name and password, enter “admin” as the user name and the
factory default password (see Important Factory Defaults) as the password. You will see
the AirMaestro 3100AG configuration home page (below).
- 8 -
Select Configure at the main menu and the configuration page will appear (below).
- 9 -
Select TCP/IP from the configuration bullet-list and the TCP/IP configuration page will
appear (below).
If you use a DHCP server on your network to assign IP addresses and you want the
AirMaestro 3100AG to obtain its IP address from the DHCP server, select “Obtain an IP
address automatically (DHCP client)”, then press [Apply].
You will need to save this configuration change to make it persist across power-cycles, as
shown below. Select Commands from the main menu and the Commands menu will
appear.
- 10 -

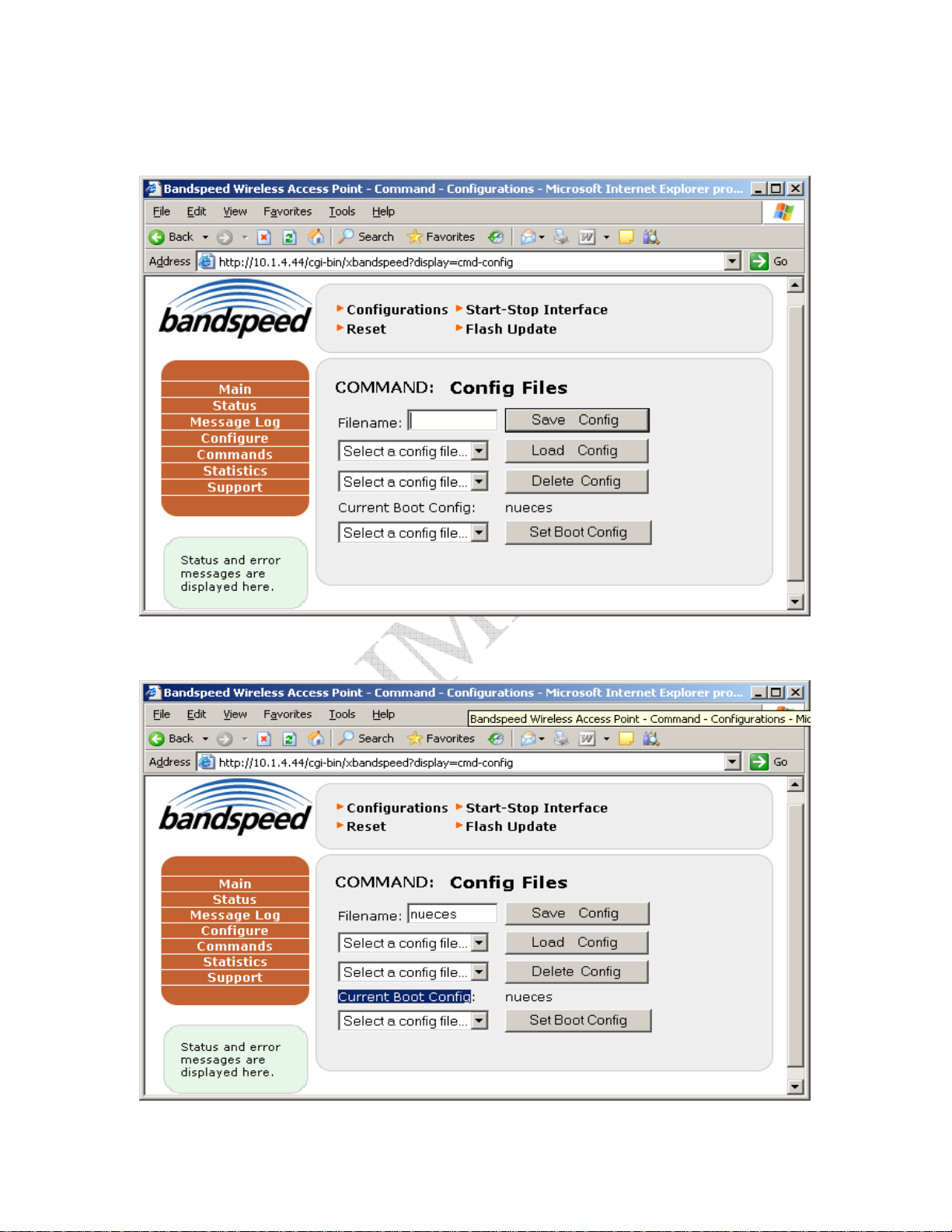

The configuration change should be saved to the Current Boot Config (nueces in this
case).
Enter nueces in the Filename text field and press [Save Config].
