Banner Vision Sensor P4 GEO 1.3 Manuale utente

P4 GEO 1.3

Vision Sensor

• Compact self-contained vision

sensor for high-performance

inspections – no external

controller necessary

• High-resolution sensing

(1280 x 1024) 1.3 mega pixel

resolution – large field of

view pattern matching up to

300 parts per minute

• Two housing options and

multiple mounting brackets

for easy installation

• Convenient, 12-pin digital

I/O terminal block for

ensuring smooth integration

into the customer’s

machine control system

• Easy location of inspection

details regardless of

product rotation; quick

set-up

• Simple, remote TEACH

capability for quick

reconfiguration (product

change)

• Separate video output allows

direct connection to optional

real-time video display

without the need for a PC

E-A043 07/05

High-resolution inspection

at 1.3 mega pixel resolution!

E-A043

07/05

Banner Engineering offers the industry a highly

complete and integrated line of photoelectric

sensors, ultrasonic sensors, machine safety

products, measurement & inspection products

and vision sensors.

Banner Engineering is a US based company

with subsidiaries around the world for global

sales and support.

Banner Engineering Europe

Park Lane, Culliganlaan 2F

1831 Diegem • Belgium

Phone: +32 2 456 07 80

Fax: +32 2 456 07 89

e-mail: mail@bannereurope.com

www.bannereurope.com

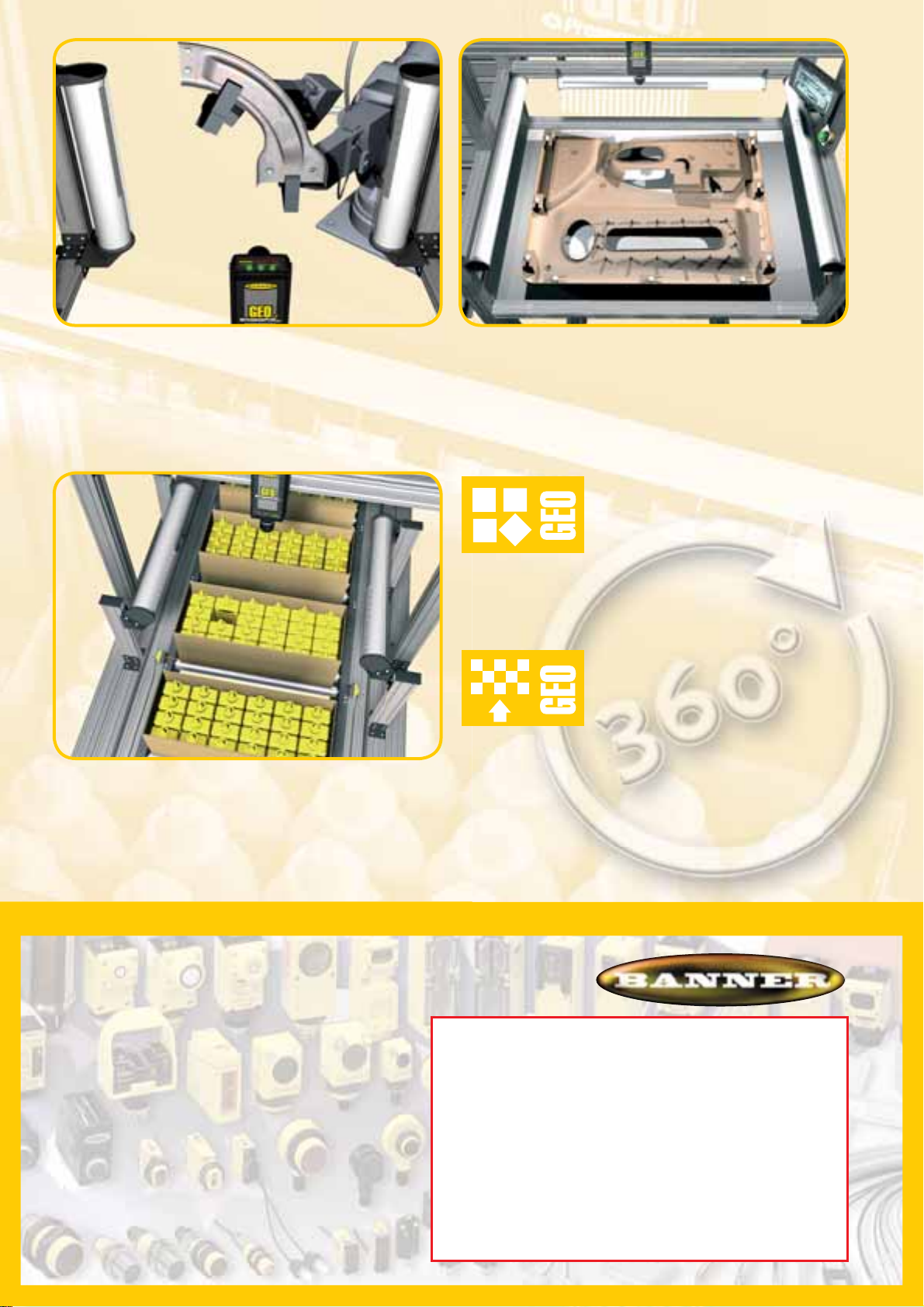

▲Weld Nuts

The PresencePLUS P4 GEO 1.3 inspects the

presence and correct placement of multiple weld

nuts on car body panels. A Geometric Find tool

compensates for positional variation.

Powerful GEO Find locating tool

and GEO Count inspecting tool

that recognize patterns in any

orientation – up to a full 360º.

▲Interior Door Pane

The PresencePLUS P4 GEO 1.3 inspects for

complete assembly of interior vehicle door panels.

Multiple Geometric Count tools verify the position

and the orientation of different sub assemblies.

▲Complete Case Inspection

The PresencePLUS P4 GEO 1.3 verifies the correct

assembly of product bottles in a case. The Find

Locating tool and Count Inspecting tool recognise

patterns in any orientation up to 360º.

GEO Find

locating

tool

GEO Count

inspecting

tool
