Baratza Esatto Manuale utente

Operations Manual

Grind by Weight Accessory

™

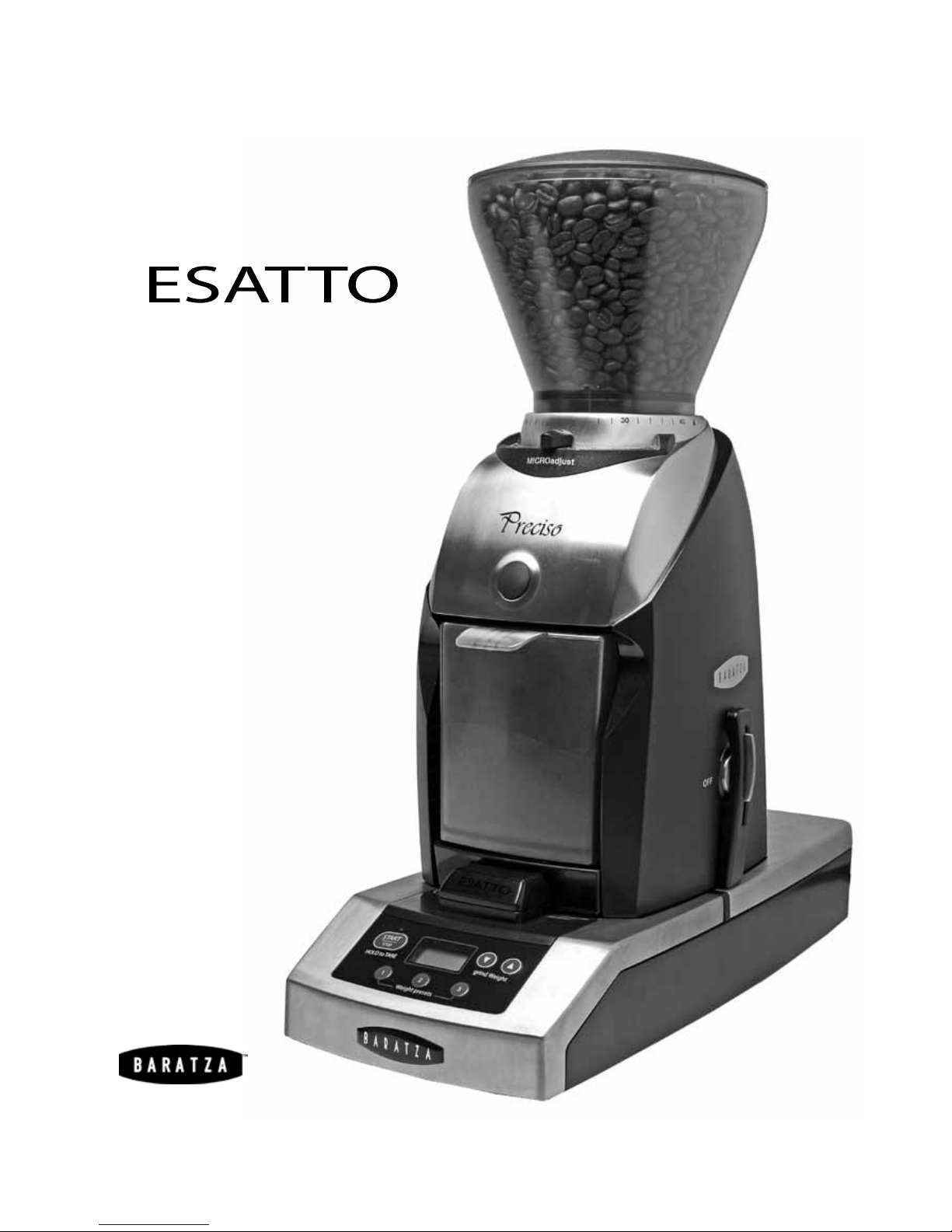

ESATTOTM shown with

PrecisoTM Grinder

Operations manuals are available in the following languages at

www.baratza.com

English.pdf

Spanish.pdf

French.pdf

Introduction

The Baratza ESATTOTM is an accessory that is designed specically for

use with your Baratza Maestro PlusTM, VirtuosoTM or PrecisoTM. This inno-

vative addition to your grinder will allow you to grind precise dosages of

coffee using real-time weight-based control. With its easy assembly and

simple operation, you will be automatically dosing ground coffee to within

+ / - 0.1 gram repeatedly.

Table of Contents

Introduction ..........................................................................................

Overview and Controls ........................................................................

Safety Information....... ........................................................................

Assembly .............................................................................................

Operations and Programming .............................................................

Care and Cleaning ..............................................................................

Warranty and Service ...........................................................................

Grind by Weight Accessory

™

Parts Identication

Timer Knob

Retainer

Increase / Decrease

Weight / grams

Removable

Rear Casting

Grounds Bin

Weight Platform

Start / Stop / Tare Button

Weight Readout

Window

Weight Preset

Buttons (3)

™

Safety Information

Important Information

Please read the information be-

low very carefully. It contains

important tips for the use, safety,

maintenance and care of this ap-

pliance. Please keep these oper-

ating instructions for future refer-

ence.

Your new ESATTOTM is rated for ei-

ther 120 VAC or 230 VAC. Please

conrm the voltage of your ESAT-

TOTM on the nameplate attached

to the bottom of the unit. The 120

VAC ESATTOTM can be used from

100 to 130 VAC and the 230 VAC

ESATTOTM can be used from 200

to 240 VAC. Please insure your

supply voltage range matches the

nameplate voltage on your ESAT-

TOTM. Only clean the ESATTOTM

housing with a dry or slightly damp

cloth. Do not use this unit for any-

thing other than its intended use.

If you cannot remedy a malfunc-

tion, please visit the web at www.

baratza.com for assistance. Re-

pairs are to be performed only by

authorized service centers. An

improperly repaired ESATTOTM is

a source of risk to the user and

voids the warranty. Baratza will not

accept any liability for damage or

injury if the ESATTOTM is used other

than for its intended purpose or is

improperly operated or repaired. All

warranty claims will be void.

For Your Safety

Do not operate the ESATTOTM with a

damaged cord or plug, or if the ESAT-

TOTM malfunctions. Do not leave your

ESATTOTM unattended while turned

ON.

Caution

Unplug the ESATTOTM from the elec-

trical outlet before cleaning.

To unplug, grasp plug and remove

from the outlet - never pull on cord.

Keep your ESATTOTM out of the reach

of children. Do not immerse the

ESATTOTM, plug or cord in water or

any other liquid.

Assembly

1. Remove the grounds bin from

the unit and set aside.

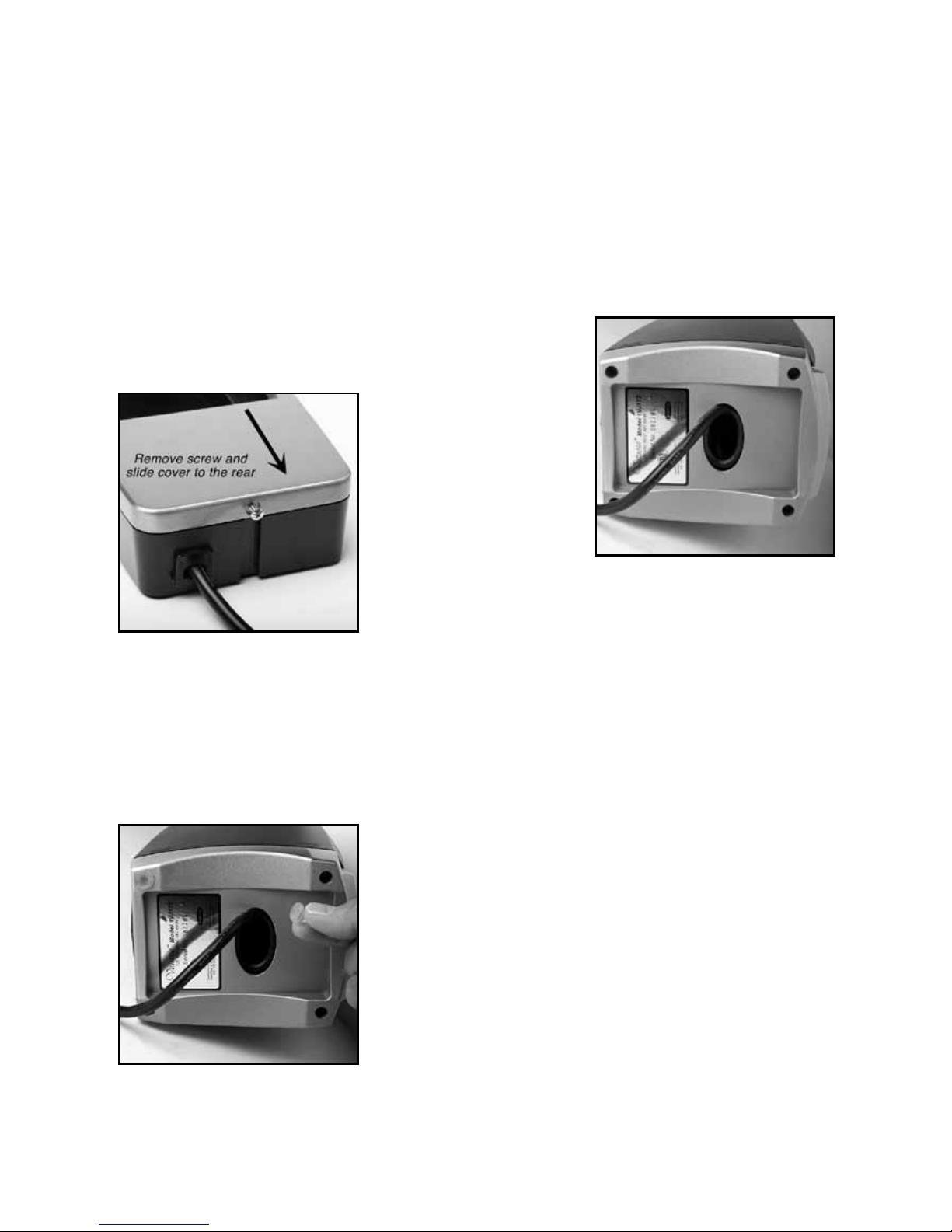

2. Remove the single Phillips

head screw from the center rear of

the rear metal casting cover and

slide the rear casting rearward

1cm to remove it. (see photo #1).

3. You must remove the rub-

ber feet from the bottom of the

grinder. Use a pair of side cut-

ters or a butter knife to pry the feet

out. (See photo #2).

4. Coil as much of the cord into

the hole in the bottom of the

grinder, about 1/3 will t.

(see photo #3).

Photo #1

Photo #2

Photo #3

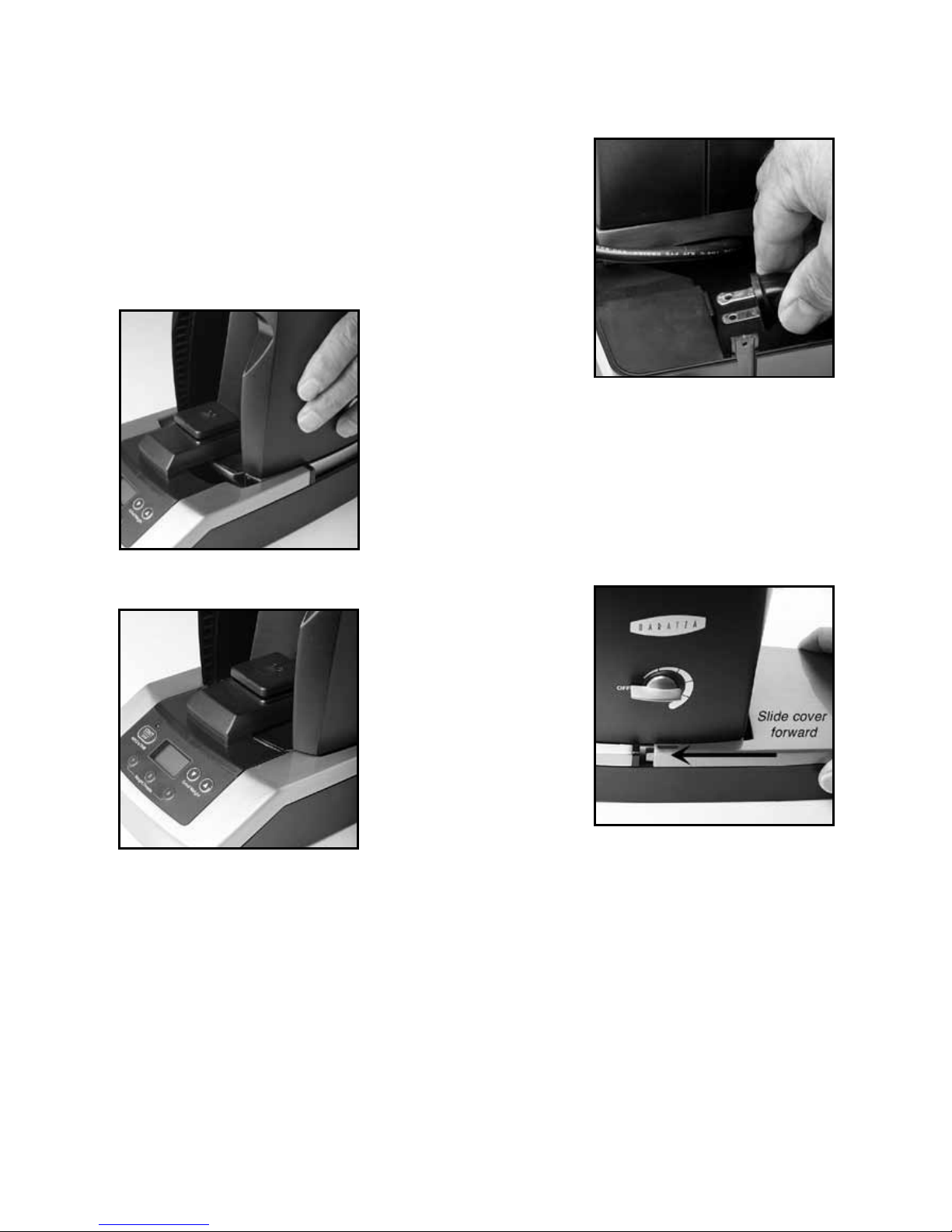

5. Remove the grounds bin from

the grinder and slide the grinder

carefully into the ESATTOTM from

the rear going forward until the

grinder ts tightly against the front

casting. (See photos #4 & #5).

6. Once the grinder is in place,

plug the grinder cord into the AC

receptacle inside the base of the

ESATTOTM , and coil the remain-

ing cord in the space under and

behind the grinder.

(see photo #6).

7. Slide the cast metal cover into

place from the rear, taking care

to see that the front “ngers” lock

into correct position.

(see photo #7).

8. Insert the Phillips screw into

the rear of the casting to secure

the casting in place.

Photo #4

Photo #5

Photo #6

Photo #7

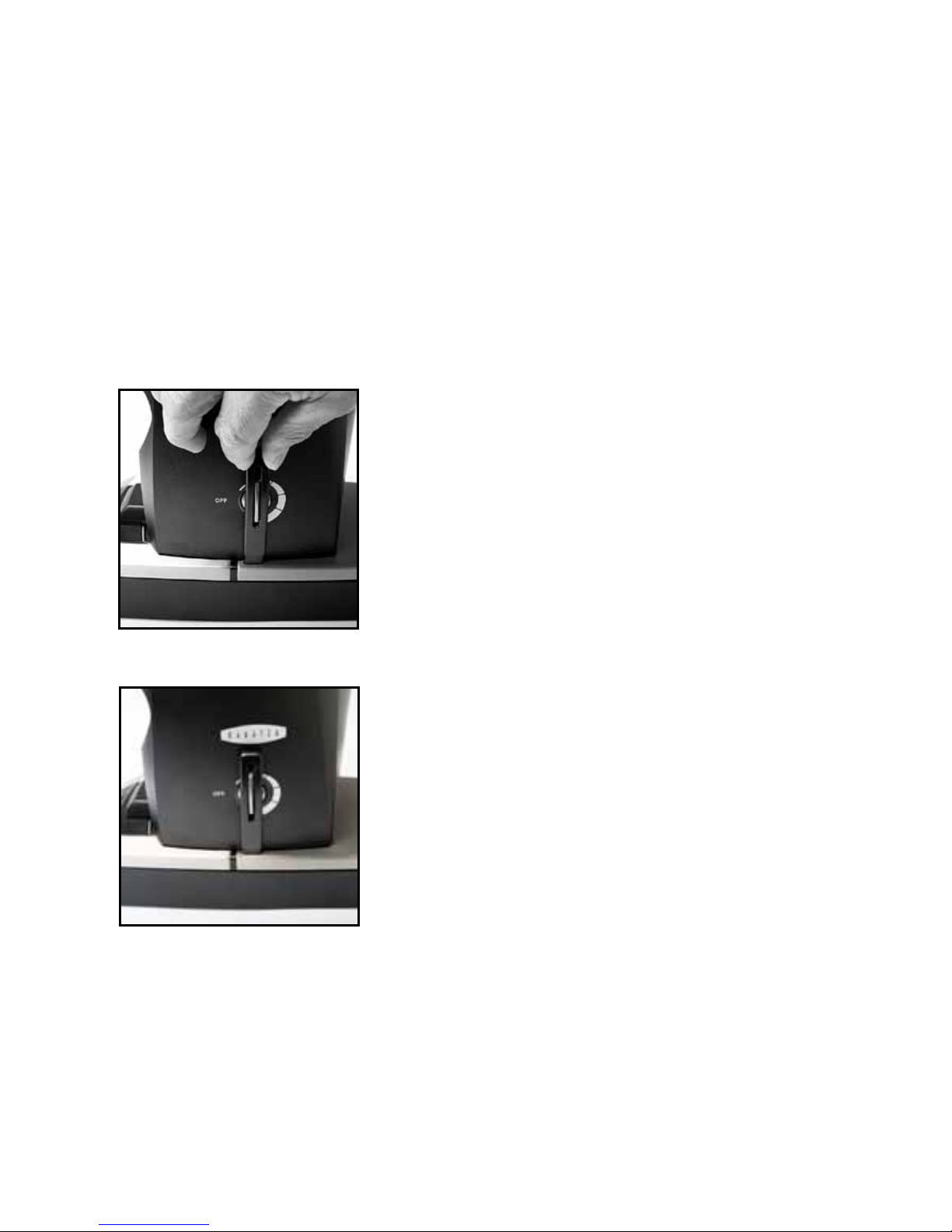

9. Install the ESATTOTM timer knob

retainer by placing the slot over

the blade of the knob, rotate the

knob until the retainer is vertical,

then slide the retainer into the

hole in the base of the ESATTOTM.

The knob will then be held in the

ON position.

(See photo #9 & #10).

10. Plug in the ESATTOTM to an AC

supply.

Photo #9

Operation and

Programming

Start / Stop / Tare

To accurately weigh the coffee as

it grinds you must rst Tare, (zero

out) the weight of the grounds

bin. To do this place the EMPTY

grounds bin on the weight plat-

form, then press and hold the Tare

button until the display reads 00.0.

The ESATTOTM will now display

only the weight of the coffee as it

is ground.

Press the Start button to start the

grinder. It will stop automatically

stop when the pre-programmed

weight has been ground. If you

would like to Stop the grinder

sooner, press the button a second

time.

Up / Down Arrow

Press either of these buttons

to change the weight value in

Grams, displayed in the LCD

window

Programmable Dosage

Buttons 1 - 2 - 3

Each of these buttons can store

a programmable weight value.

Simply press the up or down ar-

row to select the number of grams

you desire, then press and hold

the button you want the displayed

weight stored to. When the display

Photo #10

blinks, release the selected but-

ton. Repeat for each of the three

buttons. The programmed weights

will remain stored in memory even

if the ESATTOTM is unplugged.

Repeatability and Accuracy

Accurate repeatability is the goal

with the ESATTOTM. With all grind-

ers, the output in grams/second

varies with the grind coarseness.

At ner settings (i.e Espresso) the

PrecisoTM (for example) will produce

about 1.6 g/sec and at French

Press it will produce 2.5 g/sec. The

beauty of real-time weight-based

grinding is that using a scale elimi-

nates almost all of this variability.

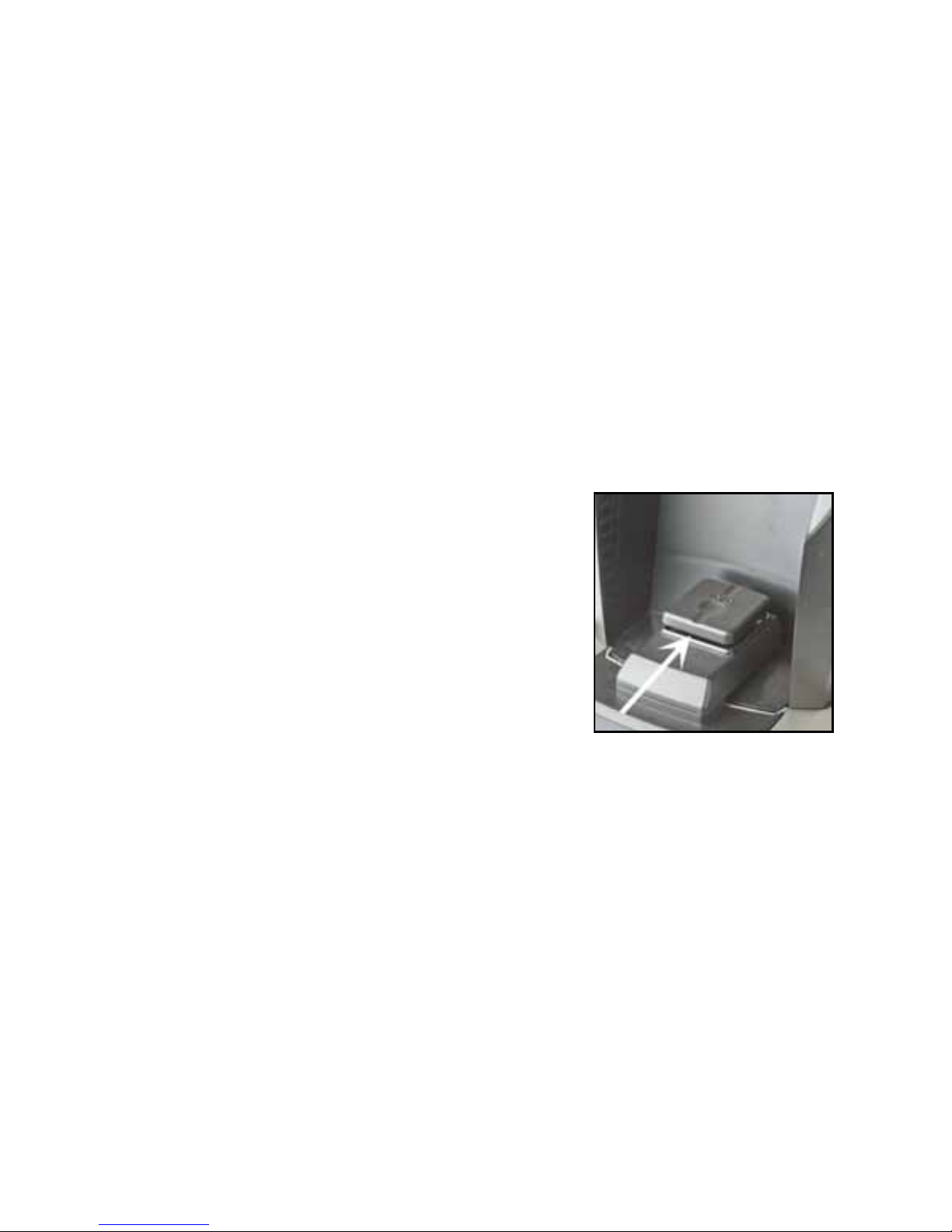

Care and Cleaning

If the weight display does not

count up properly when grinding

coffee, remove the grounds bin

and blow air under the weigh-

ing platform to clear any coffee

grounds from the narrow gap

under the platform. DO NOT use

any type of tool under the weigh-

ing platform.

The narrow gap under the

weighing platform MUST be

free of ground coffee.

Warranty and Service

Length of Warranty: One-year from date of purchase.

United States Warranty Information

If your ESATTOTM fails within one year: e-mail: [email protected] or call

425-641-1245. Baratza will deliver an identical or comparable replacement to

your door, free of charge, and arrange to have your “failed” unit returned to us.

When you receive your replacement, please use the carton and packing mate-

rial and the return shipping label supplied to return the “failed” unit to us. Also,

please include your name, address and telephone number.

International Warranty Information

Go to: www.baratza.com for international warranty information.

Proof of Purchase and Product Registration

You can register your ESATTOTM at www.baratza.com. Registration will enable us

to contact you in the unlikely event of a product safety notication and assist us

in complying with the provisions of the Consumer Product Safety Act. The serial

number is located on the bottom of the unit. Please keep your sales receipt that

shows the date of purchase and complete the following for your personal records:

Serial Number (located on bottom of the unit):

Date Purchased:

Store:

For repairs or parts contact

Baratza LLC

3923-120th Ave. S.E.

Bellevue, WA. 98006

425-641-1245

e-mail: support@baratza. com

Parts: www.baratza.com

Grinding Notes
