Barclaycard Smartpay Hub Scheda tecnica

Get started

with your

Smartpay Hub

Welcome to your

Smartpay Hub

We’re pleased to introduce Barclaycard Smartpay

Hub by Epos Now. With its award-winning

software for accepting payments, it’s here to help

you grow your business.

You’ll get dedicated support and training

in addition to 24/7 technical support. From

navigating the Epos Now software to getting

the apps set up, we’re here to ensure you’re

making the most of this valuable software.

This pack includes everything you need to

get going with your Smartpay Hub.

You’ll have a base unit that you can fix to your

counter and print receipts from. There’s also

a detachable tablet that you can take to

customers on your premises.

In order to get set up

quickly the first thing you’ll

need to do is to switch on

and follow the start-up guide

on the screen. Once you

have completed this we’ll be

in touch to help you to get

everything fully implemented.

Contents

Getting started 4

Smartpay Hub Card Reader 6

Base unit features 7

Receipt printer 9

Mobile mode 11

Desk mount 12

Smartpay Hub Accessories 13

Troubleshooting 14

Specifications 15

Getting started

Step 1

Connect the power supply

First of all, you’ll need to plug your base unit into

a power supply. You can use either of the power

sockets on the back. Just make sure you secure

things using the cable strain relief.

If you’ve got a USB barcode scanner and/or a cash

drawer, connect those too. There’s more about the

extras you can get on page 13.

Step 2

Get up and running

There isn’t a power switch, so your base unit should

turn on as soon as you plug it in.

Ethernet port Optional USB Optional Power

(For future barcode scanner cash drawer

development, not

currently used)

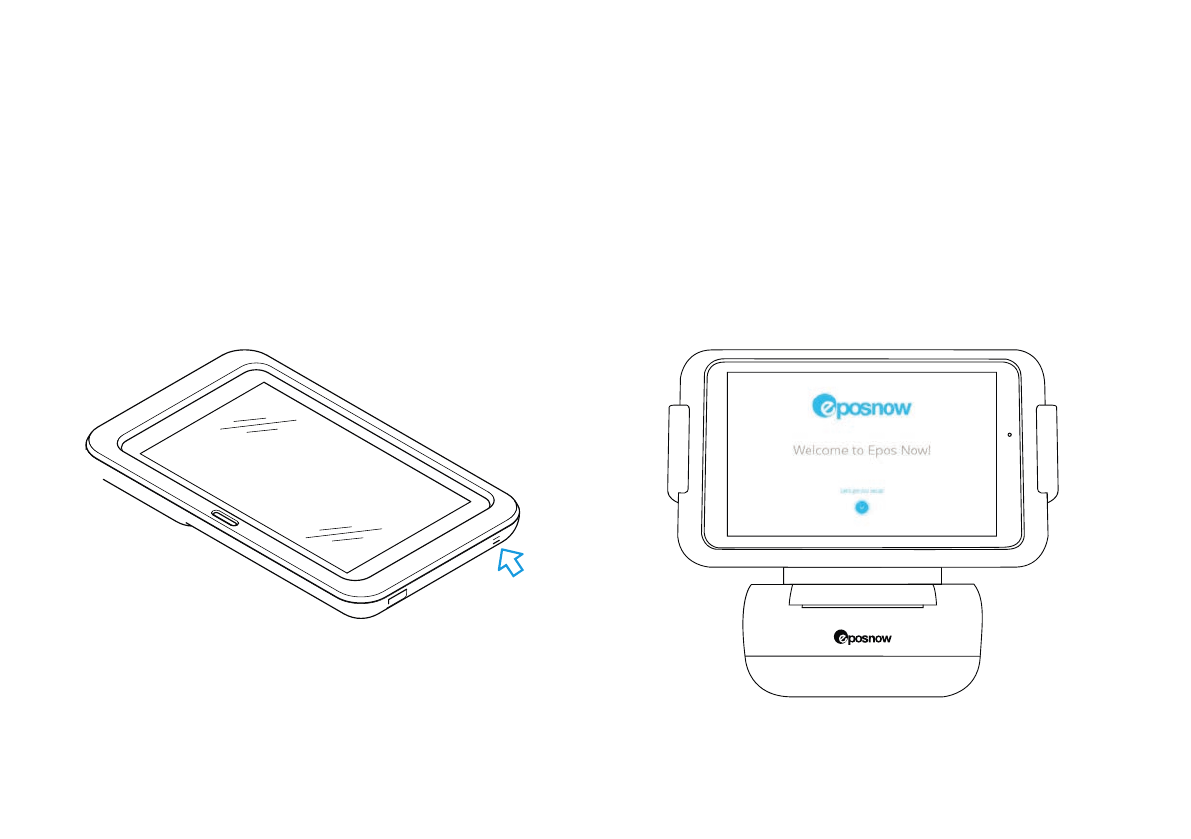

Step 3 Step 4

Grab the tablet Follow the startup guide

Attach to the cradle – this will charge your tablet You’re almost there. When you turn on the tablet for

while the base unit power’s on. Make sure it’s fully the first time, it’ll automatically load up the startup

charged before tapping the power button to switch guide. Follow that to finish setting things up.

it on.

Taking Payments

Barclaycard Smartpay Hub Card Reader

Take contactless, Chip & PIN and mobile payments

through the Smartpay Hub Card Reader.

The card reader works wirelessly using Bluetooth,

but also attaches to the back of the Smartpay

Hub tablet, so you can take payments around

your premises.

Once you’ve completed your startup guide we’ll

call you to get everything set up. This includes a

simple integration that connects your Smartpay

Hub Card Reader so you can start to take payments.

Your base unit at a glance

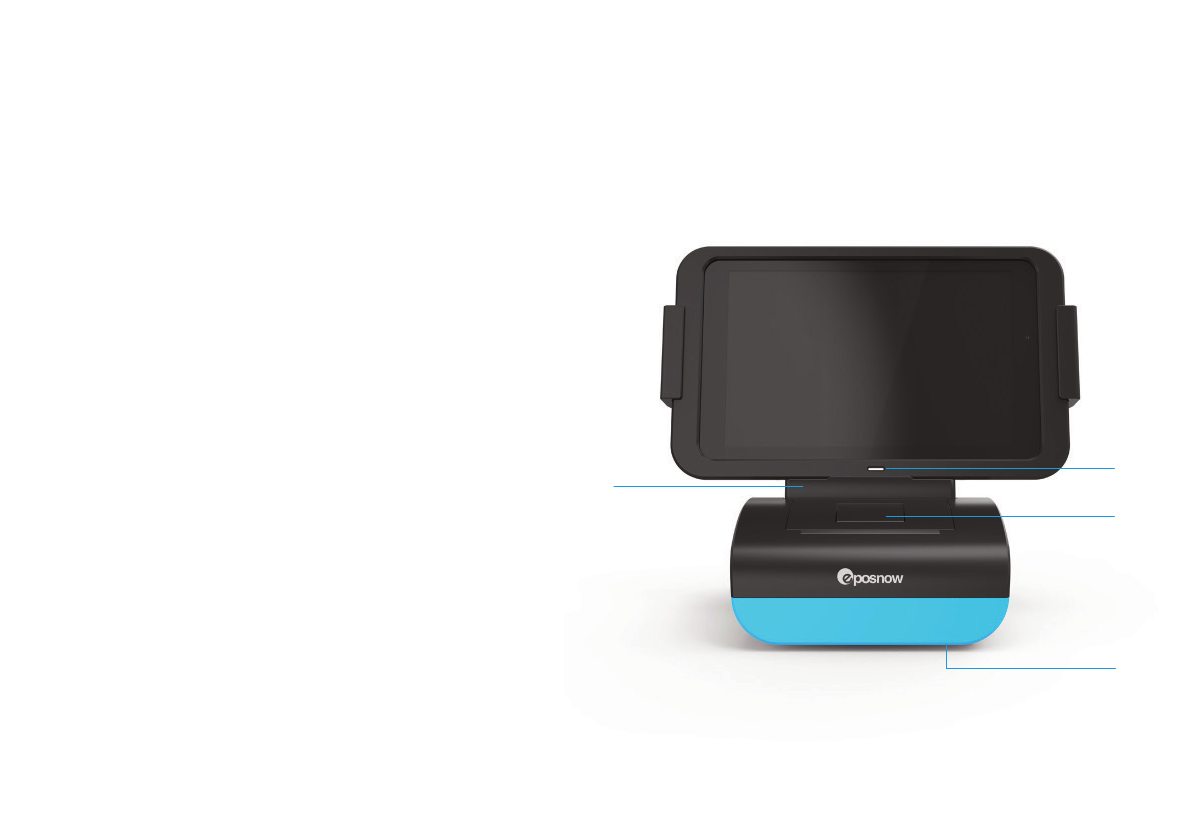

Let’s take a closer look at the front of the unit...

1) Tablet LED

Shows if the base unit’s on or off.

2) Tablet hinge

You can tilt the screen angle.

3) Receipt Printer Lid

The paper roll lives in here (there’s more on

page 10).

4) Base unit LEDs

Here’s what the different LED colours mean:

• Flashing white – the unit’s starting up

• Solid white – it’s ready to use

• Solid blue – printer paired and connected

• Quick flashing blue – Bluetooth is in

‘discoverable mode’ so it’s ready to pair

• Slow flashing blue – Bluetooth pairing is not

complete so the printer won’t work

And here’s the back of the unit...

5) Tablet lock

Keeps the tablet locked to the base unit.

6) Cable strain relief

Keeps the power and connector cables in place.

7) USB ports

You can use these ports to plug in barcode

scanners and other extra devices (you’ll find

them on page 13).

8) Ethernet port

We’re working on developing this –

so you can’t use it just yet.

9) Power jacks

You can plug the power supply into

either of these.

10) Cash drawer connector

For an optional RJ12 cash drawer

(more on page 13).

11) Fixing bracket

So you can secure the base unit to your

counter (see page 12 for more info).

10 11

Receipt printer

12) Pinhole reset button

You can use this to reboot the system

(there’s more about this on page 14).

13) Indicator LEDs

Show you what’s going on with the base unit

and any other devices that are plugged in.

14) Pairing button

Allows Bluetooth pairing between the base unit

and tablet.

15) Paper roll compartment

Holds 80mm paper roll for printing receipts.

16) Tear strip

Lets you tear paper rolls easily.

How to change the receipt paper roll

You can use 80mm thermal receipt printer paper

in the base unit. Here’s how to change it:

1) Lift the printer lid latch until it clicks and unlocks.

2) Open the printer lid and remove the old roll.

3) Insert a new roll. Make sure the free end of the roll

is towards the front of the compartment.

4) Check that an excess of the roll of paper is outside

of the base unit.

5) With an even pressure, firmly close the printer lid

until it clicks and locks shut.

To order your new till roll, head to the

Smartpay Hub section at pdqconsumables.com

or call us on 01698 843 866*
