Barco FlexiVision III Manuale utente

A single solution for:

• visual mixing

• display recording

• video streaming

• image processing

FlexiVision III

Advanced imaging platform

FLEXIVISION III is Barco’s revolutionary, high-performance

Electro-Optical (EO) sensor video processing system. It consists

of a growing set of modular components that provide a

variety of imaging functions. These building blocks create

systems that process multiple sensor video inputs for

situational awareness displays.

Building upon previous generations of products and utilizing

leading edge technologies such as RapidIO®, Gigabit Ethernet,

and JPEG2000, FLEXIVISION III enables advanced, real-time sensor

video processing for military surveillance and reconnaissance

applications. FLEXIVISION III implements functions such as sensor

fusion, electronic image stabilization, video warping and video

networking for battlespace intelligence and network-centric

environments.

FLEXIVISION III processing functions

FLEXIVISION III consists of a single board solution that provides a multitude of

functions, as illustrated below. These functions may be cascaded to perform

further processing on a given input sensor video signal.

Image processing: Programmable video processing module enables

functions such as image stabilization, warping and

fusion

Video streaming: JPEG2000 module provides low latency video

streaming and lossless quality over Gigabit

Ethernet

Display recording: JPEG2000 module enables high-quality video

recording

Visual mixing: Universal frame grabber module enables image

scaling, zooming, positioning and overlay/underlay

capability

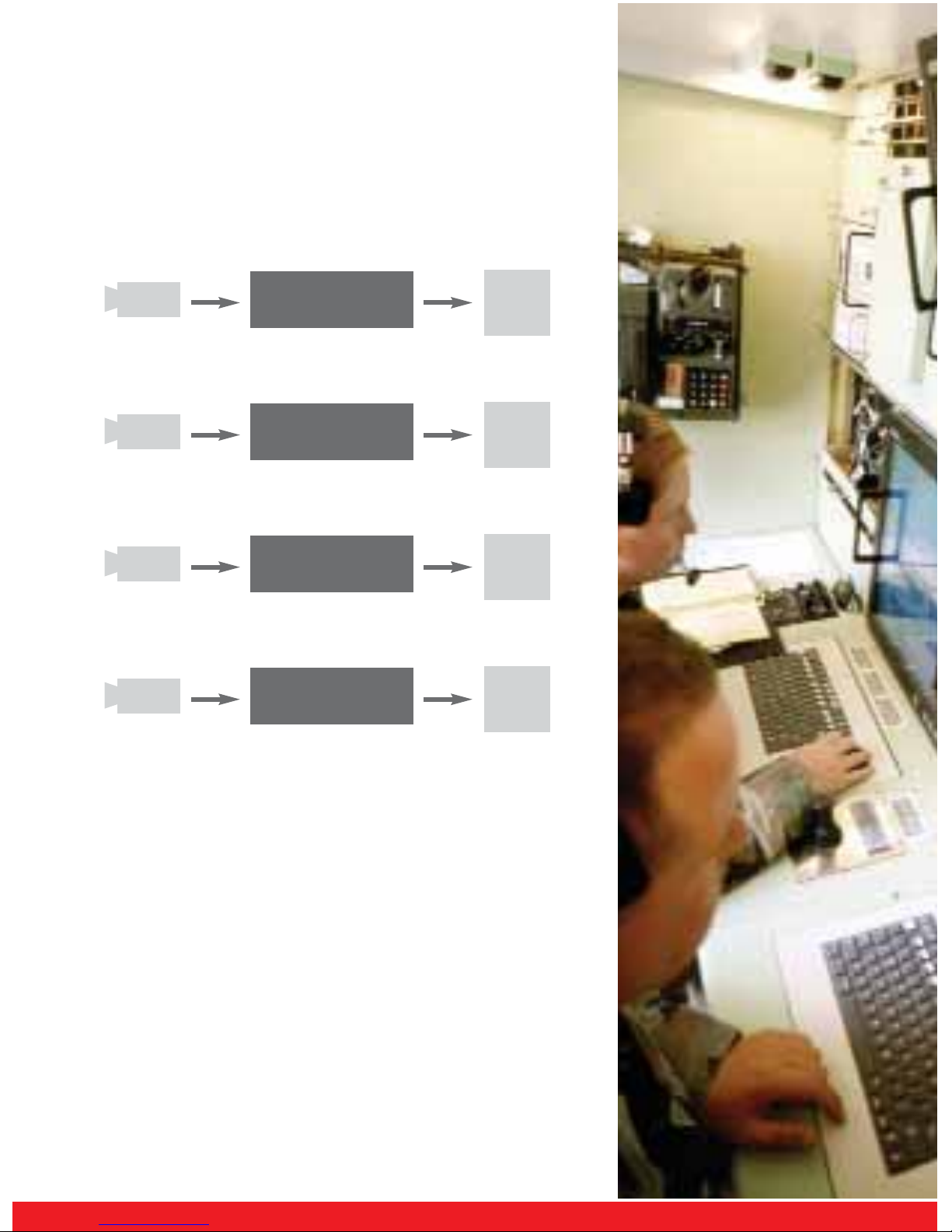

IMAGE PROCESSING display

Sensor video

inputs

Analog or DVI

RGB output

VIDEO STREAMING display

Sensor video

inputs

Analog or DVI

RGB output

DISPLAY RECORDING display

Sensor video

inputs

Analog or DVI

RGB output

VISUAL MIXING display

Sensor video

inputs

Analog or DVI

RGB output

Courtesy of AAI Corporation

and/or

Features:

• Programmable video processor

• On board PowerPCTM with embedded OS and web server

• Web based control client

• Analog and digital video input and output

• Single slot solution providing 6 independent windows

Benefits:

• Barco programmable or customer programmable

• Host processor independent

• Simple user interface

• Standard sensor and display compatibility

• Cost effective

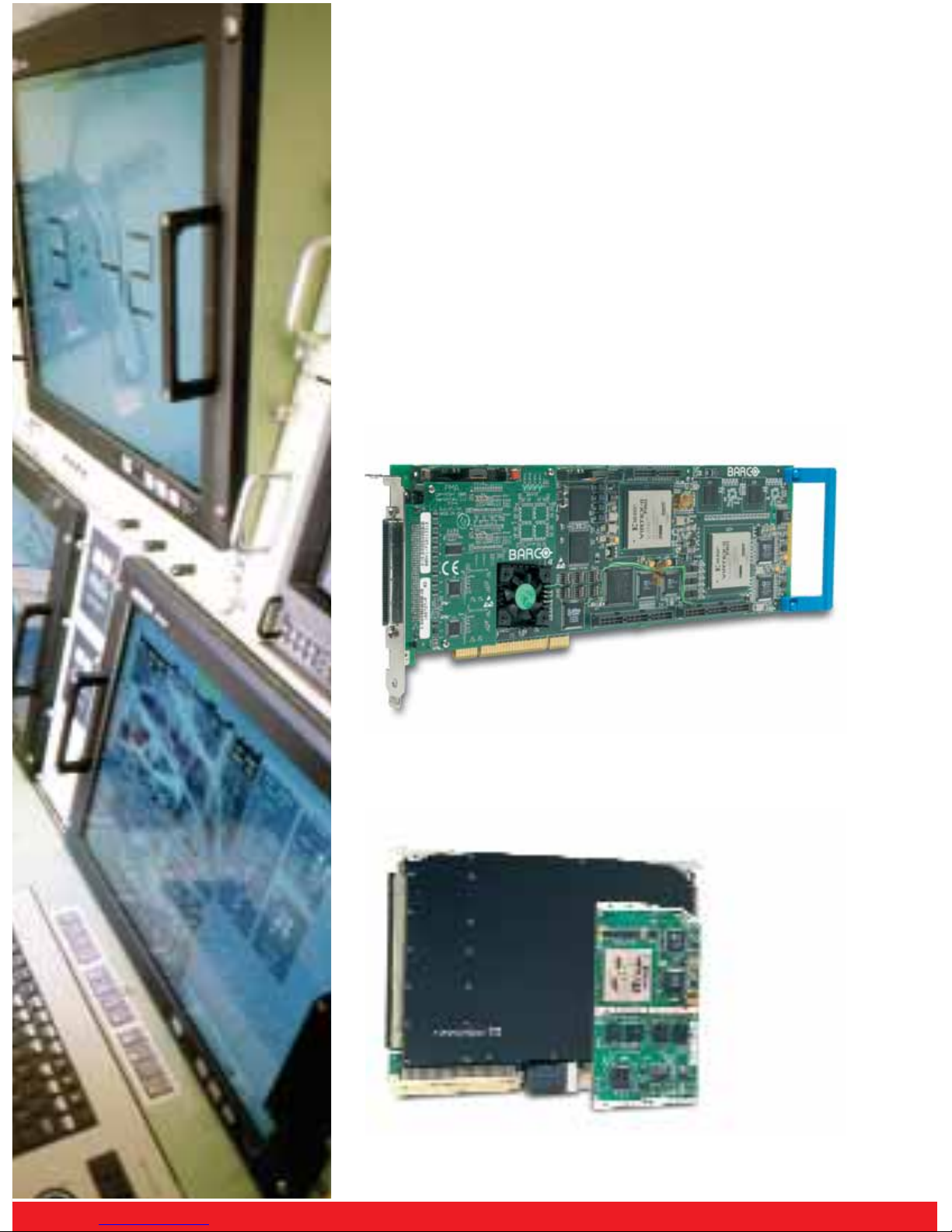

FlexiVision III PCI version

FlexiVision III VME version

Barco

Pres. Kennedypark 35

B-8500 Kortrijk, Belgium

Phone: +32 56 233 412

Fax: +32 56 233 013

sales.defense@barco.com

BarcoView, LLC

3059 Premiere Parkway

Duluth, Georgia, 30097-4905, USA

Phone: +1 678 475 8000

Fax: +1 678 475 8100

sales.barcoview-a@barco.com

BarcoView-TEXEN

7 Rue Roger Camboulives - BP 1226

F-31037 Toulouse, France

Phone: +33 5 34 63 71 74

Fax: +33 5 34 63 70 20

www.barcodefense.com

Technical specifications

Technical specifications are subject to change without prior notice

Si gma

In search of continuous improvement

ENVIRONMENTAL

Parameter Conditions Air-cooled Conduction-cooled

Minimum/

Maximum Temperature Operational: 0°C min, 55°C max, -40°C to 75°C at

with 1.25 m/s airflow thermal interface

Storage: -40°C to +105°C -40°C to +105°C

Altitude Operational: 20,000 feet 20,000 feet

Storage: 50,000 feet 50,000 feet

Humidity Operational: 10% - 90% 10% - 90% RH, including

RH non-condensing condensing for 240 hours

Storage: 5% - 95% RH at +45°C 5% - 95% RH at +45°C

Shock Operational: 40g half–sine wave 40g half–sine wave

for 11 msec, all three axes for 11 msec, all three axes

Vibration Operational: 5g for 1 hour/axis, 5g for 1 hour/axis,

all three axes all three axes

EMI Operational: MIL-STD-461E MIL-STD-461E

FCC Class A FCC Class A

CE compliant CE compliant

Safety Operational/ CE compliant CE compliant

Non-Operational:

I/O

Input video types Output video types

NTSC / PAL / SECAM composite or S-Video Up to RGB 1920 x 1200

STANAG 3350 monochrome Single link DVI up to 1600 x 1200

RS-170

RS-343

HDTV analog up to 1080i

Single link DVI
