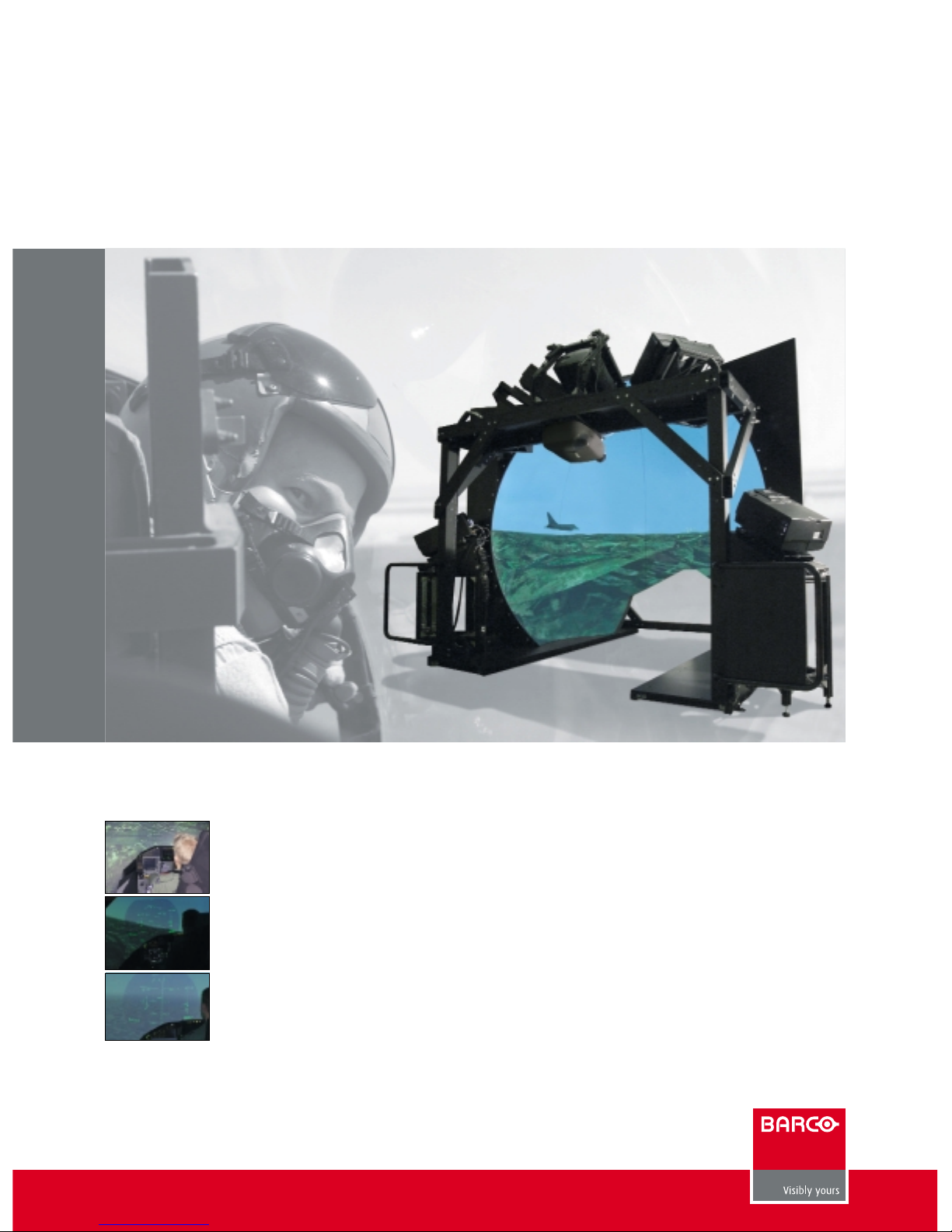

Barco SEER Manuale utente
Small Environment Enhanced Reality display system
SEER ™
The SEER mini-dome system is Barco’s compact and flexible visualization solution for
immersive simulation training. t consists of a custom 220°/240°/270° HFOV
(Horizontal Field of View) spherical dome structure, a multi-channel projection
system, sophisticated control and alignment tools, and automated permanent
maintenance tools. Dedicated technology optimizations allow a perfect display of all
weather conditions for optimal training during day, dusk and night missions.
For effective training of fast jet and rotary wing pilots, forward air controllers and
forward observers Barco’s SEER provides full immersion with constant eye relief over
the entirely spherical surface. The networking of several mini-dome simulators
enables trainee and instructor to "fly" as leader and wingman for even more
"immersive training".
Currently fielded to
the USAF’s SIMAF
Simulation & Analysis
Laboratory,
BAE Systems Ty hoon
training rogram and
the Saab Gri en PETRA
system for the Swedish
Airforce.
Photo courtesy of U.S. Air Force
Full immersion, constant eye relief
The spherical shape maintains a constant distance between
the user’s eye and the projected simulation, preventing the
user’s eyes from having to adjust to geometric changes in
the surface area.
The SEER also creates a seamless projection surface and
offers greater continuous visual range. ixel size is uniform
from front to top channels. The display is optimized for
matching color, brightness, gray scale, and other visual
parameters.
Technical excellence meets
demanding requirements
Barco’s SEER mini-domes can be realized in a short time
frame with various diameters and in as many channels as
needed (four, five or even eight) to respond to the specific
training needs. Thanks to dedicated SimCAD design software
projector placements are optimised to reach the desired
HFOV (up to 270°) and VFOV (up to 150°) while negating
distracting shadows from screen obstacles e.g. cockpit struc-
tures. Dedicated test patterns allow to perfectly integrate
the optical and electronic blend technology of the high-
resolution projectors used.
Saab is using the Barco 8-channel SEER
mini-dome system with a 2 m radius
for their new tactical su ort and
training system for Gri en C/D.
The PETRA conce t will be de loyed to
Air Force Simulation training centers in
Sweden, Hungary, and the Czech
Re ublic to enhance military flight
training effectiveness.
(Picture taken during assembly stage)
The Barco xRACU gives you the ower to
effectively control multi le simulation centers.
Automated permanent maintenance tools
As a permanent maintenance tool, the xRACU multi-system Remote Alignment and
Control Unit enables maintenance staff to operate, calibrate, configure and diagnose
the multiple projector set up from a single hand-held controller while the LDAT (Laser
Diode Array Tool) assists in maintaining alignment of all the display channels.
Barco’s LDAT is a ermanent maintenance tool to
verify the ro er geometric alignment of the
dis lay system.
U to 30 dedicated laser lights can be
inde endently directed to oints on the screen,
marking reference atterns to effectively align
dis lay channels.
Available to meet your
needs in 4, 5, or even 8
channels!
Picture of Barco’s
5-channel SEER mini-dome
with 1.5 meter radius.
The structure allows a
fixed installation as well as
a de loyable setu in a
short time eriod. All arts
of the system can fit a
normal door o ening.
www.simulation.barco.com
Barco Simulation
US Headquarters:
600 Bellbrook Avenue - Xenia, OH 453 5-4053
Tel. +1 (937) 372-7579 • Fax +1 (937) 372- 645
email: simulation.us@barco.com
European Headquarters:
Noordlaan 5, B 520 Kuurne - Belgium
Tel. +32 56 36 2 11 • Fax +32 56 36 6 51
email: info.simulation@barco.com
R5999 9 - November 2005
Barco Simulation is an ISO 9001 registered company.
The information and data given are typical for the equipment described.
However any individual item is subject to change without any notice.
The latest version of this product sheet can be found on www.simulation.barco.com.
SEER, A
UTO
A
LIGN
, and xRACU are trademarks of Barco.
DESIGNED UNDER
ISO
Head-Up Display (HUD) projection
The SEER mini-dome system can be equi ed
with a HUD overlay, generated by a owerful
high-contrast DLP rojector, to allow full color
rojection, and increasing flight training
effectiveness for use in latest generation full
digital cock it systems.
Networked for group
fighting application
Strong customer
involvement
Barco’s involvement can go from
cooperative design on-site pre-instal-
lation support to full installation,
on-site post-installation support,
warranty and spares.
Our global network for system
support provides professional,
accurate, and timely responses seven
days a week, 24 hours a day, every
day of the year.
Financing options are available.
Several mini-domes can be
networked together to maximize
fighter training.
