Barco UDX R9008600 Manuale utente
R5906116 /00
UDX
Quick Start Guide
Install Lens !! ONLY USE TLD+ Zoom Lenses !!
1. Place the primary lens lock in “unlock” position. Handle (ref. 1) towards electrical socket (ref. 3).
2. If present remove the plastic protection cover from the lens holder opening.
3. Check if the secondary lens lock stands in the “unlock” position (ref. 2) .
3. Gently insert the lens. Ensure the lens connector matches the electrical socket on the lens holder.
4. Insert the lens until the connector seats into the socket.
- The secondary lens lock (ref. 2) makes an audible clicking sound when latching.
- Do not release the lens yet, keep pushing the lens against the front plate!
5. Secure the lens in the lens holder by sliding the primary lens lock handle into the “locked” position.
6. Check if the lens touches the front plate of the Lens Holder.
7. Check if the lens is really secured by trying to pull the lens out of the lens holder.
Connect power
Ensure that the power is properly connected to the powerinput.
(120-160V* / 200-240V [+/-10%, * reduced light output] )
Download Product Manual
Product manuals and documentation are available online at www.barco.com/td/R9008600
Registration may be required; follow the instructions given on the website.
IMPORTANT!
Read Installation Instructions before connecting equipment to the mains power supply.
1
2
3
2
1
- 2 -
2. Orientation of the unit is set as standard in table front projection mode.
Change the projector set up in the ALIGNMENT > ORIENTATION menu.
3. For Advanced adustments like Warping, Light management, etc. see User Guide of the projector.
Adjust
1. Adjust the lens settings by pressing the LENS button or via the direct lens keys on the RCU.
Select the “Greenfocus” test pattern to adjust the lens.
TIP: Press star button (*)
to activate test pattern
Connect and Select source
1. Connectavailable sourcesto the appropriate inputports.
2. Select connected source: Image of selected inputappears.
- The LED of the selected source lit up GREEN.
- The yellow LED indicates if sync/signal is present.
2
1
1

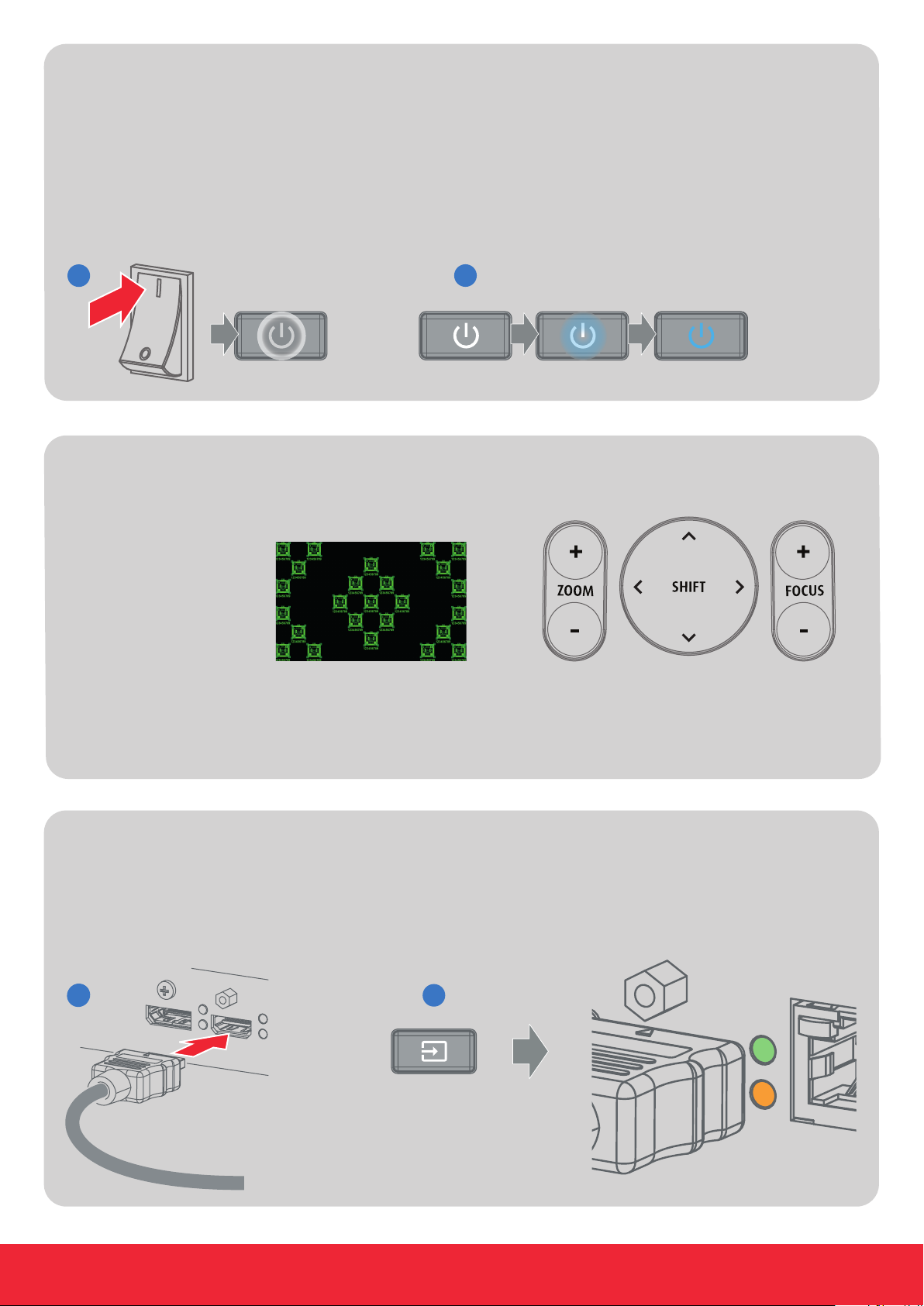

Startup
1. Power on. Turn the mains switch to on ( I ).
- Start up sequence starts. Backlight of the Power on/off button flashes WHITE.
- When start up sequence is finalized the Power on/off button lit WHITE.
2. Press the Power on/off button.
- The backlight of the Power on/off button changes from WHITE to BLUE.
- Local LCD displays a start up screen.
12
- 3 -

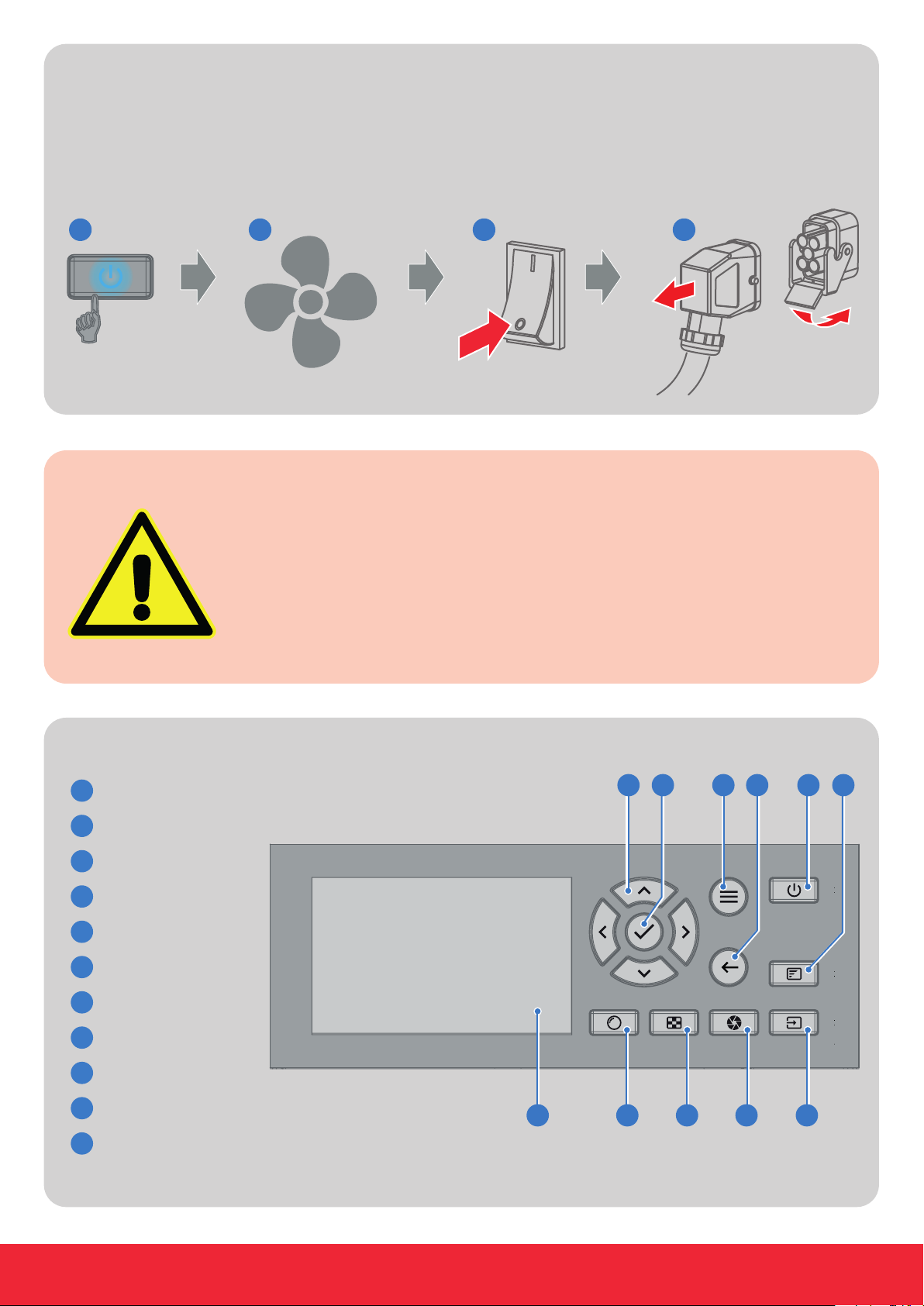

Switch off
1. Press the Power on/off button for three seconds.
2. Wait until the after-cooling cycle is finished (approximately 30 sec.)
3. Turn the mains switch to off (’0’).
4. Unplug the power cord from the projector.
321
30 s
3 s
4
Local Keypad
1MenuNavigation.
2MenuSelection.
3Open Menu.
4MenuBack.
5Power On/Off.
6OSD On/Off.
7InputSelection.
8Shutter Open/Close.
9Test Patterns.
10 Lens Menu.
11 Touch Panel.
1 2 3 4 5 6
1011 9 8 7
• Remove the lens before transporting the projector.
• First switch the projector to Standby mode and wait until After Cooling is
finished to switch off the main power.
• Ensure the projector is operating with clean filters.
• Do not block the ventilation in and outlets.
• External laser light can cause severe damage to the DMD. This damage is
not covered by warranty.
Precautions
- 4 -

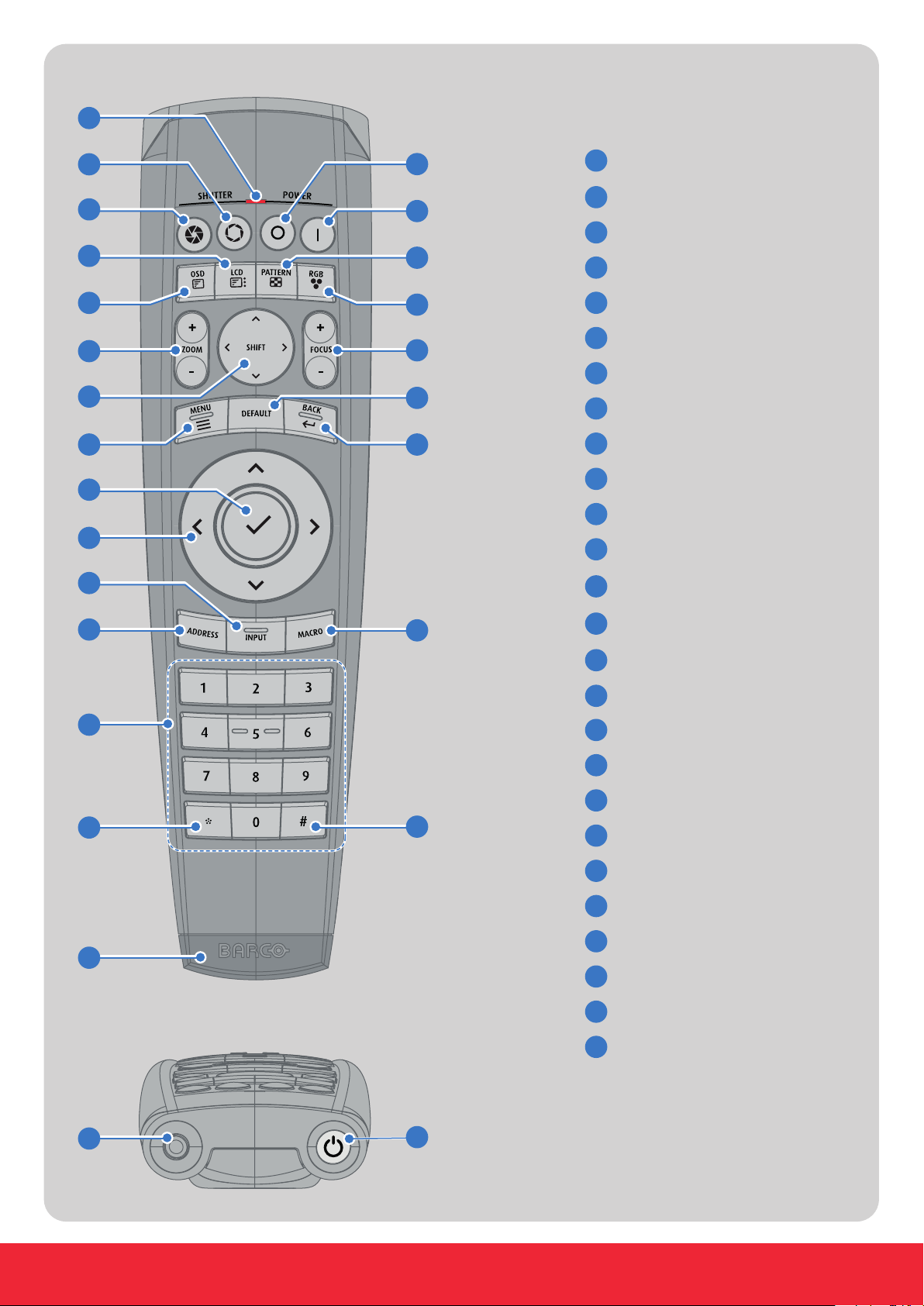

RCU buttons
1Button pressed indicator.
14 Test pattern Lens Menu
13 Numeric buttons.
2Shutter Open.
15 XLR connector.
3Shutter Close.
17 Macro button.
16 TBD.
4Touch Panel On/Off.
18 MenuBack.
5LCD On/Off.
19 Defaultbutton.
6Lens Zoom.
20 Lens Focus.
7Lens Shift.
21 Color On/Off.
8Menu Activation.
22 Test Patterns.
9Menu Selection.
23 Power On.
10 Menu Navigation.
24 Power Off.
11 Input Selection.
25 Stereo Jack.
12 Address button.
26 RCU On/Off.
1
2
3
4
5
6
7
8
9
10
11
12
15
24
23
22
21
20
19
18
17
16
13
14
26
25
- 5 -

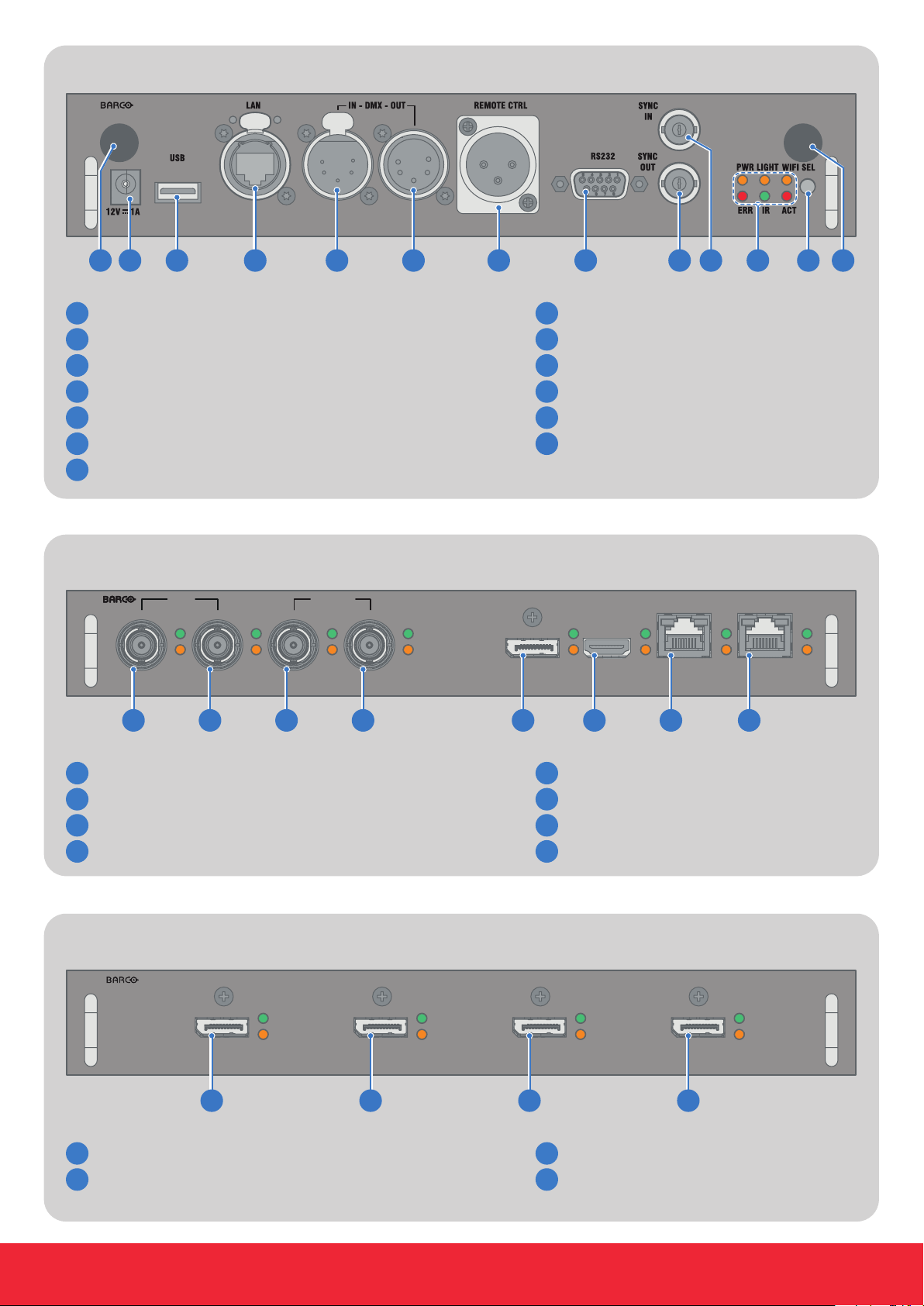

Communication Panel
321 4 5 6 7 8 9 10 11 12 13
1WiFi antenna for wireless IP (optional) 8RS232 for serial communication
212V 1A output 9Sync Out 3D
3Firmware update/USB backup custom settings 10 Sync In 3D
410/100 base-T for external control over IP and Art-Net 11 Status lights
5DMX interface input 12 IR receive sensor
6DMX interface output 13 GSM antenna input (optional)
7XLR input for wired projector control
Venues & Hospitality Input (V&H)
SELSELSELSELSELSELSEL
TUO/NIIDSNIIDS
SEL
SYNC
A
SYNC
B
SYNC
C
SYNC
D
DP HDMI
SYNC
HDBT 1
SYNC
HDBT 2
SYNCSYNC
1 2 3 4 5 6 7 8
1Quad 3G SDI channel A Input 5DisplayPort Input
2Quad 3G SDI channel B Input 6HDMI Input
3Quad 3G SDI channel C Input/Output 7HDBaseT Input 1
4Quad 3G SDI channel D Input/Output 8HDBaseT Input 2
Virtual & Augmented Reality Input (V&AR) (Optional)
SELSELSELSEL
DP A DP B DP C DP D
SYNCSYNCSYNCSYNC
1 2 3 4
1Quad DisplayPort channel A Input 3Quad DisplayPort channel C Input
2Quad DisplayPort channel B Input 4Quad DisplayPort channel D Input
- 6 -
- 6 -

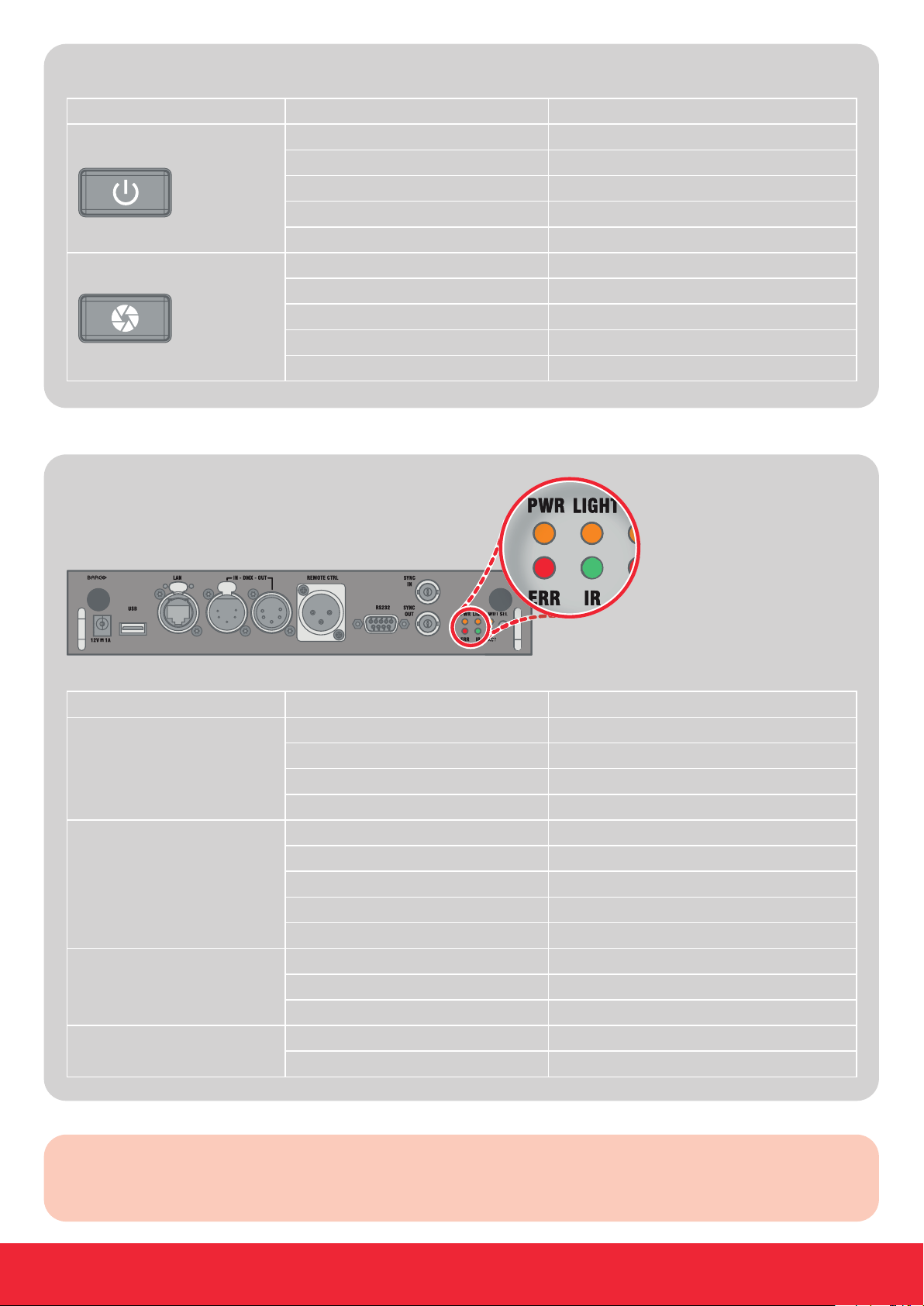

Button Backlight Status
Button Color status Description
Projector starts up (Booting)Blinking WHITE
Projector is in StandbySolid WHITE
Blinking RED Error condition
Blinking BLUE Projectorgoes to ON mode
Projector is ON
Power button
Solid BLUE
Off Projector not in power ON state
Solid WHITE Shutter is open
Shutter is closedSolid RED
Shutter button
LED Status
LED Color status Description
Off Projector powers up
Projector is in StandbyRED
Projector is ReadyORANGE
PWR (power LED)
GREEN Projector is on
Light source is offOff
Light source not detectedRED
Light source is on in ECO mode
ORANGE
GREEN Light source is on in normal mode
LIGHT (Illumination LED)
Light source is on in CLO modeGREEN-ORANGE
Off No error
RED toggleson/off Error
ERR (error LED)
ORANGE toggleson/off Warning
IR signal receivedREDIR
GREEN IR signal acknowledged
Support
Website www.barco.com/esupport
- USA +1 866 374 7878
- EMEA +32 56 36 8019
- APAC +86 400 88 22726
