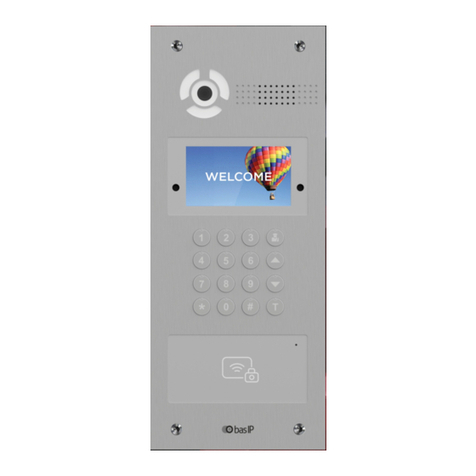

basIP AA-07FB Manuale utente

basIP

basIP AK-10 Manuale utente

basIP

basIP AV-04FD Manuale utente

basIP

basIP AV-01KD Manuale utente

basIP

basIP AV-04AFD Manuale utente

basIP

basIP AA-14FB Manuale utente

basIP

basIP AV-03D Manuale utente

basIP

basIP AV-01BD Manuale utente

basIP

basIP BI-02B Manuale utente

basIP

basIP SP-03 Manuale utente

basIP

basIP AQ-07LW Manuale utente

basIP

basIP SP-03 Manuale utente

basIP

basIP BI-02FB Manuale utente

basIP

basIP AA-07FBC Manuale utente

Manuali Sistema di interfono popolari di altre marche

Bticino

Bticino LINEA 3000 Manuale utente

MSI

MSI MSI-140 Manuale utente

golmar

golmar Stadio Plus Manuale utente

CyberData

CyberData 011211 series Manuale

Vidos

Vidos duo M1021 Manuale utente

Vimar

Vimar ELVOX 7539/E Manuale utente

SSS Siedle

SSS Siedle BTSV 850-03 Manuale utente

Dahua

Dahua VTO Series Manuale utente

Elvox

Elvox 5651 Manuale utente

Videx

Videx VIDEOKIT Series Manuale utente

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuale utente

Viking

Viking E-35-EWP Manuale utente

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuale utente

SSS Siedle

SSS Siedle BFCV 850 Series Manuale utente

GRD

GRD MAX V2 Manuale utente

Alecto

Alecto ADI-250 Manuale utente

Aiphone

Aiphone IE-8MD Manuale utente

Perel

Perel EDB4 Manuale utente

USER MANUAL

IP INDOOR VIDEO ENTRY PHONE

AQ-07LL

AQ-07LL

IP INDOOR VIDEO ENTRY PHONE

The BAS-IP AQ-07LL IP video intercom indoor monitor is designed with

The intercom can be powered from 12V or PoE, and the classic black and white

body color will suit any interior style.

a 7-inch stylish TFT touch-screen colour display and plastic case.

Main features

Display: 7” TFT LCD, capacitive

touchscreen.

Screen resolution: 800 x 480.

Built-in camera: No.

Power: PoE and + 12 V DC.

Power consumption: 6 W,

standby 2.5 W.

Dimensions: 235 x 145 x 18 mm.

Colors: Black, White.

Body: Plastic.

Installation Type: Wall mount.

Full User Manual

Device description

wiki.bas-ip.com

MicroSD slot.

MicroUSB port.

Screen.

Loudspeaker.

Microphone.

1

2

3

4

5

-

-

-

-

-

1

3

2

4

5

Appearance

Completness check of the product

Before installing the monitor, be sure to check that it is complete and all

components are available.

The monitor kit includes:

Monitor

Manual

Wall mounting bracket

Set of wires with connectors for connection of alarm loops, doorbell

and home automation

Resistors for alarm loops

Installation screws

1 pc

1 pc

1 pc

1 pc

8 pcs

2 pcs

After verifying the device's completeness, you can switch to the monitor

connection.

To connect monitor you will need:

Electrical connection

An Ethernet UTP CAT5 or higher cable connected to a PoE switch or

to a normal switch/router.

Cable length recommendations

The maximum length of the UTP CAT5 cable segment shouldnot exceed 100 meters,

according to the IEEE 802.3 standard.

Power supply at +12 Volts DC if there isn't PoE.

Wires must be brought for the connection of alarm loops and home

automation (optional).

SH-46T / SH-47T

The connection scheme of all components

12

Power

+12VGND

LAN (PoE)

RS485

1234

+12VGND 485+ 485-

123456 7 8 9 10

GND

+Us AL1 AL2 AL3 AL4 AL5 AL6 AL7 AL8

+12VGND COM NO

Siren/Alarm Loops

Doorbell

EAN: 5060514913994 (WHITE)EAN: 5060514914007 (BLACK)

Mechanical mounting

Before installation of a monitor, it is necessary to drill a hole or a recess into

a wall with a 68 mm (2.68in) diameter under the standard mounting box for

a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and

installation of the monitor.

Attach the bracket in the outlet box using set screws and a phillips head

screwdriver.

Installation of the monitor on the bracket is done from top to bottom.

Mounting box Screws Monitor

235 mm

145 mm

18 mm

Monitor Bracket

60 mm

59 mm

117 mm

86 mm

80 mm

150-160 cm

68 mm

EAN: 5060514913994 (WHITE)EAN: 5060514914007 (BLACK)

Warranty

The warranty card number

Model name

Serial number

Seller name

With following stated terms of warranty is familiar, functional test was

performed in my presence:

Customer signature

Warranty conditions

The warranty period of the product — 36 (thirty-six) months from

the date of sale.

Transportation of product must be in its original packaging or supplied one

by the seller.

The product is accepted in warranty repair only with a properly ﬁlled warranty

card and the presence of intact stickers or labels.

The product is accepted for examination in accordance with the cases

provided by law, only in the original packaging, in a full complete set,

appearance corresponding to the new equipment and presence of all relevant

properly ﬁlled documents.

This warranty is in addition to the constitutional and other consumer rights

and in no way restrict them.

Terms of warranty

The warranty card must indicate the name of the model, serial number,

purchase date, name of the seller, seller company stamp and

the customer’s signature.

Delivery to the warranty repair is carried out by the buyer himself.

Warranty repairs carried out only during the warranty period speciﬁed

in the warranty card.

The service center is committed to do everything possible to carry out

the repair warranty products, up to 24 working days. The period spent

on the restoration of product functionality is added to the warranty period.

Notes

Notes

EAN: 5060514913994 (WHITE)EAN: 5060514914007 (BLACK)
