basIP AA-07BD Manuale utente
AA-07BD
entrance PANEL
quickstart guide
Full User Manual
wiki.bas-ip.com
123
456
7 8 9
0
*#T
2
1Backlight
Loudspeaker
A distinctive feature of this panel is a color TFT screen with backlight,
as well as a high-resolution IP camera with wide viewing angles.
AA-07BD SILVER multi apartment panel is an excellent solution for office
buildings, apartment complexes and cottage communities.
3Camera
44.3’’ Display
5
6
Keypad
Reader
ENTRANCE PANEL MAIN SCREEN
main screen
On the main screen, you can find information about:
• Data that must be entered to call the apartment (to call the required apartment, you need
to enter from 4 to 10 digits, depending on the current panel mode);
• The combination that must be entered to call the concierge (to call the concierge, you must
enter the combination 0000 # or press the concierge or info button in the upper right
corner of the keypad );
• A button that opens the access code menu (to open the menu press #,
enter the access code, and press #to confirm);
• A button to cancel an action or go back to previous the menu (press * to cancel).
Press «*» to exit the main screen or it will be done automatically, after 30 sec of inactivity.
The current statuses of the devices connection to the network and SIP are also displayed
in the lower right corner.
You can open basic settings from a panel or a web interface.
To enter the system settings, you must:
• Press the #button twice (the inscription Admin will appear on the screen).
Enter the admin password (the default password is 123456)•
Press #to confirm. This will open the settings menu.•
Use the Up / Down arrows or the 2 / 8 buttons on your keypad to move between menus
and fields. To confirm press the #button, and * if you need to go back.
ENTRANCE PANEL SETTINGS
HOW TO OPEN SETTINGS MENU?
Device Settings
In this menu, you can configure:
Panel operation mode•
• Wall mode is used when the panel is installed on the perimeter of the object.
If this variant is chosen, on the panel you must enter Building No., Unit No., Floor No., and Apartment No.
to call the necessary monitor.
Unit mode is required if the panel is installed near the unit entrance.•
When using this mode, it is enough to enter Floor No. and Apartment No. to call the necessary monitor.
• Device language (Russian, English, Ukrainian, Spanish, Polish, or Dutch)
• Panel logical address (Building No., Unit No., and Device No.)
For correct functioning, the panel and the monitor must have the same building and unit number
in apartment settings. Also for monitors, you must indicate corresponding information about the floor,
apartment, and device number.
If you have more than 1 entrance panel with the same logical address, you need to specify their
device numbers, starting from 1 for the main device, and from 2 to 9 for others.
• Admin password to enter device settings and web interface
Level of panel speaker volume•
Panel camera stream resolution (320x240 / 640х480 / 1280х720)•
Network settings
Here you can turn on/off DHCP connection and get network settings automatically
or enter it manually.
For correct panel work you must enter:
Panel IP address.•
By default, a device can have a static IP address 192.168.1.90 or 192.168.1.91
• Subnet mask
• The main gateway
• DNS server address

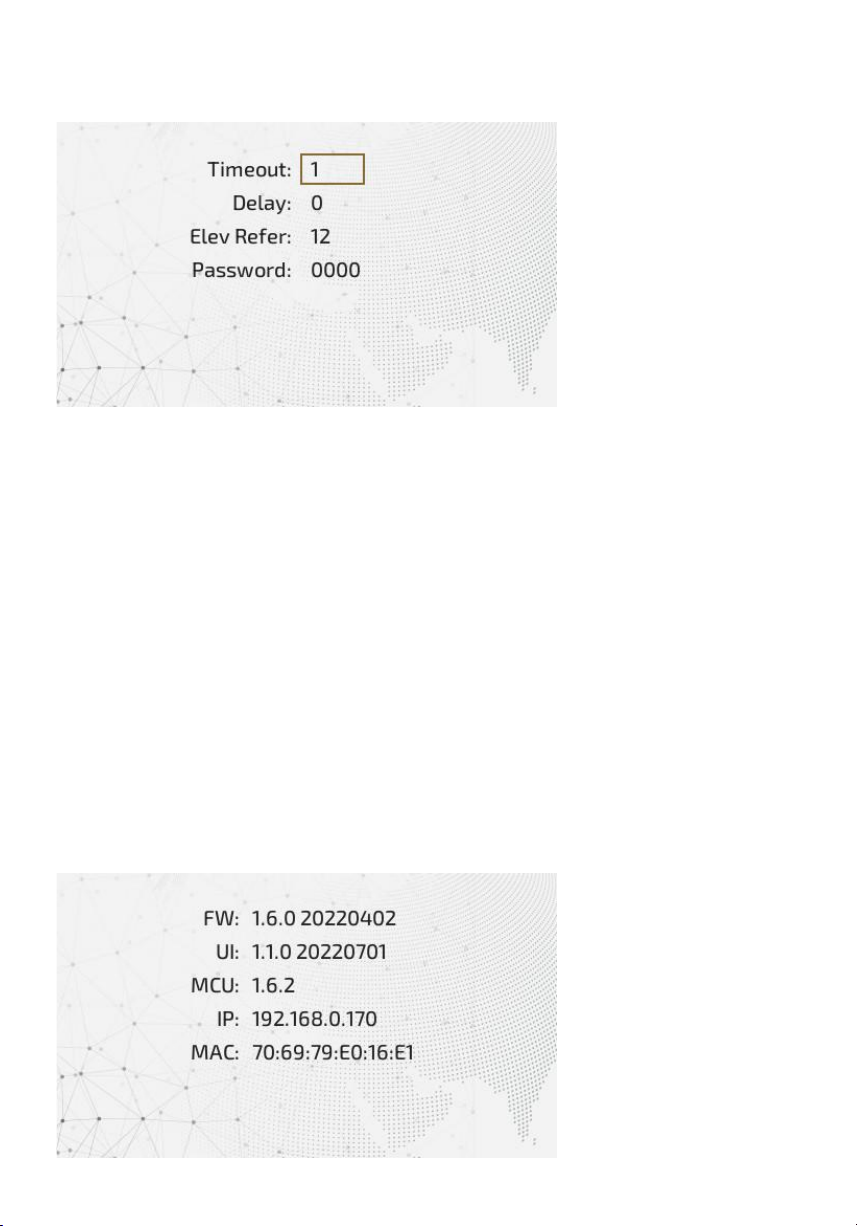

Access settings
In this menu, you can set:
Lock open timeout is a period (1-300 sec) during which relay contacts will be closed•
or open (depending on the lock type), and a lock will stay open
Lock open delay is a period (1-300 sec) after which relay contacts will close or open after•
sending a signal to open a lock
Floor number (Elev Refer) where the panel is installed for further lift control module•
EVRC-IP use (optional).
Password (no more than 8 characters) is a general code entered on a panel keypad•
to open a lock. The default password is 0000.
About system
This menu displays
information about:
Framework versions (FW)•
Firmware versions (UI)•
Current IP address (IP)•
Current MAC address (MAC)•
