USER MANUALENTRANCE PANELBА-08BD

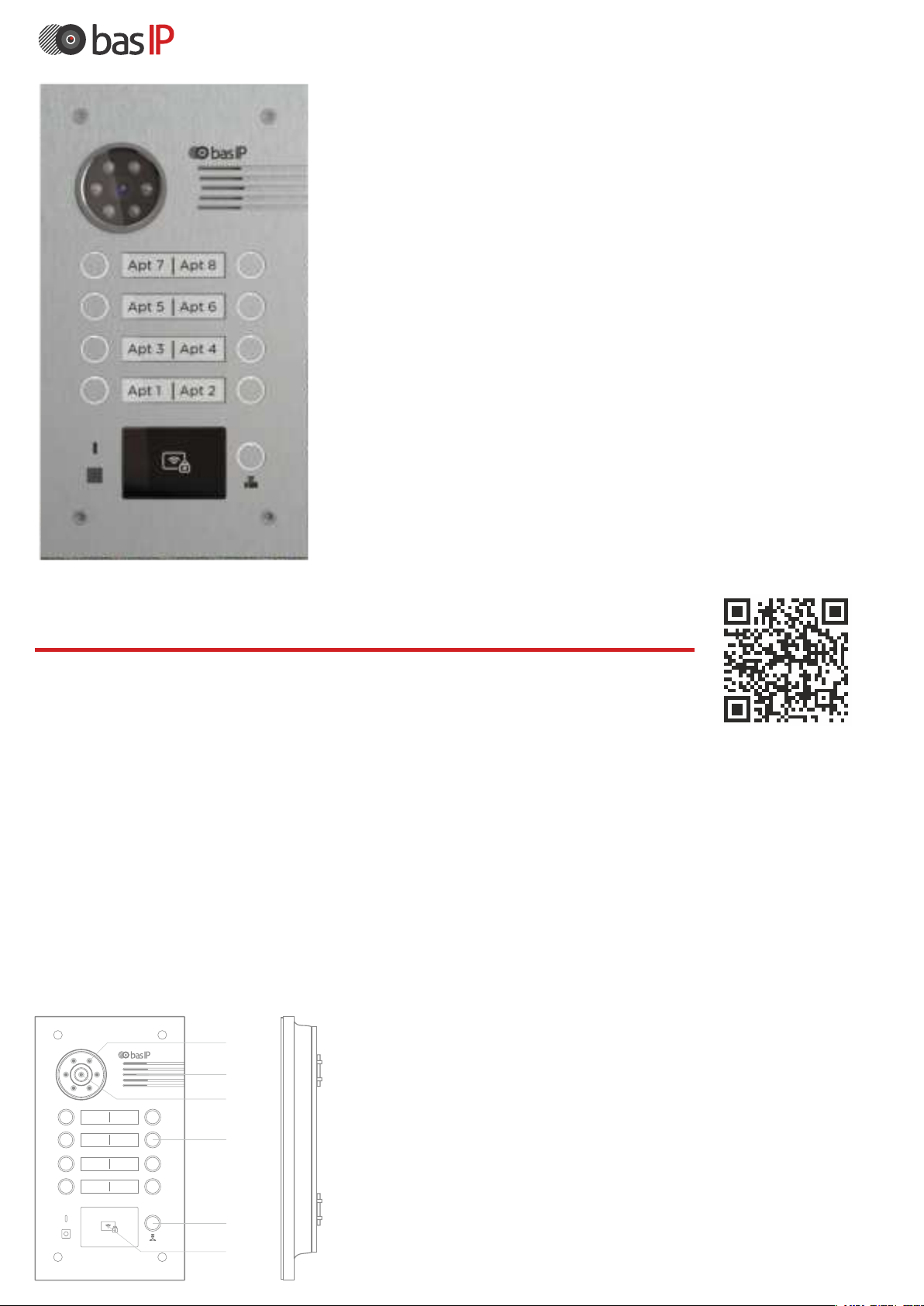

BA-08BDthe new BAS-IP UKEY application, as well as has a built-in camera, which provides video output in 720p. resolution.This panel is exceptionally durable, for its protection class is IP65.BAS-IP BA-08BD is 8-button panel incorporating cutting-edge technical features and stunning design. The BA-08BD supports contactless cards, Full User ManualDevice descriptionwiki.bas-ip.comENTRANCE PANELMain features• Panel type: Multi button.• Camera: 1/4”, adjustable camera angle by 15°.• Angle: 90° (horizontal).• Resolution: 1.3 Мp.• Output video: Half HD (1280 × 720), H.264 Main Proﬁle.• Night backlight: 6 LEDs.• Light sensitivity: 0,01 Lux.• Protection class: IP65.• IK-code: IK07.• Working temperature: -40 — +65 °С.• Power consumption: 5,5 W, in standby — 2,5 W.• Power supply: +12 V DC, PoE.• Body: Aluminum.• Colors: Silver.• Dimensions for installation: 142 × 245 × 55 mm.• Size of the panel: 156 × 270 × 50 mm.• Installation: Flush, surface with BR-BA bracket.

Apt 1Apt 2Apt 3Apt 4Apt 5Apt 6Apt 7Apt 8

AppearanceKeypad.Concierge.Reader.Backlight.Loudspeaker.Camera.123456------123456

EAN: 5060514913499 (SILVER)Completness check of the productBefore installation of the outdoor panel, it is necessary to check thatit is complete and all components are available.Outdoor panel kit includes: Outdoor panel Manual Flush mount bracket Set of wires with connectors for connection of power supply,lock, and additional modules Sealing plugWrench set screws 1 pc1 pc1 pc1 pc1 pc1 pcAfter verifying the device's completeness, you can switch to the outdoor panelconnection.For connection you will need: Electrical connectionAn Ethernet UTP CAT5 or higher cable connected to a networkswitch / router. Cable length recommendationsThe maximum length of the UTP CAT5 cable segment should not exceed 100 meters,according to the IEEE 802.3 standard. Power supply at +12 V, 2 amps, if there is no PoE.Connection scheme of electromechanical lockusing external power supply for panel and the lock.You can connect any type of electromechanical or electromagnetic lock for which the switched currentdoes not exceed 5 Amps.+12VGNDNCCOMNO485-485+DSDINGNDEXIT+12VDC+-SH-45Exit ButtonGND+12VLAN (PoE)ElectromechanicallockPower supplyfor the panelPower supplyfor the lock+12VDC+-SH-45Exit ButtonGND+12VPower supplyfor the panelPower supplyfor the lockElectromagnetic Lock+12VGNDNCCOMNO485-485+DSDINGNDEXITLAN (PoE)+12VDC

+12VDC+- Connection scheme of electromagnetic lockusing external power supply for panel and the lock.

Mechanical mountingAttention: the hole at the bottom is designed to drain the water. at the bottom of the niche which will serve to divert water out. Do not intentionally close it. Also it is necessary to make a drain for water It is also necessary to provide supply of a power cable, additional modules and the local network.Before installation of the outdoor panel it is necessary to provide a hole or a recess into a wall with dimensions 144×247×56 mm (for ﬂush mount) dimensions of the bracket (mounting box) = 142×245×55 mm.Outdoor PanelNicheScrewsOutdoorPanel

144 mm

247 mm120-140 cm

156 mm

270 mm

50 mm

Apt 1Apt 2Apt 3Apt 4Apt 5Apt 6Apt 7Apt 8

Flush Bracket142 mm

245 mm

WarrantyThe warranty card numberModel nameSerial numberSeller nameWith following stated terms of warranty is familiar, functional test wasperformed in my presence: Customer signatureWarranty conditionsThe warranty period of the product — 36 (thirty-six) months fromthe date of sale.Transportation of product must be in its original packaging or supplied oneby the seller.The product is accepted in warranty repair only with a properly ﬁlled warrantycard and the presence of intact stickers or labels.The product is accepted for examination in accordance with the casesprovided by law, only in the original packaging, in a full complete set,appearance corresponding to the new equipment and presence of all relevantproperly ﬁlled documents.This warranty is in addition to the constitutional and other consumer rightsand in no way restrict them. Terms of warrantyThe warranty card must indicate the name of the model, serial number,purchase date, name of the seller, seller company stamp andthe customer’s signature. Delivery to the warranty repair is carried out by the buyer himself.Warranty repairs carried out only during the warranty period speciﬁedin the warranty card.The service center is committed to do everything possible to carry outthe repair warranty products, up to 24 working days. The period spenton the restoration of product functionality is added to the warranty period.EAN: 5060514913499 (SILVER)
