USER MANUAL
IP INDOOR VIDEO ENTRY PHONE
AZ-07L
AZ-07L
IP INDOOR VIDEO ENTRY PHONE
an autoresponder. OS - Android.
7” IP video indoor monitor with overhead horizontal and vertical mounting
options, the ability to control the lift, display messages from the management
company, PoE, connection of 32 cameras, memory for photos / videos and
Main features
• Display: 7” IPS LCD, capacitive
touchscreen.
• Screen resolution: 1024 x 600.
• Built-in camera: No.
• Power: PoE and + 12 V DC
(PSU not included).
• Power consumption: 6 W,
standby 2.5 W.
• Dimensions: 195 x 127 x 27 mm.
• Colors: Black, Gray.
• Body: Plastic.
• Installation Type: Wall mount.
• Mounting options: Horizontal
and vertical.
Full User Manual
Device description
wiki.bas-ip.com
Appearance
1
3
2
Unlock button.
Screen
Microphone.
1
2
3
-
-
-
Completness check of the product
Before installing the monitor, be sure to check that it is complete and all
components are available.
The monitor kit includes:
Monitor
Manual
Wall mounting bracket
Set of wires with connectors for connection of alarm loops, doorbell
and home automation
Resistors for alarm loops
Installation screws
1 pc
1 pc
1 pc
1 pc
8 pcs
2 pcs
After verifying the device's completeness, you can switch to the monitor
connection.
To connect monitor you will need:
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a PoE switch or
to a normal switch/router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment shouldnot exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 Volts DC if there isn't PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
EAN: 5060514915332 (WHITE)EAN: 5060514915301 (BLACK)
Power supply
12V, 2A
Using the siren output as a controlled output, to control devices
or any other external load with high current consumption
Supply
Power supply
for external load
Powerful external load with
a current consumption
of more than 0.35A
VD K1
K1.1
External relay 12 Volt,
current consumption
less than 0.35A
Switch
Supply
Bell button
normal
+12V
Button SH-45
+12V
Button SH-45T
Lock
+12V
Bell button
SH-46T
Lock
+12V
Universal button
SH-47T
Lock
+12V
485+
485-
Expansion module
SH-16
Power supply
12V, 2A
Switch
EAN: 5060514915332 (WHITE)EAN: 5060514915301 (BLACK)
Wiring diagram using various types of buttons connected
to alarm loops, and using them as a «Call Button»
Supply
Wiring diagram for security alarm sensors with NC -
normally closed contact types
0,35A
Siren
12V
Sensor
1.2
2.2 kOhm
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
2.2
3.2
4.2
5.2
6.2
7.2
Sensor Sensor
8.2
1.1
2.1
3.1
4.1
5.1
6.1
7.1
8.1
1.n
2.n
3.n
4.n
5.n
6.n
7.n
8.n
2.2 kOhm
2.2 kOhm
2.2 kOhm
2.2 kOhm
2.2 kOhm
2.2 kOhm
2.2 kOhm
Switch
Power supply
12V, 2A
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
0,35A
Supply
Wiring diagram for security alarm sensors with NO - normally open contact types
Power supply
12V, 2A
Switch
Siren
12V
Sensor
Sensor
Sensor
1.1
1.2
1.n
2.2 kOhm
2.1
3.1
4.1
5.1
6.1
7.1
8.1
2.2
3.2
4.2
5.2
6.2
7.2
8.2
2.n
3.n
4.n
5.n
6.n
7.n
8.n
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
EAN: 5060514915332 (WHITE)EAN: 5060514915301 (BLACK)
Appearance and mechanical mounting
Before installation of a monitor, it is necessary to drill a hole or a recess into
a wall with a 68 mm (2.68in) diameter under the standard mounting box for
a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and
installation of the monitor.
Attach the bracket in the outlet box using set screws and a phillips head
screwdriver.
Installation of the monitor on the bracket is done from top to bottom.
127 mm
195 mm
27 mm
Surface bracket MonitorNiche
195 mm
127 mm
27 mm
150-160 cm
60 mm
Surface bracket MonitorNiche
150-160 cm
60 mm
Vertical mounting
Horizontal mounting
Warranty
The warranty card number
Model name
Serial number
Seller name
With following stated terms of warranty is familiar, functional test was
performed in my presence:
Customer signature
Warranty conditions
The warranty period of the product — 36 (thirty-six) months from
the date of sale.
Transportation of product must be in its original packaging or supplied one
by the seller.
The product is accepted in warranty repair only with a properly filled warranty
card and the presence of intact stickers or labels.
The product is accepted for examination in accordance with the cases
provided by law, only in the original packaging, in a full complete set,
appearance corresponding to the new equipment and presence of all relevant
properly filled documents.
This warranty is in addition to the constitutional and other consumer rights
and in no way restrict them.
Terms of warranty
The warranty card must indicate the name of the model, serial number,
purchase date, name of the seller, seller company stamp and
the customer’s signature.
Delivery to the warranty repair is carried out by the buyer himself.
Warranty repairs carried out only during the warranty period specified
in the warranty card.
The service center is committed to do everything possible to carry out
the repair warranty products, up to 24 working days. The period spent
on the restoration of product functionality is added to the warranty period.
EAN: 5060514915332 (WHITE)EAN: 5060514915301 (BLACK)

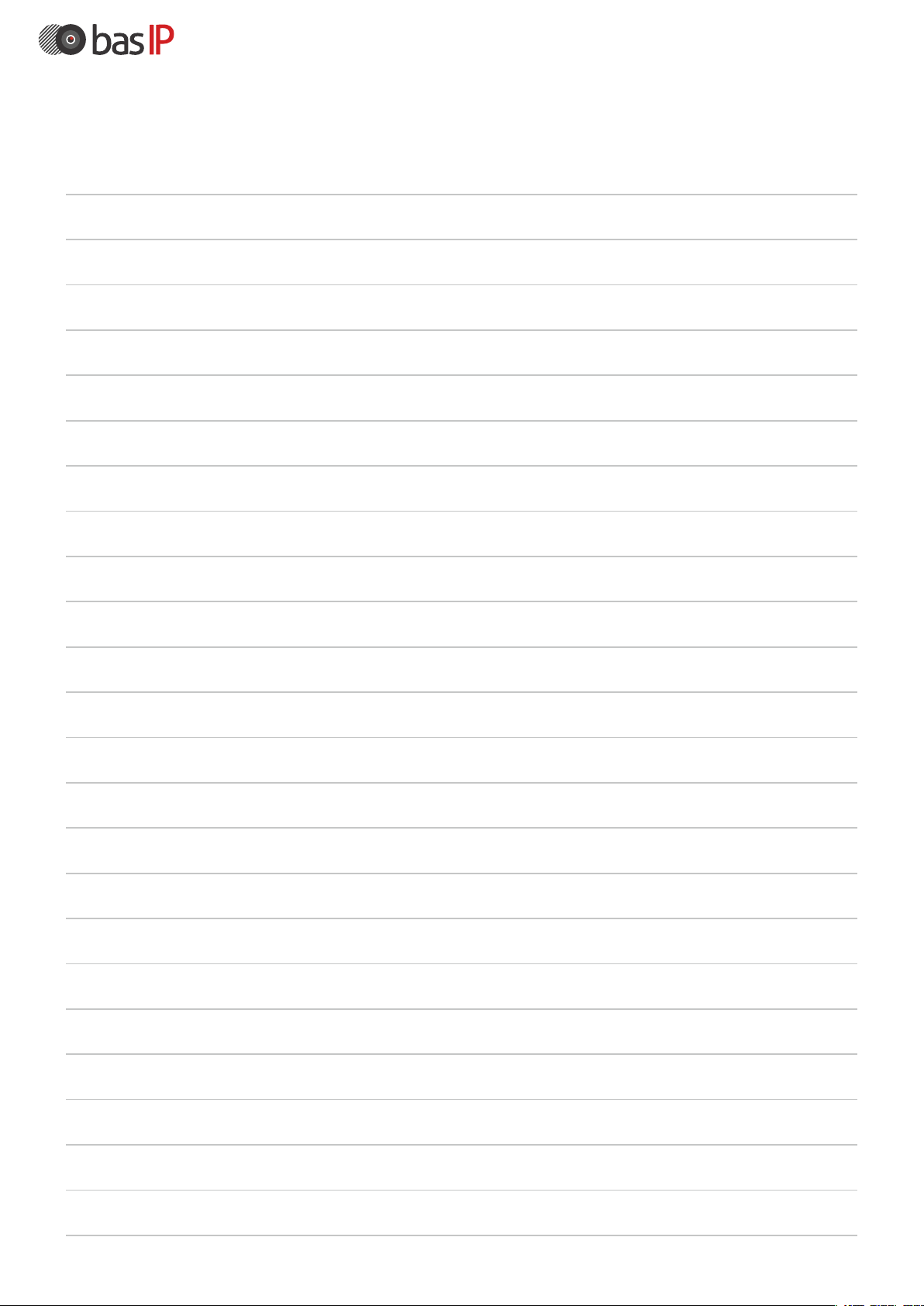

Notes
