quickstart guideCR-02BDREADER WITH CONTROLLERFull User ManualExternal contactless card and key fob reader with built-in controllerUsing an external network proximity card reader BAS-IP CR-02BD,you can read contactless cards, key fobs, as well as mobile identiﬁers from mobile devices and open the connected lock.and UKEY technology support: Mifare® Plus and Mifare® Classic, Bluetooth, NFC card, key fob, and mobile ID reader.wiki.bas-ip.com1Loudspeaker2Power indicator3Opens door indicator4Card reader

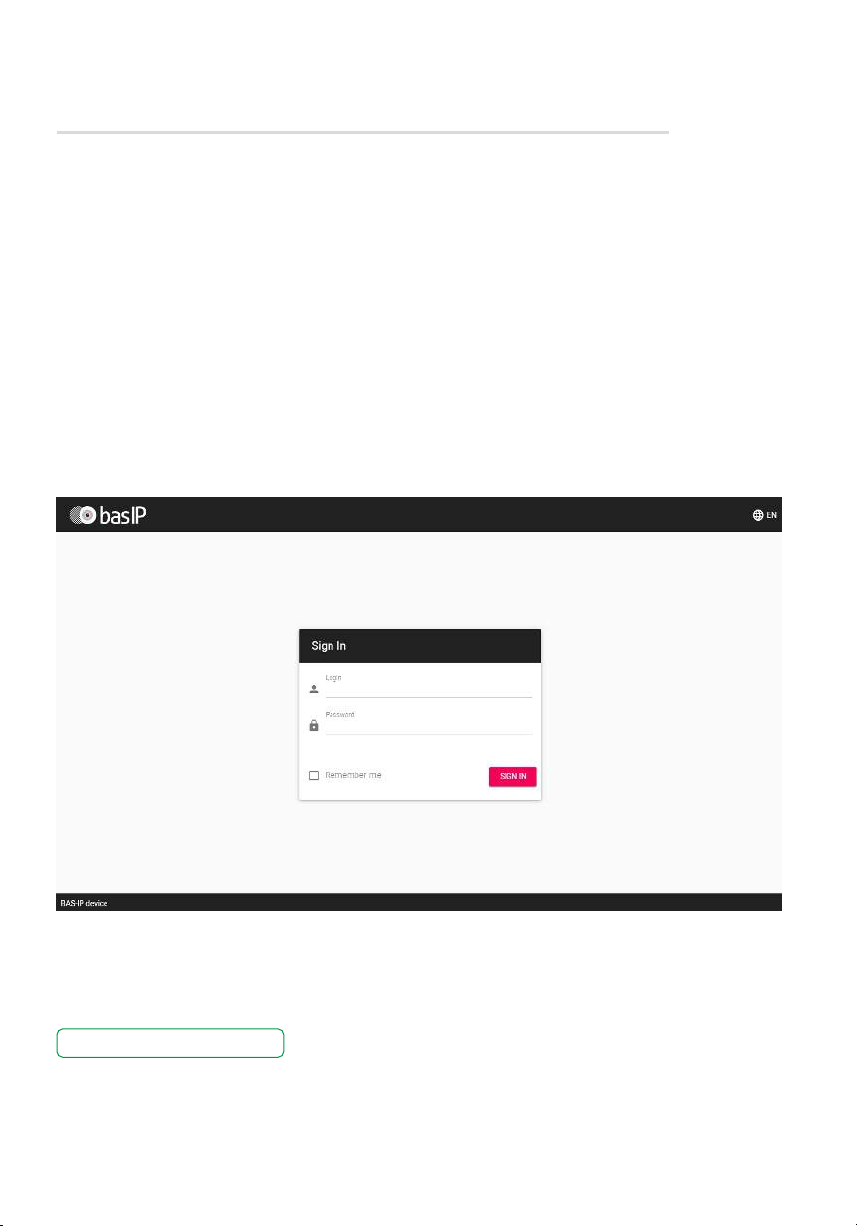

To conﬁgure the reader remotely via the WEB interface, you needto connect to it with an Internet browser on your PC. The panel mustbe connected in the same network segment as the PC from whichit is planned to perform the conﬁguration.To ﬁnd the device in the LAN, it is required to use the Remote searchand upgrade tool.In the Internet browser, in the address entry box, you must enterthe IP address of the reader, after which the user name and passwordentry window will appear.LoginBy default, user password is 123456.• Username to enter the settings: admin. The password required for entry corresponds to the password for access to the settings•of the reader and is the installer password.

After successful authorization, the following interface will be displayed:MainDevice info• Framework: a version of the framework. Launcher: a version of the launcher.• Serial number: serial number of the device which will be used•for the communication with Link software.Network info• DHCP: current DHCP status. IP address: current IP address of the device.• Subnet mask: used subnet mask.• Gateway: gateway address.• DNS server: DNS server address.• MAC address: physical address of the device.•

Network• DHCP: enable / disable the automatic retrieval of network settings.• IP: reader IP address.By default, the reader can have a static IP address 192.168.1.90 or 192.168.1.91• Mask: subnet mask.• Gateway: the main gateway.• DNS: DNS server address.Custom NTP• Current device date / time: showsthe current device's date and time. URL: ﬁeld to enter custom NTP server•address. Timezone: choose used timezone.•Management system• Use the BAS-IP Link server: enable / disablethe usage of the BAS-IP Link server. URL: management server address.• Password: access password.• Send realtime logs to the server:•enable / disable panel logging to server. Heartbeat to server: enable / disable•sending current panel status to the server.network settings

Device• Mode: device operation mode (an individual mode must be set for the reader).When working with the elevator module, it is necessary to set a unit mode. Building: building number.• Unit: unit number.• Flor: ﬂoor number.• Apartment: apartment number.• Device number: device enumeration number.•Numeration of the readersIf you have several readers that have one logical address, then in the «No.» ﬁeld specify the value 2, 3, 4, 5, etc., up to 9.Device settings• Volume level: adjust the volume levelof the reader's speaker.Relay settings• Relay position: Selection of the initial stateof the panel relay when the device is turned on.Selection of the initial state of the panel relaywhen the device is turned on. Switch when the device is turned on - whenthe device is turned on, the relay will switchthe position to the opposite; when the deviceis turned oﬀ, the relay will return to its originalposition.Do not switch when the device is turned on -the relay will not switch the position whenthe device is turned on and oﬀ.Apartment settings

ApartmentsHere you can add, edit or look at a list of ﬂats and get detailedinformation about each apartment. An apartment is a logical entityto bind identiﬁers, access codes, redirection rules, and other informationabout residents.How to add a new apartment to the device memory?1 Log in to the device web interface.2 Open the Apartment tab. Click New Apartment and ﬁll3 in the required information: building No. (from 1 to 999) • unit No. (from 00 to 99) • ﬂoor No. (from 00 to 98) • apartment No. (from 01 to 99) •By default, the username is adminand the password is 123456After saving the information, the apartment is added to the general table, which contains: apartment address•• apartment Name• conditional number of inhabitants in an apartment• amount of identiﬁers that are issued to a particular apartment.Identiﬁers can be created in the Identiﬁers section of the Access management tab• amount of created forward queues for the apartment.Forwardings are conﬁgured in the corresponding tab• ability to edit information or delete one or several selected apartments.4 Enter an Apartment name(without specialcharacters).For example, Smiths. 6 Conﬁrm information to save it. 5 Indicate the number of residentsfor this ﬂat.

Access managementAccess managementAt this part, you can change information about: Master card•This card is used to add other cards to panel memory. Here you can specify the card number. To add a master card if its number is unknown: Open Access management tab of panel wen interface. • Enter 0 in the Master card ﬁeld and submit changes.• Bring the card to a panel reader and wait for the BEEP signal, which means that•the master card has been successfully registered.To add a user card using the master card: Bring the card to a panel reader to switch to the adding user cards mode.• Bring the user card to the reader. After reading the card, you will hear the BEEP signal,•which means the successful registration of the card. Open the Identiﬁers tab in the web interface, where the added card will be displayed.•• Add missing information about the card and save changes. The time between adding cards must not exceed 10 seconds.This method is convenient for mass and quick identiﬁers adding.But identiﬁers are not connected to the necessary apartment, so we recommend addingidentiﬁers through the web interface.• Wiegand type for a card reader. Wiegand-26, Wiegand-34, and Wiegand-58 typesare available for work. Identiﬁer representation systems•All identiﬁers can be displayed in Decimal and HEX numeral systems.Support and update of new Wiegandmodes require updating the ﬁrmwareof the Wiegand controller in the servicecenter.

Locks management At this part, you can conﬁgure the functioning of 1 or 2 (when using SH-42) locks.The following parameters can be conﬁgured: Lock open time is a period (1-300 sec) during which relay contacts will be closed or open•(depending on the lock type), and a lock will stay open. Lock open delay is a period (1-300 sec) after which relay contacts will close or open after•sending a signal to open a lock.• Impulse opening mode: one or multiple pulses. It is available to set pulse durationand time between pulses for multiple pulses mode.If an electromechanical lock is used, it is recommended to select one impulse.If an electromagnetic lock is installed, we recommend setting multiple pulses. These settingswill help the locks work correctly and for a long time, especially mechanical as it might breakif the voltage is applied to it for too long. Keep the lock open or not if SIP registration is lost.•It is necessary to set no SIP registration time for this parameter.

Open lock In this section, you can remotely open lock #1 or lock #2 (when using SH-42) by clickingthe corresponding button. Additional settings Here you can: Set the Floor number for further features that work only with the elevator control•module EVRC-IP.• Enable / disable features of sending the elevator to the indicated ﬂoor number whenthe lock is open using an identiﬁer or from the monitor. Enable / disable monitor secure mode is a feature of alarm deactivation on an indoor•monitor when bringing an identiﬁer (that is linked with the monitor) to the panel reader.Server manage access In this section, you can enable and conﬁgure working mode when all identiﬁers are not storedin a panel memory but on a server. When the identiﬁer is brought to the reader, the panelwill send a request to the server and wait for a response - to give access or not.The timeout for receiving a response from the server is up to 15 seconds. After this time, the panel automatically goesto its database and gives access or not.

To conﬁgure this feature you must: Log in to the entrance panel web interface. •By default, the username is admin, and the password is 123456 Open the Access management tab and ﬁnd the Server manage access section.• Enable the feature.• Click Use custom server and enter it. You can use the Link server.• Submit settings.•Door sensor input It is possible to connect a door sensor or additional button to the door sensor input.In this section, you can enable/disable and conﬁgure their work.After device installation and electric connection, you must do the following stepsfor correct work: Log in to the entrance panel web interface.•• Open the Access management tab and ﬁnd the Door sensor input section.• Enable sensor or button functioning by ticking the corresponding box.• Choose the appropriate input mode: Door sensor mode is used to monitor the door state. If the door is not closed, after• the expiration of the response time in Logs/Link logs will be shown that the door is open. Door entry button mode is recommended when the connected button is used• as an additional, remote from the panel, entry button.• If you use Door sensor mode, set the Response time after which the mode will be activated.• For the Door sensor, you can enable the option to resend a trigger message to Link logsand set the delay time before resending.• Submit settings.By default, the username is admin, and the password is 123456
