BATHCO Oropesa 4565 Manuale utente
info@bathcogroup.com

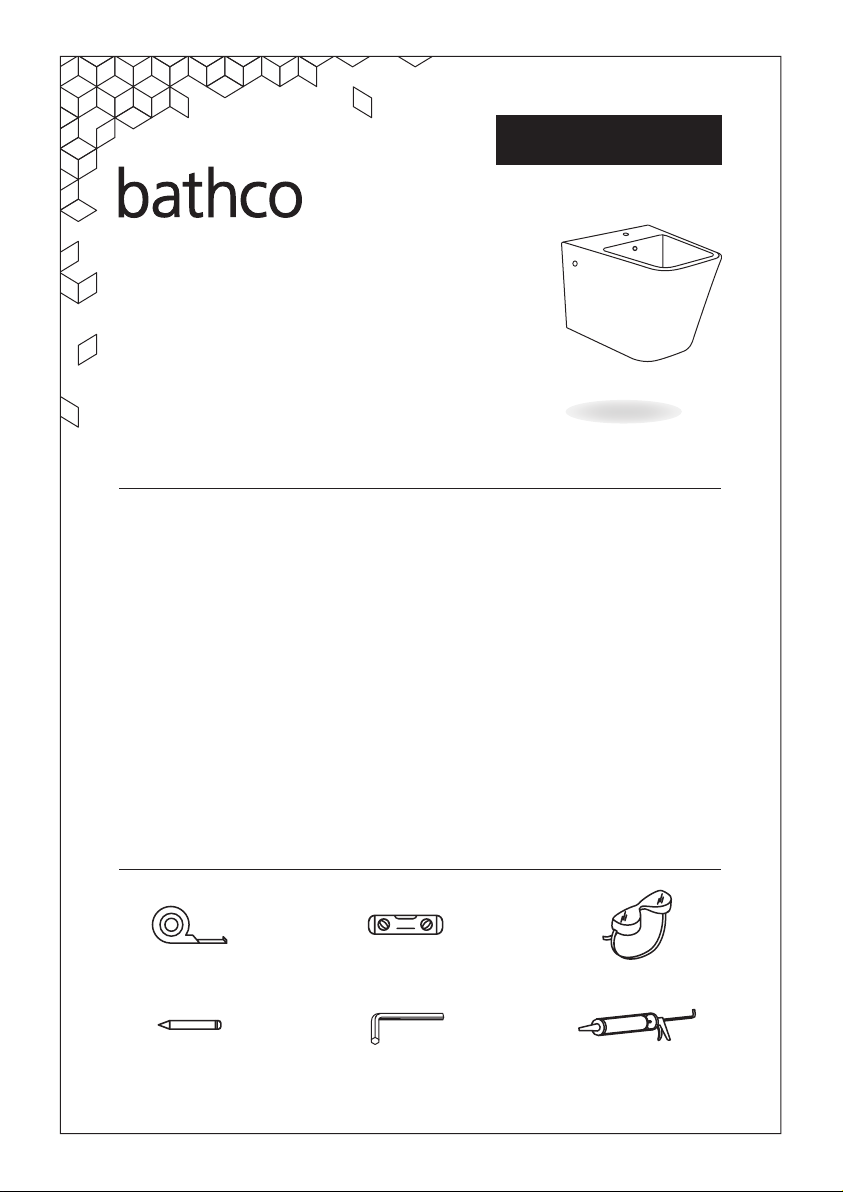

Tools and material required
INSTALLATION INSTRUCTIONS
Before proceeding with installation, please read these instructions carefully to
familiarise yourself with the required tools, materials and installation sequences.
Please leave these instructions for the consumer after installation.
Prior to installation, inspect the toilet to ensure that no damage has occurred in
transit. If damage has occurred, or a visible defect exists, do not proceed with
installation, and advise your supplier immediately.
CAUTION: risk of personal injury or product damage. Handle with care. Porcelain
can be broken or chipped if the product is handled carelessly.
- Observe all local plumbing and building codes.
- Carefully inspect the new toilet for damage.
- If the existing toilet does not have a supply shut-off valve below the cistern,
install one before installing the new toilet.
Oropesa
Ref. 4565
Wall - hung bidet
Caulking gun
Safety glasses
Tape measure
Pencil Allen key
Level
Installation
2
1

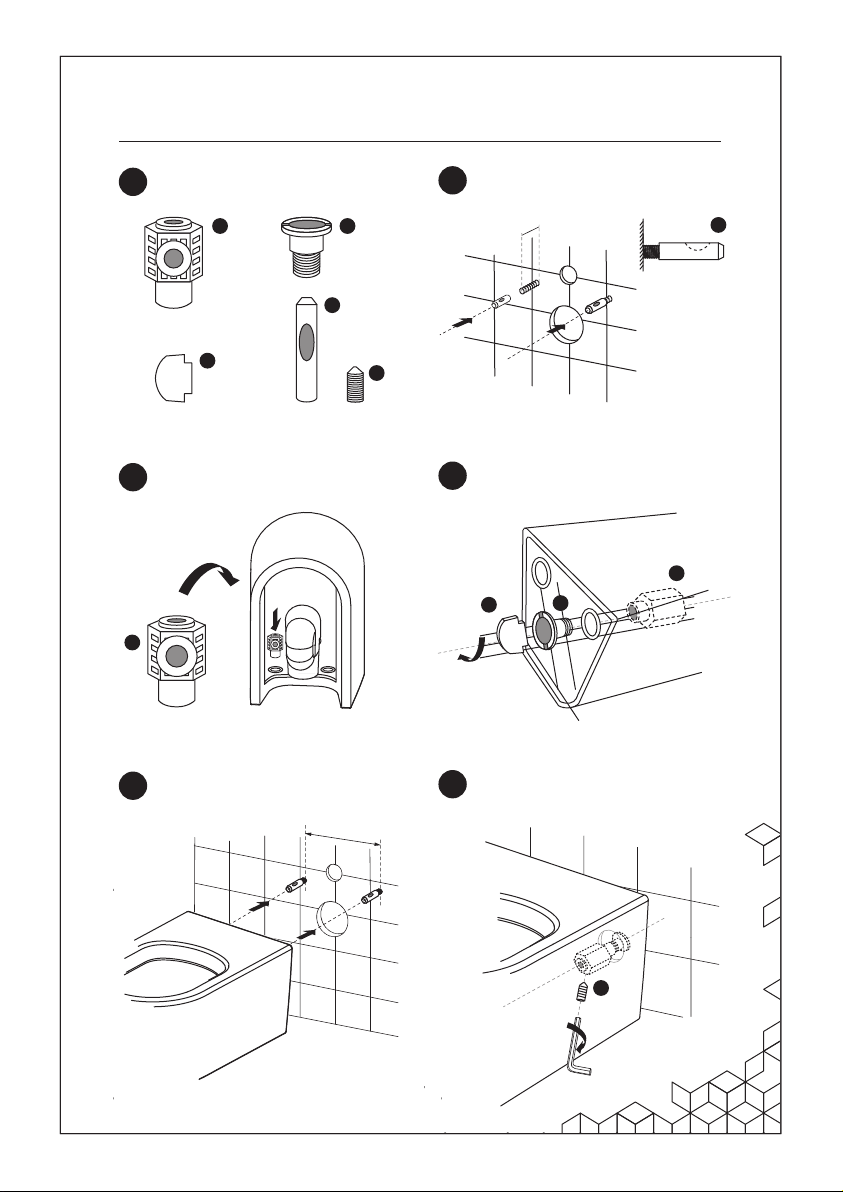

Parts identification Installing D into the screw rod and
keeping screw notch vertically upward.
6
5
Fix to wall. Installation E into the screw hole of
D. Fixing it on the mounting.
50 mm
x2
A
x1
C
D
x2
B
x2
D
x2
E
4
3
Check the shut-off valve position. Insert B into A. Insert part A into B to
rotate.
A
B
C
A
E
180 mm
