Baumatic BAF90EG-2 Manuale utente

BAF90EG-2

USER

MANUA

90CM FREESTANDING COOKER

For your safety

Safety of children and the infirm . . . . . . . . . . . . . . . . . . . . . . . . 3

Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

During use.........................................4

Installation.........................................5

Service and spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Use and Care

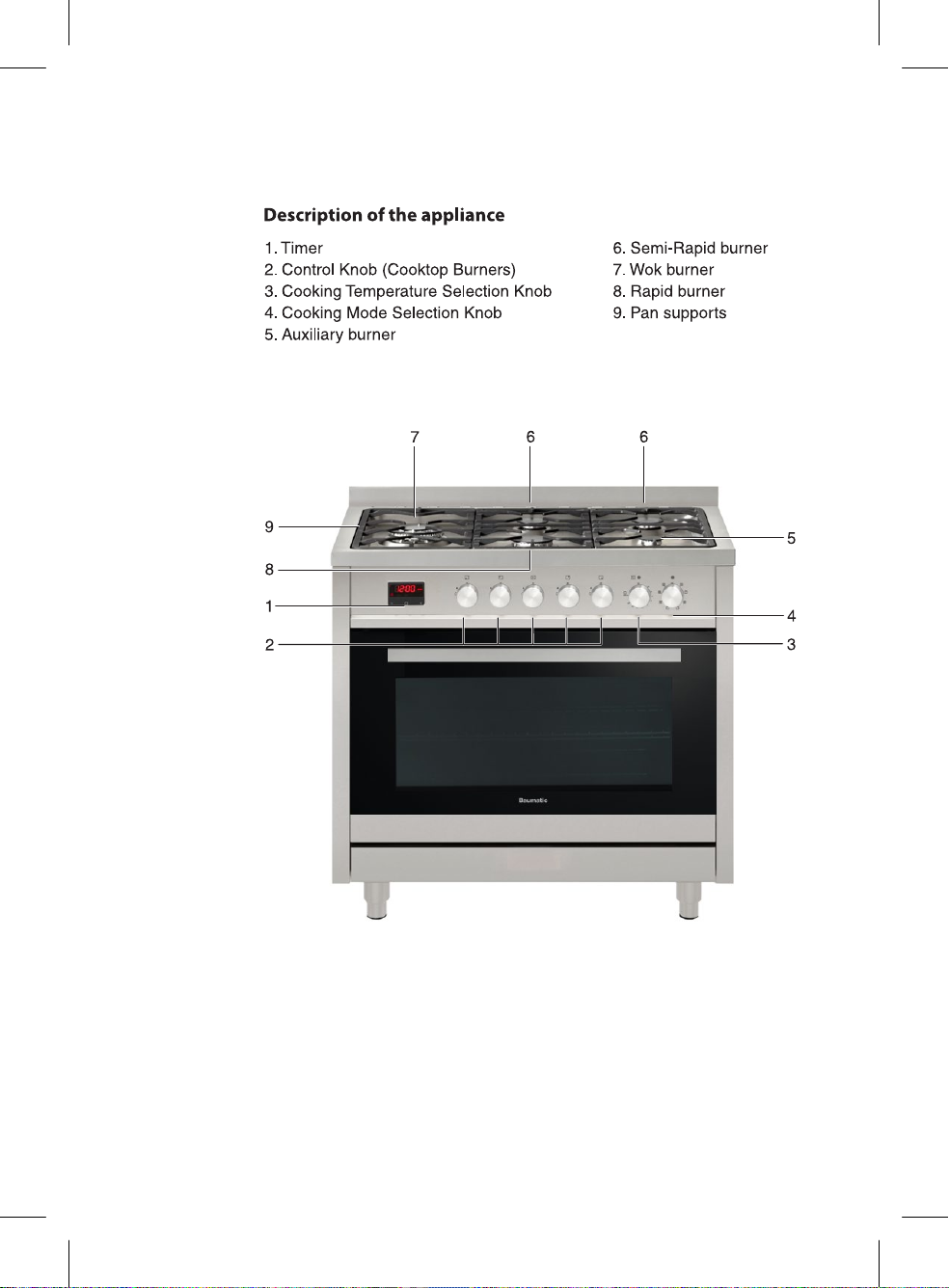

Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Oven & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control knobs ......................................8

Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

How to use your oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Positioning the oven trays & shelves . . . . . . . . . . . . . . . . . . . . 12

Practical cooking advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning & maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Disposal..........................................26

Installation

Technical data.....................................27

Instructions for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Dimensions.......................................29

Combustible surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Anti-tilting chains/hose restraining chain . . . . . . . . . . . . . . . . . 30

Connection to the gas supply . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Replacing the power supply lead. . . . . . . . . . . . . . . . . . . . . . . 35

Before leaving.....................................35

Gas Conversion

NG to U-LPG......................................36

U-LPG to NG......................................37

Anti-tilting chain - incorrect installation . . . . . . . . . . . . . . . . . . 31

Anti-tilting chain - correct installation. . . . . . . . . . . . . . . . . . . . 32

Contents

WARRANTY.

. 38

For Your Safety

We recommend that you read the instructions in this owner's

manual carefully before use for the best performance and to

extend the life of your appliance. It will provide you with all the

information you need to ensure its safe installation, use and

maintenance. Retain this owner's manual for future reference.

To maintain the efficiency and safety of this appliance, we

recommend that you do the following:

Always call the Glen Dimplex service department if there are

any faults with your appliance.

Always use original spare parts available from Glen Dimplex.

This appliance is designed for non-commercial, household use

and it must not be altered in any way.

This appliance can only be used safely when it is correctly

connected to an efficient earthing system in compliance

with current electrical safety standards.

If the supply cord or plug is damaged, it must be replaced

by the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard.

Packaging items such as plastic bags, polystyrene, nails, etc. are

potentially dangerous, and therefore appropriate measures must

be taken to prevent children and the disabled from coming into

contact with them.

Safety of children and the infirm

This appliance must only be used by adults. Make sure that

children do not touch the controls or play with the appliance.

The exposed parts of this appliance heat up during cooking and

remain hot for some time even after it is switched off. Keep children

well away until the appliance has cooled down.

Cleaning and maintenance

Keep the appliance thoroughly cleaned. Food residues may cause

fire risks.

During use

The appliance becomes hot. Care should be taken to avoid

touching heating elements inside the oven.

WARNING: Accessible parts will become hot when in use.

To avoid burns and scalds, children should be kept away.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

Young children should be supervised to ensure that they do

not play with the appliance.

DO NOT use a steam cleaner to clean the appliance.

This product is designed to cook foods inside private

homes and for non-commercial purposes. It should not be

used for any other purpose.

The appliance is not suitable for installation and use with

aftermarket lids.

After using the appliance, make sure that all controls are in

'CLOSED' or 'OFF' position.

DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE

APPLIANCE STORAGE DRAWER OR NEAR THIS

APPLIANCE.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS

APPLIANCE WHILE IT IS IN OPERATION.

DO NOT STORE OR USE FLAMMABLE LIQUIDS OR ITEMS

IN THE VICINITY OF THIS APPLIANCE.

THE APPLIANCE SHALL NOT BE USED AS A SPACE

HEATER.

Only use the appliance to cook food and nothing else.

Disconnect the appliance from the electrical mains if it is

not functioning properly and before cleaning or performing

maintenance.

For Your Safety

During use (continued)

Use oven gloves to place cookware in the oven or when

removing it. Always grip the oven door handle in the centre.

Glen Dimplex will not accept any liability as a result of any

damage due to incorrect installation or improper use

Installation

Installation of the appliance and its connection to the

electrical mains must only be carried out by Authorised

Personnel. Before any service procedure, it is important to

check that the appliance is DISCONNECTED from the

electrical mains.

DO NOT MODIFY THIS APPLIANCE.

After removing the appliance from the packaging, make

sure that it is undamaged and that the electrical lead is in

perfect condition. Otherwise, contact your dealer before

operating the appliance.

Make sure that air is able to circulate freely around the

appliance. Poor ventilation produces a shortage of oxygen.

Make sure that the appliance is supplied with the type of

gas indicated on the data label and the gas type label next

to the gas connection point.

Use of a gas cooking appliance produces heat and

moisture in the room in which it is installed. Ensure that the

room is well ventilated by keeping the air intakes open and

in good working order or by installing an extractor hood

with discharge pipe.

If the appliance is used intensively for a long time the

effectiveness of the ventilation will have to be increased, for

example by opening a window or increasing the power of

any electric extractor fan.

WARNING: In order to prevent accidental tipping of the

appliance, for example a child climbing onto the open oven

door, the stabilising means must be installed. Refer to the

instructions for installation.

For Your Safety

Avoid the following:

Touching the appliance with wet parts of the body.

Using the appliance while barefoot.

Improper or dangerous operation.

Obstructing the ventilation or heat dissipation slots.

Allowing power supply cables of other appliances to come into

contact with hot parts of the oven.

Exposing the appliance to atmospheric agents such as rain, or

direct sunlight.

Using the oven for storage purposes.

Using flammable liquids near the appliance.

Authorised personnel must be contracted to...

Install the appliance according to these installation instructions

and any local requirements.

Replace the temperature probe if it is damaged. The probe is

part of thermostat. Only use the temperature sensing probe

recommended for this oven.

Glen Dimplex Service Department must be contacted...

If in doubt about the operation of the appliance.

If in doubt about the soundness of the appliance after removing

it from its packaging.

If the power supply cable has been damaged or needs to be

replaced.

If the appliance requires a service or you need spare parts.

Service and spare parts

If the appliance fails to operate correctly, never attempt to repair

the appliance yourself. Repairs by unskilled persons may cause

damage and accidents. First refer to the contents of this manual. If

you do not find the necessary information, contact your nearest

Service Center. Servicing work on this appliance must be carried

out by Authorised Personnel. Always request the use of original

spare parts.

For Service & Spare Parts please contact:

AU:1300 556 816

Use and Care

Note:

Material, colours, pan supports and burner

configuration may vary i.e stainless steel / glass,

wok burner position etc.

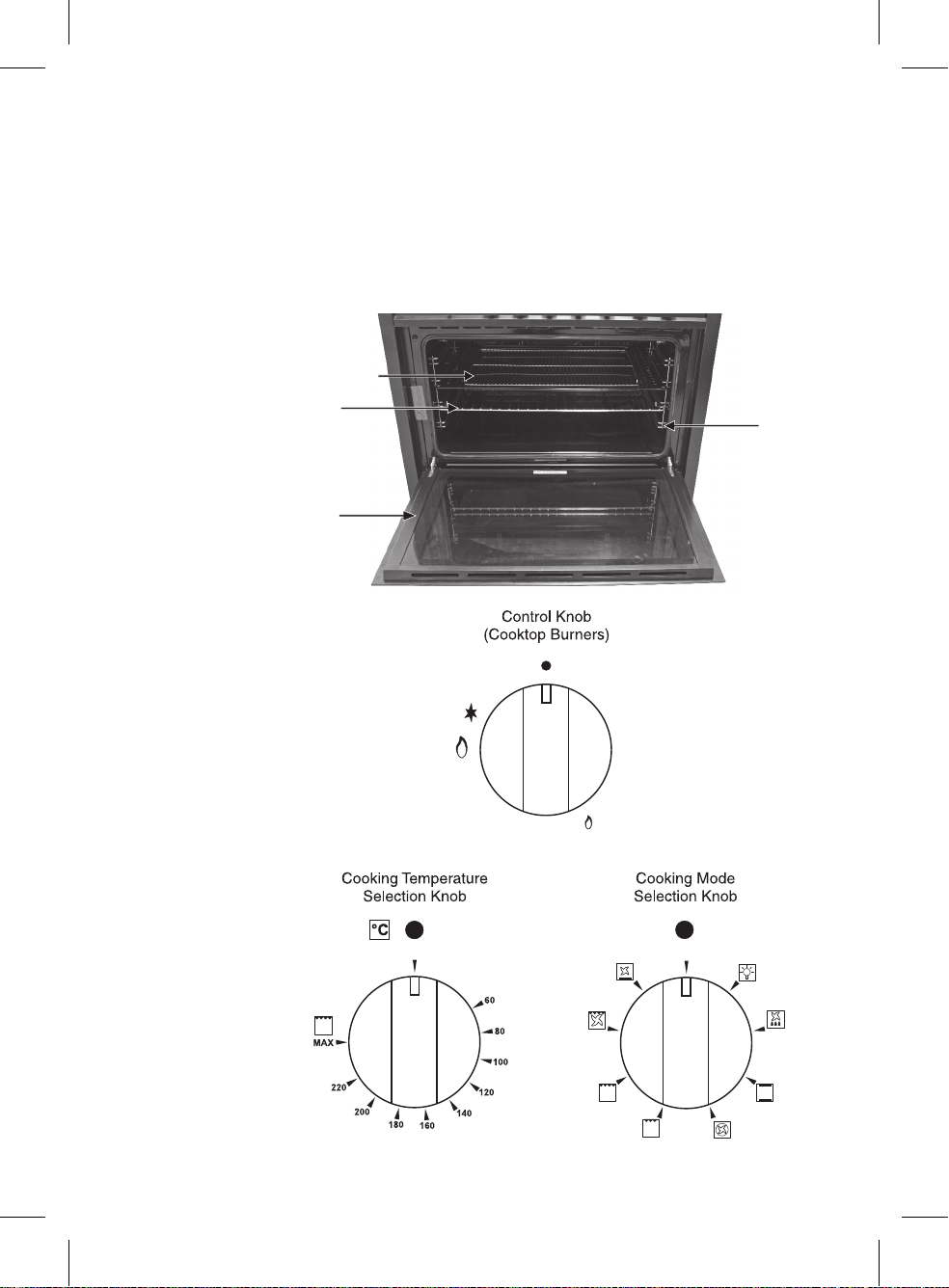

Oven & accessories

The oven is supplied with chrome wire Shelf Supports and a range

of shelf options as shown below. There are four shelf positions on

the oven.

Use and Care

Shelf

Supports

Oven Door

Grill Tray with

removable insert

Oven Shelf

Use and Care

Instructions for use (cooktop burners)

The symbols on the control knobs mean the following:

No gas flow or 'Off'

Maximum gas flow or 'high' flame and lighting position

Minimum gas flow or 'low' flame

All operating positions must be set between the maximum and

minimum flow settings, and never between the maximum setting

and the closed position.

A - Burner cap

B - Burner Head

C - Burner Bowl

D - Thermocouple (where fitted)

E - Electrode

To light the cooktop burners

To light the burner, press the control knob fully down and hold the

knob down before rotating anti-clockwise to the High Flame

position. The ignition device is integrated into the control knob and

is automatically activated by pushing down on the control knob.

After lighting the flame, keep the knob pressed for about 10

seconds: this time is necessary to heat up the thermocouple (D on

and activate the safety valve, which would otherwise cut

off the gas flow. This step only applies where flame failure device is

fitted.

In the instance of a power failure, place a lit match near the burner

and proceed as described above. If the flame does not light after

the first attempt, wait 5 minutes for the gas to dissipate before

attempting to re-light the burner.

Once lit, check that the flame is even and turn the control knob to

adjust the flame as required. If the flame is uneven, check that the

'burner head/skirt' and 'burner cap' are correctly positioned. To turn

off the flame, turn the control knob clockwise to the off position

( symbol). Before removing pots or pans from the burners, always

turn off the flame.

For correct use of the cooktop

For lower gas consumption and better efficiency, use only flat-

bottomed pans of dimensions suitable for the burners, as shown in

the table below. Also, as soon as a liquid comes to the boil take

care to turn the flame down to a level that will just keep it boiling.

Burner Minimum diameter Maximum diameter

Large (rapid) 150mm 260mm

Medium (semi-rapid) 130mm 180mm

Small (auxiliary) 90mm 160mm

Triple Flame (wok) 210mm 270mm

During cooking processes involving fats or oils, watch your foods

carefully because these substances may catch fire if overheated.

page 9)

Use and Care

Indice

Altri manuali Baumatic Fornello

Baumatic

Baumatic BT2320 Istruzioni operative

Baumatic

Baumatic BAF90EG Manuale utente

Baumatic

Baumatic BCE625-SS Manuale utente

Baumatic

Baumatic PCG7110SS Manuale utente

Baumatic

Baumatic BCE520SL Manuale utente

Baumatic

Baumatic PROFESSIONAL Series Manuale utente

Baumatic

Baumatic BCG605SS Manuale utente

Baumatic

Baumatic BC392SS Manuale utente

Baumatic

Baumatic BCE512SS/W Manuale utente

Baumatic

Baumatic PCC1220SS Manuale utente

Baumatic

Baumatic BCG905SS Manuale utente

Baumatic

Baumatic BT2320 Istruzioni operative

Baumatic

Baumatic BT2396SS Manuale utente

Baumatic

Baumatic FNO 605 BK Manuale utente

Baumatic

Baumatic BCG900SS Manuale utente

Baumatic

Baumatic PROFESSIONAL Series Manuale utente

Baumatic

Baumatic BC190SS Manuale utente

Baumatic

Baumatic BT2750 Istruzioni operative

Baumatic

Baumatic BCG925SS Manuale utente

Baumatic

Baumatic BCE1020SS Manuale utente

Baumatic

Baumatic BT3600 Istruzioni operative

Baumatic

Baumatic PCE9220SS Manuale utente

Baumatic

Baumatic BT2395SS Istruzioni operative

Baumatic

Baumatic BT2710SS Manuale utente

Manuali Fornello popolari di altre marche

Modena

Modena FC 7645 SGM Manuale del proprietario

Electrolux

Electrolux Insight EKG6049 Manuale utente

Stanley

Stanley Donard 60 Manuale utente

Bartscher

Bartscher 201TC Manuale utente

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuale utente

Siemens

Siemens HK9P00020U Manuale utente

Creda

Creda S150E Guida

Creda

Creda HB48309 Manuale utente

Bosch

Bosch HCE743220F Manuale utente

Tricity Bendix

Tricity Bendix SE545P Manuale utente

NEFF

NEFF E1461A2/01 Manuale utente

Zanussi

Zanussi ZCM 700 X Manuale utente

Smeg

Smeg SNL61MA9 Manuale utente

RiverGrille

RiverGrille TF2002501-RG Manuale utente

Vollrath

Vollrath 69504F Manuale utente

Tricity Bendix

Tricity Bendix CSIE500 Manuale utente

AEG

AEG Competence 5731 V Manuale utente

Euromaid

Euromaid ES60 Manuale utente
