BC190.2TCSS 90cm Single

cavity gas range cooker

with flame failure

User Manual for your Baumatic

BC190.2TCSS

90 cm Single cavity gas range cooker with

flame failure

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 27/10/11

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 11

Controlpanel 11

Using your gas range cooker 12–21

Beforefirstuse 12

Switching the gas oven on 12–13

Switching the gas grill on 13–14

Fittingthegrilldeflector 14

Usingtheminuteminder 15

Theovenlight 15

Cookingguidelines 16

Warnings 16

Gasmarktemperatures 17

Shelflevels 17

Baseburnerappliances 18

Cookingtable 19

Usingthehobtop 20

Automatic ignition with flame failure safety device 20-21

Energysavingtips 21

Cleaning and maintenance 22-25

Cleaning the hob burners 23

Maintaining the cast iron pan stands 23

Replacing the oven bulb 23-24

Removing the oven doors for cleaning 24-25

Removing the inner door glass for cleaning 25-26

Installation 26-39

Positioning 26-28

Gas connection 29

Ventilationrequirements 29-30

Gas Safety (Installation and Use) Regulations 30

Gas connection 31

Gas adjustment (Conversion to LPG for the hob top) 32-33

Minimum flow adjustment for hob gas taps 33-34

Gas adjustment (Conversion to LPG for the oven and grill) 34–35

Minimum flow adjustment for the oven and grill burners 35-36

Fitting a stability chain 36-37

Electricalconnection 37

Connecting the mains supply cable 38

Replacing the mains supply cable 38–39

My appliance isn’t working correctly 39-40

Baumatic consumables 41

Contactdetails 42

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 20 mm to the appliance, will be

the liability of the owner.

oIMPORTANT: Baumatic Ltd. DO NOT recommend that this

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oMake sure that you understand the controls before using the

appliance.

oCheck that all of the controls on the appliance are turned off

after use.

oAlways stand back when opening the oven door, this will allow

heat to disperse.

oTake care when removing items from the oven, as the contents

may be hot.

oAlways keep the oven doors closed when the oven is not in use.

oAlways follow the basic principles of food handling and hygiene;

this will prevent the possibility of bacterial growth.

oAlways keep ventilation slots clear of obstructions.

oKeep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

oOven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct

contact with the inside of the appliance.

oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in cabinets immediately above or next to the

cooker.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using a grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between

the door glasses, and inside the inner frame as some of

the edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-90/396/EEC regarding “gas appliances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

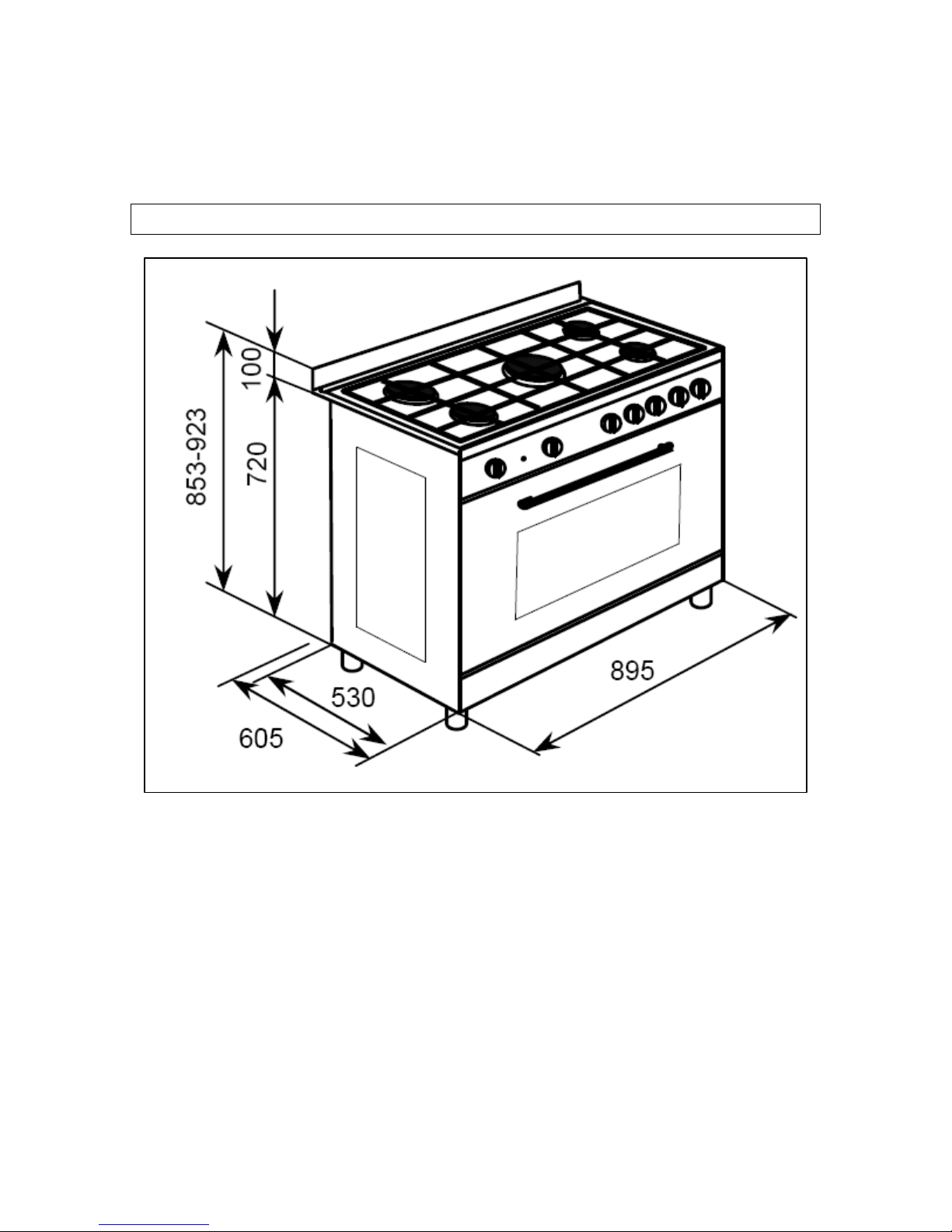

Product dimensions:

Height: 853 - 923 mm

Width: 895 mm

Depth: 605 mm

Product specifications:

o5 burner gas hob:

o1 x 3.50 kW wok burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oHeavy duty cast iron pan stands

oAutomatic ignition

oFlame failure device on each burner

oGas oven with grill:

oOven capacity: 110 litres

oFlame failure device on oven and grill burner

oMinute minder

oDouble glazed removable door

oRemovable inner door glass

oAdjustable feet

oAutomatic ignition

Standard accessories:

oRemovable side racks

oEnamelled baking tray

oSafety shelf

oLPG conversion jets

Optional extras:

oBPS2 Pizza stone

oBTGRID Double-sided griddle plate

oWOK1E Enamelled wok stand

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Fuse Rating: 3 A

Mains Supply Lead: 3 x 1.5 mm²

Gas details

Gas Connection Type: 1/2” BSP

Gas Type (Natural Gas): 20 mbar

Gas Type (LPG): See tables on page 32 and 35 for

thisinformation.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located on the rear of the appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Indice

Altri manuali Baumatic Fornello

Baumatic

Baumatic BT3500SS Manuale utente

Baumatic

Baumatic BT3600 Istruzioni operative

Baumatic

Baumatic BT2320 Istruzioni operative

Baumatic

Baumatic BT2750 Istruzioni operative

Baumatic

Baumatic BMEC9GEPSS Manuale utente

Baumatic

Baumatic BRC4BDY Manuale utente

Baumatic

Baumatic PROFESSIONAL Series Manuale utente

Baumatic

Baumatic BCG600SS Manuale utente

Baumatic

Baumatic BCD1205SS 120cm Manuale utente

Baumatic

Baumatic BC391.3TCSS 90cm Manuale utente

Baumatic

Baumatic BCG520SL Manuale utente

Baumatic

Baumatic B187SS-B Manuale utente

Baumatic

Baumatic BT2395SS Istruzioni operative

Baumatic

Baumatic BC392SS Manuale utente

Baumatic

Baumatic BCE512SS/W Manuale utente

Baumatic

Baumatic BT2710SS Manuale utente

Baumatic

Baumatic BCG625-SS Manuale utente

Baumatic

Baumatic PCC1220SS Manuale utente

Baumatic

Baumatic BT2100SS Manuale utente

Baumatic

Baumatic BT2740SS Manuale utente

Baumatic

Baumatic BAU91EG Manuale utente

Baumatic

Baumatic BT2630SS Manuale utente

Baumatic

Baumatic BC391.2SS Manuale utente

Baumatic

Baumatic BCE625-SS Manuale utente

Manuali Fornello popolari di altre marche

Modena

Modena FC 7645 SGM Manuale del proprietario

Electrolux

Electrolux Insight EKG6049 Manuale utente

Stanley

Stanley Donard 60 Manuale utente

Bartscher

Bartscher 201TC Manuale utente

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuale utente

Siemens

Siemens HK9P00020U Manuale utente

Creda

Creda S150E Guida

Creda

Creda HB48309 Manuale utente

Bosch

Bosch HCE743220F Manuale utente

Tricity Bendix

Tricity Bendix SE545P Manuale utente

NEFF

NEFF E1461A2/01 Manuale utente

Zanussi

Zanussi ZCM 700 X Manuale utente

Smeg

Smeg SNL61MA9 Manuale utente

RiverGrille

RiverGrille TF2002501-RG Manuale utente

Vollrath

Vollrath 69504F Manuale utente

Tricity Bendix

Tricity Bendix CSIE500 Manuale utente

AEG

AEG Competence 5731 V Manuale utente

Euromaid

Euromaid ES60 Manuale utente
