Baumatic BHI710 Manuale utente

BHI710

70cm Front

touch control

induction zone hob

User Manual for your Baumatic

BHI710

60 cm Touch control

induction zone hob

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 06/04/11

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 - 11

Electricaldetails 10

Ceramic hob surface layout 10

Control panel layout 11

Using the ceramic hob 11 - 21

Beforefirstuse 11

Touchcontrols 12

Switchingthehobon 12

Switching on a cooking zone and setting a power level 12 - 13

Switching off a cooking zone gradually 13

Switching off a cooking zone instantly 14

Switchingthehoboff 14

Residualheatindicator 15

Boosterfunction 15-16

Pansensor 16

Cookware that is suitable for an induction hob 16 - 17

The hob timer (countdown mode) 17 - 18

The hob timer (linked to a cooking zone mode) 18

Locking the hob top 19

Safetycut-off 19

Hob guidelines 20 - 21

Cleaning and maintenance 21 - 22

Cleaning the ceramic hob top 21

Aftereachuse 21

Cleaningtable 22

Using a ceramic hob scraper 22

Using a specialist ceramic hob cleaner 22

Installation 23 - 29

Positioning 23-24

Installing above a built under oven 24

Unpacking the appliance 24

Installing the appliance 25 - 26

Electricalconnection 27

Connecting the mains supply cable 27 - 29

Replacing the mains supply cable 29

My appliance isn’t working correctly 30 - 32

Errorcodes 31-32

Contactdetails 33

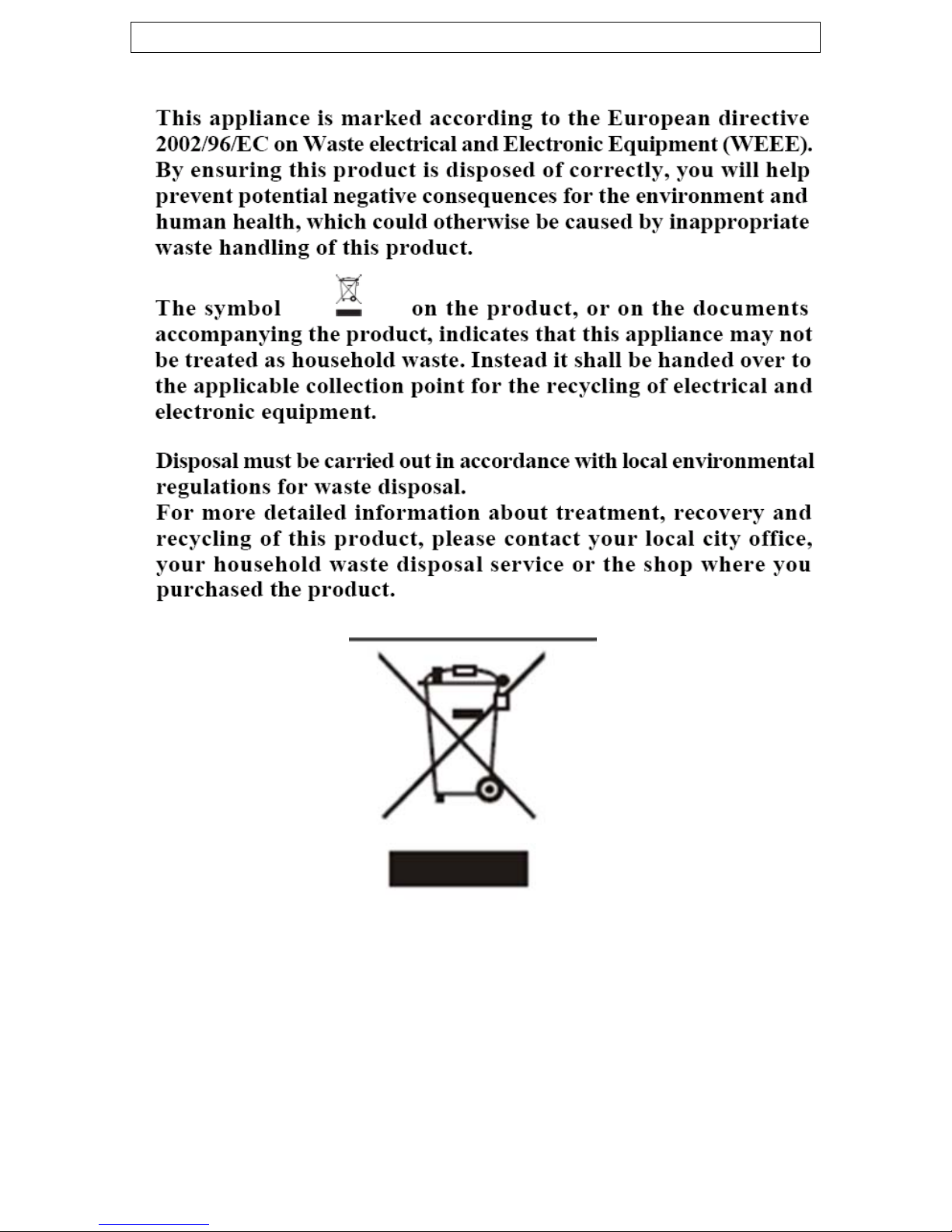

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

ooklet, please contact the Baumatic Advice Line.

ehold use and for

ambient temperature of the

scolouration at

of this temperature limit, will be the liability of

Guarantee. The foregoing does not

t of Baumatic Ltd.

ld not use this appliance to store items on or as a work

kept away

atic service

General Information

This appliance is designed for domestic housothe cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreemen

will invalidate any warranty or liability claim.

oYou shou

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baum

engineers or their authorised service agent.

hild Safety

ce at any time. During and after use, all

surfaces will be hot.

se ensure that they are kept under close supervision

at all times.

uld only be allowed to utilise the appliance

when supervised.

eneral Safety

ly be installed and connected by a

suitably qualified person.

uild the appliance into, meet with the relevant

standards.

s supply. Otherwise there is the risk of electric

shock occurring.

uring use

hob surface when it

is delivered should be removed before use.

the appliance, otherwise

there is a risk of burns being caused.

t with the hob surface when it is hot or any hot

cookware.

ng with fat and oil the appliance should

not be left unattended.

sure that all of the cooking zones are switched off after

use.

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the applian

oIf it is necessary for younger family members to be in the

kitchen, plea

oOlder children sho

oThe appliance should on

oCare should be taken to ensure that the units and work surfaces

that you b

oIf you notice any scratches, splits or cracks in the ceramic glass,

you should immediately switch off the appliance and disconnect

it from your main

oAny film or stickers that are present on the

oCare should be taken when utilising

oYou should not allow the electrical connection cables to come

into contac

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooki

oMake

oIMPORTANT: This ceramic induction hob fully complies

with current legislation regarding electro-magnetic

interference and is designed not to interfere with other

electronic appliances providing these comply with the

same legislation.

oAs the hob generates magnetic fields in its immediate

vicinity, pacemakers and active heart implants must be

designed to comply with relevant regulations. If in doubt,

you should consult the manufacturer of your device or

your doctor. In this respect, Baumatic can only guarantee

the conformity of our own product.

oIf an object made of metal, (e.g. saucepan lid, knife, fork

or spoon) is placed on a cooking zone that is switched on,

it can get hot.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and allowed to cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

Baumatic Ltd. declines any responsibility for injury or damage,

to person or property, as a result of improper use or incorrect

installation of this appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC dated 19/02/1973 Low Voltage Directive.

-89/336/EEC dated 03/05/1989 EMC Directive inclusive of

Amending Directive 92/31/EEC.

-93/68/EEC dated 22/07/1993 CE Marking Directive.

-89/109/EEC dated 25/01/1992 Materials that can touch food.

oThe manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

To avoid damaging your appliance

oThe ceramic glass can be damaged by objects falling onto it.

oThe ceramic glass edge can be damaged by knocks from

cookware.

oCast iron and cast aluminium cookware with damaged bases

may scratch the ceramic surface if they are dragged across it.

oPans should be lifted on and off the hob surface and not

dragged.

oCooking zones should not be switched on without cookware

placed on it. Also the cookware should not be empty.

oFood or liquid that has high sugar content may damage the hob

top, if it comes into contact with the ceramic hob surface. Any

spillages should be wiped up immediately, however this may not

prevent the hob surface from becoming damaged.

Specifications

Product dimensions: Aperture dimensions:

Depth: 520 mm Depth: 565 mm

Width: 700 mm Width: 495 mm

Height: 58 mm

Product specifications:

o1 x 2.00 kW induction zone (Ø 180 mm)

o2 x 1.40 kW induction zone (Ø 180 mm)

o1 x 2.00 kW induction zone with booster option (Ø 180 mm)

oFront touch control operation

oTimer

oAuto pan detection

o2 independent induction generators

o4 individual residual heat indicators

oSafety lock

oSuitable for installation above built-under ovens. IMPORTANT:

Providing that the specific installation instructions in this

manual are followed.

Standard accessories

oCeramic hob scraper

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 30 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 7.2 kW

Mains Supply Lead: 3 core x 6 mm² (not supplied)

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Ceramic hob surface layout

A = 1.40 kW induction zones (Ø 180 mm)

B = 2.00 kW induction zone (Ø 180 mm)

C = 2.00 kW with 2.6 kW booster option (Ø 180 mm)

D = Control panel
